N45 1/2"x1/4"x1/4" Neodymium Rare Earth Block Magnet

SKU:
NB0084-45NM
Brand:
Weight:
0.16 Ounces
Rating:
Availability:
Usually ships in the next business day
Shipping:
Calculated at checkout
MSRP:
$0.79
Your Price:
$0.61 (You save $0.18)


Description

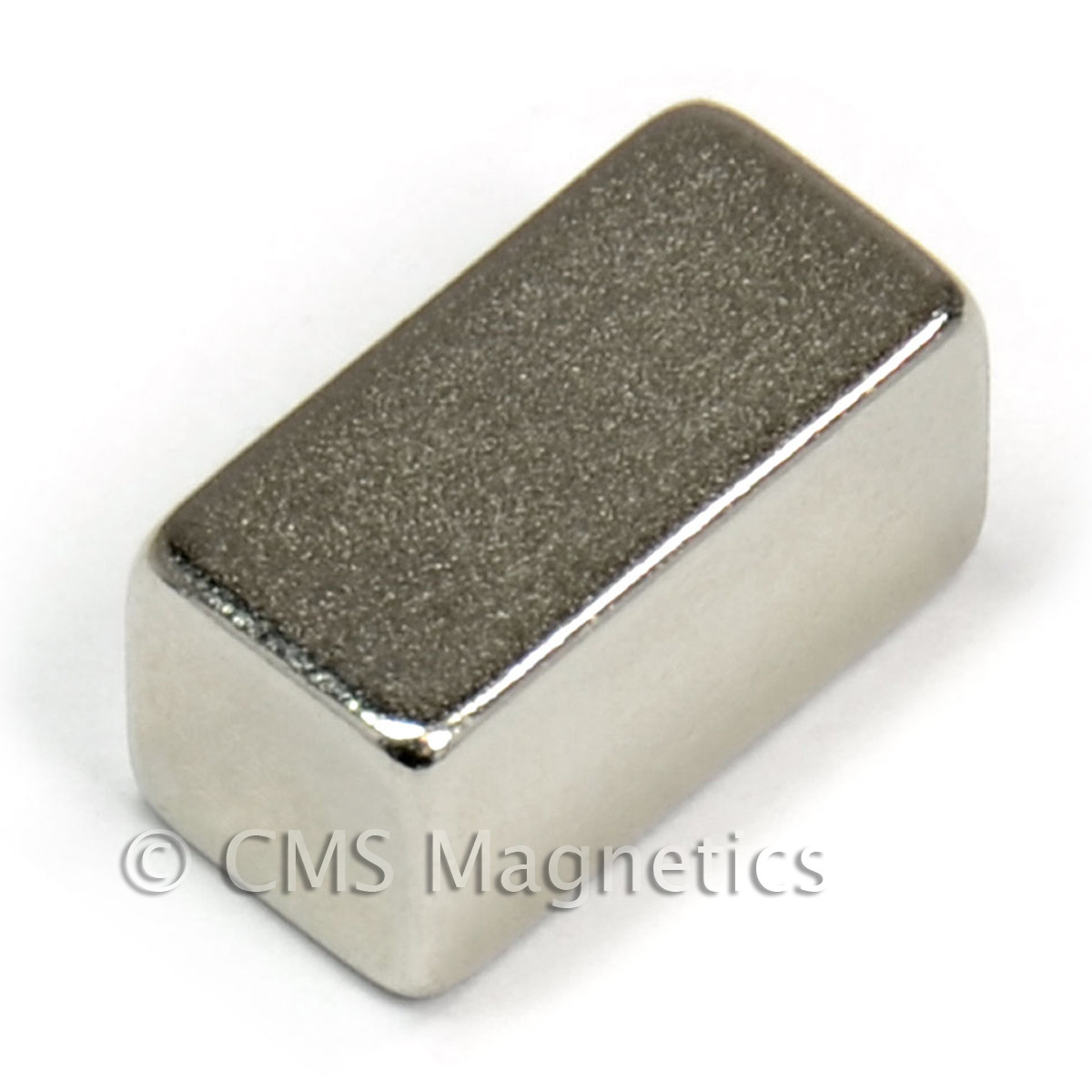

This powerful neodymium brick magnet measures 1/2" in length, 1/4" in width, and 1/4" in thickness and is made of a grade N45 neodymium, iron, and boron magnetic alloy blend. This magnetic blend is patent licensed and made under the ISO 9001 quality control systems and are plated in a nickel-copper-nickel triple layer coating for a shiny corrosion resistant finish. This magnet has innumerable uses as a holding magnet, but is also great for an assortment of both industrial and personal applications and can be used in an almost unlimited amount of ways.

Please note that all neodymium rare earth magnets are fragile and require extreme caution when handling due to their brittle nature and to avoid injury due to pinching.

  • Material: Sintered NdFeB. Grade N45
  • Gauss Rating: 13,500 Gauss
  • Holding Power: 9.7 lbs

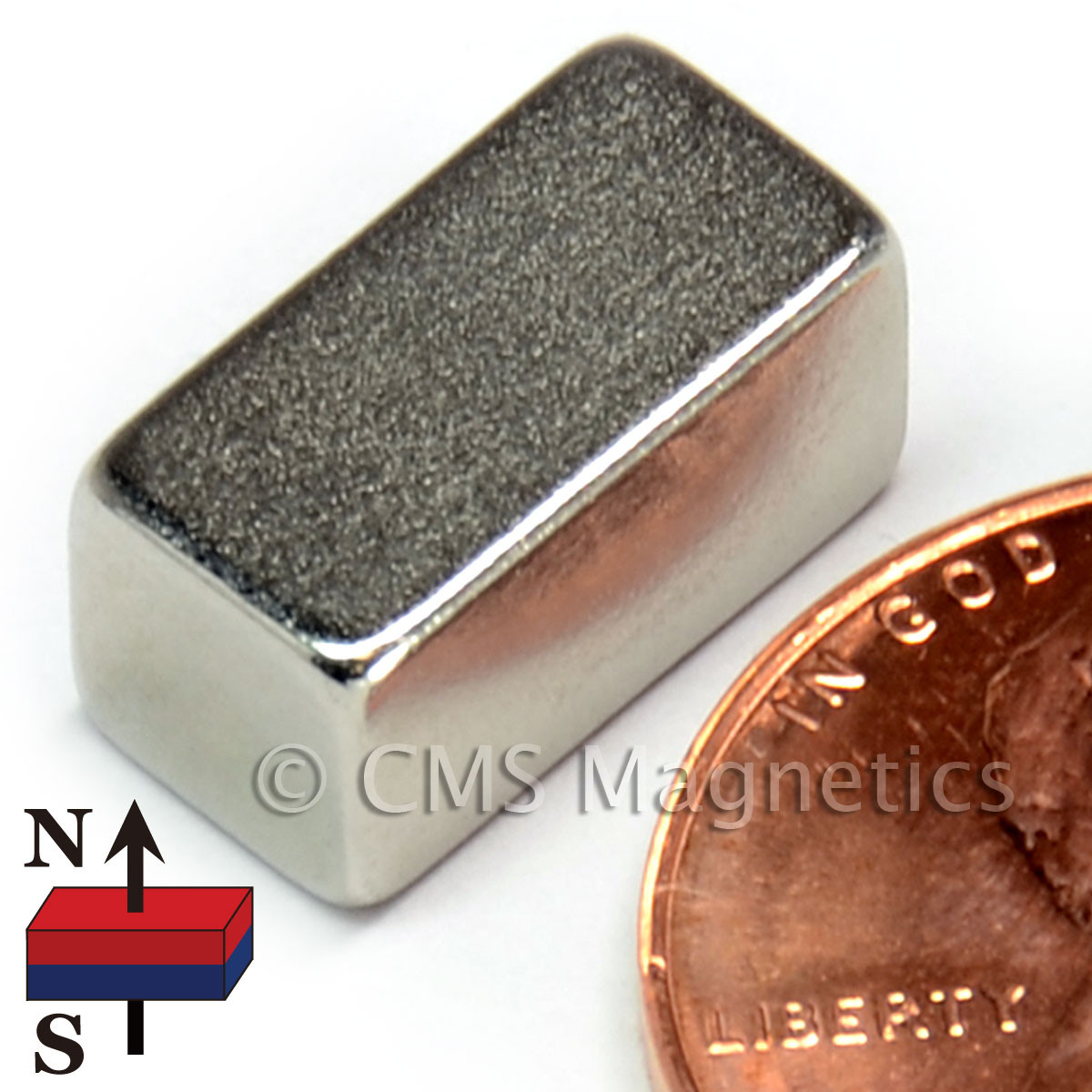

  • Pole Orientation: Magnetized through the thickness. The poles are on the 1/2" x 1/4" surfaces.
  • Coating: Ni+Cu+Ni 3 layer coating, the best available.
  • Tolerance: The tolerances of all the dimensions are +/-0.002in with coating.

Notes:

  1. All magnets are fragile and may chip or break. Please follow our instructions to handle this magnet. If used properly this magnet can last for a life time
  2. Keep it away from pacemakers and children under 5 years old.
  3. Commercial use only

Warranty Information

This product is covered by 10 year warranty on the magnetic strength under normal usage. Used in the environment which has high temperature and virbation will void this warranty. The product should not be used in the outdoor or high humid or salty environment except extra insulation measurement is taken.

Other Details

Grade:
N45
Gauss Rating:
13,500 Gauss
Pulling Force:
9.7 lbs
Pole Orientation:
Thickness
Coating:
NiCuNi
Tolerance:
+/- 0.002in

Reviews

There are 1 review(s) for N45 1/2"x1/4"x1/4" Neodymium Rare Earth Block Magnet

  • Worth the wait. Matches specs.

    by Byron – 1st Feb 2013

    An important factor for me is the accuracy of the specifications. In this case I laser cut parts in advance of receiving my magnets and they ended up fitting perfectly. I didn't check with a caliper, but the dimensions were clearly very accurate and consistent. As you would expect with an N45 rating, these are very strong magnets. Be careful not to pinch your fingers between them! My only complaint is that the shipping could be a little faster. I ordered several other items from other companies located similarly far away in the same day with the same shipping and my magnets took several additional days to arrive. That said, I have ordered from this company before and will continue to do so in the future because they provide quality products at competitive prices.
