Product Description

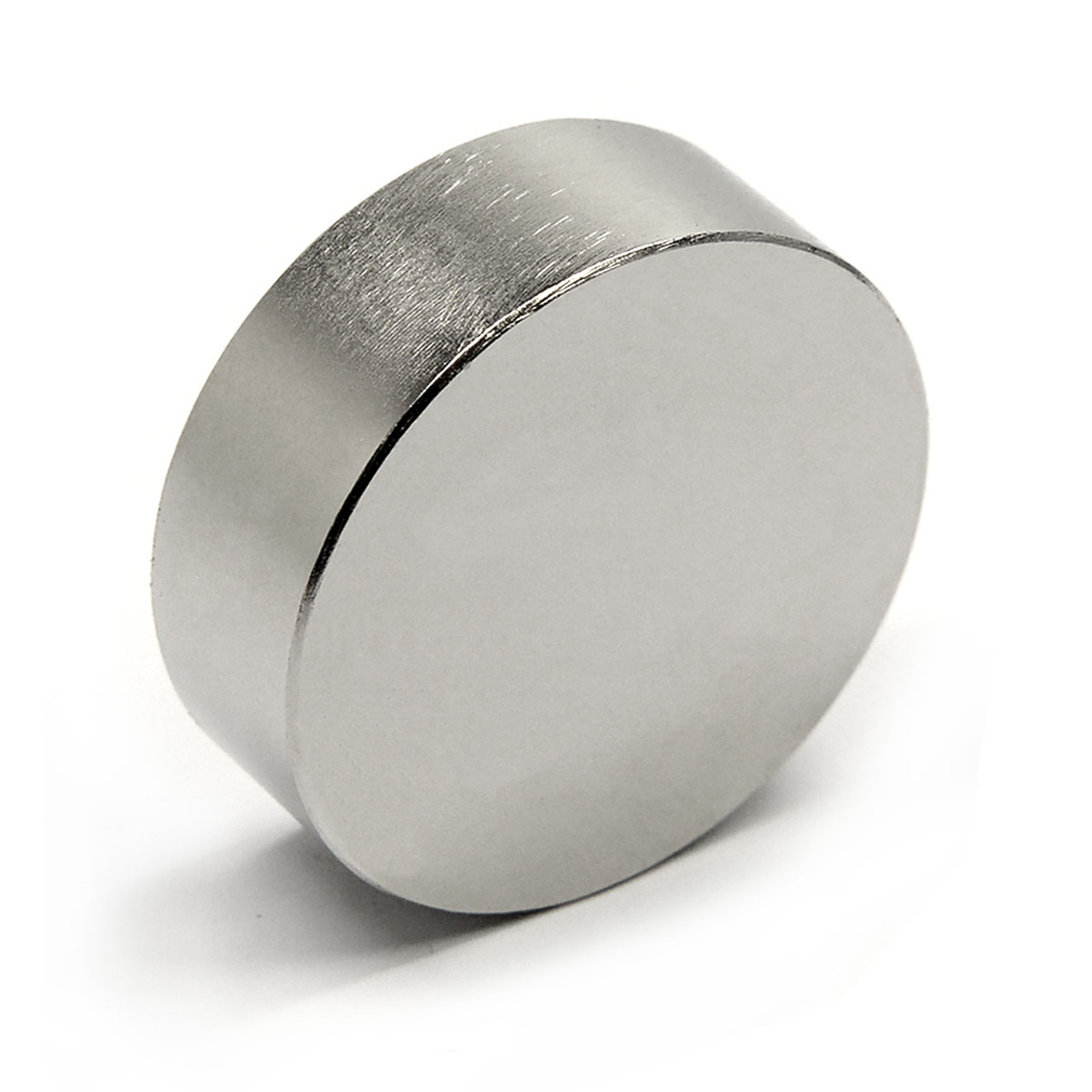

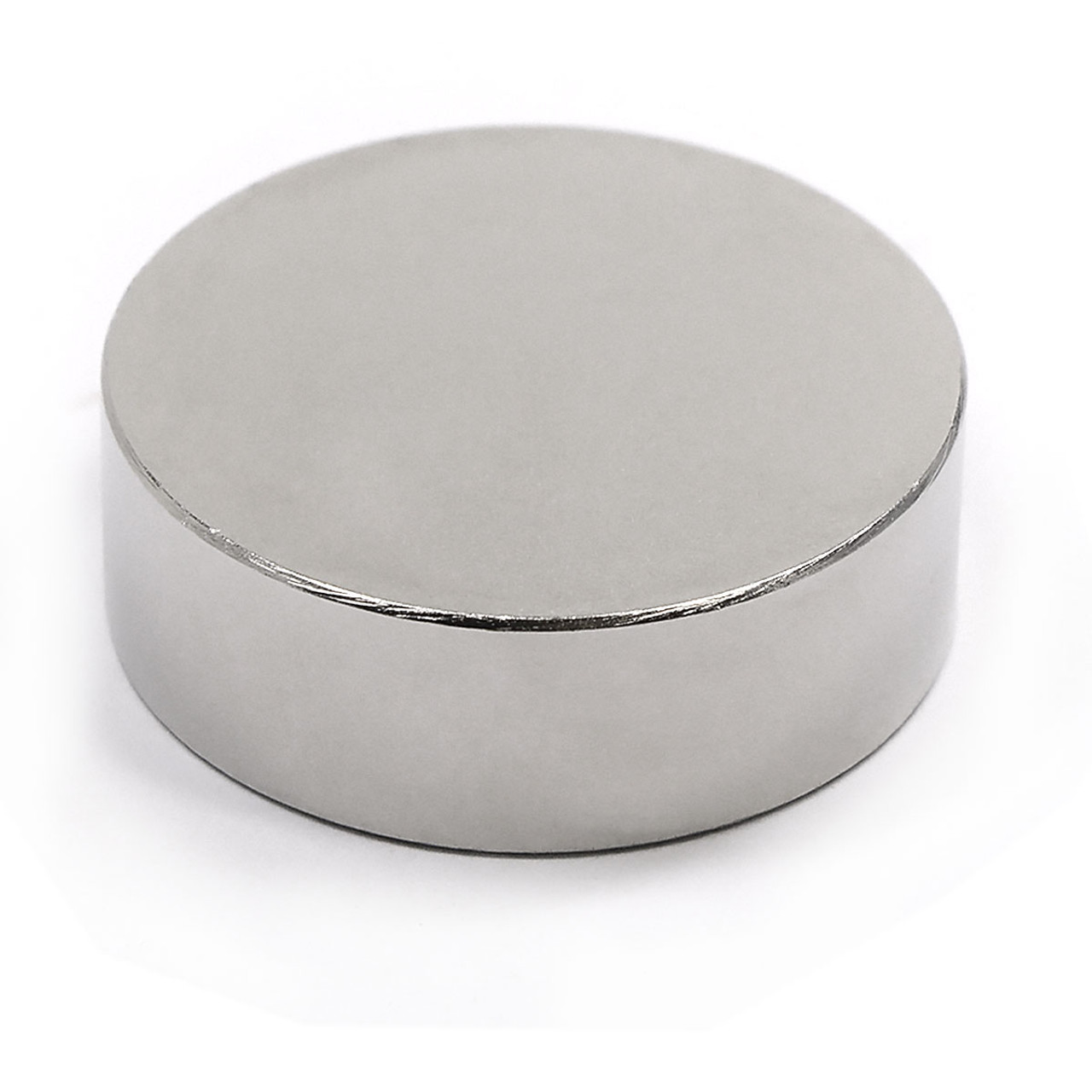

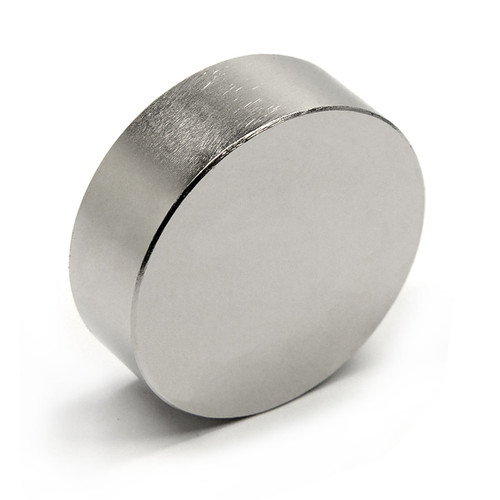

N52 Disc Magnet Dia 1.5x0.5" Neodymium Magnet

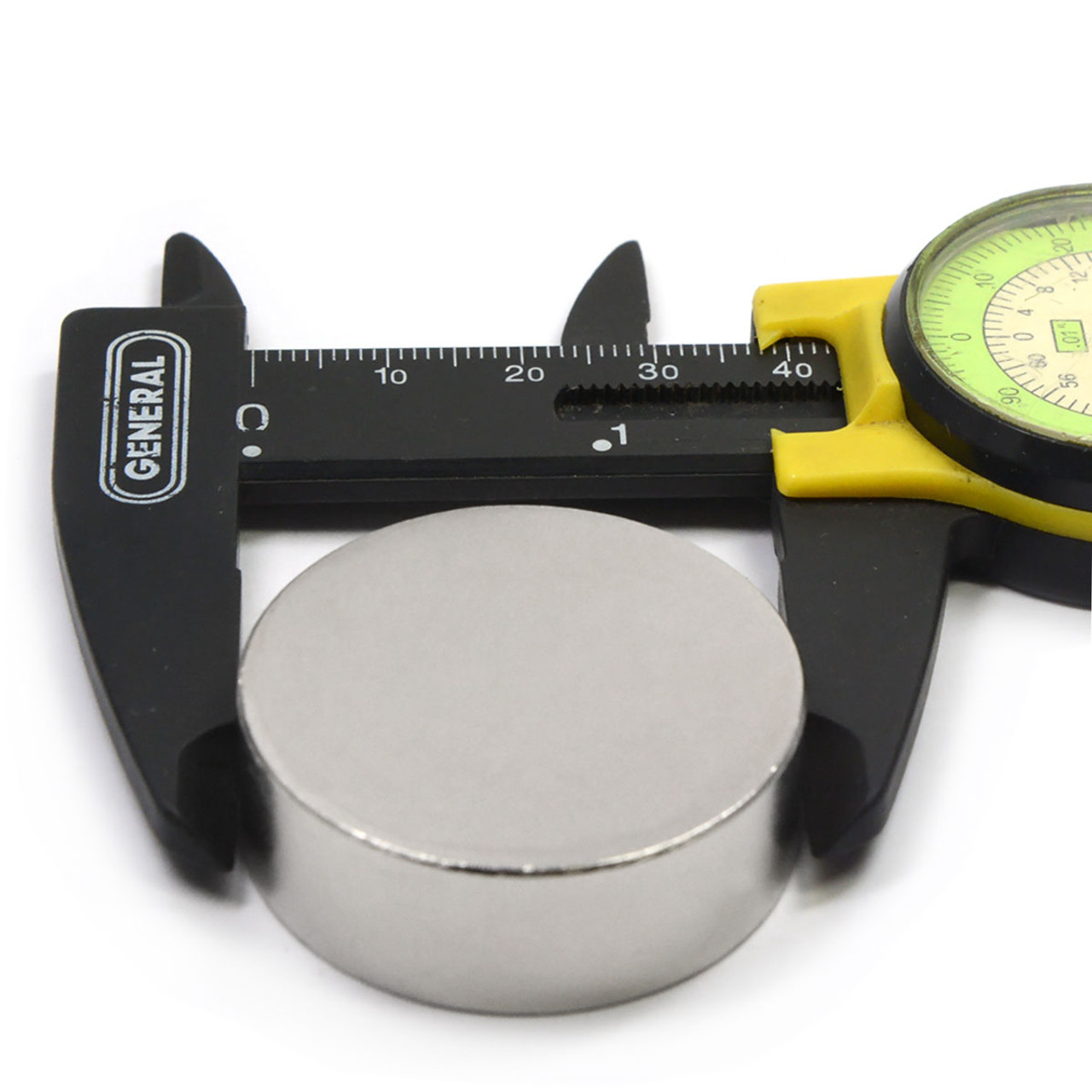

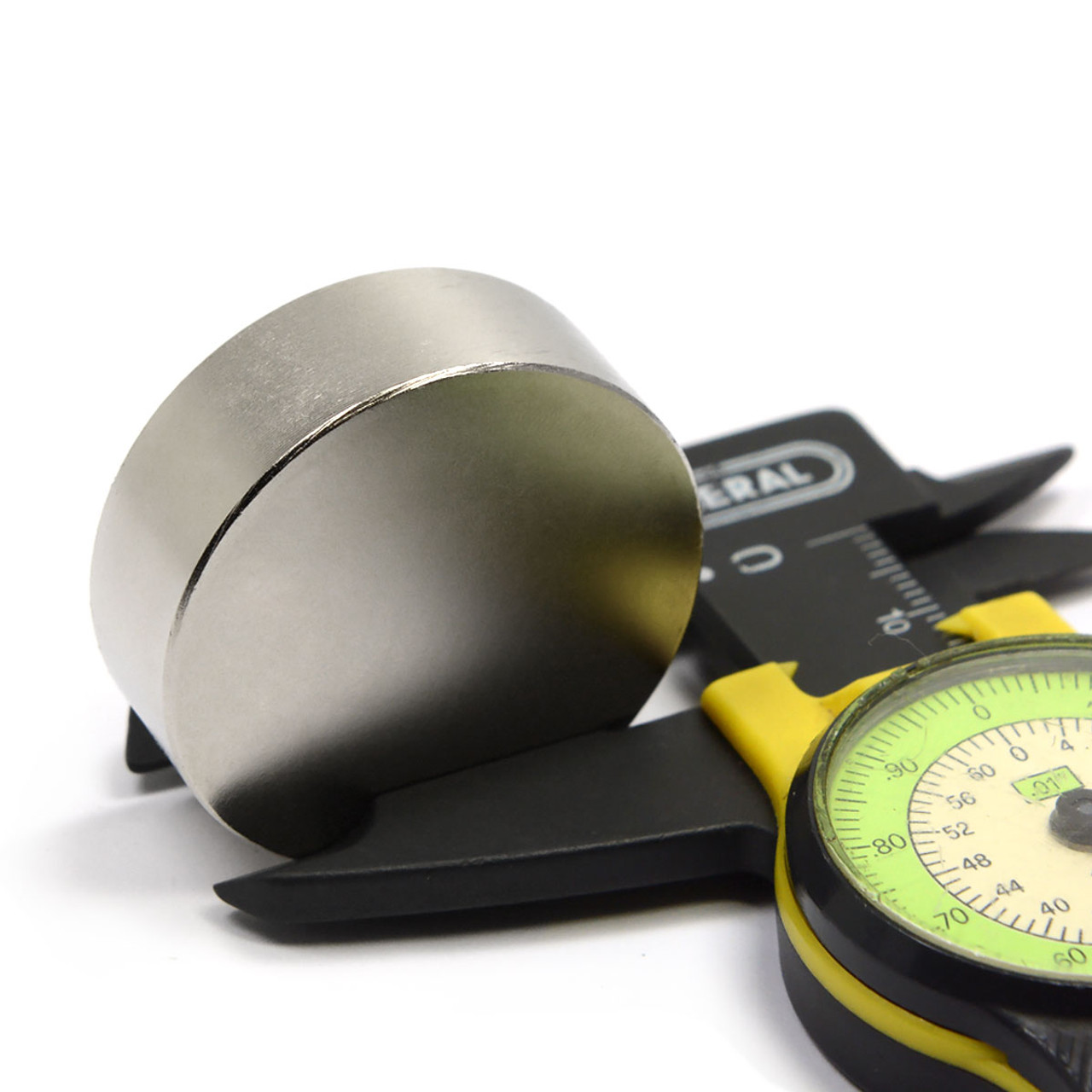

This disc magnet measure 1.5" in diameter and 1/2" thick and is made of grade N52 neodymium magnet alloy under ISO 9001 quality system. This magnet is plated in a nickel-copper-nickel triple layer coating for a shiny corrosion resistant finish. This disc magnet is great for holding purposes and is very versatile and robust; The applications of the disc magnet range from industrial applications to personal projects.
Features:
- Material: Sintered neodymium magnet, Grade N52 NdFeB rare earth magnets
- Remanence (Br) : 14,400 Gauss or 1.44 Tesla
- Pulling Force: 79 Lbs

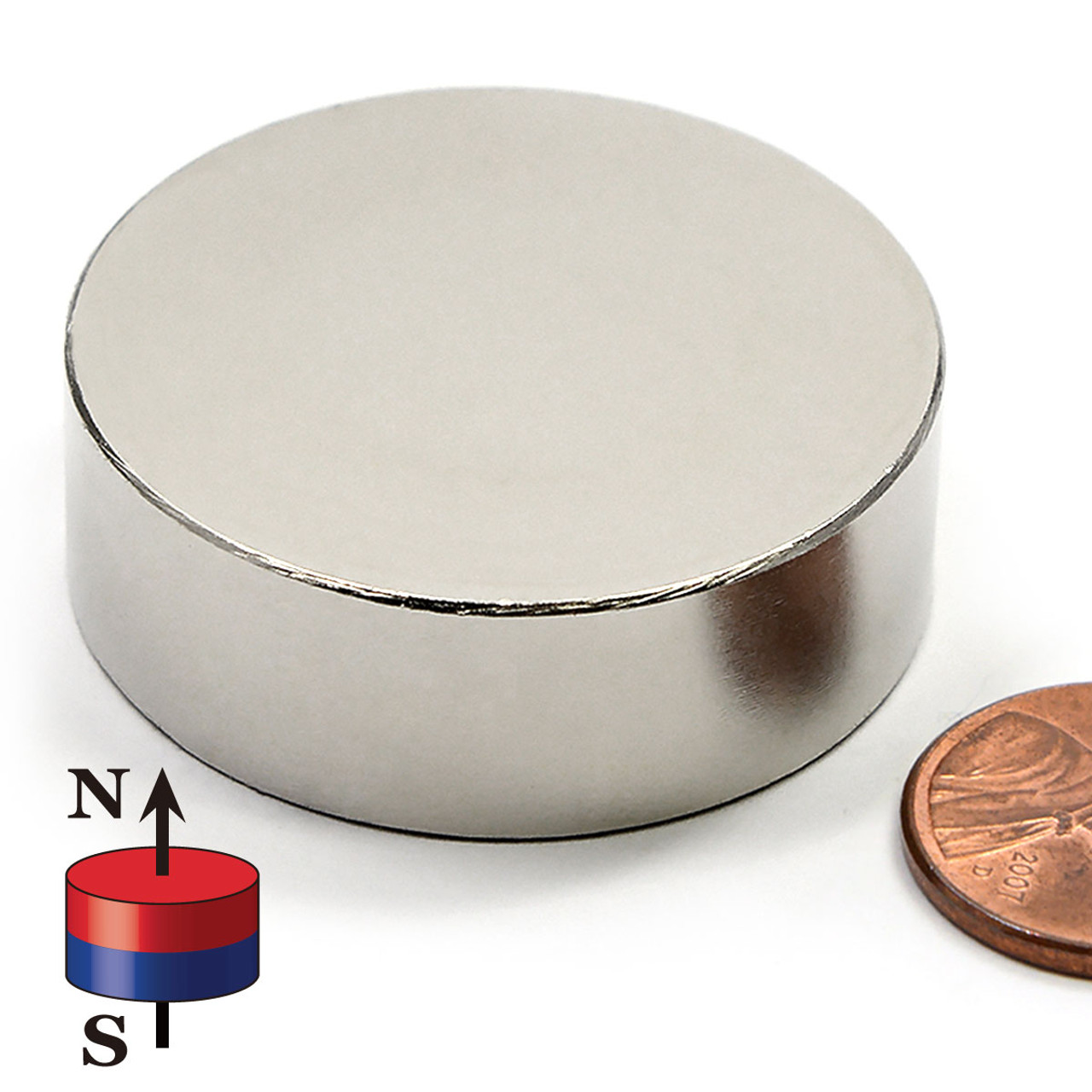

- Pole Orientation: Axially magnetized, poles are on the flat surfaces
- Coating: Ni+Cu+Ni 3 layer plated, the best coating available
- Tolerance: All are +/-0.002" with coating.
Warnings:
- All magnets may chip and shatter, but if used correctly this disc magnet can last a lifetime
- Keep away from pacemakers and children
- If damaged please dispose of completely.
Our small Neodymium Disc magnets are used both in the high tech arena and at the opposite end of the spectrum by individual hobbyists, inventors & tinkerers. These Disc magnets are neodymium strength grade 52. These Disc magnets are Coated in a Nickel, copper nickel layered plating for both protection of the magnet & it gives the magnet that nice shiny silver finish. N52. Neodymium is actually an alloy consisting of the Neodymium magnetic material, iron & boron. These Disc Magnets are typically used To help keep objects secured, for personal projects, crafts and closures, Hold things up, Hold things down, hold Curtains together or keep things fastened to any ferrous surface.
Techie Characteristics of These Neodymium Disc Magnets
|
|||||||||||||||||||
|

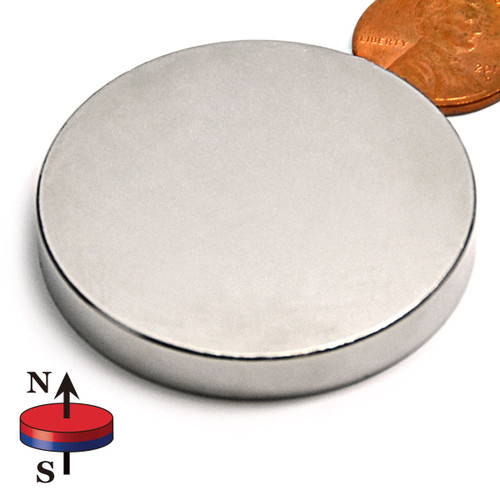

Other Magnets That Closely Match Your Search
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Product Reviews
2 Reviews
-
GRADE N52 DISC NEODYMIUM MAGNETS DIA 1-1/2 X 1/2" NDFEB RARE EARTH MAGNET
Great first experience with this company. The magnets I order are high quality and very strong. Good for lots of applications where strong pull force in a small volume is required. Do not let the size fool you, this is a serious magnet if you are new to strong magnets. This one will draw blood if you get a finger coughs between it and an object. Not for unsupervised children.
-
Medical use for strong disc
I am very carefully using this very strong disc to relieve a shoulder problem. Initial results from this disc are better than the weaker one that it replaced. This is a very strong magnet and it must be applied and handled very carefully because it can hurt you.
