Product Description

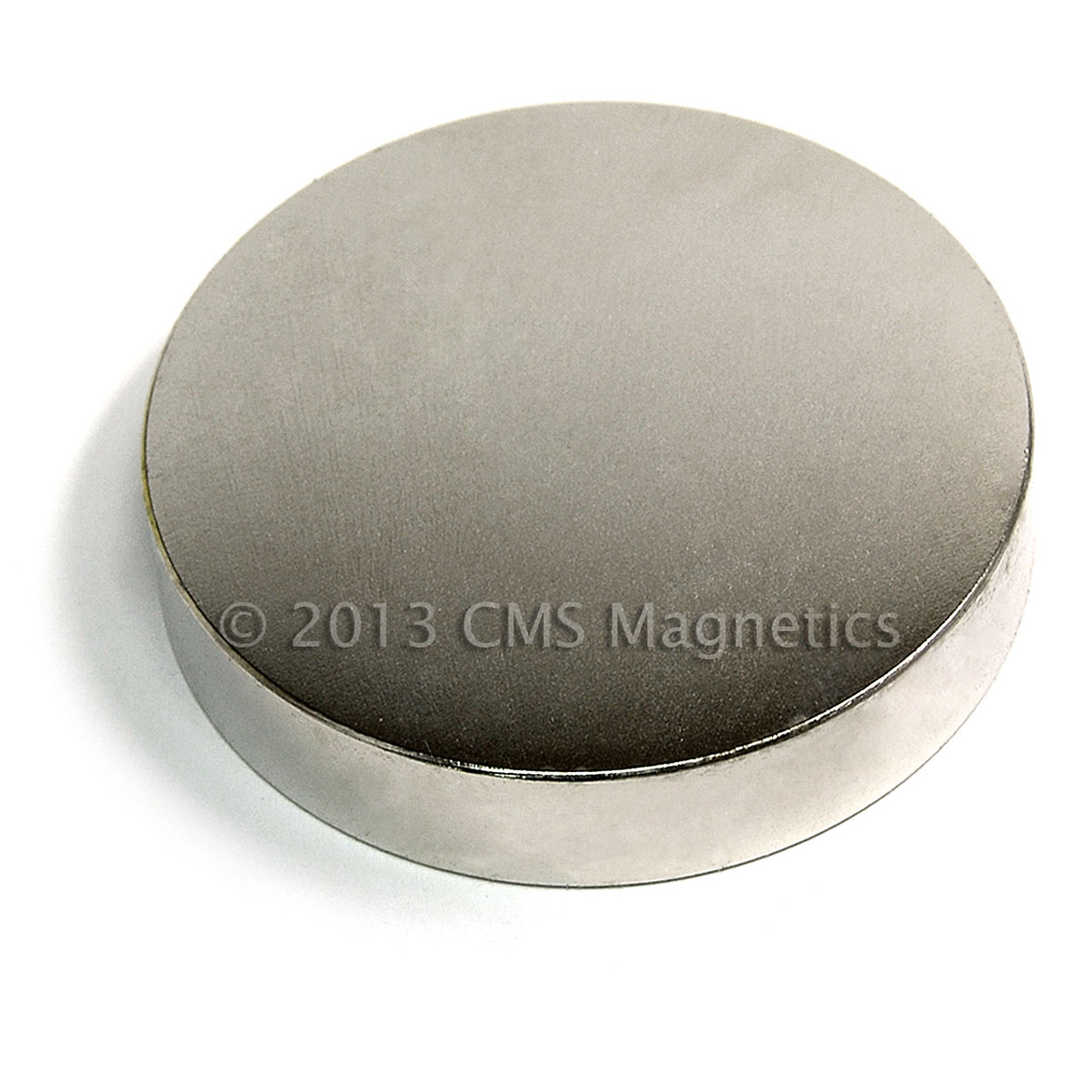

N52 Neodymium Disc Magnets 2-1/2"x1/2" Super Powerful Rare Earth Disc Magnets

Name: N52 Neodymium Magnets Dia 2-1/2 x 1/2" Super Powerful NdFeB Rare Earth Disc Magnets
Brand: CMS Magnetics
SKU: ND0586-52N
Price: 39.65 USD
Availability: InStock
Rating: 5 (1 reviews)

These N52 Disc Neodymium Magnets measure 2 1/2" in diameter and 1/2" thick and is made of strongest grade neodymium, iron, and boron magnetic alloy blend. This magnetic blend is patent licensed and made under the ISO 9001 quality systems.

Applications: Majorly used for secure or holding purposes onto ferrous surfaces or for magnetic separations. It is also a good magnet for DIY wind generator, and school science projects.

Material: Sintered neodymium magnets, Grade N52 NdFeB
Remanence: 14,400 Gauss or 1.44 Tesla ( Residual Flux Density )
Pulling Force: 132 lbs

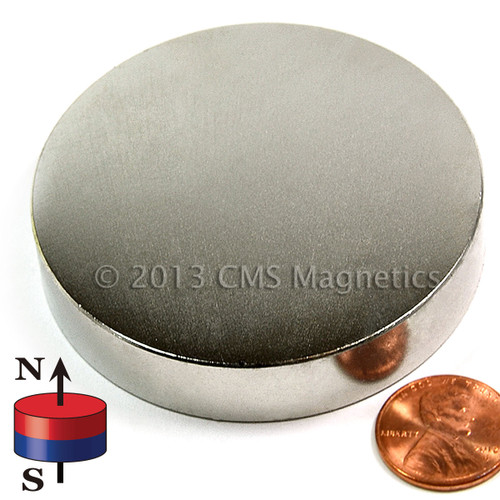

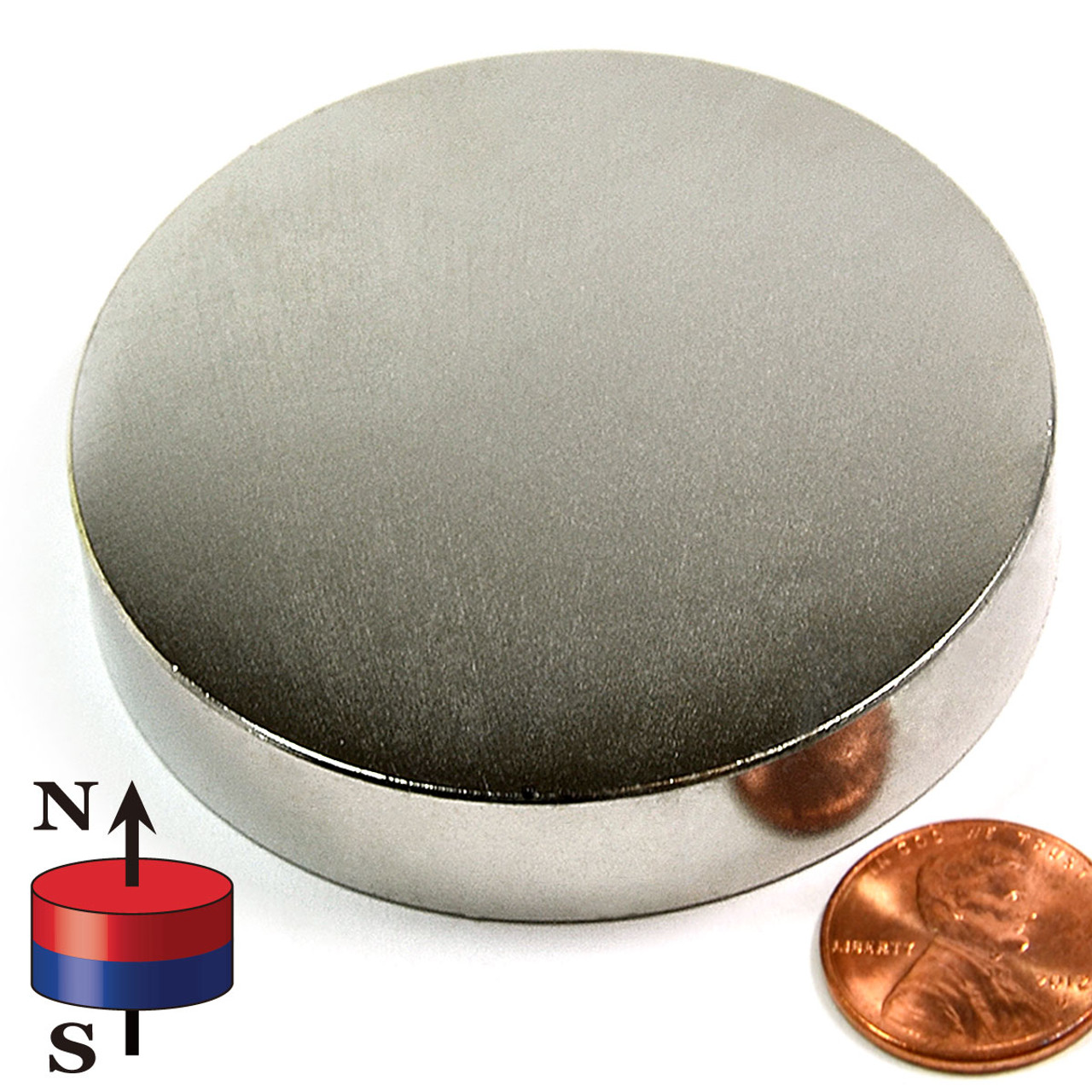

Pole Orientation: Axially magnetized, poles are on the two flat surfaces
Coating: Ni+Cu+Ni 3 layer plated, the best coating available
Tolerance: The tolerances of all the dimensions are +/-0.002 in with coating.

PLEASE NOTE:

All magnets may chip and shatter, but if used correctly can last a lifetime.
Keep away from pacemakers.
Not for children, parental supervision required.
COMMERCIAL USE ONLY.
If damaged please dispose of completely. Shards are still magnetized and if swallowed can inflict serious damage if magnets join inside the digestive tract.

Our small Neodymium Disc magnets are used both in the high tech arena and at the opposite end of the spectrum by individual hobbyists, inventors & tinkerers. These Disc magnets are neodymium strength grade 52. These Disc magnets are Coated in a Nickel, copper nickel layered plating for both protection of the magnet & it gives the magnet that nice shiny silver finish. N52. Neodymium is actually an alloy consisting of the Neodymium magnetic material, iron & boron. These Disc Magnets are typically used To help keep objects secured, for personal projects, crafts and closures, Hold things up, Hold things down, hold Curtains together or keep things fastened to any ferrous surface.

Techie Characteristics of These Neodymium Disc Magnets

Magnet	Measures Magnetic FieldStrength	Magnets Demagnetization Resistance	Magnetic Density	Temperature the material loses its magnetism
				(°C)	(°F)
Sintered Neodymium	0.6–0.7	600–1200	60–100	310–400	590–752

Other Magnets That Closely Match Your Search

1/8"x1/8" Neodymium Cylinder Magnet Rare Earth Cylinder Magnets	Gauss Rating:14,200 N and S poles are on the flat surfaces SKU:ND0068-50NM	N50	1.59 lbs	Buy now at Magnets For Sale & CMS
2-1/2"x1/2" NeodymiumDisc Magnet Rare Earth Disc Magnets Therapy Magnet	Therapy Magnet Gauss Rating: 12,800 Gauss Poles are on the two flat surfaces SKU ND0586-52N	N52	132 lbs	Buy now at Magnets For Sale & CMS
2-1/2"x1/4" Neodymium Disc Magnet Rare Earth Disc Magnets	Gauss Rating: 12,800 Gauss Poles are on the two flat surfaces SKU ND0585-52N	N52	66 lbs	Buy now at Magnets For Sale & CMS
2-1/2"x1/8" Neodymium Disc Magnet Rare Earth Disc Magnets	Gauss Rating:14,400 Poles are on the flat surfaces SKU:ND0584-52N	N52	35 lbs	Buy now at Magnets For Sale & CMS
2" x 1/2" Neodymium Rare Earth Disc Magnets	Gauss Rating: 13,200 Gauss Poles are on the two flat surfaces SKU:ND057-42NM	N42	89 lbs.	Buy Now at Magnets For Sale
3.2" x 1.8" Disc Neodymium Magnet - 638 LB Holding Power Liquidation	Gauss Rating: 14,400 gauss Poles are on the flat ends SKU:ND0597-52NM	N52	638lbs.	Buy Now at Magnets For Sale & CMS
3"x1" Neodymium Disc Magnet Rare Earth Disc Magnets	Gauss Rating: 12,800 Gauss Poles are on the two flat surfaces SKU ND0594-42NM	N42	266.8 lbs	Buy Now at Magnets For Sale
3"x1/8" Neodymium Rare Earth Disc Magnets Therapy LIQUIDATION	Gauss Rating: 12,800 Gauss Poles are on the two flat surfaces Therapy ND0591-42NM	N42	40 lbs	Buy Now at Magnets For Sale
3"x2" Neodymium Rare Earth Disc Magnets	Gauss Rating: 13,200 Gauss Poles are on the two flat surfaces SKU:ND0595-42NM	N42	533 lbs	Buy Now at Magnets For Sale
3/4"x1/10" Neodymium Rare Earth Disc Magnets	Gauss Rating: 13,200 Gauss Poles are on the two flat surfaces SKU:ND043-42NM	N42	6.7 lbs	Buy Now at Magnets For Sale
3/4"x1/16" Neodymium Disc Magnet Rare Earth Disc Magnets	Gauss Rating: 12,800 Gauss Poles are on the two flat surfaces SKU ND0425-42NM	N42	4.2 lbs	Buy Now at Magnets For Sale
3/4"x1/4" Neodymium Disc Magnet Rare Earth Disc Magnets	Gauss Rating: 12,800 Gauss Poles are on the two flat surfaces SKU ND046-52NM	N52	18.22 lbs	Buy now at Magnets For Sale & CMS
3/4"x1/8" Neodymium Rare Earth Disc Magnets	Gauss Rating: 14,200 Gauss Poles are on flat sides ND044-50NM	N50	9.6 lbs	Buy Now at Magnets For Sale & CMS

Warranty

This product is covered by 10 year warranty on the magnetic strength under normal usage. Used in the environment which has high temperature and virbation will void this warranty. The product should not be used in the outdoor or high humid or salty environment except extra insulation measurement is taken.

Product Videos

Custom Field

Material Neodymium

Grade N52

Pulling Force 132Lbs.

Pole Orientation Axially

Coating NiCuNi

Product Reviews

Write a Review

1 Review

5
Lenz's Law Demonstration

Posted by B on Jul 3rd 2018

Together with an 8-pound bar of copper, I was able to beautifully demonstrate Lenz's Law in my physics classroom. My students loved spinning the magnet next to it and watching it defy gravity as it slowly slides down the side of the copper bar.
