N52 Neodymium Disc Magnet 2-1/2 x 1/8" Rare Earth Disc Magnets

MSRP: $19.86
Was: $19.86
Now: $12.99
(You save $6.87 )
(1 review) Write a Review
SKU:
ND0584-52N
Condition:
New
Availability:
Usually ships in the next business day
Minimum Purchase:
2 units
Bulk Pricing:
Buy in bulk and save Bulk price

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 49 and pay only $12.61 each
  • Buy 50 - 99 and pay only $12.48 each
  • Buy 100 - 299 and pay only $12.22 each
  • Buy 300 - 499 and pay only $11.96 each
  • Buy 500 or above and pay only $11.42 each
Material:
Neodymium
Grade:
N52
Pulling Force:
35Lbs.
Pole Orientation:
Axially
Coating:
NiCuNi
Adding to cart… category.add_cart_announcement

Product Description

Neodymium Disc Magnet Grade N52 | Dia 2-1/2"x1/8" Rare Earth Disc Magnets

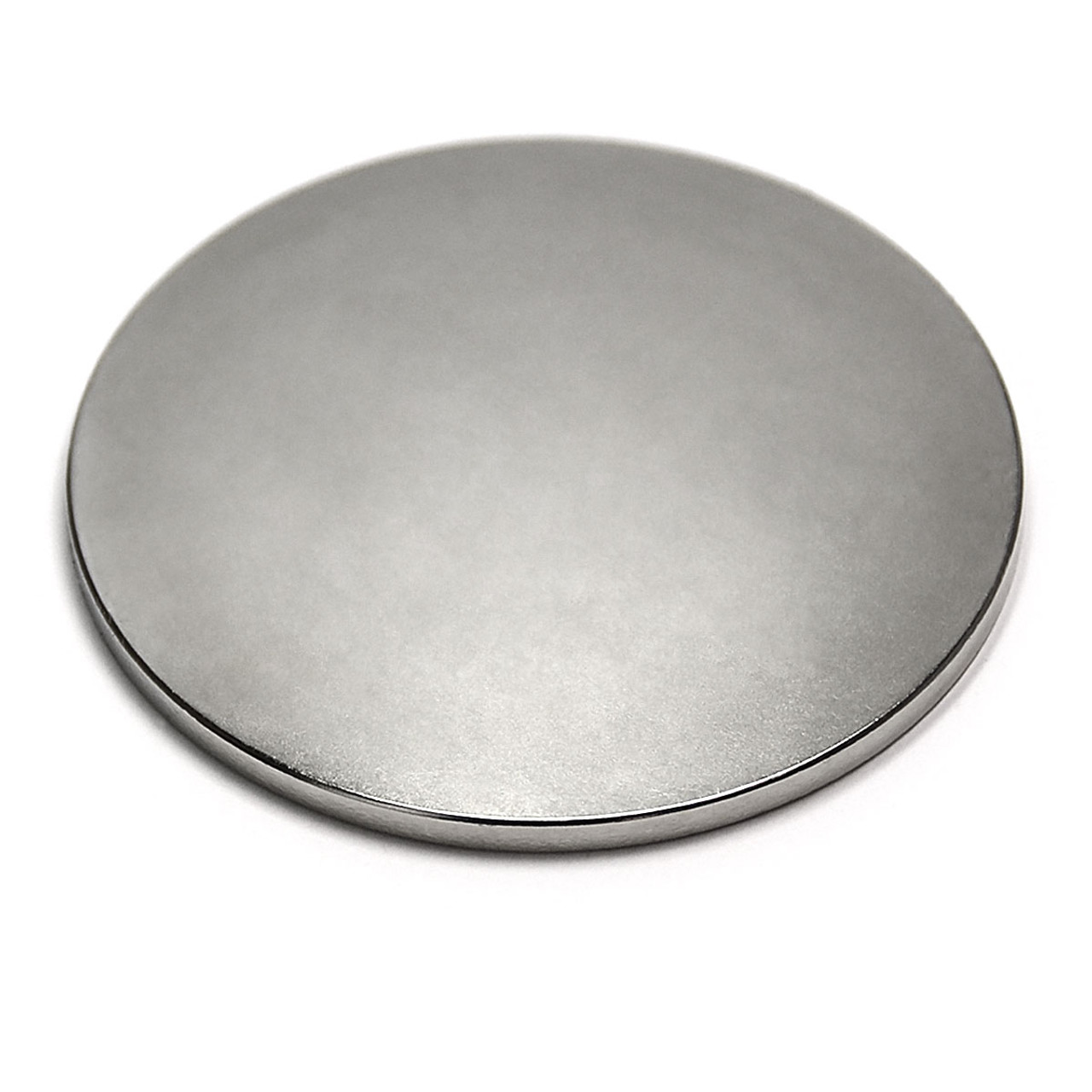

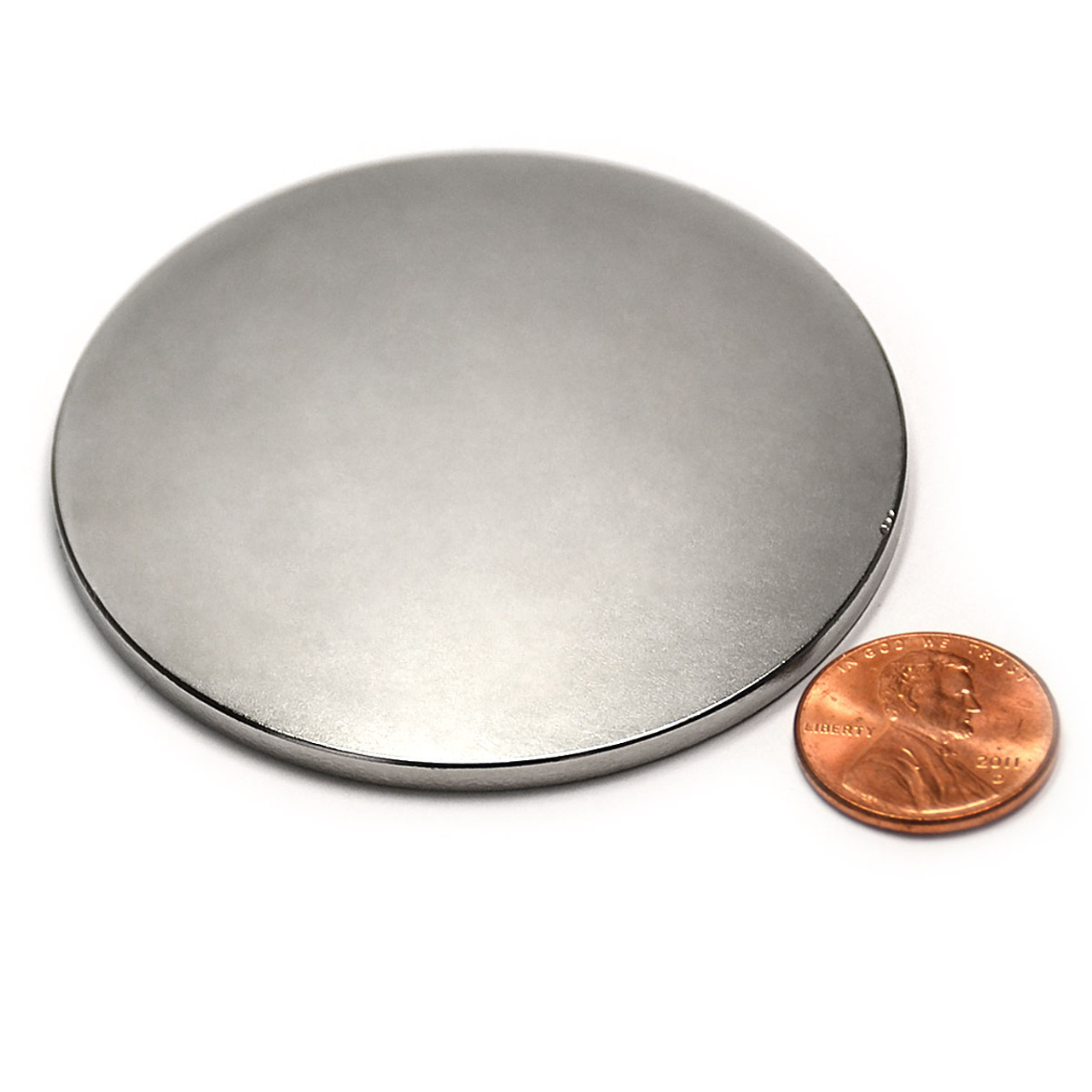

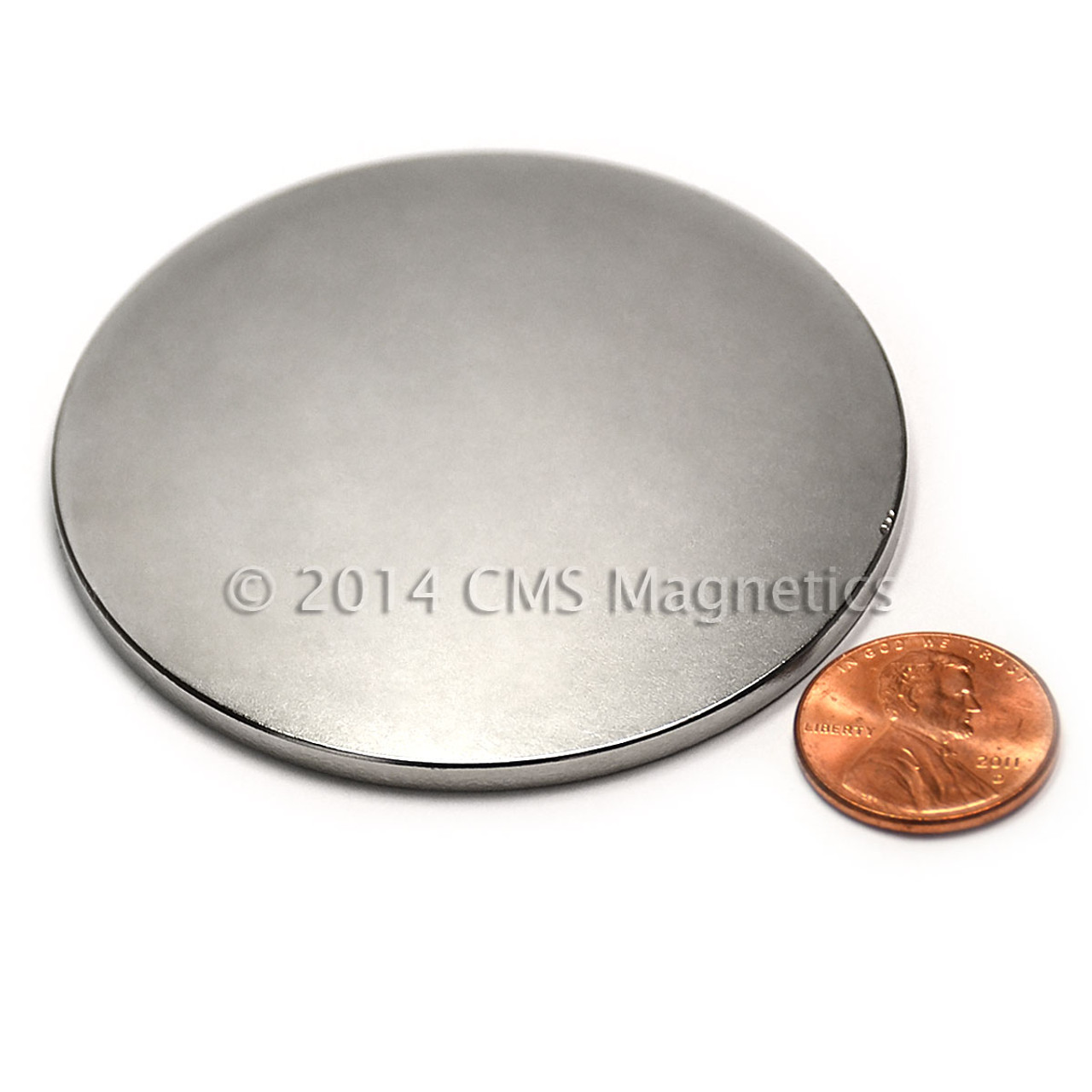

This Neodymium Disc Magnet measures 2.5" in diameter and 1/8" in thickness and is made of the grade N52 neodymium magnetic alloy blend. This magnetic blend is patent licensed and made under ISO 9001 quality systems. They are plated in a nickel-copper-nickel coating for a shiny corrosion-resistant finish. The North and South poles are on the flat sides. The pull force of this magnet is 35 lbs. This is a great item for use in personal projects as well as for crafts and closures and can also be used to help keep objects secured or fastened to any ferrous surface.

  • Material: Sintered Neodymium Magnet, NdFeB. Grade N52
  • Remanence: 14,400 Gauss or 1.44 Tesla
  • Holding Power : 35 lbs.

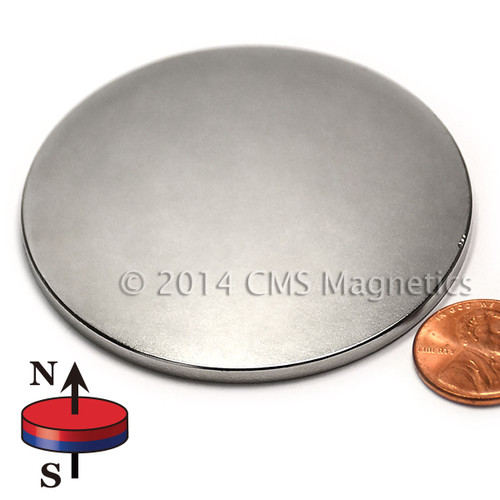

  • Pole Orientation: Axially magnetized, poles are on the two flat surfaces
  • Coating: Ni+Cu+Ni 3 layer plated, the best coating available
  • Tolerance: The tolerances of all the dimensions are +/-0.002 inches with coating.

PLEASE NOTE:

  • All magnets are fragile and may chip or shatter, but if used correctly they can last a lifetime.
  • Keep away from pacemakers.
  • Not for children, parental supervision required.
  • COMMERCIAL USE ONLY.
  • If damaged please dispose of completely. Shards are still magnetized and if swallowed can inflict serious damage if magnets join inside the digestive tract.

These large neodymium disc magnets are used both by professional and amateurs. These disc magnets are grade N52 neodymium magnets of rare earth material. These disc magnets are coated in Nickel, copper and nickel plating to protect the magnet & also gives the magnet a nice shiny finish.  Grade N52 is actually the strongest magnet grade available so far in the world.



Magnetic Characteristics of These Neodymium Disc Magnets



Magnetic Material

Measures Magnetic FieldStrength

Magnets Demagnetization Resistance

Residual Magnetic Flux Density (Tesla)

Working Temperature

(°C)

(°F)

Sintered Neodymium

0.6–0.7

600–1200

1.44

80

176



These Disc Magnets are typically used To help keep objects secured, for personal projects, crafts and closures, Hold things up, Hold things

down, hold Curtains together or keep things fastened to any ferrous surface.



Other Disc & Cylinder Magnets Closely Related To Your Search

0.095"x0.1" Neodymium Cylinder Magnet Rare Earth Cylinder Magnet Gauss Rating: 12,800 Gauss
Poles are on the flat surfaces SKU:ND002-40NM		 N40 0.59 lbs See More Information or Purchase At Magnets For Sale & CMS
1-1/2"x1/2" NeodymiumDisc Magnet Rare Earth Disc Magnets Gauss Rating: 14,500 Gauss Poles are on the two flat surfaces SKU ND0565-52N N52 79 lbs Buy now at Magnets For Sale & CMS
1"x1-1/2" Neodymium Cylinder Magnet Rare Earth Cylindrical Magnet Gauss Rating: 14,500 Gauss Poles are on the two flat surfaces SKU ND0555-52NM N52 127 lbs Buy now at Magnets For Sale & CMS
1"x3/16" NeodymiumDisc Magnet Rare Earth Disc Magnets Gauss Rating: 14,500 Gauss Poles are on the two flat surfaces SKU ND051-52NM N52 18.9 lbs Buy now at Magnets For Sale & CMS
1/2"x1-1/2" Neodymium Rare Earth Cylinder Magnet Gauss Rating: 12,800 Gauss Poles are on the two flat surfaces Therapy SKU:ND0413-42NM N42 26 lbs Buy Now at Magnets For Sale
Magnet neodymium n35 Uses include crafts & hobbies industial & high tech 1/2"x1/4" Neodymium Disc Magnet Rare Earth Disc Magnets Gauss Rating: 12,800 Gauss Poles are on the two flat surfaces SKU ND038-35NM N35 9.3 lbs Buy Now at Magnets For Sale
1/2"x2" Neodymium Cylinder Magnet Rare Earth Cylinder Magnets Diametrically Magnetized Diametrically Magnetized Gauss Rating: 12,800 Gauss Poles are on the two flat surfaces SKU ND0415-42NS N42 18.1 Lbs Buy Now at Magnets For Sale
1/2"x2/10"Disc Magnet NeodymiumRare Earth Disc Magnets Gauss Rating: 12,800 Gauss Poles are on the flat surfaces. SKU:ND037-42NM N42 9 lbs Buy Now at Magnets For Sale
1/8"x1/8" Neodymium Cylinder Magnet Rare Earth Cylinder Magnets Gauss Rating:14,200 N and S poles are on the flat surfaces SKU:ND0068-50NM N50 1.59 lbs Buy now at Magnets For Sale & CMS
2-1/2"x1/2" NeodymiumDisc Magnet Rare Earth Disc Magnets Therapy Magnet Therapy Magnet Gauss Rating: 12,800 Gauss Poles are on the two flat surfaces SKU ND0586-52N N52 132 lbs Buy now at Magnets For Sale & CMS
2-1/2"x1/4" Neodymium Disc Magnet Rare Earth Disc Magnets Gauss Rating: 12,800 Gauss Poles are on the two flat surfaces SKU ND0585-52N N52 66 lbs Buy now at Magnets For Sale & CMS

Warranty

This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.

Product Videos

Custom Field

Material Neodymium
Grade N52
Pulling Force 35Lbs.
Pole Orientation Axially
Coating NiCuNi

Product Reviews

Write a Review

1 Review

  • 5
    Disc Magnets

    Posted by Evan Bowman on May 13th 2019

    Nice product
