Product Description
N42 Dia 1/4x1/5" Disc Magnet | Neodymium Disc Magnet | Small Disc Magnets

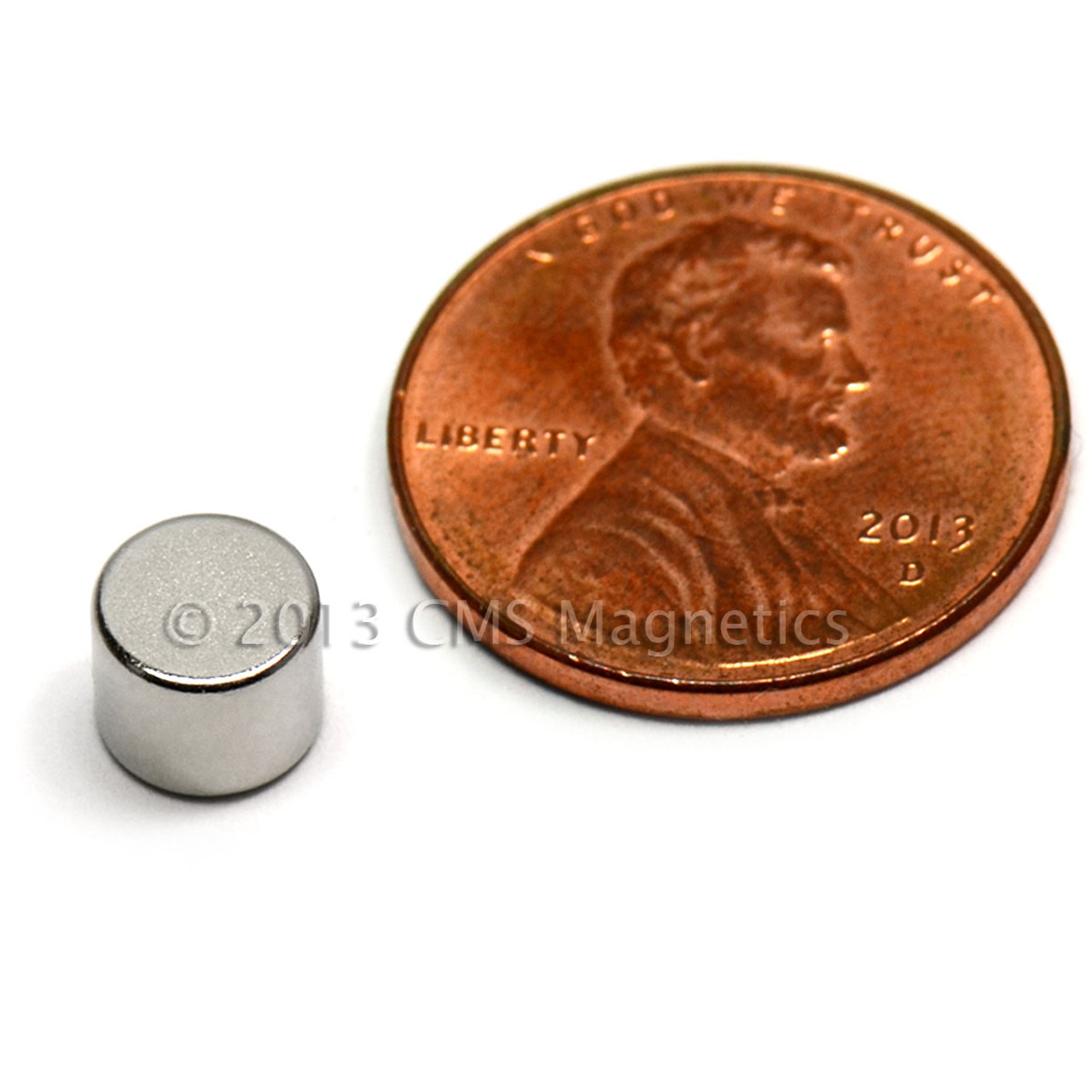

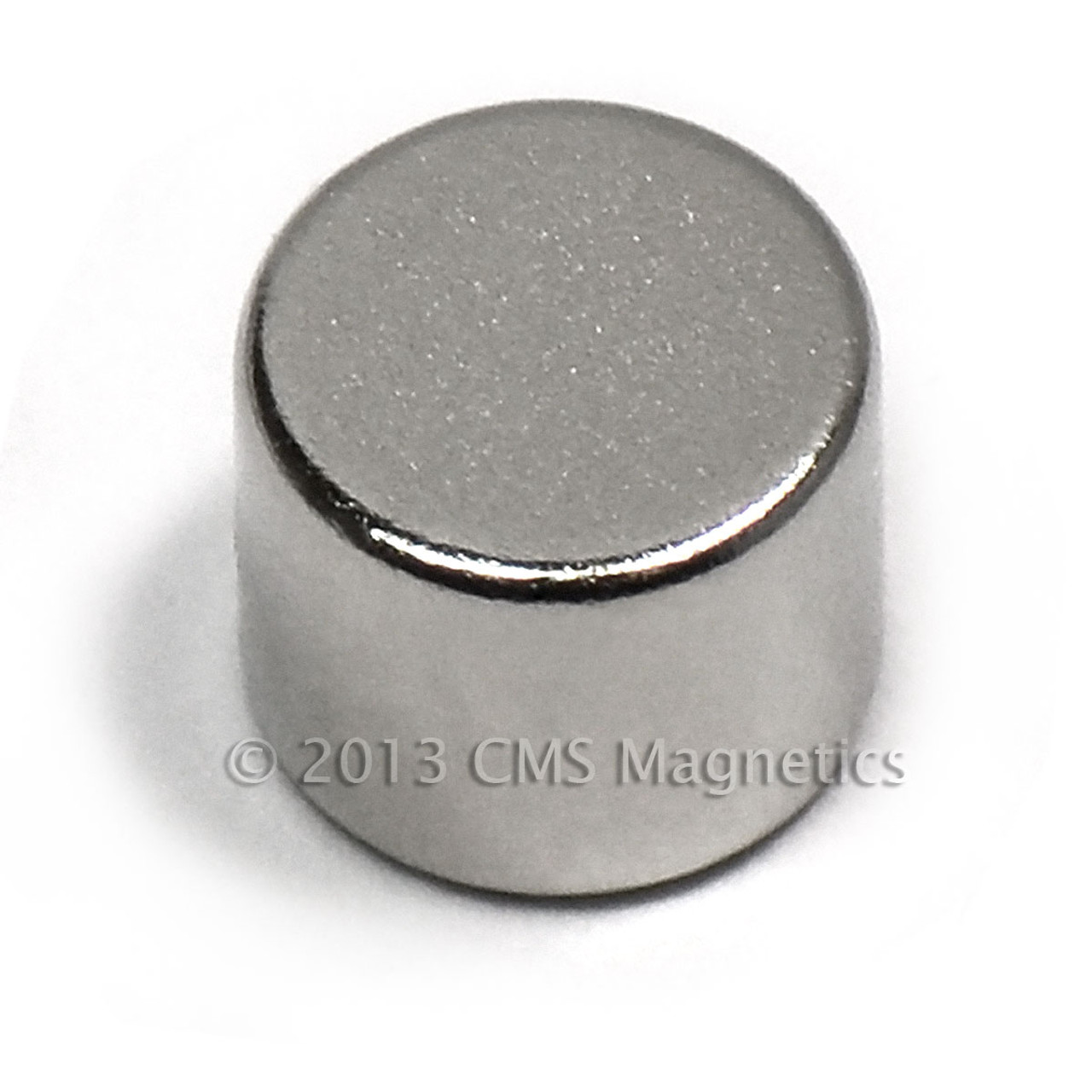

This neodymium disc magnet measures 1/4" in diameter and 1/4" in thickness and consists of a grade N42 neodymium, iron, and boron magnetic neodymium alloy made under ISO 9001 quality systems. This neodymium disc magnet is plated in a nickel-copper-nickel coating for a shiny corrosion-resistant finish.
Features:
- Material: Sintered neodymium magnet, grade N42 rare earth
- Remanence:13,200 Gauss or 1.32 Tesla
- Pulling Force: 4.5 Lbs.

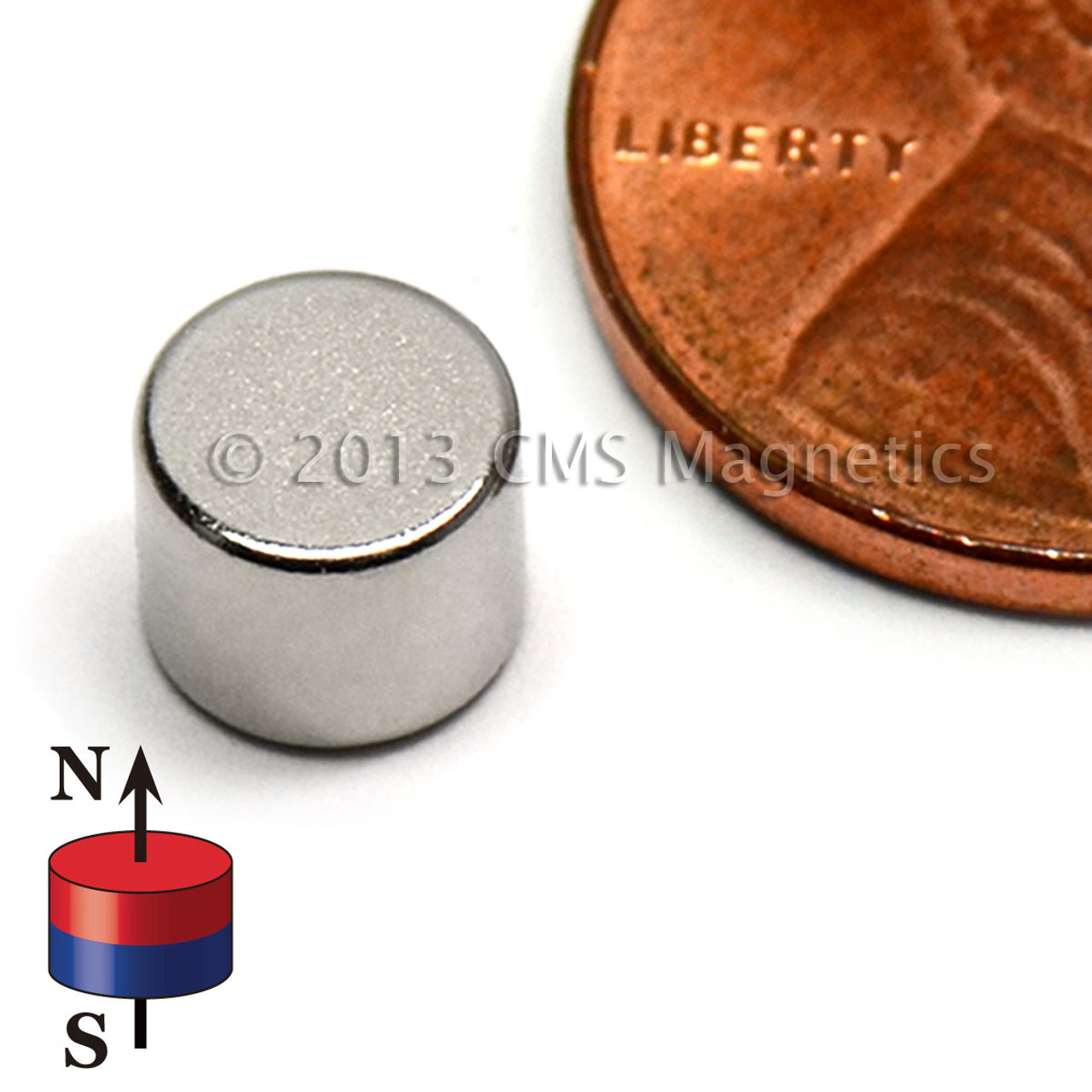

- Pole Orientation: Axially magnetized, i.e. the N and S poles on the flat surfaces
- Coating: Ni+Cu+Ni, the best coating available
- Tolerance: All are +/-0.002" with coating
- Applications: This magnet is great for industrial applications and personal projects
Warnings:
- All magnets may chip and shatter, but if used correctly it can last a lifetime
- Keep away from pacemakers and children
- If damaged please dispose of completely. Shards may be sharp and cut fingers
Product Links to Other Closely Related To Your Search
Strong Neodymium Disc Magnets N35 ,N40, N42, N45, N50 & N52 at CMS Magnetics & Magnets for Sale Neodymium Strong Disc Magnets Come in Many Sizes & Grades. CMS has Samarium Cobalt Disc Magnets and Ceramic Disc Magnets as Well.
 | N42 Neodymium Disc Magnet 7/8"x1/2" Epoxy Coated Rare Earth Disc Magnet | Go |
 | N42 Neodymium Disc Magnet 7/8"x3/8" LIQUIDATION- Rare Earth Disc Magnet | Go |
 | N42 Neodymium Disc Magnet 4"x1" Rare Earth Magnet -LIQUIDATION | Go |
 | N42 Neodymium Disc Magnet 5/16"x1/4" Rare Earth Disc Magnet | Go |
 | N45 Neodymium Disc Magnet 3/16"x1/2" Rare Earth Disc Magnet | Go |
 | N45 Neodymium Disc Magnet 4 mm x 1 mm Rare Earth Disc Magnet | Go |
 | N45 Neodymium Disc Magnet 3/8"x1/16" Rare Earth Disc Magnet | Go |
 | N45 Neodymium Disc Magnets 1"x1/16" Rare Earth Disc Magnet | Go |
 | N52 Neodymium Disc Magnet 1/2"x1/8" Rare Earth Disc Magnet | Go |
 | N42 Neodymium Disc Magnet 3/4"x3/8" Rare Earth Disc Magnet | Go |
 | N42 Neodymium Disc Magnet 5/8"x1/8" with #6 Countersink | Go |
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Videos Hide Videos Show Videos
Custom Field
Material Neodymium
Grade N42
Pulling Force 4.5Lbs.
Pole Orientation Axially
Coating NiCuNi
