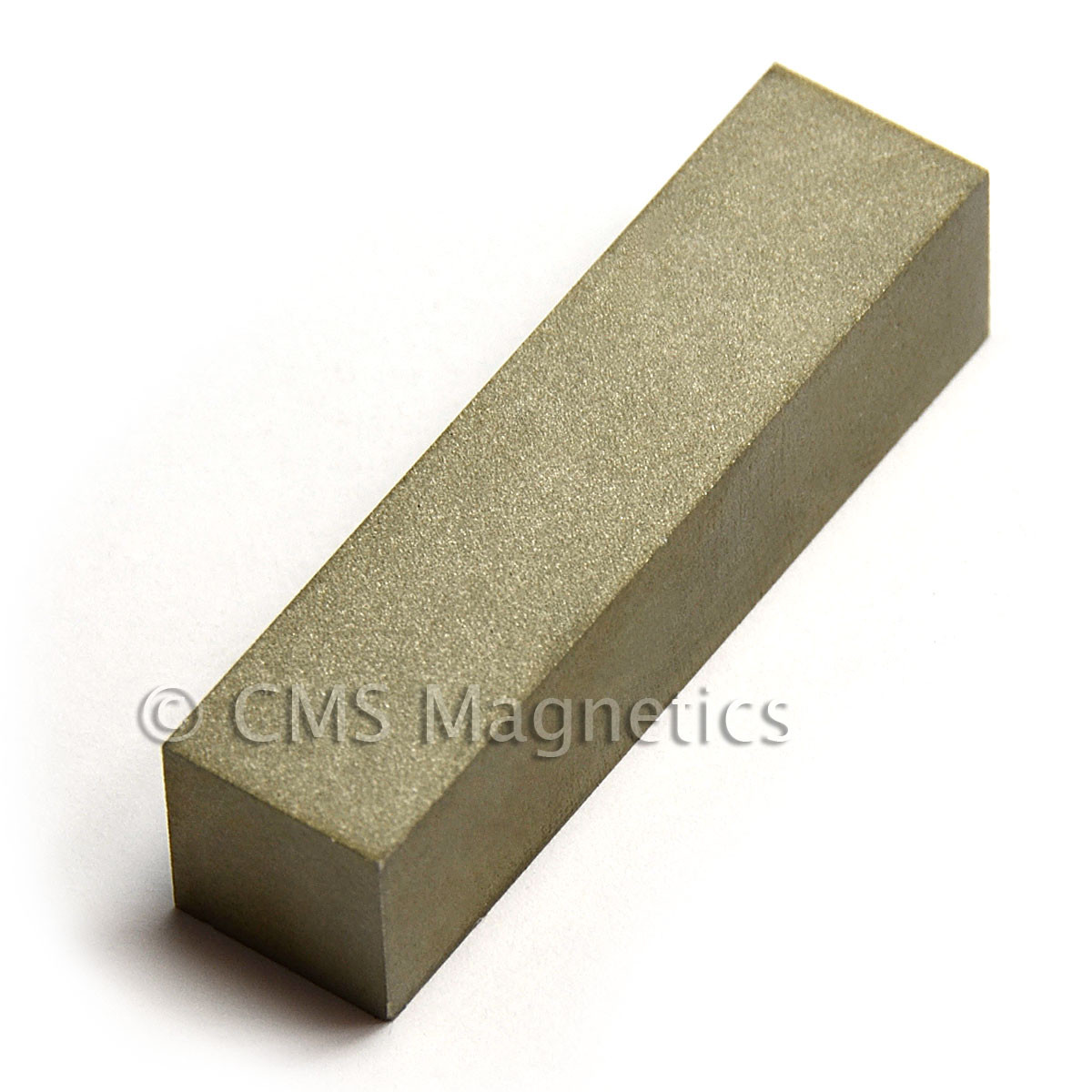

SmCo Block Magnets 2"x1/2"x1/2" | High-Temperature Samarium Cobalt Magnets
Introducing our premium Samarium Cobalt (SmCo) block magnets measuring 2 inches long by 1/2" square, designed for superior performance in high-temperature environments. Made from Sm2Co17 Grade 26 material, these high-temperature magnets are engineered to withstand extreme conditions, with a maximum operating temperature of 608°F (320°C).
These robust SmCo bar magnets are magnetized through the 1/2" thickness, ensuring the N and S poles are positioned on the 2"x1/2" surfaces. With a remarkable pull force of 31 lbs, each magnet offers strength comparable to neodymium magnets, making them an excellent choice for a variety of applications, including tooling and oil industry uses.
Key Features:
- Material: Sintered SmCo magnetic material, Grade 26
- Magnetic Characteristics:
- Br: 10.4 kGs
- Hcb: 9.8 kOe
- Hcj: 10.6 kOe
- (BH)max: 26 MGOe
- Holding Power: 31 lbs per magnet
- Pole Orientation: Magnetized through 1/2", with north and south poles on the 2"x1/2" surfaces
- Maximum Operating Temperature: 608°F (320°C)
Advantages of SmCo Magnets:
- High-Temperature Stability: Unlike neodymium magnets, SmCo magnets maintain their magnetic properties at elevated temperatures, making them suitable for demanding applications.
- Strong Holding Power: Known as rare earth magnets, they exhibit significantly stronger holding power compared to ceramic and AlNiCo magnets.
At CMS Magnetics, we ensure that our SmCo block magnets are produced using state-of-the-art technology and the highest quality materials, adhering to ISO 9002 quality systems. Our commitment to excellence has made us a trusted supplier for U.S. industries for years.
If you require a different grade, size, or custom specifications for your SmCo magnets, we are ready to accommodate your needs.
