Product Description

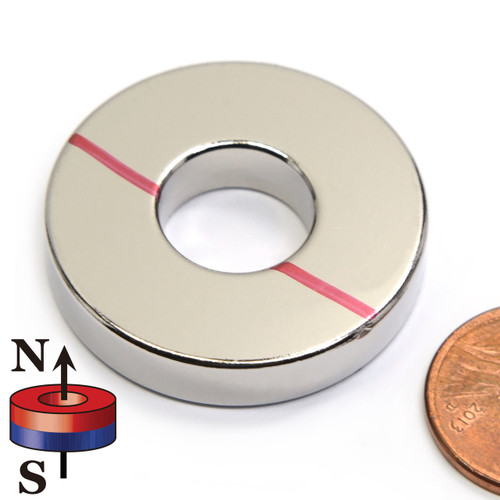

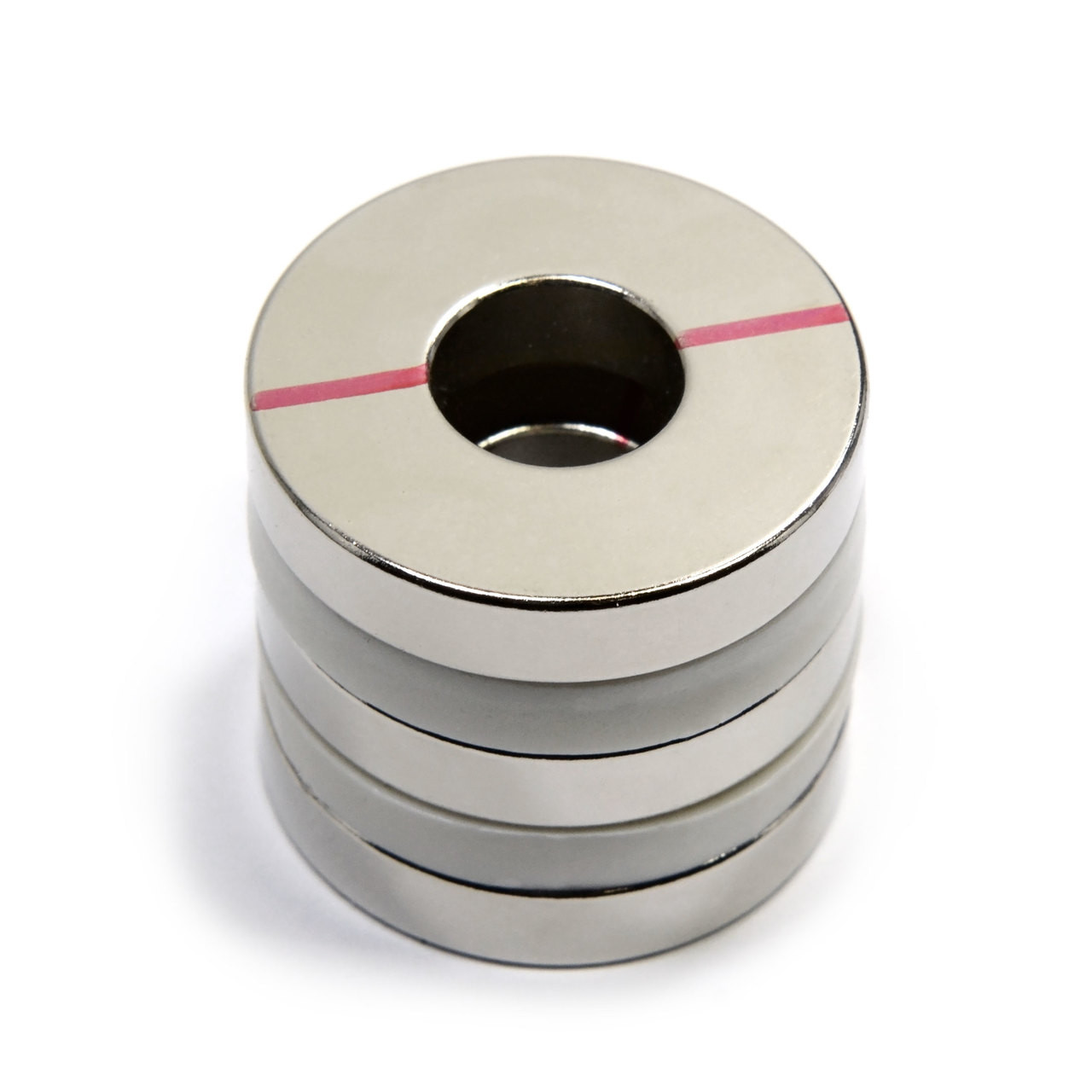

N52 Neodymium Magnet OD1.26 x ID1/2 x 1/4" Rare Earth Ring Magnet
This neodymium magnet is made as a ring magnet and measures 1.26" in outer diameter, 1/2" in inner diameter and 1/4" in the thickness. It is made of a grade N52 neodymium, iron, and boron magnetic alloy blend under ISO 9001 quality control systems. This neodymium ring magnet found many applications in the industrial applications and personal projects.
Specifications:
- Magnetic Material: Sintered Neodymium Magnet, grade N52 NdFeB rare earth magnet
- Remanence ( Br ): 14,400 Gauss or 1.44 Tesla
- Pulling Force: 33.3 LBS.
- Pole Orientation: Axially Magnetized, the poles are on the flat surfaces
- Coating: Ni+Cu+Ni 3 layer plated, the best available
- Manufacturing Tolerance: All +/- 0.002" with coating
Warnings:
- All magnets may chip and shatter, but if used correctly this ring magnet can last a lifetime
- Keep away from pacemakers and children
- If damaged please dispose of immediately. Shards are still magnetized and sharp which may cut fingers
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Grade N52
Pulling Force 33.3Lbs.
Pole Orientation Axially
Coating NiCuNi
Product Reviews
1 Review
-
RING MAGNET N42 OD 1 X ID 1/2 X 1/4"
Is as advertised. Received quickly without issue.
