Product Description

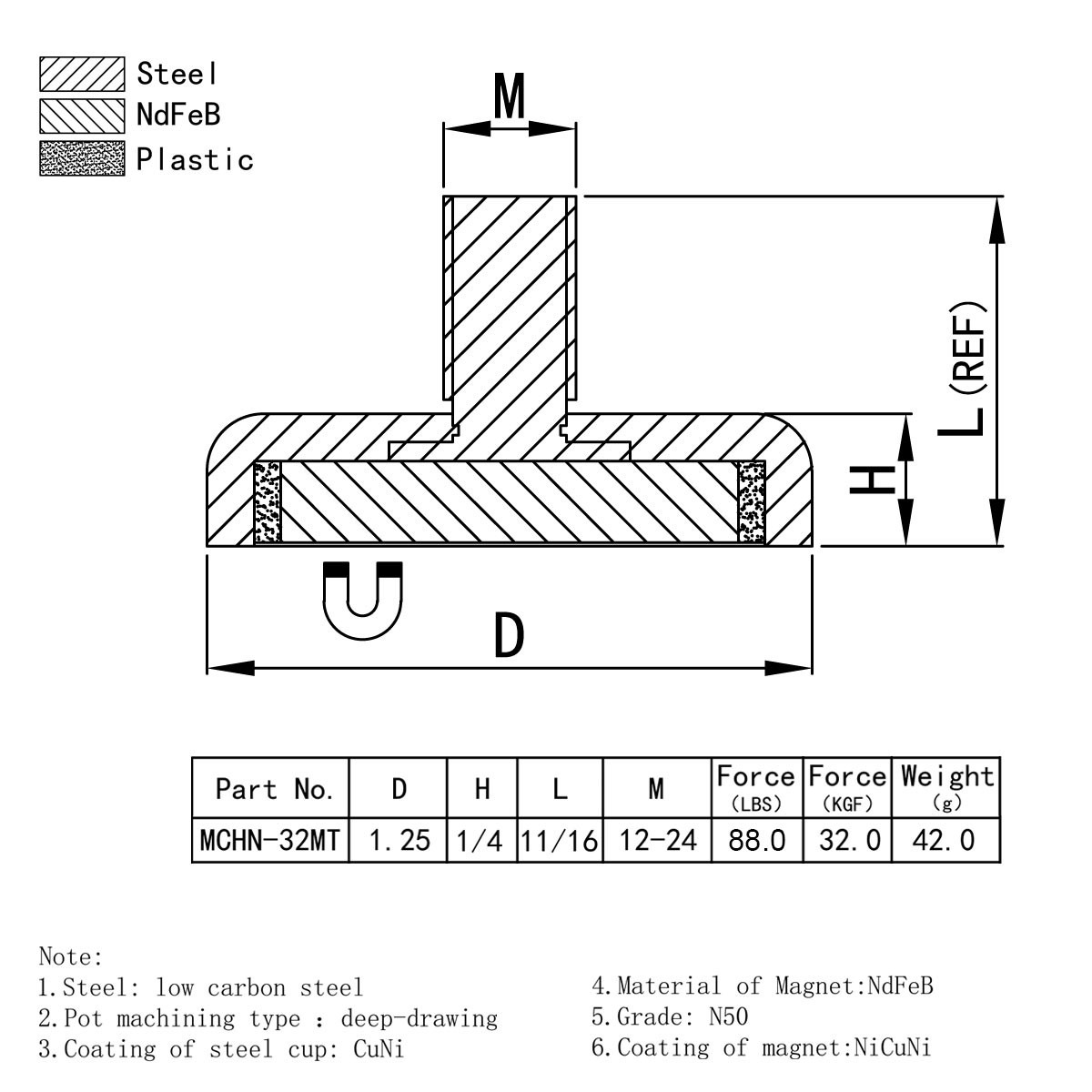

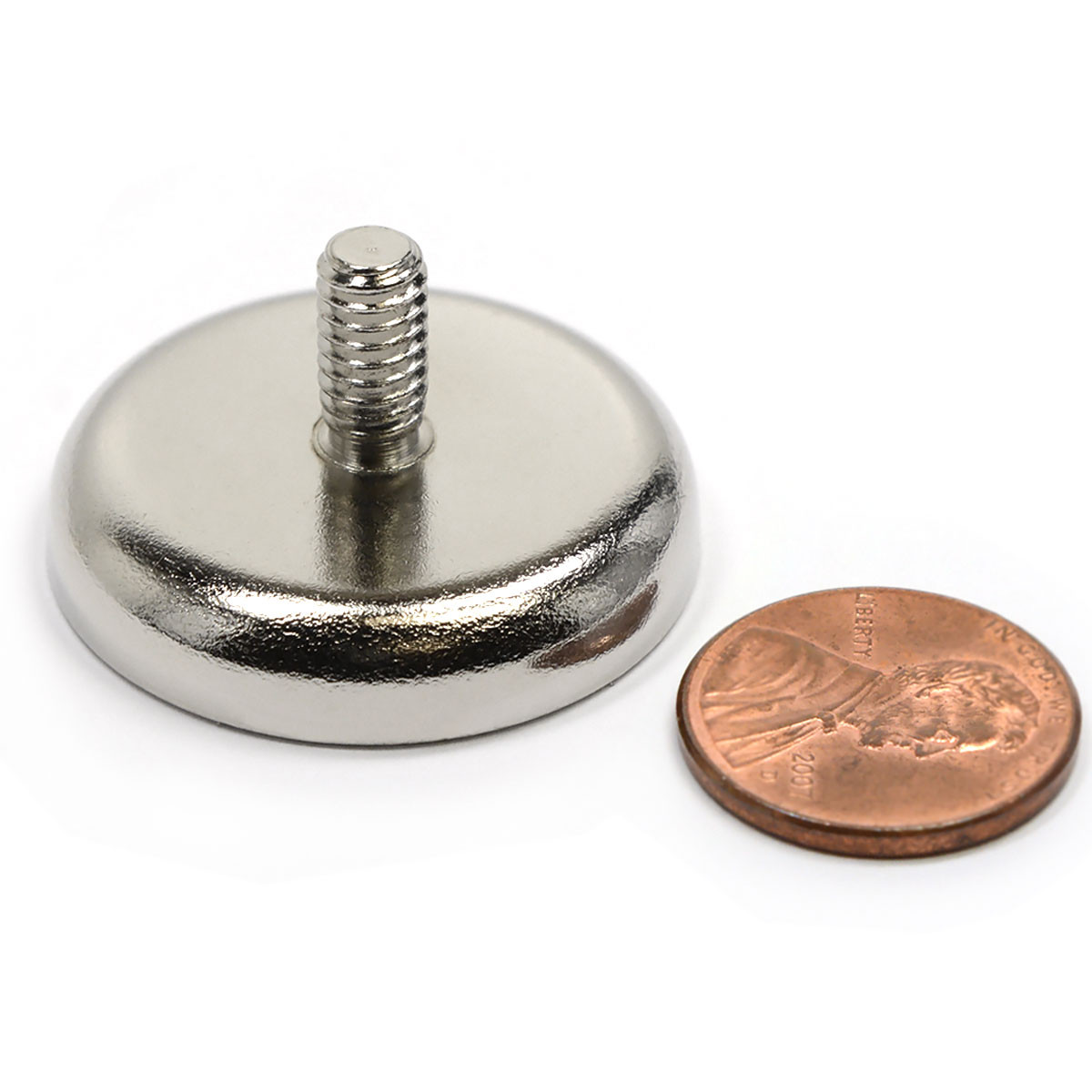

99 LB Cup Magnet w/ Male Threaded Stud #12-24 1.26" Diameter Neodymium Cup Magnet
This cup magnet is made of a super strong neodymium magnet encased in a chrome plated steel cup. The neodymium magnet is bonded inside of the cup with adhesives. This design forms a magnetic circuit which triples the holding force to 99 Lbs ! At the same time, the steel cup also protects the magnet from being damaged when it's frequently used. The threaded stud on the magnet is provided for easy applications.
Data Sheet:
- Pulling Force: 99 Lbs. for a direct touch and direct pull on a bare low carbon steel surface
- Outer Diameter: 1.26 in. (25 mm)
- Stud Thread: #12-24
- Thickness: 0.28 in. (7 mm)
Applications:
The cup magnet can be used for magnetic holdings, liftings, antenna mountings, car signs, magnetic retrieval devices and much more.
The cup magnet is also known as magnetic round base, pot magnet and magnetic cup assembly.
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Pulling Force 99Lbs.
Pole Orientation Axially
Coating NiCuNi
