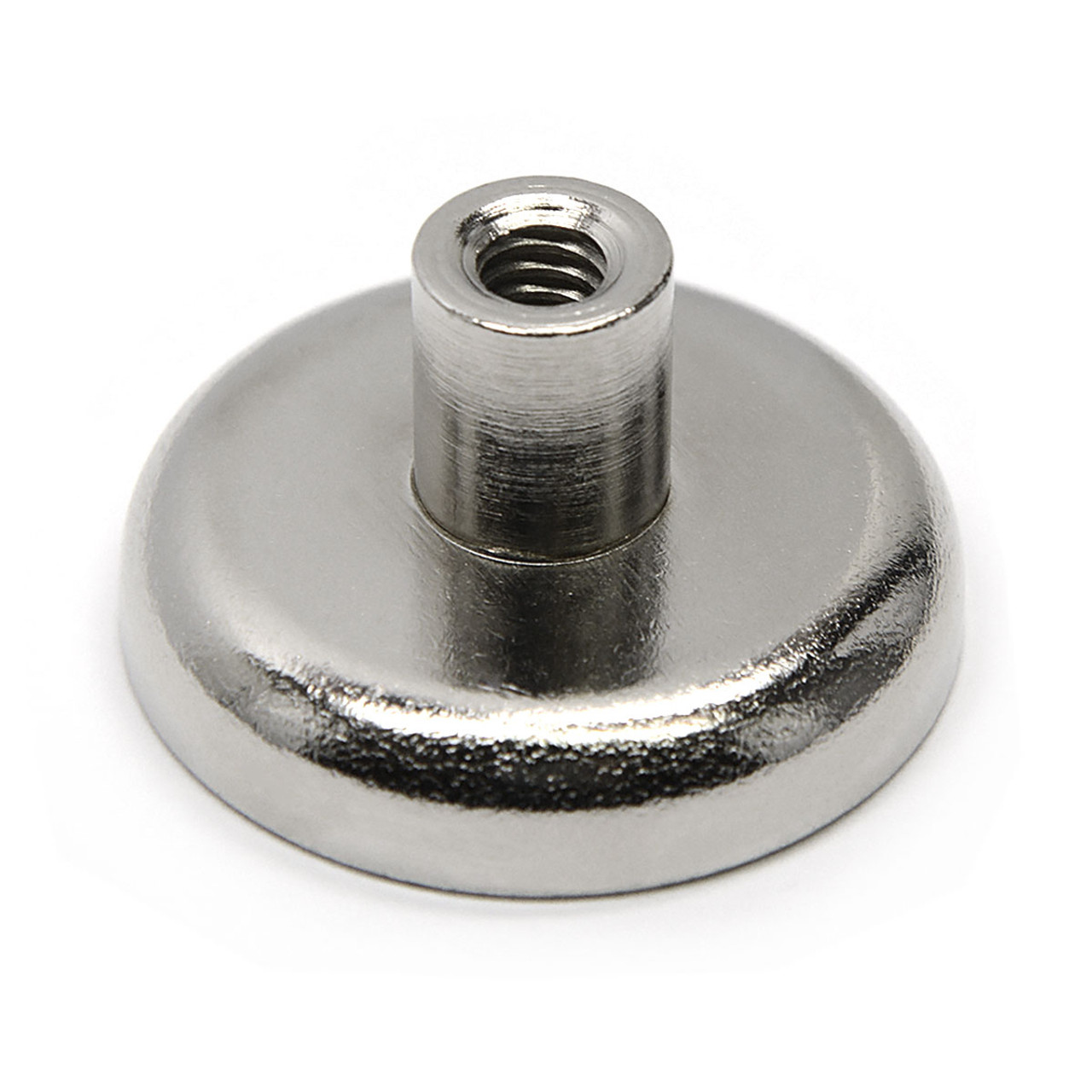

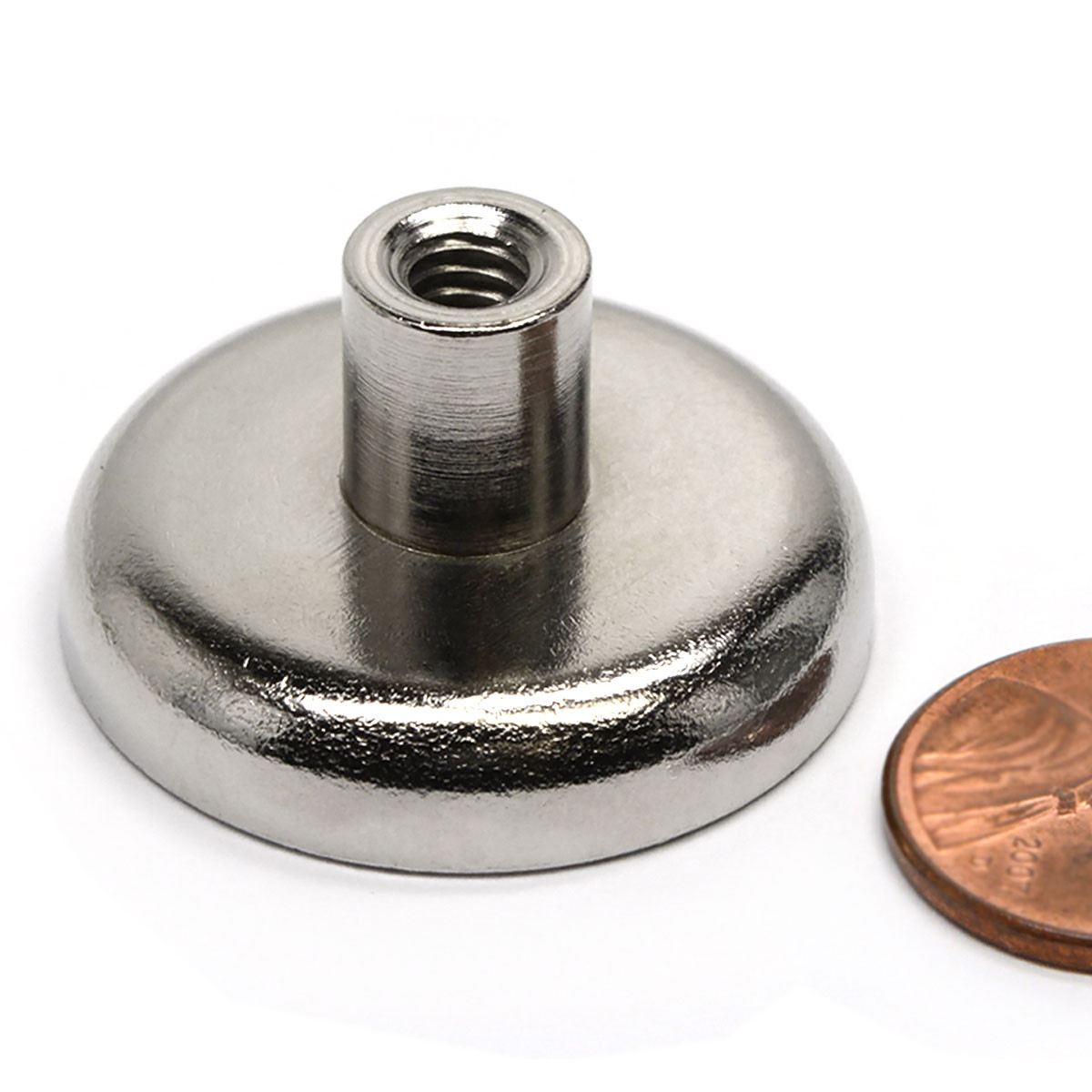

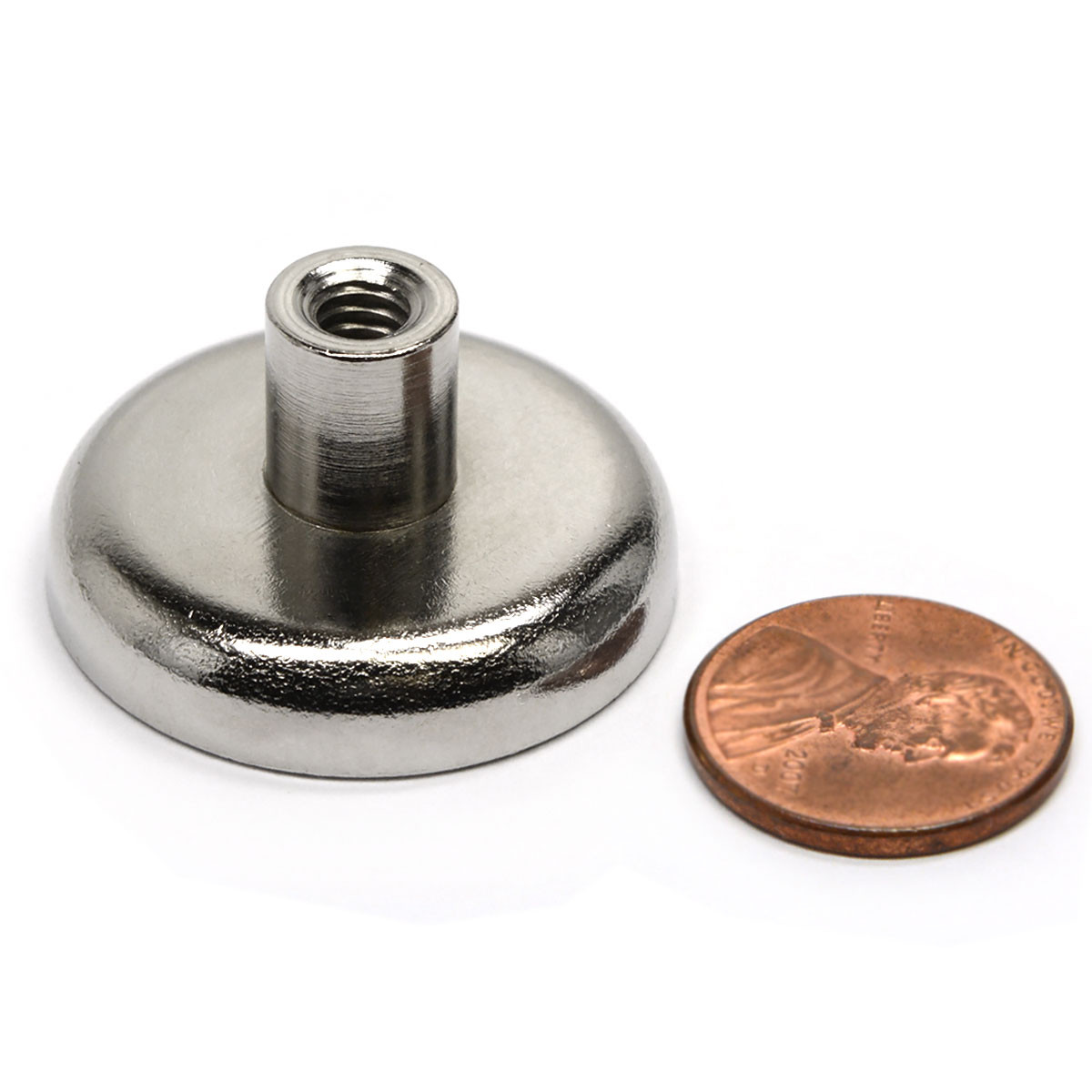

99 LB Cup Magnet w/ Female Threaded Stud #10-24 Dia 1.26" Neodymium Cup Magnet
This neodymium magnetic cup magnet has a holding power of 99 Lbs ! Female threaded stud is #10-24 of your choice
This cup magnet is made of a super strong neodymium magnet encased in a chrome plated steel cup. The neodymium magnet is bonded inside of the cup with adhesives. This design forms a magnetic circuit which triples the holding force to 99 Lbs ! At the same time, the steel cup also protects the magnet from being damaged when it's frequently used. The threaded stud on the magnet is provided for easy applications.
- Pulling Force: 99 Lbs. for a direct touch and direct pull on a bare low carbon steel surface
- Outer Diameter: 1.26 in. (25 mm)
- Stud Thread: Female, #10-24 optional
- Thickness: 0.28 in. (7 mm)
The cup magnet can be used for magnetic holdings, liftings, antenna mountings, car signs, magnetic retrieval devices and much more.
The cup magnet is also known as magnetic round base, pot magnet and magnetic cup assembly.
