Product Description
Neodymium Disc Magnet N42 1-1/2"x1/2" w/ #12 Countersunk on Both Sides

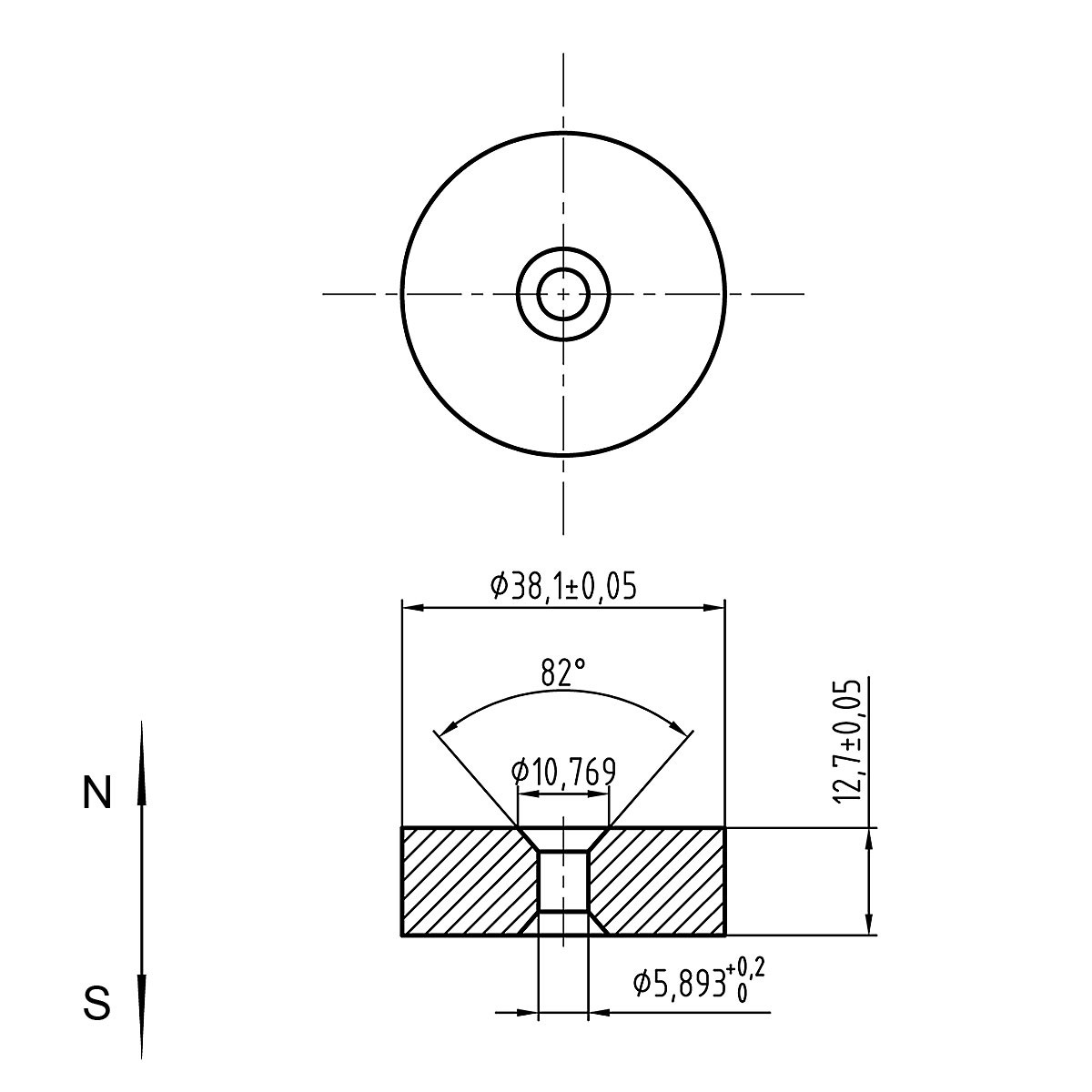

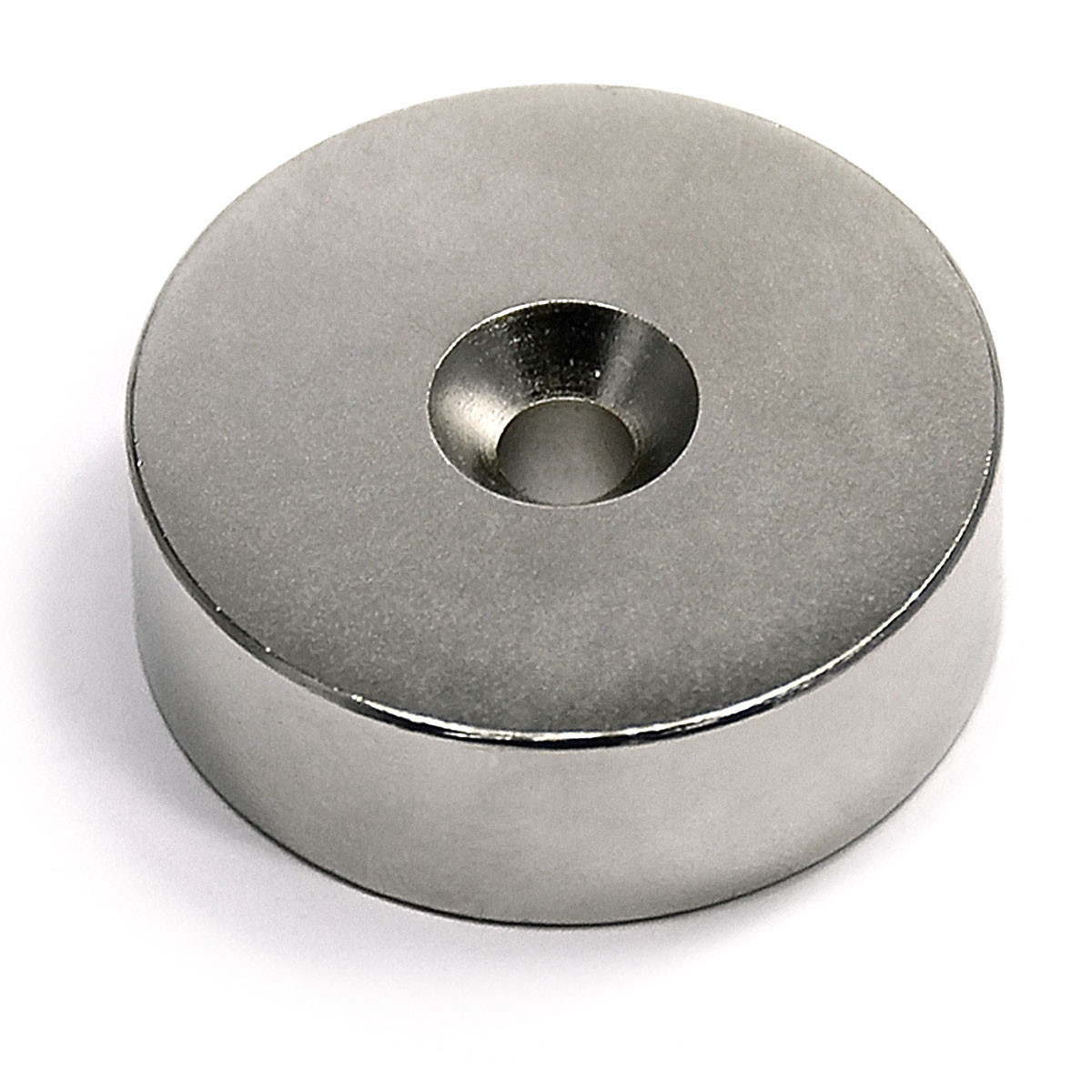

This neodymium disc magnet measures 1-1/2" in diameter and 1/2" in thickness. This magnet features a #12 countersunk hole through the thickness and countersunk on both sides. It is made of a grade N42 neodymium, iron, and boron magnetic alloy blend. This magnetic blend is patent licensed and made under the ISO 9001 quality systems. They are plated in a nickel-copper-nickel coating for a shiny corrosion-resistant finish. Neodymium ring magnets are perfect for use as magnetic fasteners around the home or for use in commercial applications.
Features:
- Material: Sintered rare earth magnet, Grade N42 NdFeB neodymium
- Gauss Rating: 13,200 Gauss or 1.32 Tesla
- Pulling Force: 75 Lbs.
- Pole Orientation: Axially magnetized, the poles are on the two flat surfaces
- Coating: Ni+Cu+Ni 3 layer plating, the best coating available
- Tolerance: All +/-0.002" with coating
Warnings:
- All magnets may chip and shatter, but if used correctly they can last a lifetime
- Keep away from pacemakers and children
- Not for children under 10 years old, parental supervision is required when older children handing the magnet
- If damaged please dispose of completely. Shards may be sharp and cut fingers
Other Details
This product is covered by 10 year warranty on the magnetic strength under normal usage. Used in the environment which has high temperature and virbation will void this warranty. The product should not be used in the outdoor or high humid or salty environment except extra insulation measurement is taken.Product Videos
Custom Field
Pulling Force 75 lbs
