Product Description

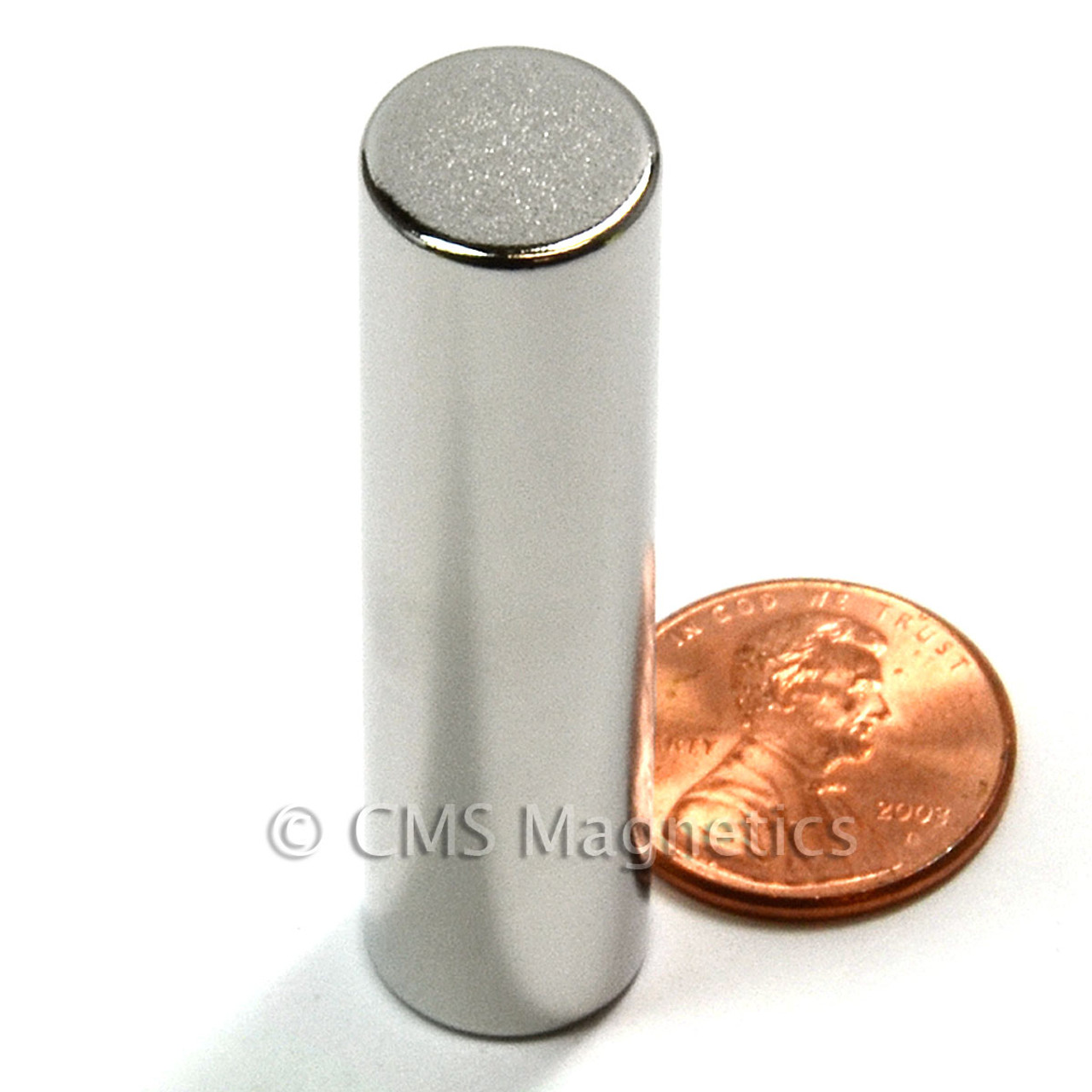

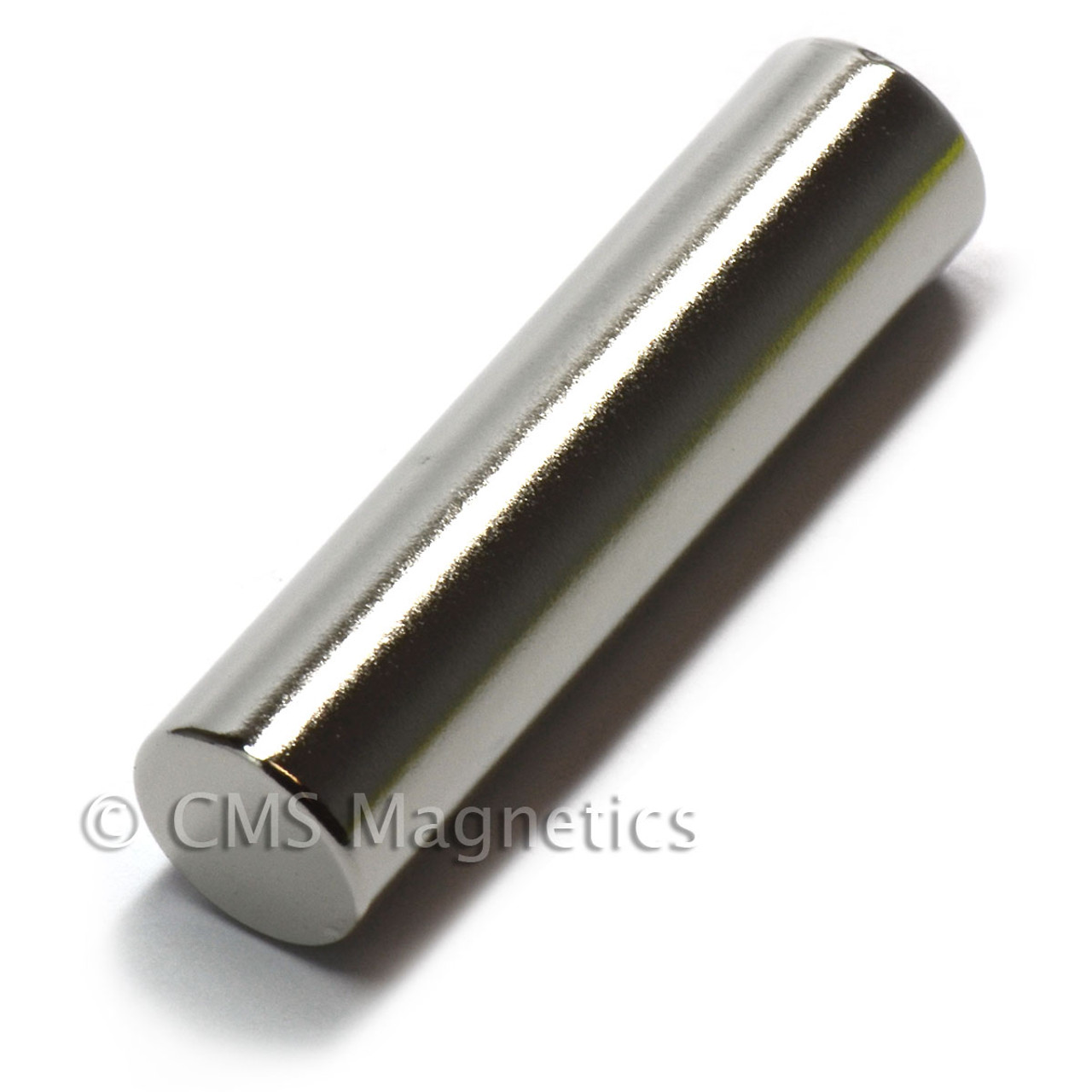

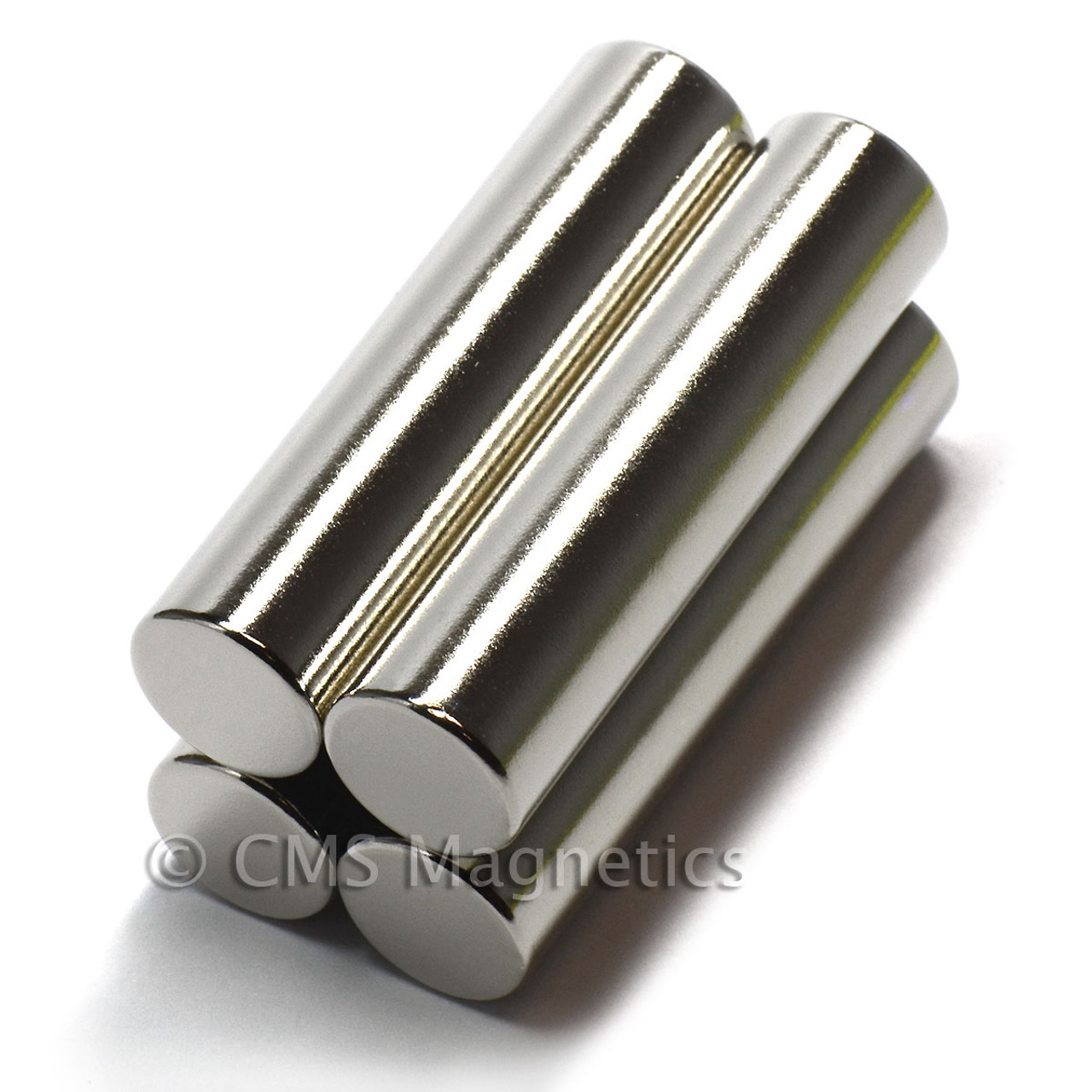

This cylinder magnet measures 1/2" in diameter and 2" in thickness and is made of a grade N42 neodymium, iron, and boron magnetic alloy blend under ISO 9001 quality system. It is plated in a nickel-copper-nickel coating for a shiny corrosion-resistant finish. This is a special magnet with N and S poles on the curve sides, i.e. it is diametrically magnetized, This is a great item for use in personal projects as well as for industrial applications.
Features:
- Material: Grade N42 neodymium magnet, sintered NdFeB rare earth alloy
- Remanence (Br) : 13,200 Gauss or 1.32 Tesla
- Holding Power: 18.1 Lbs.

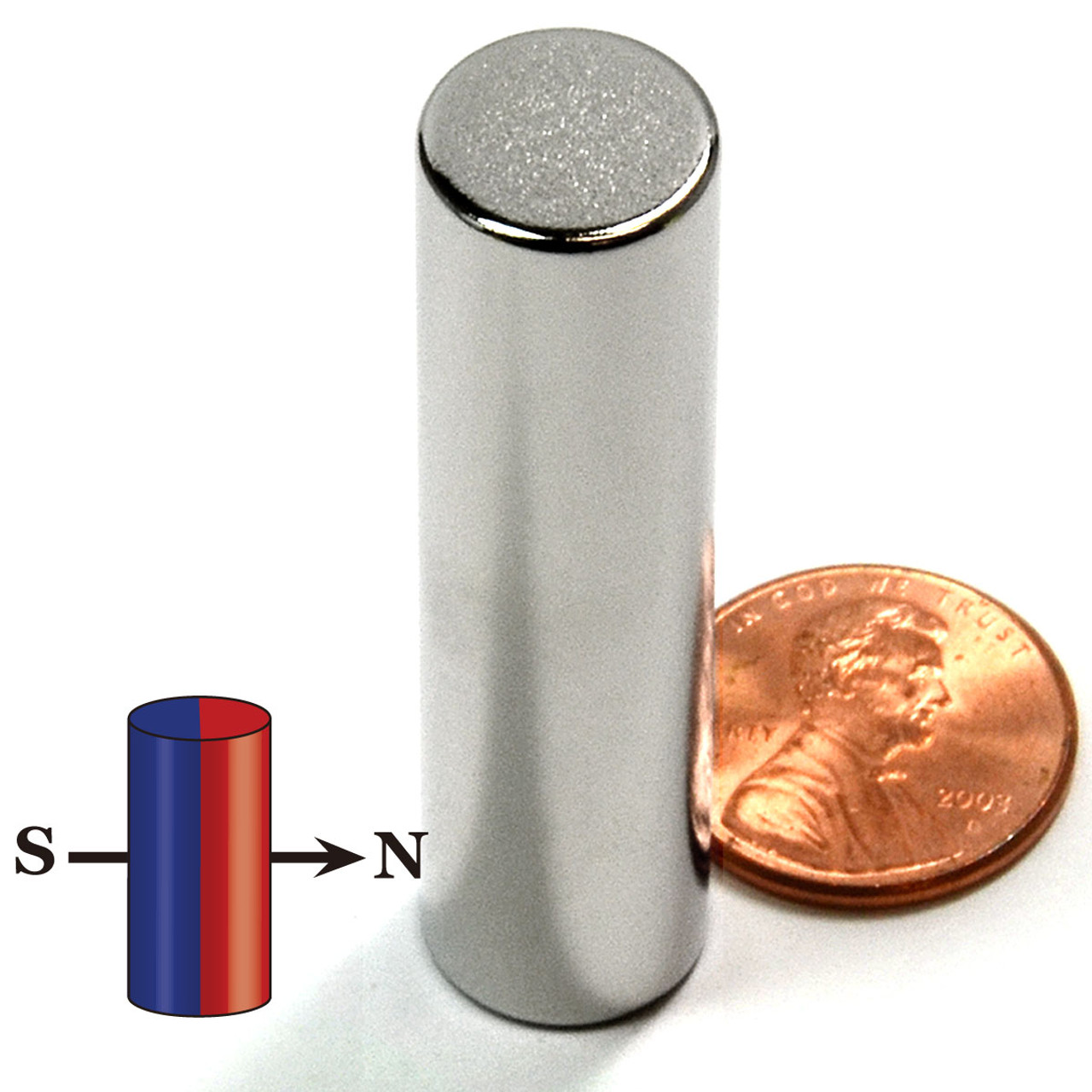

- Pole Orientation: Diametrically magnetized, the poles are on the two opposite sides of cylinder
- Coating: Ni+Cu+Ni 3 layer plating, the best plating available
- Tolerance: All +/-0.002" with coating
Warnings:
- All magnets may chip and shatter, but if used correctly this cylinder magnet can last a lifetime
- Keep away from pacemakers and children
- If damaged please dispose of completely. Shards are still magnetized and may have sharp edges
Other Details
This product is covered by a 10 year warranty on the magnetic strength under normal usage. Use in environments with high temperatures and vibrations will void this warranty. The product should not be used outdoors or in high humidity or salty environments except when extra insulation measurements are taken.Product Videos
