Product Description

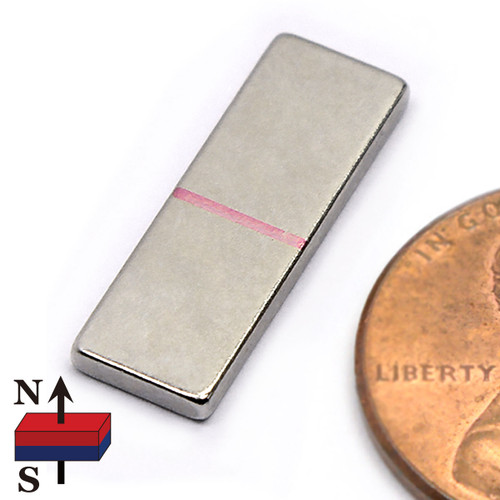

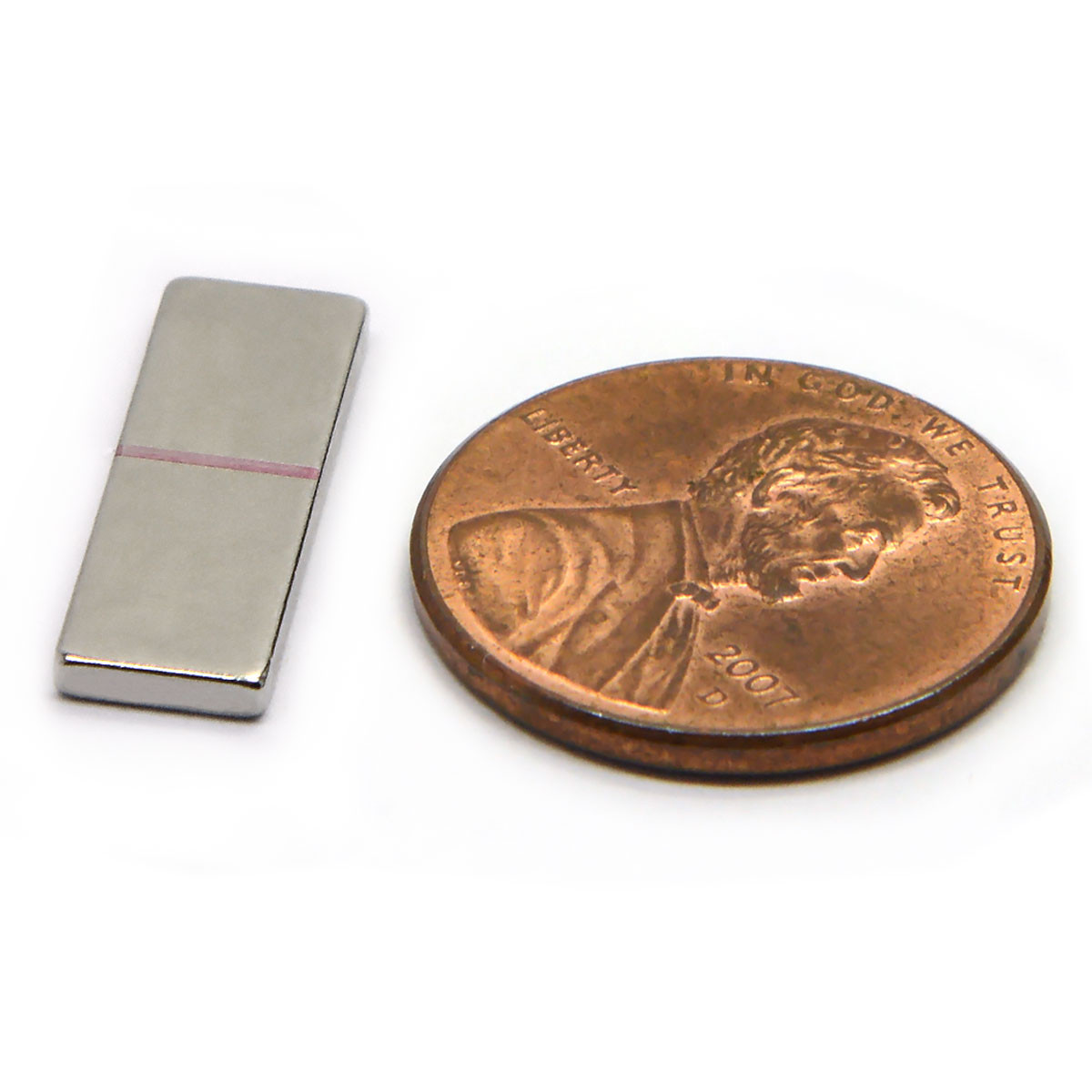

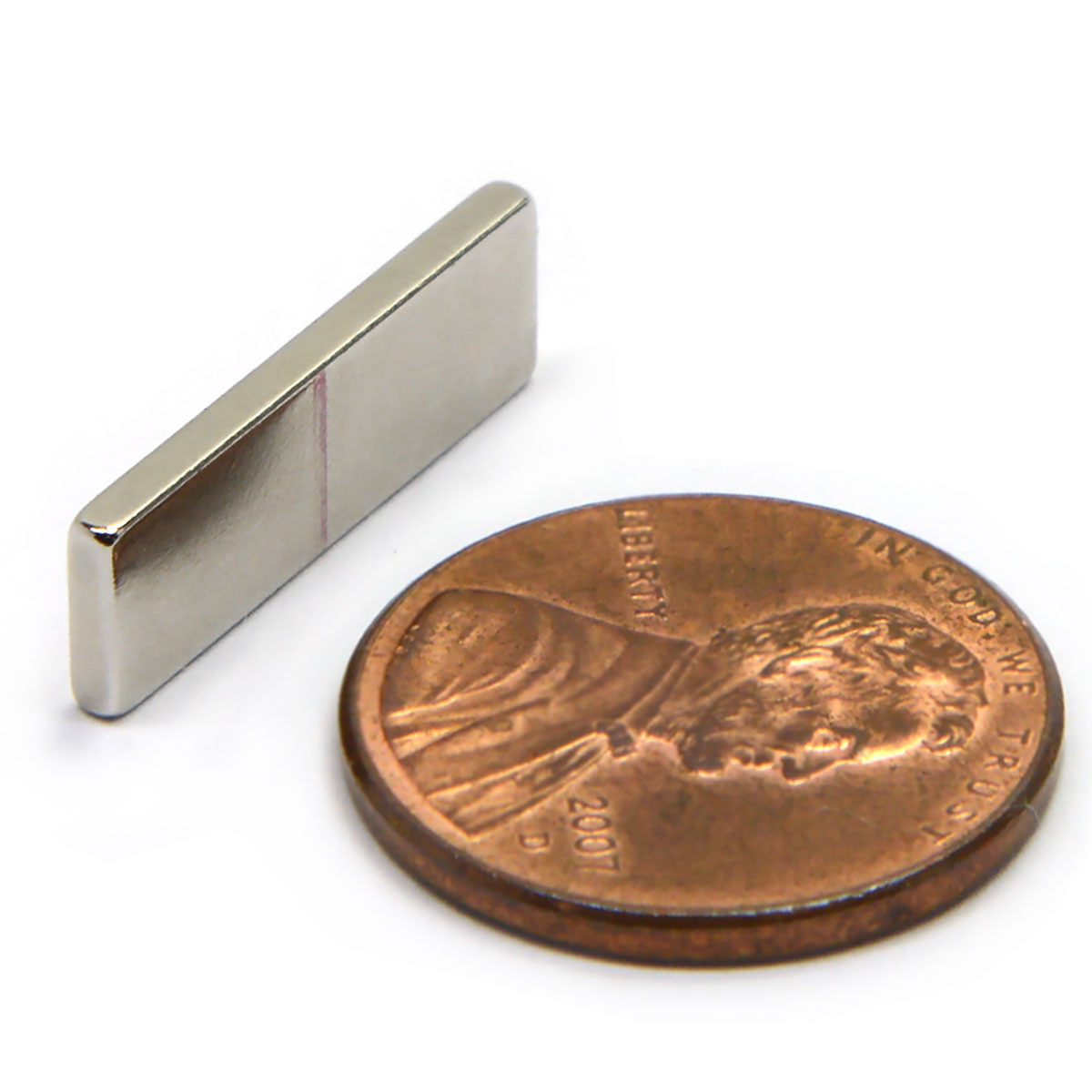

N52 Bar Magnets 3/4x1/4x1/8" Neodymium Magnets | Rare Earth Magnets
This bar magnet measures 3/4" in length, 1/4" in width, and 1/8" in thickness and is made of a grade N52 neodymium magnet alloy under ISO 9001 quality control systems. This Magnet is great for holding purposes and its applications range from industrial applications to personal projects, crafting and refrigerator magnets, etc.
Features:
- Material: Sintered Neodymium Magnets, Grade N52 Rare Earth Magnets
- Major Elements: NdFeB, Nd - Neodymium; Fe - iron; B - Boron;
- Compliance: Latest RoHS and Reach
- Remanence (Br) : 14,400 Gauss or 1.44 Tesla
- Maximum Energy Product: 52 MGOe
- Pulling Force: 6.5 lbs
- Pole Orientation: Magnetized through 1/8", i.e. the N and S poles are on the 3/4" x 1/4" surfaces
- Coating: Ni+Cu+Ni 3 layer coated, the best coating available
- Tolerances: All are +/-0.002" with coating
Warnings:
- All magnets may chip and shatter, but if used correctly this bar magnet can last a lifetime
- Keep away from pacemakers and children
- If damaged please dispose of completely
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Grade N52
Pulling Force 6.5Lbs.
Pole Orientation Thru Thickness
Coating NiCuNi
Product Reviews
1 Review
-
N52 Bar Neodymium Magnets 3/4x1/4x1/8" Rare Earth Block Magnets
great, strong little magnets -- just what we needed
