Product Description

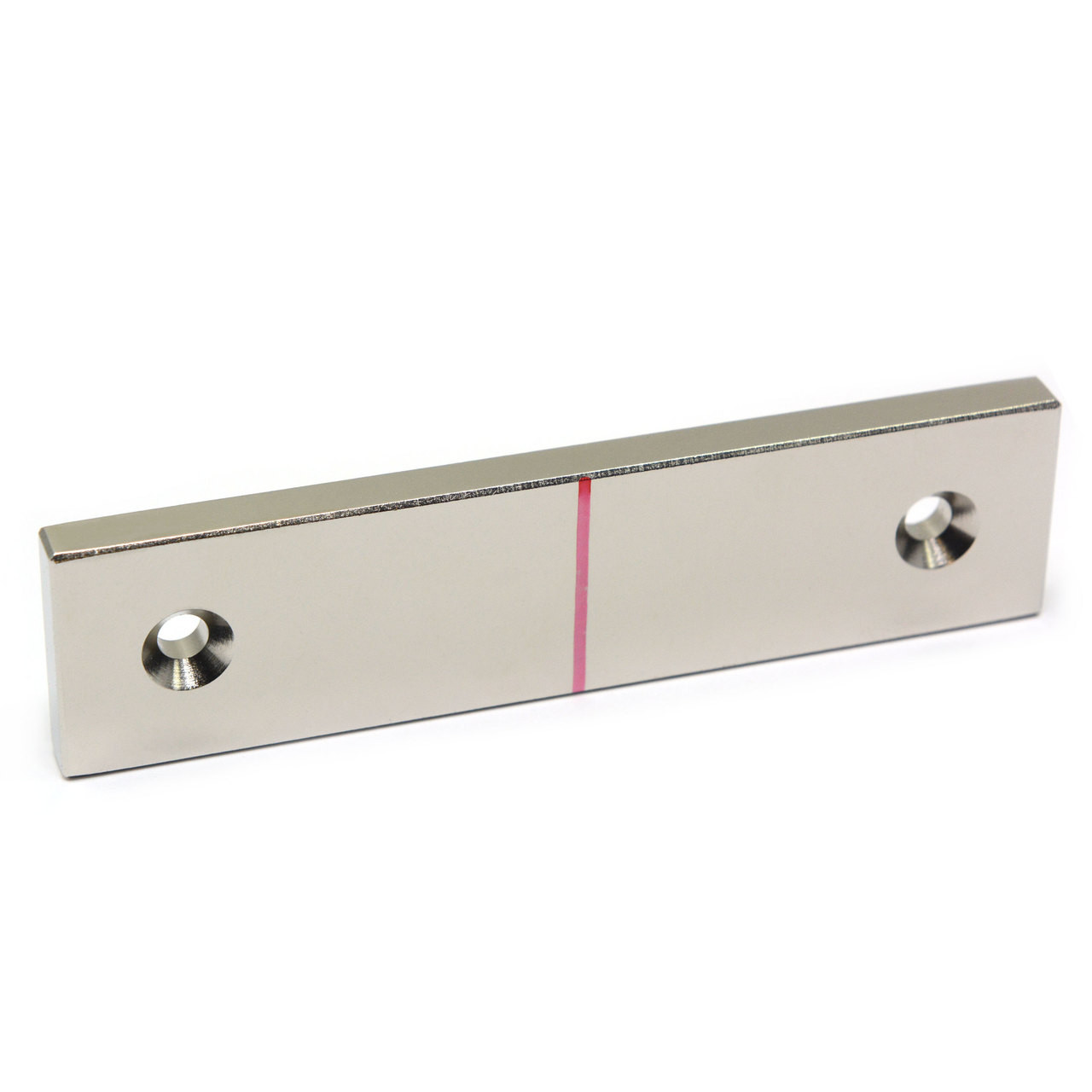

N45 Block Neodymium Magnet 4"x1"x1/4" Rare Earth Magnet with 2 #8 Countersunk Holes
The countersunk dimension is through holes diameter = 0.194", the large Diameter = .332" with 82 degree. The distance between the center of the two holes is 3".
This powerful neodymium block magnet measures 4" in length, 1" in width, and 1/4" in thickness and is made of a grade N45 neodymium magnet alloy blend. This magnetic blend is patent licensed and made under the ISO 9001 quality control systems and are plated in a nickel-copper-nickel triple layer coating for a shiny corrosion resistant finish. This magnet has 2 countersunk holes on its north pole.
Features:
- Material: Sintered neodymium magnet, NdFeB grade N45
- Remanence: 13,500 Gauss or 1.35 Tesla
- Pulling Force: 52 lbs
- Pole Orientation: Magnetized through the thickness, i.e. the N and S poles are on the 4x1" surfaces
- Coating: Ni+Cu+Ni 3 layer coating, the best coating available
- Tolerance: All +/-0.002" with coating
- Applications: Majorly used in industries for various holding purposes. It can also used in DIY projects and personal projects
Warnings:
- All magnets may chip and shatter, but if used correctly can last a lifetime
- Keep away from pacemakers and children
- If damaged please dispose of completely. Shards may be sharp and cut fingers. The shards are still magnetized and if swallowed can inflict serious damage if magnets join inside the digestive tract
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Grade N45
Pulling Force 52Lbs.
Pole Orientation Thru Thickness
Coating NiCuNi
