Product Description

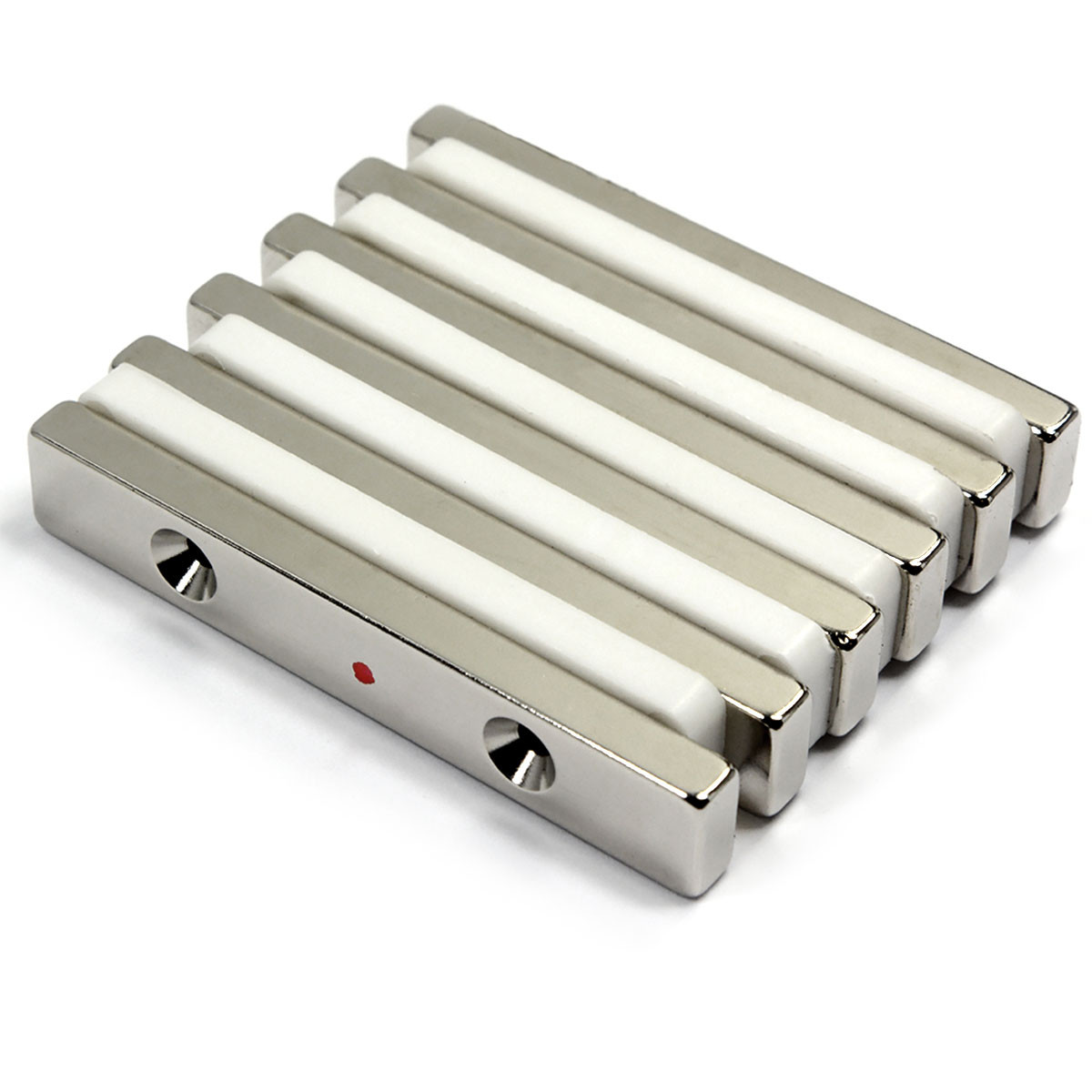

N45 Bar Magnet 3x1/2x1/4" Neodymium Magnet w/ 2 #6 Countersunk Holes on N or S
This bar magnet measures 3" in length, 1/2" in width, and 1/4" in thickness and is made of a grade N45 neodymium magnet alloy blend. This neodymium magnet also features 2 countersunk holes through the thickness. This magnet is made under ISO 9001 quality control system and plated in a NiCuNi triple layer coating for a shiny corrosion resistant finish.
This magnet is great as a fastener magnet for holding purposes as door catchers. Moreover, this magnet is versatile and robust; applications range from industrial applications to personal projects.
Features:
- Material: Sintered neodymium magnet, grade N45 rare earth magnet
- Remanence (Br): 13,500 Gauss or 1.35 Tesla
- Pulling Force: 32 LBS
- Pole Orientation: Magnetized through the thickness, the N and S poles are on the 3x1/2" surfaces
- Coating: Ni+Cu+Ni 3 layer coated, the best coating available
- Tolerance: All +/-0.002" with coating
Warnings:
Please note that all neodymium magnets are fragile and require extreme caution when handling to avoid damage to the magnet and injury due to pinching.
- All magnets may chip and shatter, but if used correctly this bar magnet can last a lifetime
- Keep away from pacemakers and children
- If damaged please dispose of completely
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Product Reviews
6 Reviews
-
Countersunk bar magnets
High consistant quality
-
Magnets
These magnets worked great! I used them and a knife holder where they were embedded in the wood and they worked great. I have already ordered some more.
-
magnet
the process went as expected
-
N45 3"X1/2"X1/4" NEO W/COUNTERSUNK HOLES
PRODUCT AS ADVERTISED, FAIR PRICE, GREAT QUALITY, EXCELLENT CUSTOMER SERVICE. I RECOMEND THIS PRODUCT FROM THESE FOLKS.
-
N45 3"x1/2"x1/4"
I tried to order these magnets from Amazon and they kept sending me south pole magnets no matter what I specified. I ended up talking with CMS rep and they couldn't understand why that was happening. I decided to order straight from CMS and not only did they get the order correct the first time, it was processed within hours and got here the 2nd day. I would absolutely buy from CMS again and would recommend others to do the same.
-
Awesome Strength
I was looking for something to seal closed my older oven door and was so happy at how well this magnet does the job. I used two of these and the oven has NEVER sealed as well as it does today since we moved into this house in 2005
