Product Description

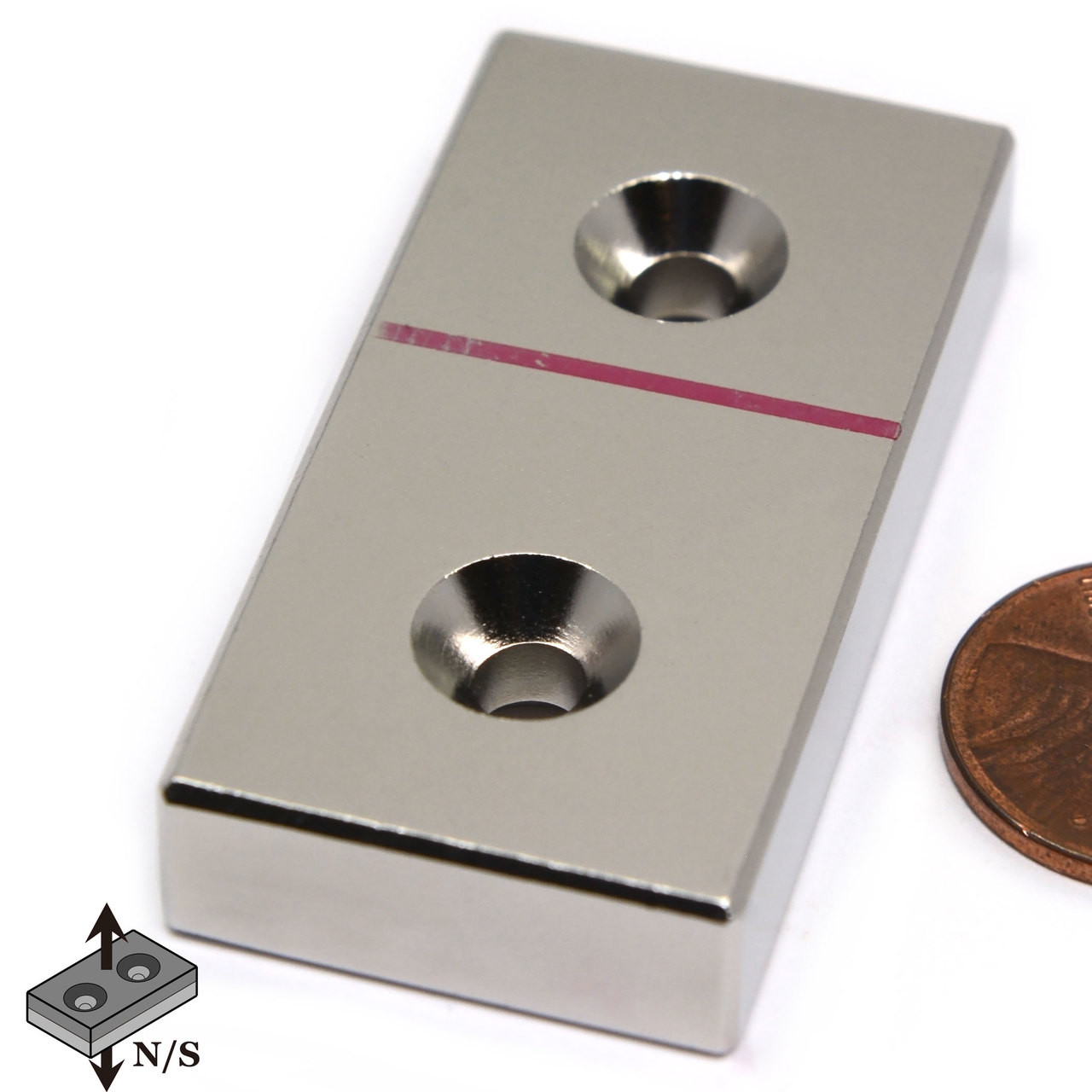

N45 Block Magnet 2x1x3/8" Neodymium Block Magnets w/ 2 #8 Countersunk Hole Rare Earth Magnet
This powerful neodymium block magnet measures 2" in length, 1" in width, and 3/8" in thickness and is made of a grade N45 neodymium, iron, and boron magnetic alloy blend and has 2 countersunk holes for #8 flat head screws. This block magnet is made under ISO 9001 quality control systems and is plated in a nickel-copper-nickel triple layer coating for a shiny corrosion resistant finish.
Features:
- Material: Sintered neodymium magnet, grade N45 rare earth magnet
- Remanence: 13,500 Gauss or 1.35 Tesla
- Pulling Force: 56 Lbs.
- Pole Orientation: Magnetized through the thickness, i.e. the poles are on the 2x1" surfaces
- Coating: Ni+Cu+Ni 3 layer coated, the best coating available
- Tolerance: All +/-0.002 in with coating
- Applications: This block magnet is great for industrial applications and personal projects, like magnet gun holders, magnetic strips for tools
Warnings:
- All magnets may chip and shatter, but if used correctly this block magnet can last a lifetime
- Keep away from pacemakers and children
- If damaged please dispose of completely since shards may be sharp and cut fingers
A Little Bit About Our Bar Magnets
This Neodymium Bar Magnet is amazingly powerful for their size and have innumerable uses. Most of our neodymium bar magnets have a triple coating of nickel, copper and nickel again to prevent against corrosion. The ones that do not are coated with an epoxy or rubberized coating that keeps them from scratch surfaces or a hardened plastic that create a safe colorful surface. CMS Magnetics offers the highest quality neodymium bar magnets with consistent performance and lowest price. Neodymium Rare Earth bar magnets are actually 10x stronger than the strongest ceramic magnets! Unlike most other types of magnets, Neodymium is highly resistant to demagnetization and will not lose their magnetization around other magnets or if dropped. Rare Earth bar magnets are the strongest type of permanent magnet currently made. Neodymium is the WORLD'S STRONGEST MAGNET, bar none!
About Neodymium Magnets
All neodymium bar magnets are Rare Earth bar magnets but there are other types of magnets in the rare earth family. Neodymium is however the most popular & cost effective. Rare Earth bar magnets are the strongest type of permanent magnet currently made. The Rare earth family of magnets consist of basically 2 types of magnets. neodymium bar magnets are the strongest and most popular of the 2 type of Rare Earth bar magnets . Neodymium Rare Earth bar magnets are actually 10x stronger than the strongest ceramic magnets! Unlike most other types of magnets, Neodymium is highly resistant to demagnetization and will not lose their magnetization around other magnets or if dropped. Rare Earth bar magnets are the strongest type of permanent magnet currently made. They are amazingly powerful for their size and have innumerable uses.
The Process & Grade
This rare earth bar magnet was created through a sintering process. Sintering is the process of compacting and forming a mass of material (this case an alloy) with heat or pressure but keeping it from getting to the liquefaction stage then pressing it into the final magnet shape. The grade (think strength level) is based on the technical measurement of that strength and expressed as an ”N” for neodymium and a number (35-52). N52 is the strongest magnet so far and N35 in the neodymium world is the least strong. However, the least strong neodymium bar magnets are far stronger than the very common ceramic magnets. The most popular grades of neodymium bar magnets are N35, N40, N45, n50 & N52.
There Are Other Grades Between Those Grades Mentioned Just Ask, We Got Em!
CMS Magnetics Offers The Highest Quality Neodymium Bar Magnets With Consistent Performance And Lowest Price.
Will these magnets hold a medium weight synthetic blanket down across the front of a car without damaging the finish of the car? I would think they would as they are pretty strong They have a very smooth finish so shouldn't cut through the blanket and mar the finish. By D. Jem
Would these Bar magnets hold curtains together in an outside pergola? A: Yes if little wind. If you live in a windy area probably step up to an N52 1.26 x 1/4 Dave Curtis · November 23, 2017
What about hanging tools using bar magnets? A: Hand tools are fine maybe 3/4 disc w/ countersunk hole at n52 just to be safe. Bobby · July 7, 2019
Hanging knives with bar magnets? I would use an N45 or better 3/4" Disc just to make sure. Blue Moon June 12, 2019
Question: We have a large dresser drawer that keeps sliding open. Will these Bar magnets work if attached to cabinet and dresser to keep drawer closed? Answer: You might need a couple in a couple different spots but yes I would think so Bruce Clements· June 26, 2021
Closely Related Options
PLEASE NOTE:
-
All magnets may chip and shatter, but if used correctly can last a lifetime.
-
Keep away from pacemakers.
-
Not for children, parental supervision required.
-
If damaged please dispose of completely. Shards are still magnetized and if swallowed can inflict serious damage if magnets join inside the digestive tract.
Warranty
This product is covered by 10 year warranty on the magnetic strength under normal usage. Used in the environment which has high temperature and virbation will void this warranty. The product should not be used in the outdoor or high humid or salty environment except extra insulation measurement is taken.Product Videos
Custom Field
Product Reviews
2 Reviews
-
Magnets
High quality, prompt and fair shipping cost!
-
NEODYMIUM RARE EARTH
Used these to put up the plastic cover over my 24 x 12 ft greenhouse. Works great
