Product Description

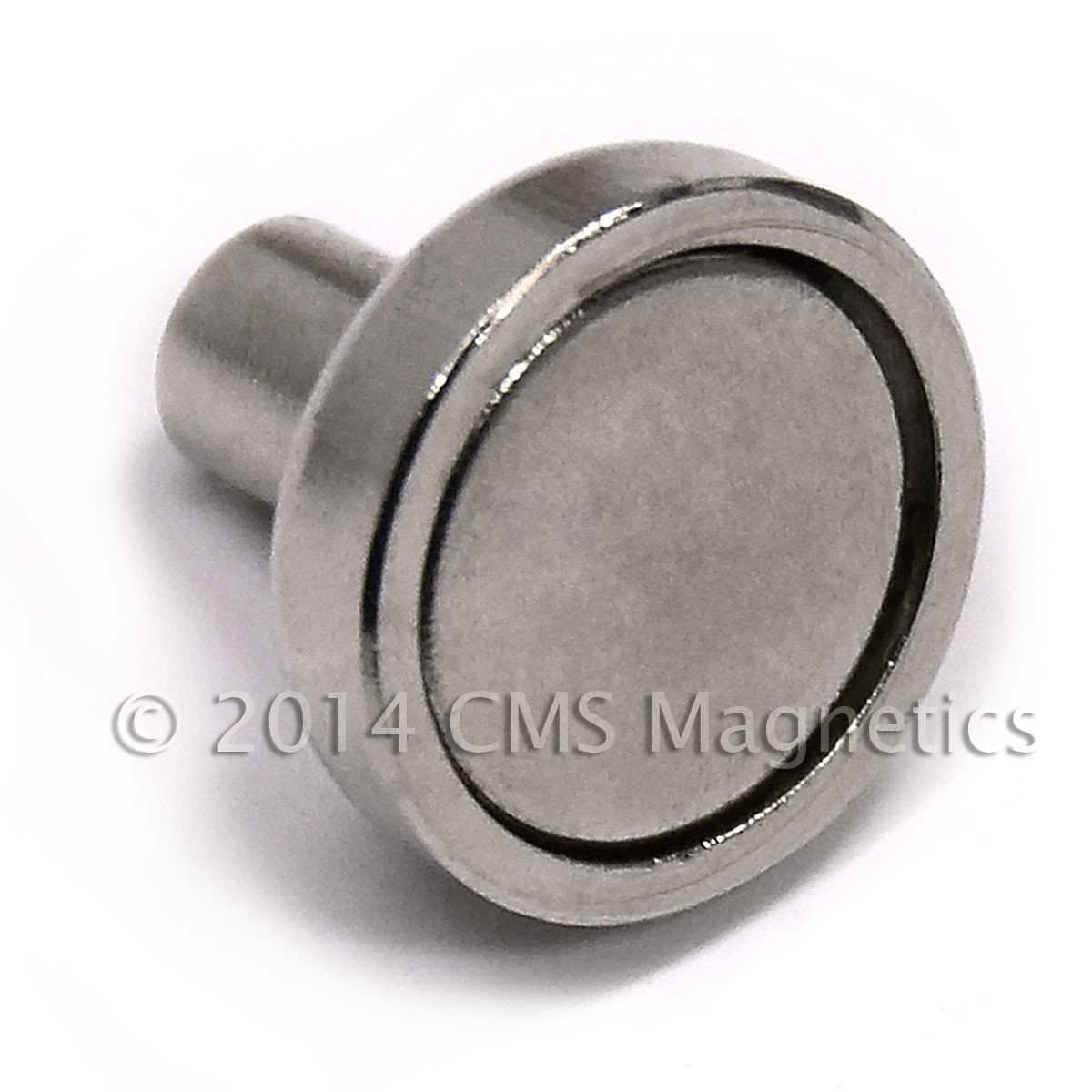

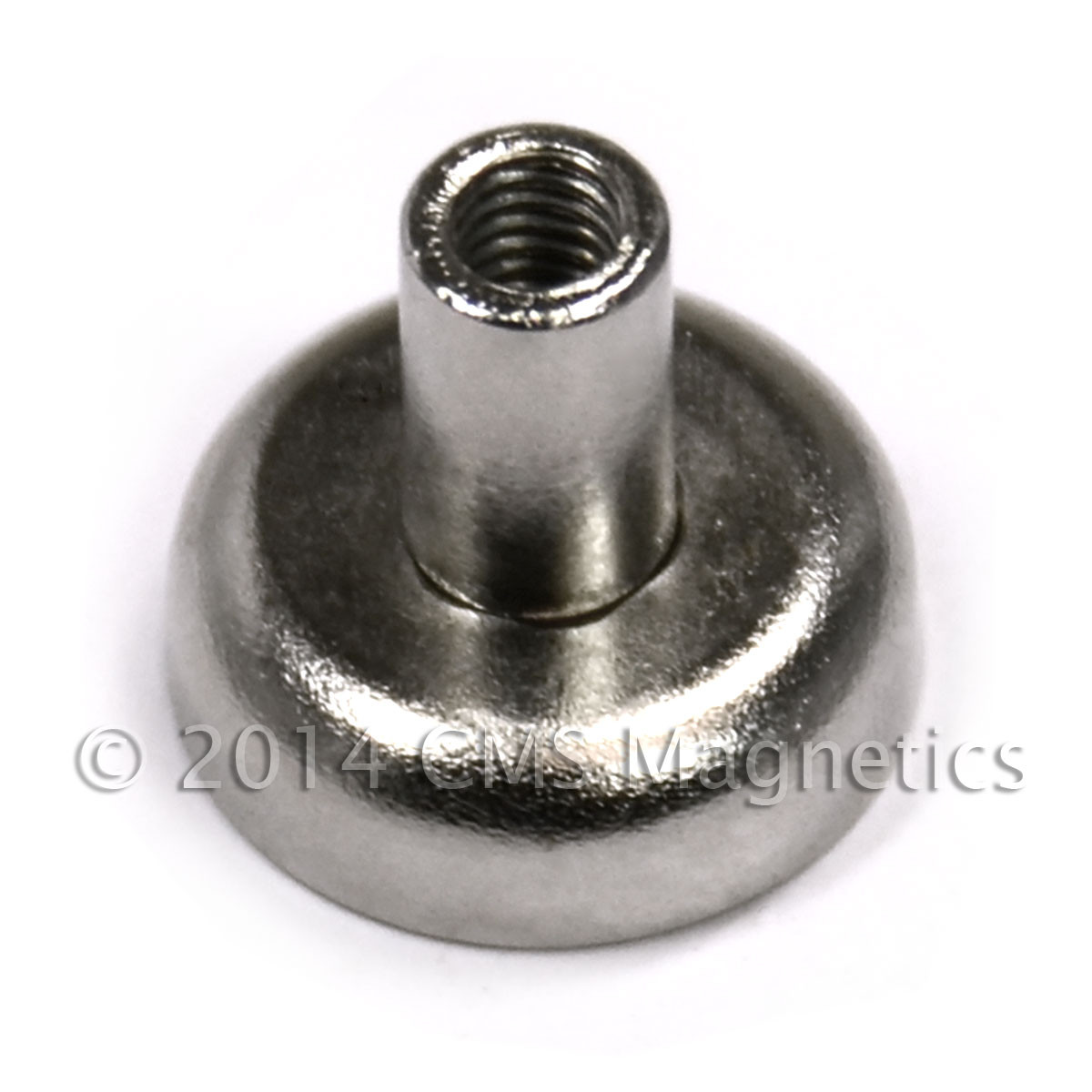

16 LB Holding Power Neodymium Pot Magnets w/ Female Threaded Stud #6-32, Neodymium Cup Magnet
This neodymium pot magnet is made with neodymium magnet and has 16 lb holding power. The female stud is #6-32 threaded. The neodymium magnet is bonded inside of the cup with adhesives. This design forms a magnetic circuit which triples the holding force of the magnet to 16 LBs! At the same time, the steel cup protects the magnet from being damaged when the pot magnet is used.
- The holding power of 16 LB is for a direct touch and direct pull, i.e. the bottom of the pot magnet directly touches a bare steel surface which is clean and flat. The pull away force is perpendicular to the touch surface. The side pull force will be smaller.
- The applications of this pot magnet include mounting signs onto a magnetic surface without glue or drilling holes, lifting and much more.
- The pot magnet is also known as round base magnets or cup magnets, or magnetic cup assembly.
/cup-magnets-neodymium-female-threaded-stud/
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Pulling Force 16Lbs.
Pole Orientation Axially
Coating NiCuNi
