Product Description

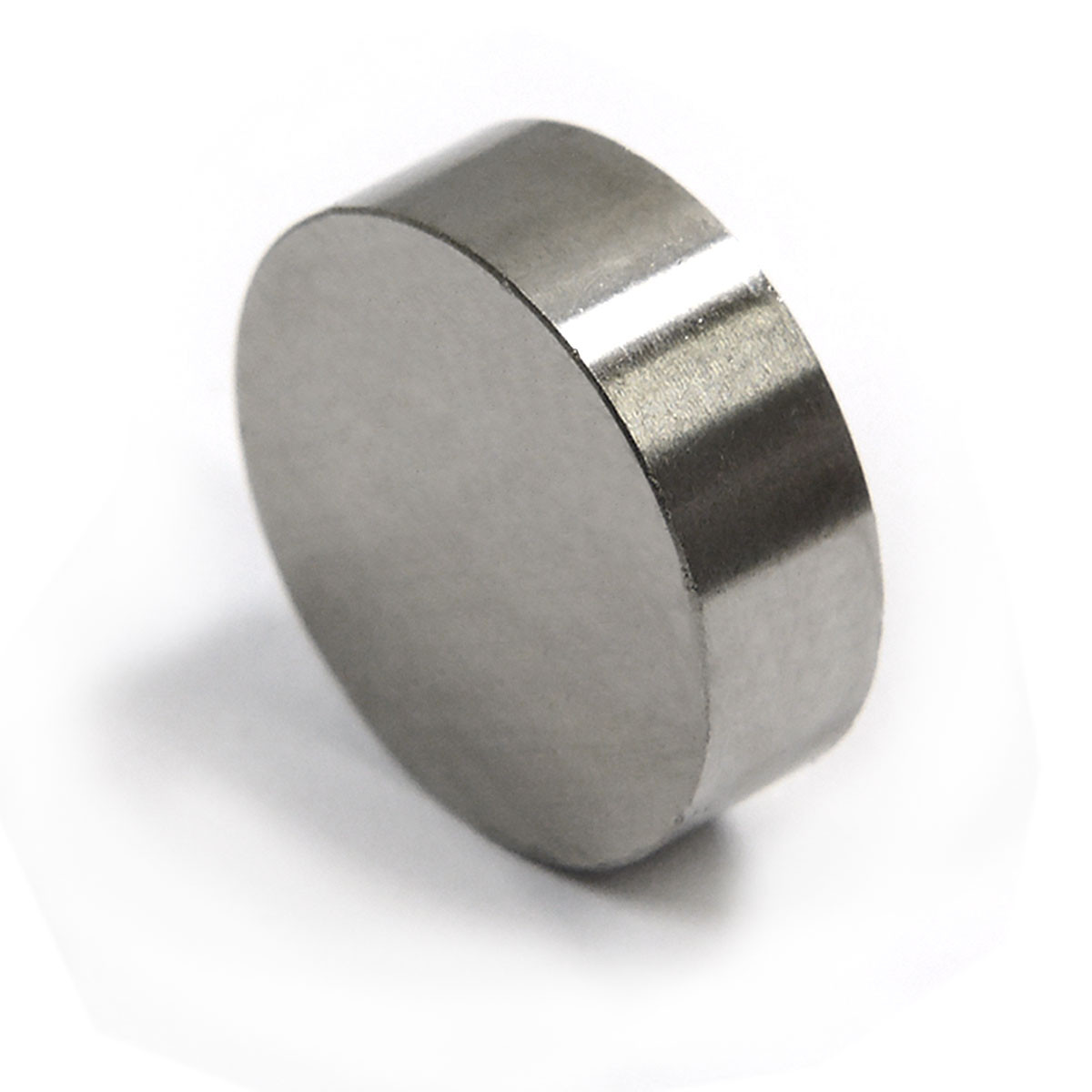

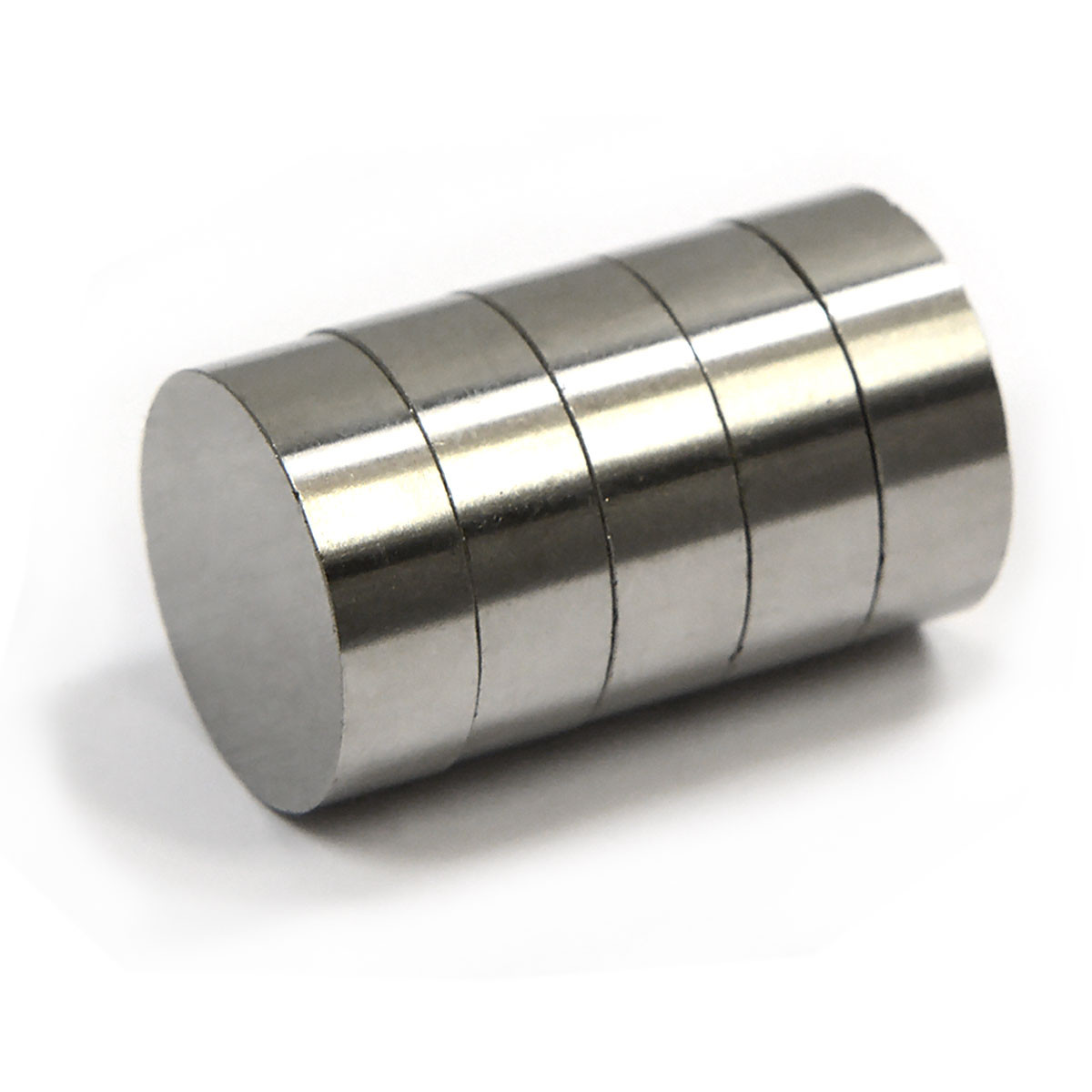

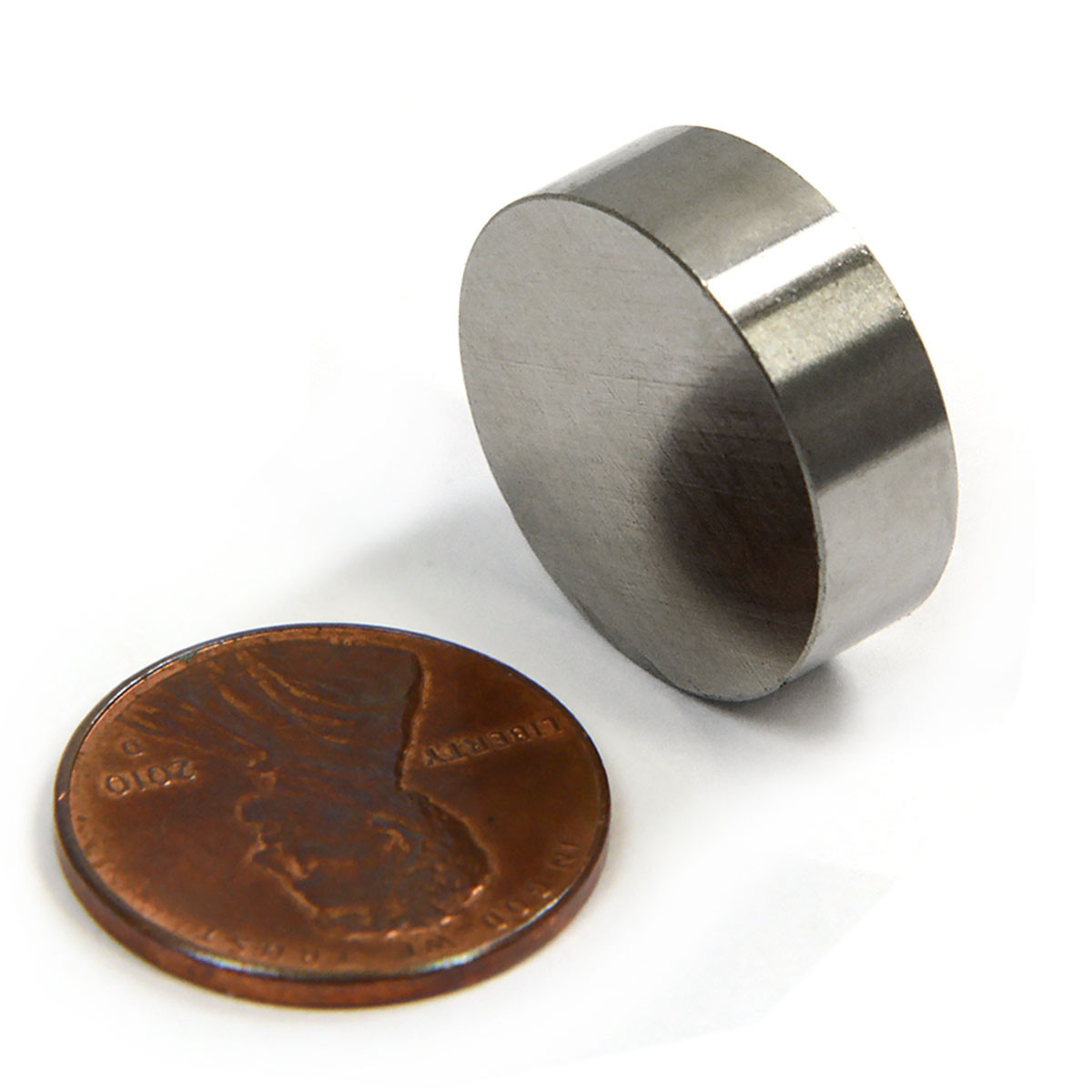

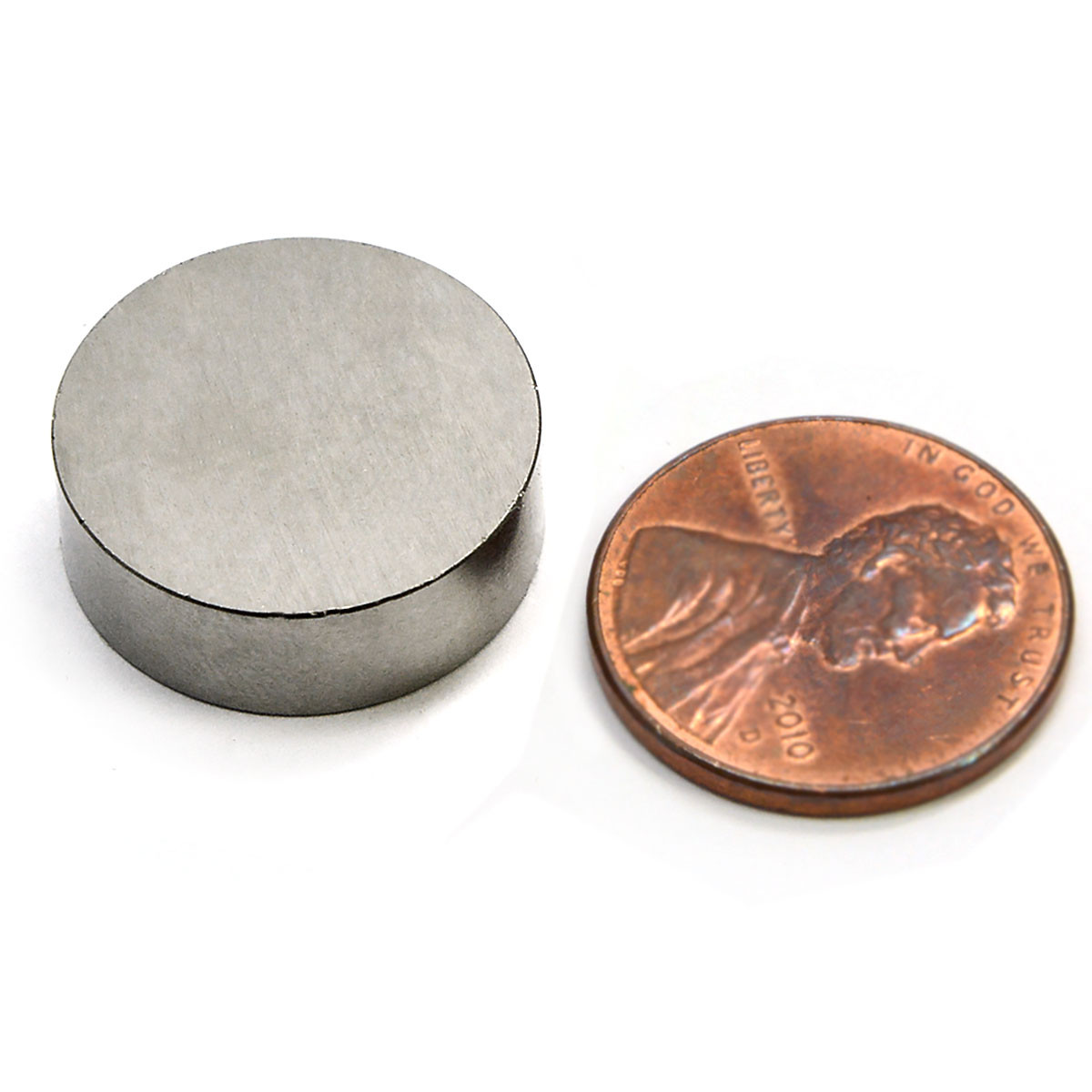

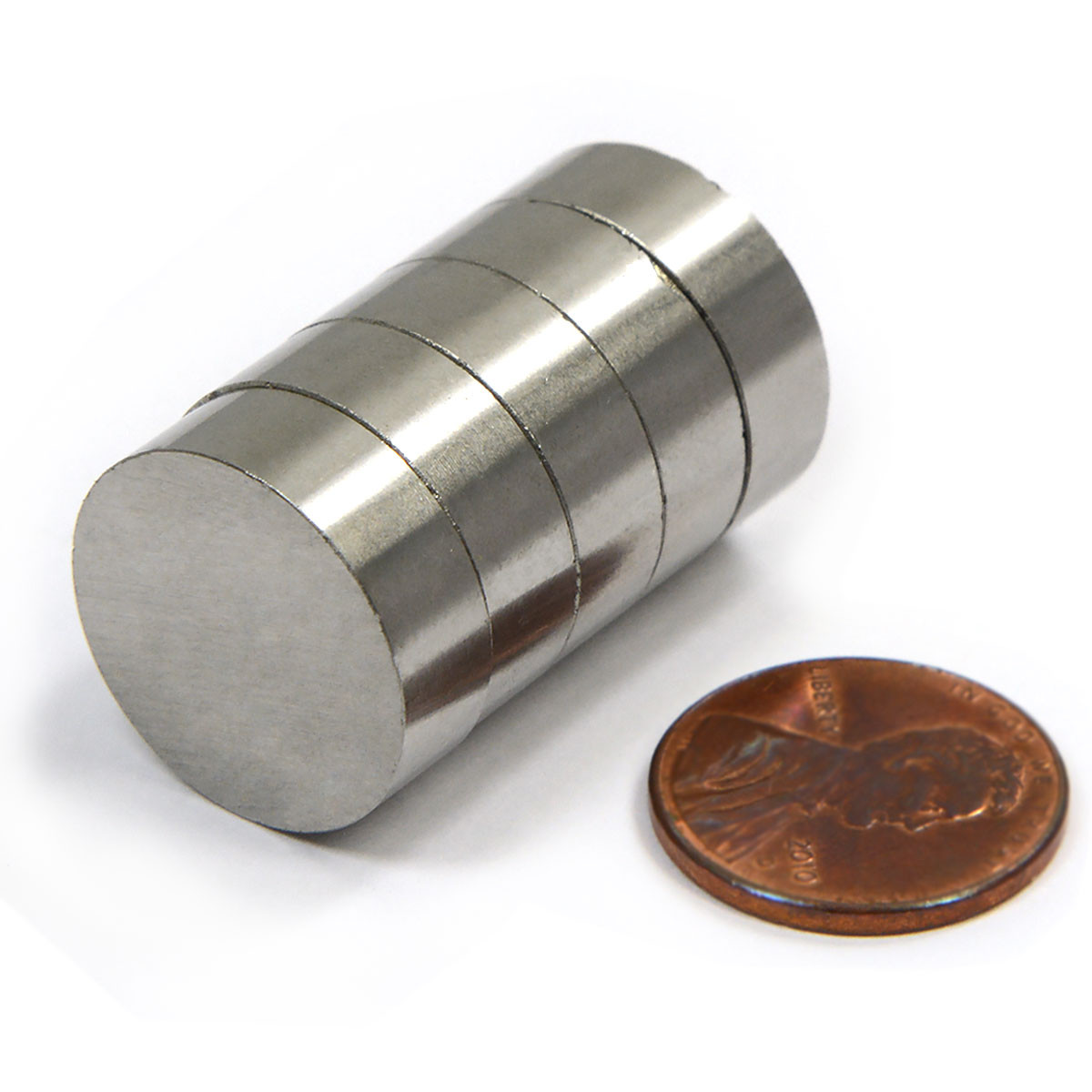

Our premium-grade AlNiCo Disc Magnet, measuring 3/4" in diameter and 1/4" in thickness, is crafted from top-quality AlNiCo 7 material. This magnet, designed for high-performance applications, offers a strong holding force of 3.34 lbs and is magnetized through its thickness, placing the North and South poles on its flat surfaces.
Key Features:
- Material: Cast AlNiCo Class 7, ensuring durability and performance.
- Magnetic Characteristics: Br = 580 mT, Hcb = 80KA/m, BH = 18KJ/m³, delivering strong magnetic force.
- Holding Power: 3.34 lbs holding capacity.
- Pole Orientation: Axially magnetized for precise and effective use.
- Tolerance Levels: Precisely crafted to meet strict diameter and thickness tolerances.
- High-Temperature Resistance: Capable of operating up to 550°C (1022°F), ideal for high-temperature environments.
AlNiCo magnets are renowned for their temperature stability, making them a preferred choice in industries such as high-temperature tooling and oil fields. They are also used in guitar pickups due to their unique magnetic properties. Despite being more fragile than neodymium magnets, AlNiCo magnets offer superior machinability and do not require additional coating.
CMS Magnetics is dedicated to supplying the highest quality AlNiCo magnets to the American industries. Leveraging advanced technology and premium raw materials under ISO 9001 quality systems, we ensure each magnet meets the highest standards. Custom sizes and grades are available to suit your specific needs.
