Product Description

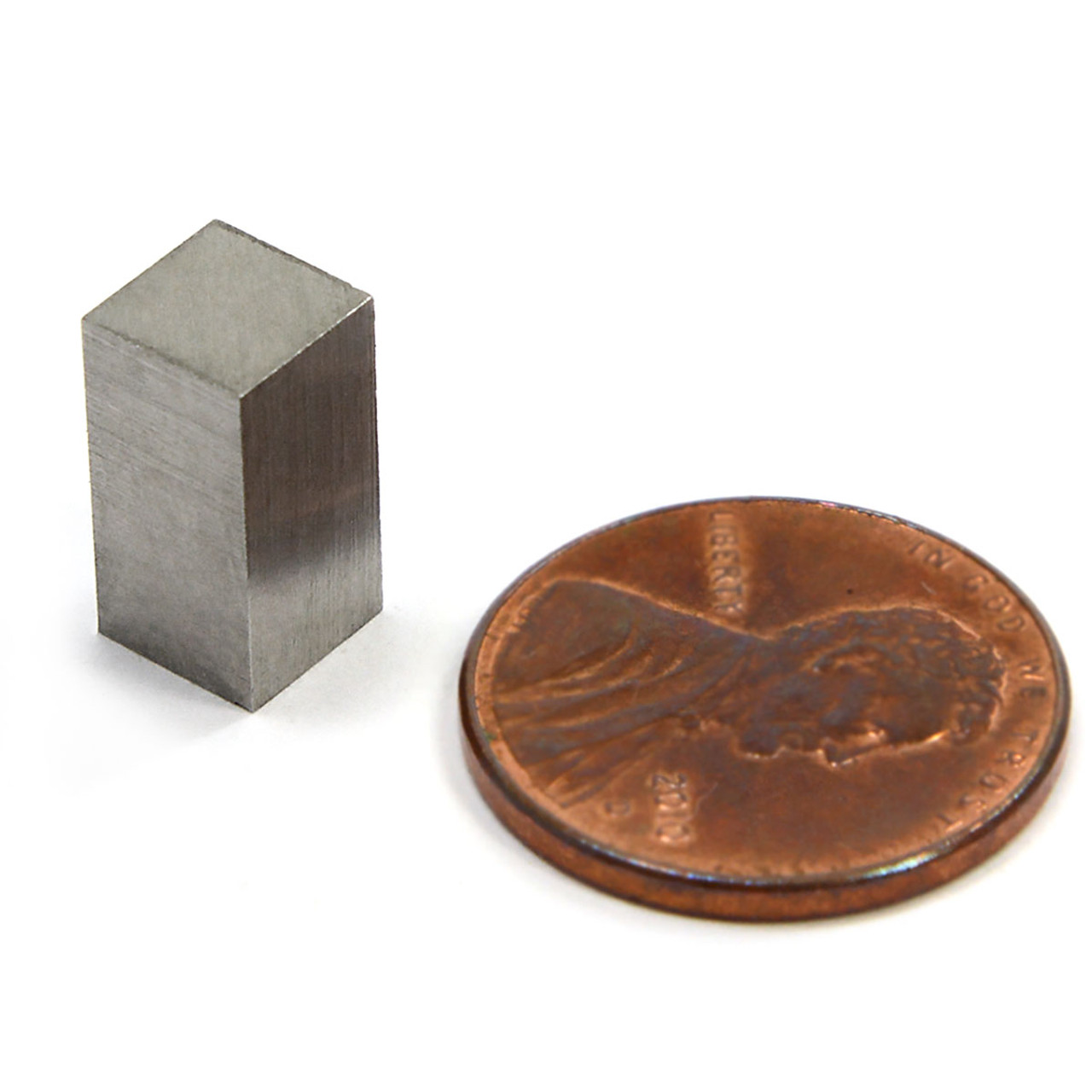

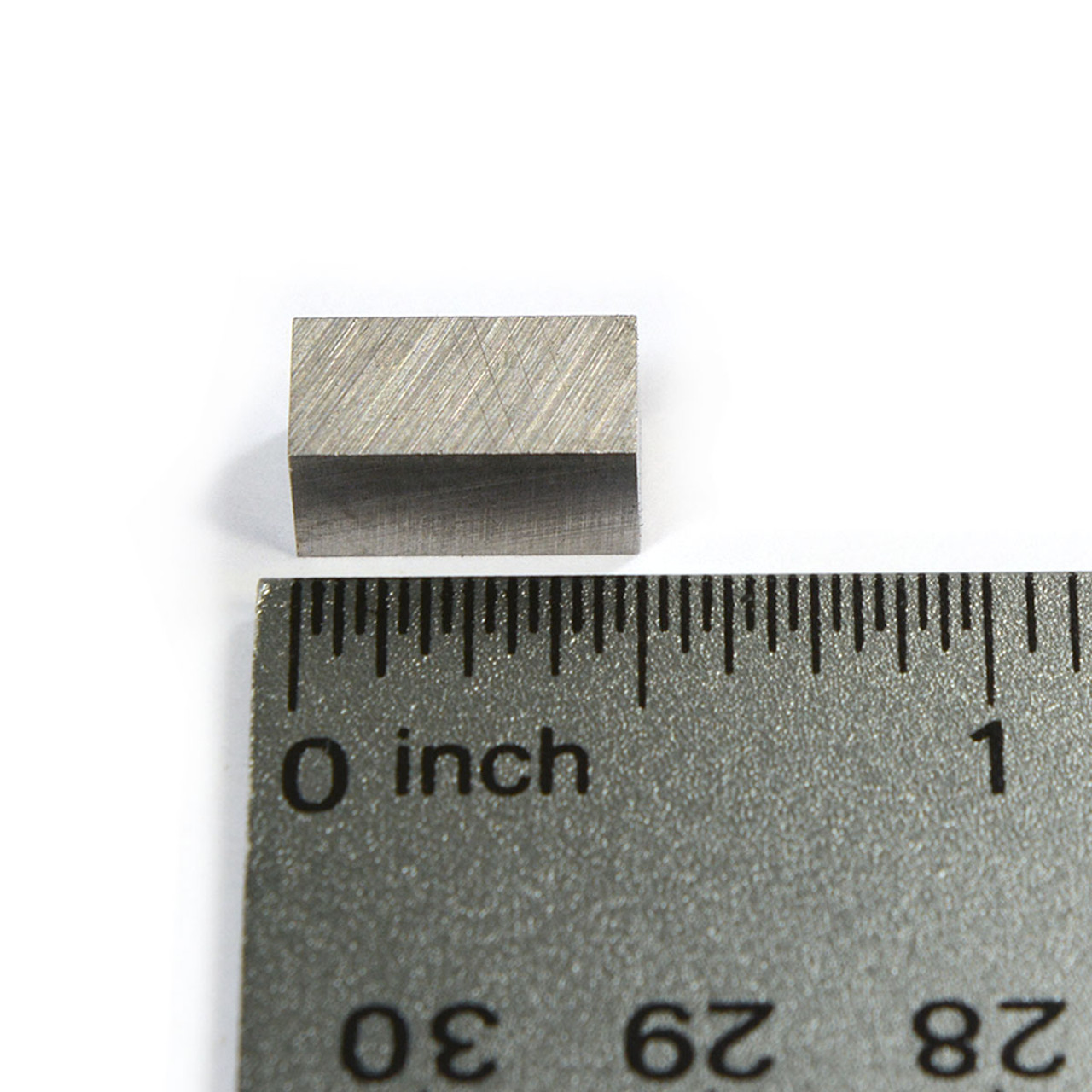

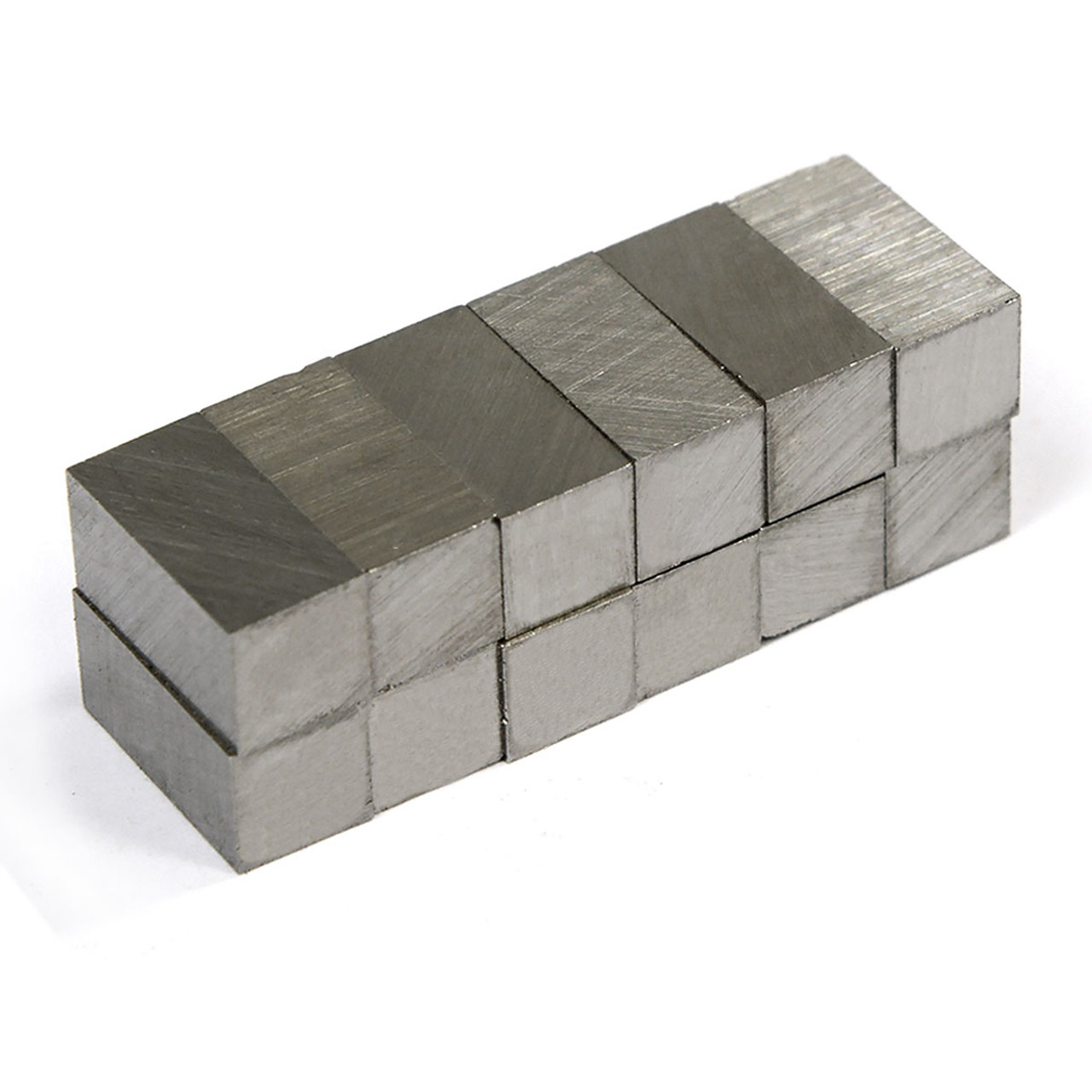

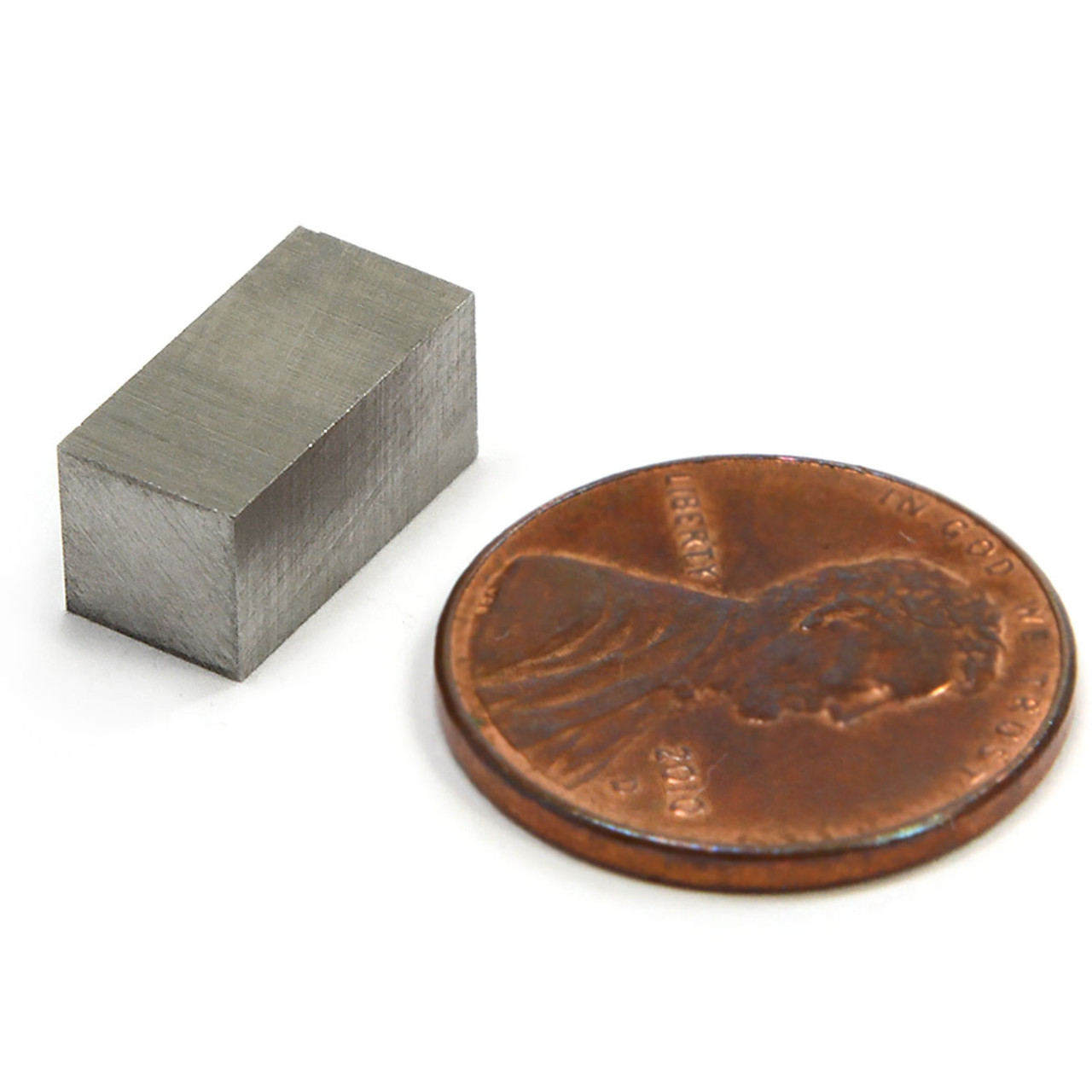

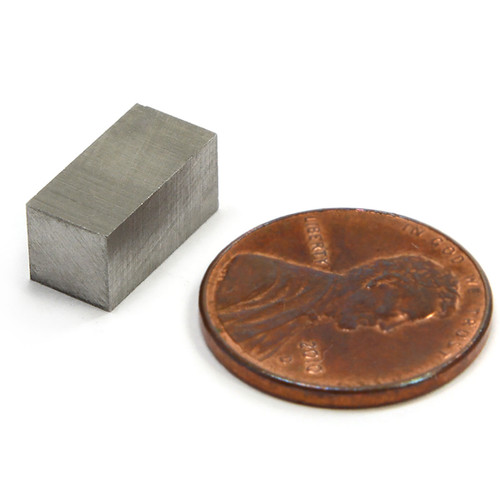

Our premium-grade AlNiCo 5 Magnet, dimensioned at 1/2x1/4x1/4 inches, is specifically engineered for high-temperature applications. This top-quality AlNiCo magnet offers stability and durability, making it a preferred choice for industries operating under extreme heat conditions, such as high-temperature tooling or oil fields.
Key Features:
- Material: Crafted from AlNiCo class 5, renowned for its temperature resilience.
- Magnetic Characteristics: Br: 1,200mT, Hcb: 48kA/m, BH: 37KJ/m³, ensuring strong magnetism.
- Holding Power: A reliable holding force of 1.34 lbs.
- Pole Orientation: Magnetized through 1/4", with north and south poles on the 1/2x1/4" surfaces.
- Tolerance and Precision: Manufactured to high tolerances for accurate applications.
- Maximum Operating Temperature: Up to 550°C (1,022°F), with minimal magnetic loss.
AlNiCo magnets are known for their machinability and superior conductivity compared to other magnet types. They are more fragile than neodymium magnets but offer better precision and no additional coating is required.
CMS Magnetics is committed to delivering the best quality AlNiCo magnets, utilizing state-of-the-art technology and highly purified raw materials under ISO 9001 quality systems. Customization in grades and dimensions is available to meet your specific needs.
