Product Description

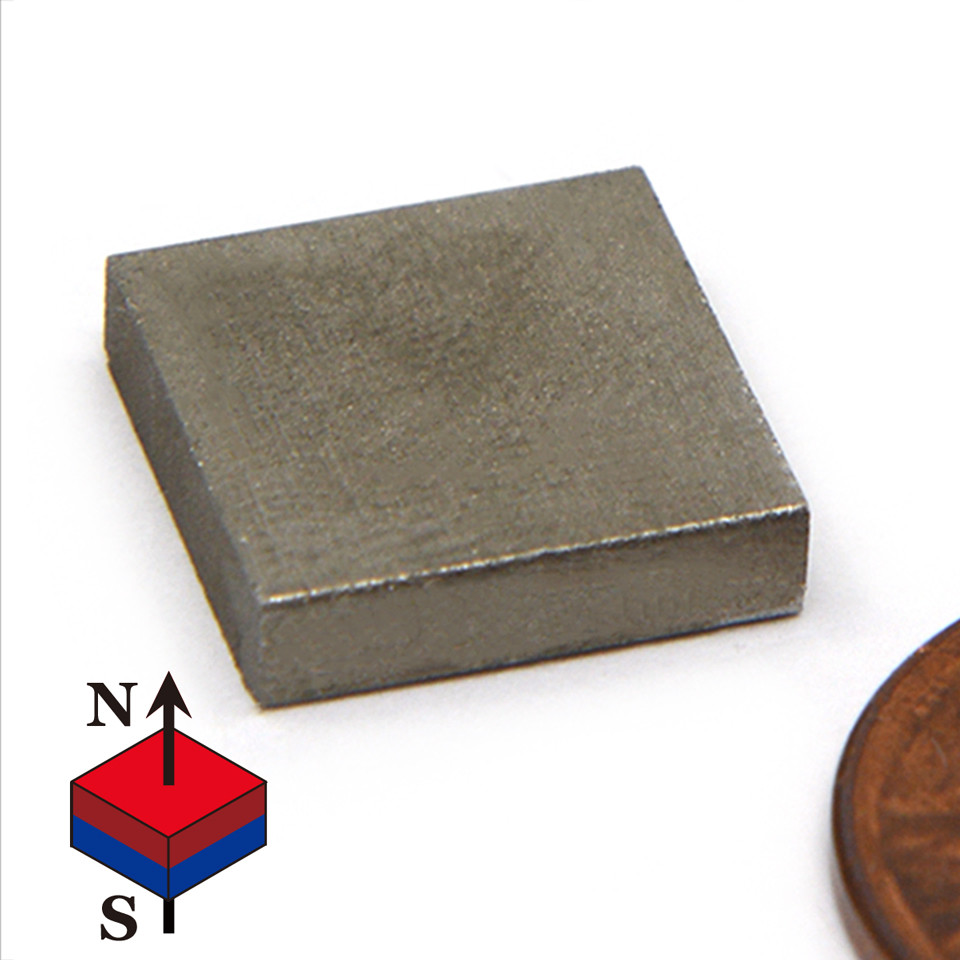

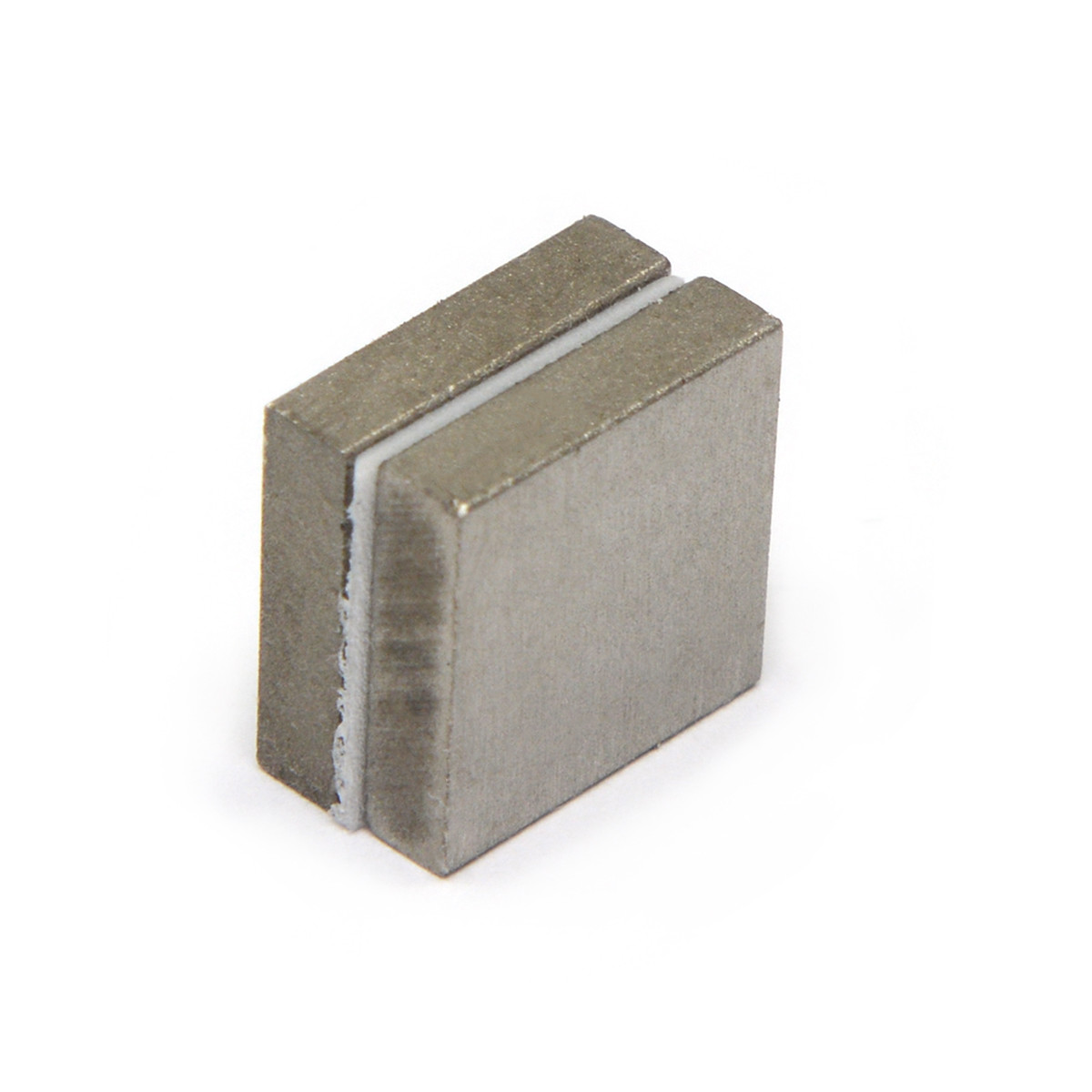

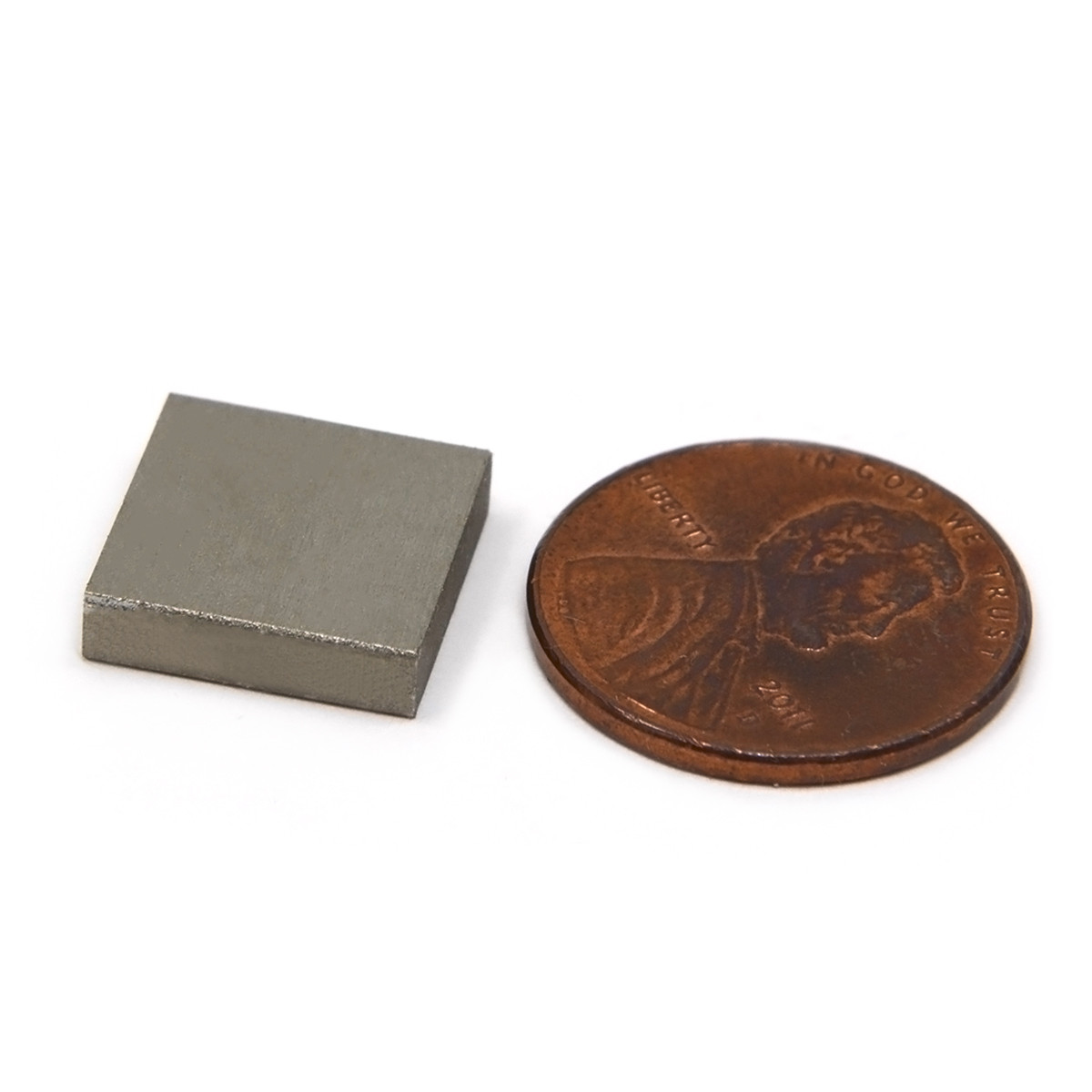

Our Samarium Cobalt (SmCo) Block Magnets, model SMB008-26, have exceptional strength and high-temperature resilience. These premium quality sintered SmCo magnets, measuring 1/2 inch square and 1/8 inch thick, are crafted from top-grade Sm2Co17 material. With magnetic characteristics close to neodymium magnets, each of these magnets provides a robust 4.1 lb holding force.
Unlike neodymium magnets, SmCo magnets offer superior temperature stability, making them ideal for high-temperature environments such as the tooling or oil industries. This particular grade can operate efficiently in conditions up to 608°F (320°C).
Key Features:
- Material: Sintered SmCo, Grade 26.
- Magnetic Characteristics: Br: 10.4 kGs, Hcb: 9.8 kOe, Hcj: 10.6 kOe, (BH)max: 26 MGOe.
- Holding Power: 4.1 lbs each.
- Pole Orientation: Magnetized through 1/8" - poles on the 1/2" x 1/2" surfaces.
- Tolerance: Precision-engineered dimensions.
- Maximum Operating Temperature: Up to 608°F (320°C).
CMS Magnetics is committed to delivering the highest quality SmCo magnets, leveraging state-of-the-art technology and highly purified raw materials under ISO 9001 quality systems. Custom sizes and grades are available to meet your specific needs.
