Product Description
AlNiCo 5 Block Magnet 1x1/2x1/4" Working Temperature is Up to 1,022 Degree Fahrenheit

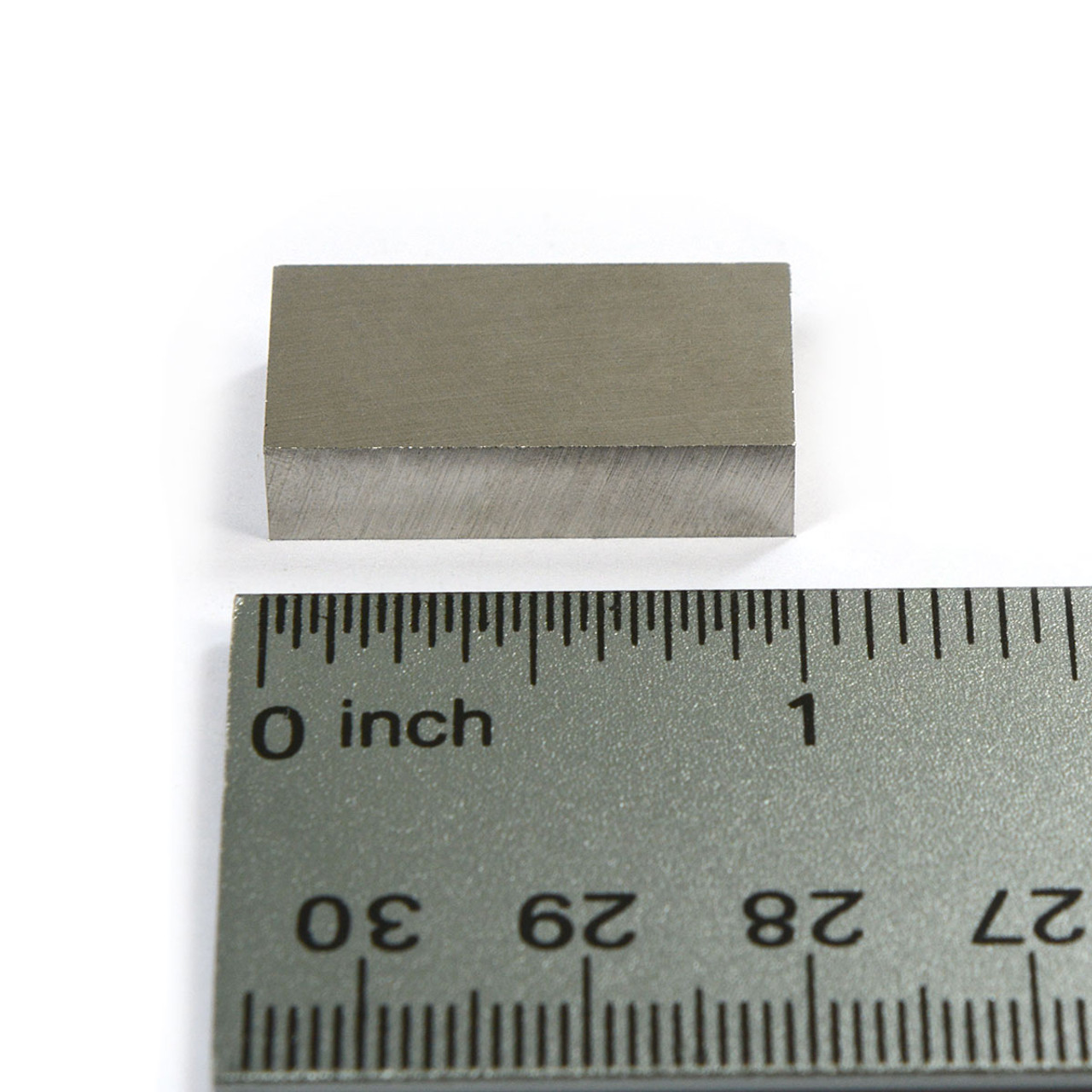

This listing includes a top quality AlNiCo 5 magnet. This magnet is 1/4" thick x 1/2" wide x 1" long and magnetized through 1/4" so the N and S poles are on the 1x1/2" surfaces.
AlNiCo magnets have extraordinary temperature stability than the other types of magnets so they are mostly used in the industries like high temperature tooling or oil field applications where high temperature is present. AlNiCo magnet is also used as guitar pickups.
Generally speaking, AlNiCo 5 magnets are more fragile than neodymium magnets but have a better machinability so can be made with very high precision.
The magnetic characteristics of this precision magnet is as follows,
- Material: AlNiCo class 5
- Magnetic Characteristics: Br: 1,200mT, Hcb: 48kA/m, BH: 37KJ/m³
- Holding Power: 6 LBS
- Pole Orientation: Magnetized through 1/4", i.e. the north and south poles are on the 1x1/2" surfaces
- Tolerances: 1 +/-0.004" x 1/2 +/-0.004" x 1/4 +/-0.004"
- Maximum Operating Temperature: 550 degree Celsius or 1,022 degree Fahrenheit (5% magnetic loss at this temperature)
CMS Magnetics provides the best quality AlNiCo magnets for USA industries for years. All of our products are made via state of the art technology. All the magnets are made of highly purified raw material under ISO 9001 quality system.
Should you need different grades or dimensions of AlNico magnets, we can custom make for you per your requirements.
