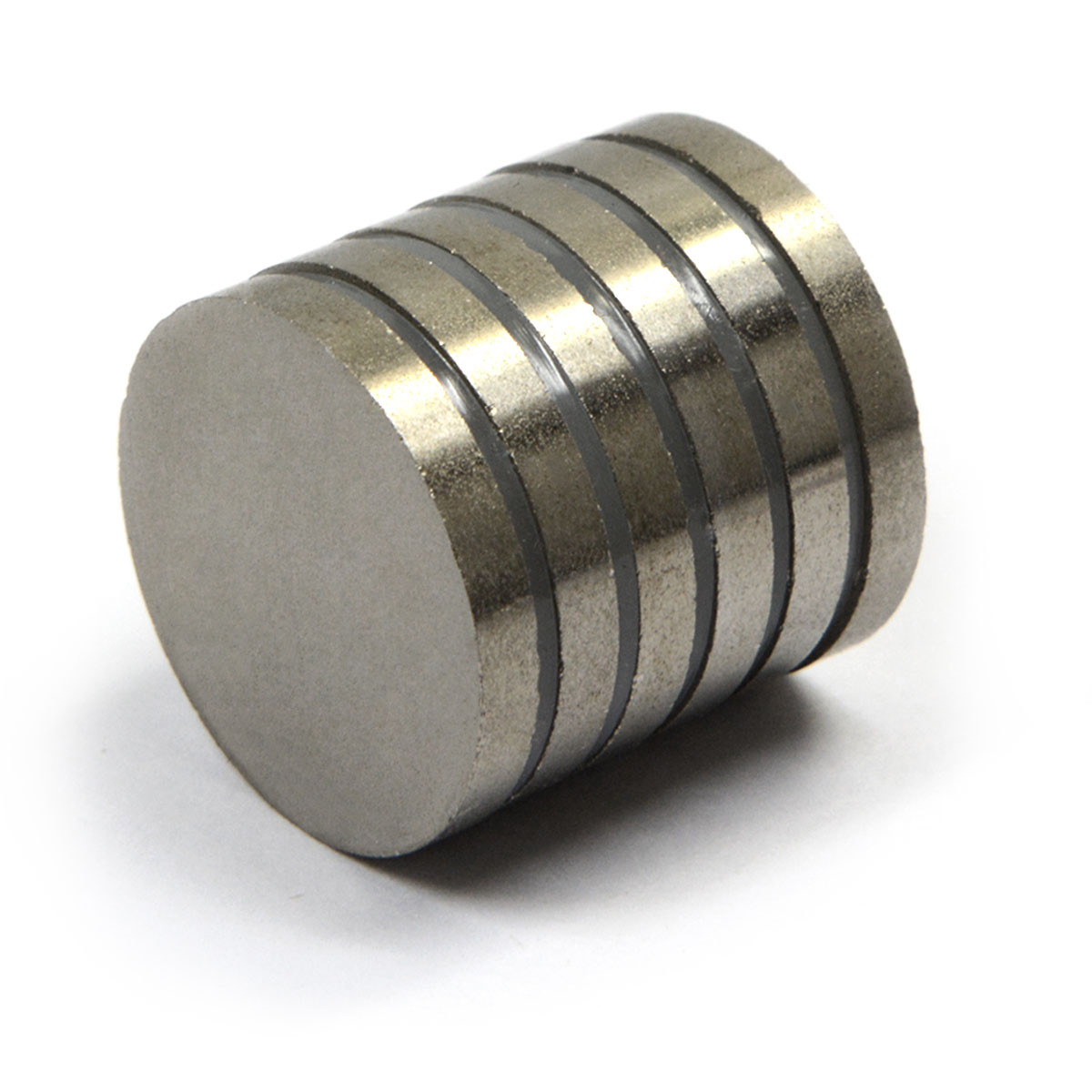

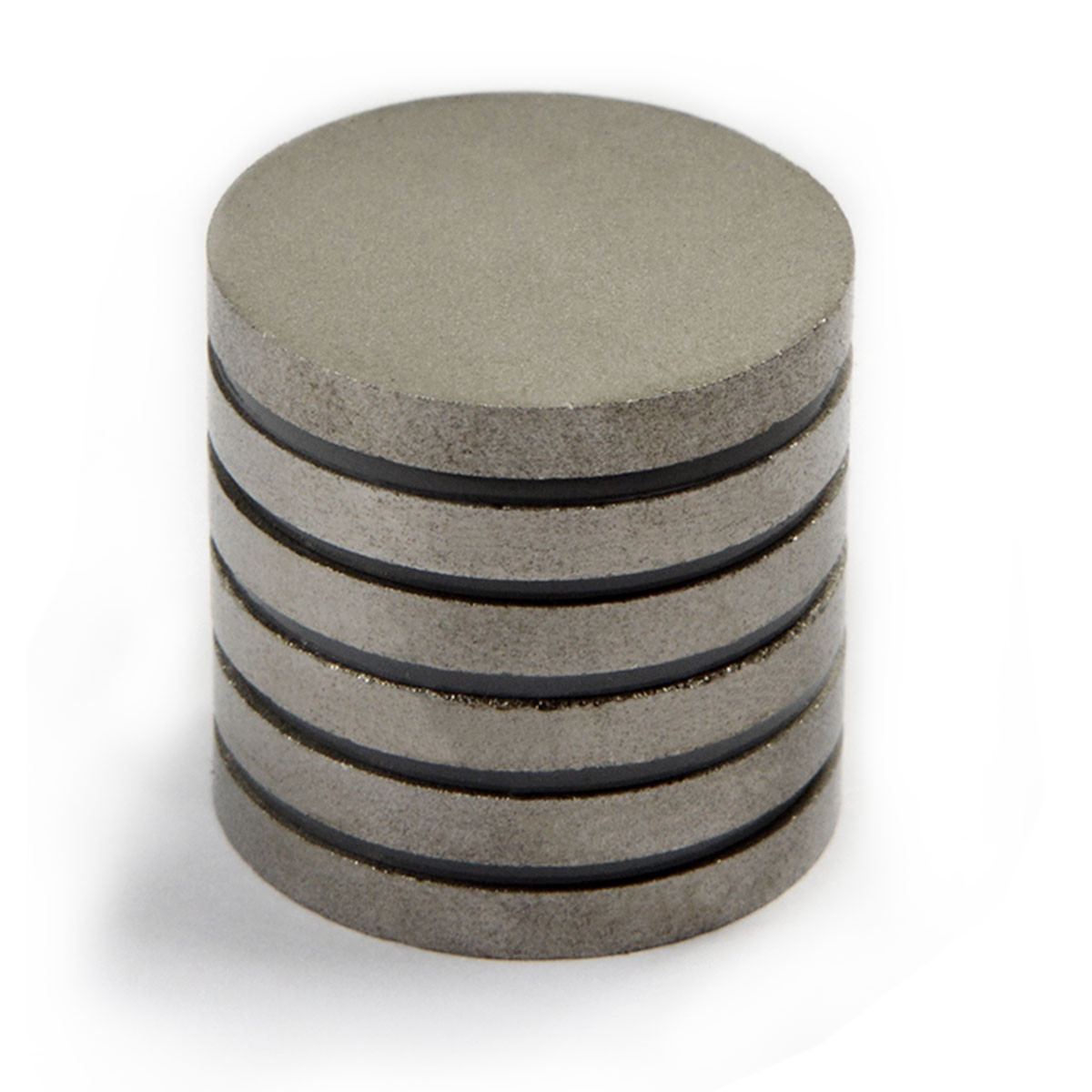

SmCo Magnets Dia 1X1/8" Disc Magnet of Samarium Cobalt High Temperature
This SmCo disc magnet is made of Samarium Cobalt magnet alloy under ISO 9001 quality systems. The material is Sm2Co17 and the grade is 26. This disc magnet is axially magnetized so the N and S poles are on the flat surfaces.
SmCo magnets are powerful magnets and their strength is very similar to the neodymium magnets' but have a higher working temperature. They are majorly used in the industries when the high temperature is present. For the home projects, the SmCo magnets should be considered for stove or fire place applications.
The followings are the magnetic characteristics of this SmCo magnet,
- Br: 10.4 kGs
- Hcb: 9.8 kOe
- Hcj: 10.6 kOe
- (BH)max: 26 MGOe
- Maximum Normal Operating Temperature: 320 Celsius or 608 Fahrenheit
- Holding Force: Approximately 6.9 lbs.
- Pole Orientations: Axially magnetized, i.e. the N and S poles are on the flat surfaces.
- Applications: Holding magnets, electrical motors, generators etc. For crafting magnets, please choose neodymium magnets or ceramic magnets instead.
CMS Magnetics provides the best quality SmCo magnets for USA industries for years. All of our products are made via state of the art technology. All the magnets are made of highly purified raw material under ISO 9002 quality systems.
Should you need different grades or sizes of SmCo magnets, we can customize per your requirements.
