Product Description

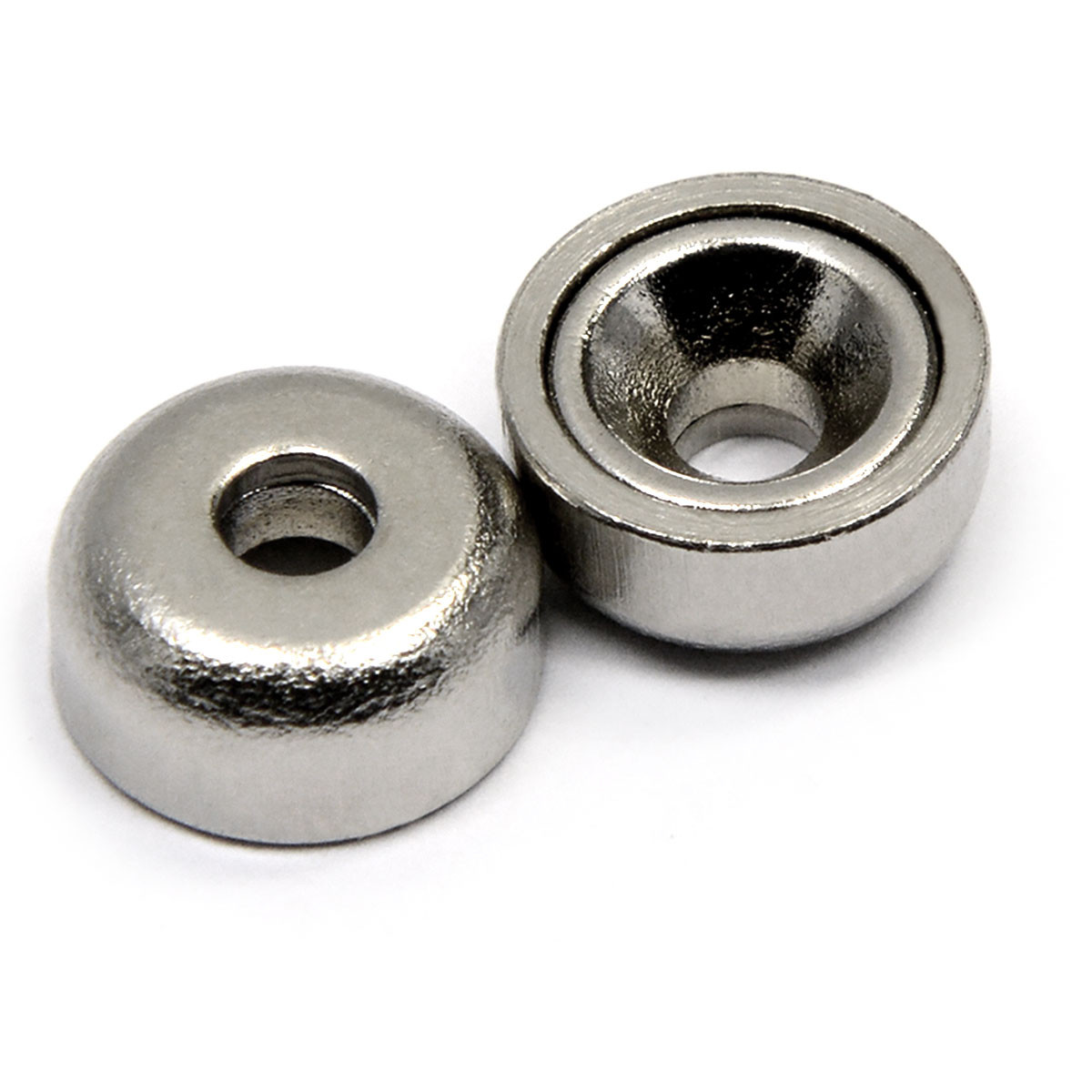

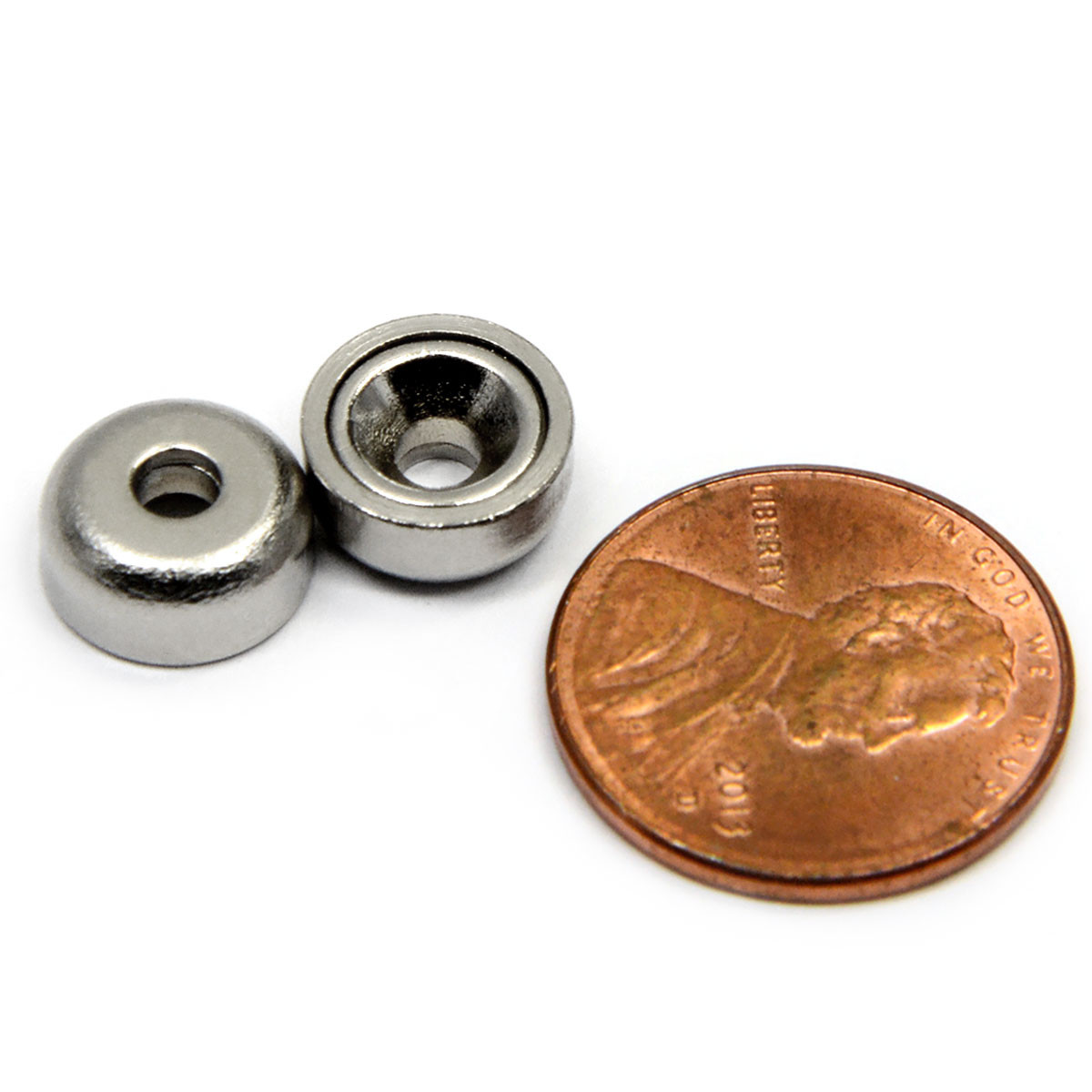

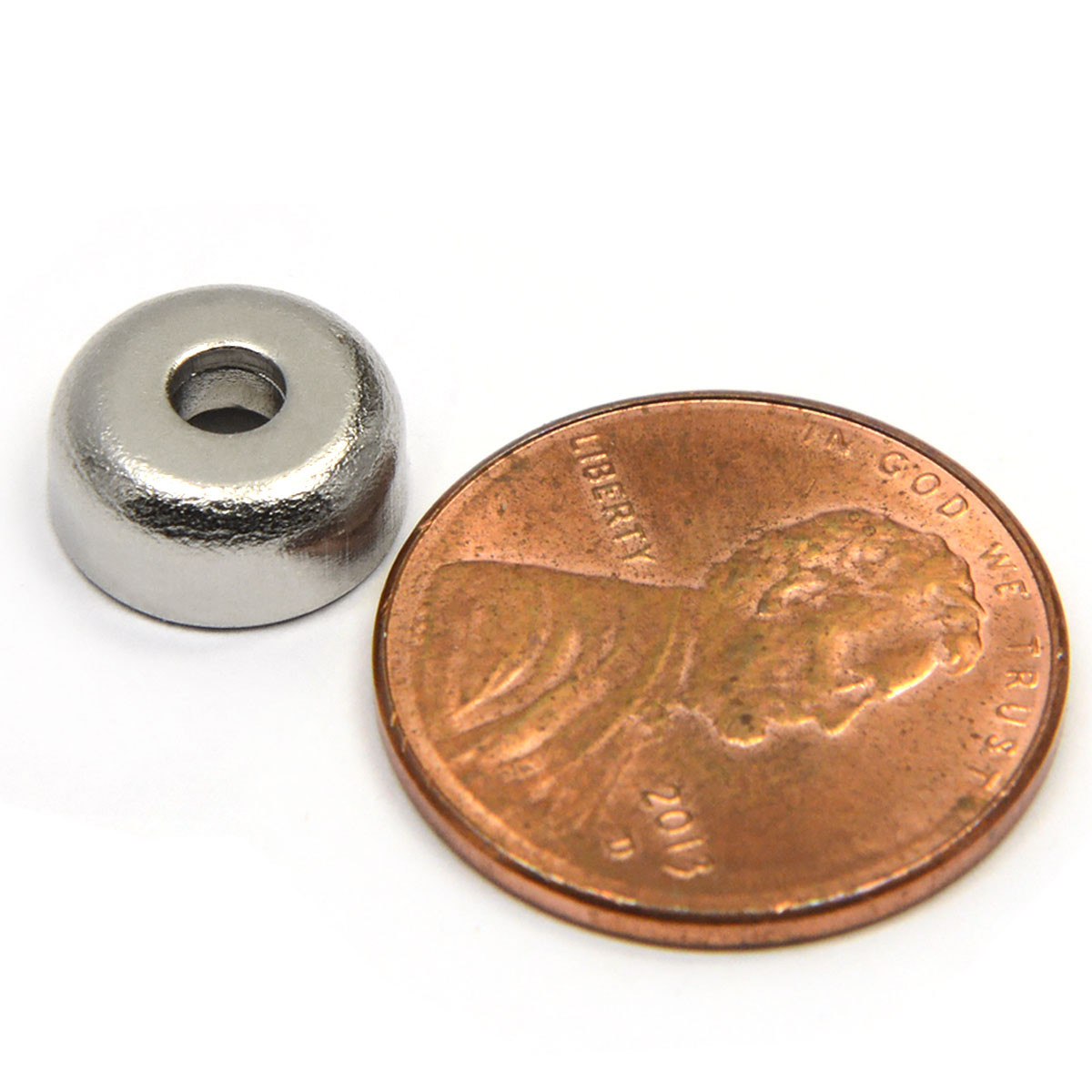

Neodymium Cup Magnets - 0.39" Diameter | 3 LB Holding Power
These neodymium cup magnets, with a diameter of 0.39 inches, offer a strong holding power of 3 lbs each. Encased in a chrome-plated steel cup, the super-strong neodymium magnet is securely bonded with adhesive, forming a magnetic circuit that significantly enhances its holding capacity. The steel cup not only triples the magnet's holding force but also protects it from damage during frequent use. The countersunk hole designed for a #4 screw ensures easy mounting and versatile application.
Key Features:
- Pull Force: 3 lbs holding power
- Outer Diameter: 0.39 inches (10 mm)
- Inner Diameter (0d1): 0.144 inches (3.7 mm)
- Inner Diameter (0d2): 0.29 inches (7.4 mm)
- Height: 0.18 inches (4.5 mm)
- Material: Neodymium magnet encased in chrome-plated steel cup
- Design: Countersunk hole for easy mounting with a #4 screw
Applications: Ideal for magnetic holding, lifting, antenna mounting, positioning, retrieving, and various other uses.
Safety Notes:
- Handle with care to prevent chipping or shattering.
- Keep away from pacemakers.
- Not suitable for children; parental supervision required.
- Dispose of damaged magnets completely; shards remain magnetized and can be harmful if swallowed.
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Pulling Force 3Lbs.
Pole Orientation Axially
Coating NiCuNi
