Product Description
39 LB Neodymium Cup Magnet Dia 1" with #10 Countersunk Hole | High-Strength Round Base Magnet
This 39 LB Neodymium Cup Magnet features a 1" diameter and a #10 countersunk hole, designed for superior magnetic holding and versatility. Encased in a chrome-plated steel cup, the neodymium magnet is securely bonded with adhesives, forming a powerful magnetic circuit. The steel cup enhances the magnet's durability and provides protection during frequent use.

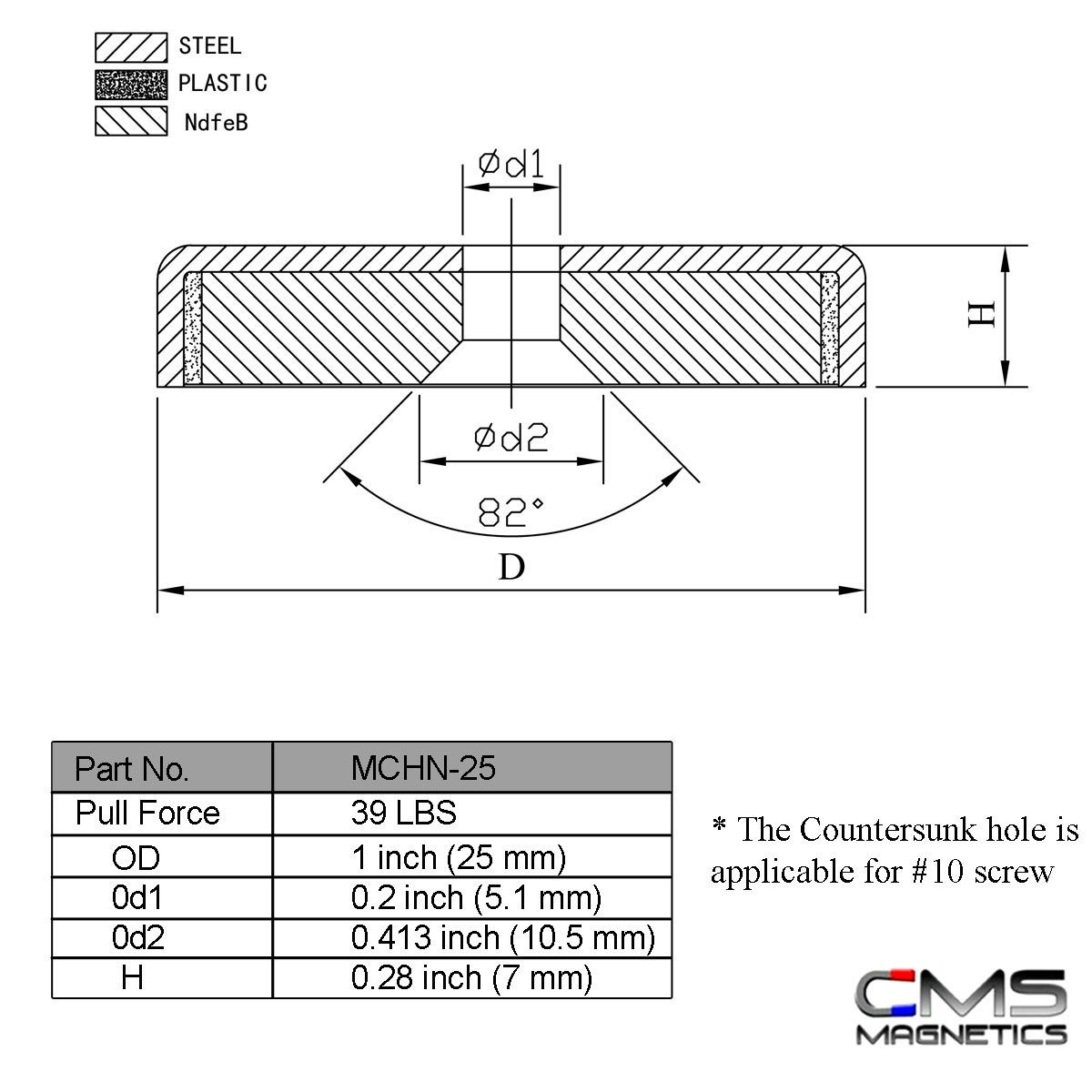

Key Features:
- Pulling Force: 39 lbs.
- Outer Diameter: 1 inch (25 mm).
- Center Hole Diameter: 0.2 inch (5.1 mm).
- Countersunk Diameter: 0.413 inch (10.5 mm).
- Countersunk Degree: 82 degrees.
- Thickness: 0.28 inch (7 mm).
Applications: Ideal for magnetic holding, lifting, antenna mounting, and more, this round base magnet is also known as a magnetic cup holder or magnetic cup assembly. It is a versatile tool suitable for various industrial and DIY applications.
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Pulling Force 39Lbs.
Pole Orientation Axially
Coating NiCuNi
Feature Countersunk
Product Reviews
2 Reviews
-
1" cup magnet
Very powerful. Impressive in using them on a product
-
Great Holding Strength!
I've mounted these over a year ago and they're still holding strong.
