Product Description

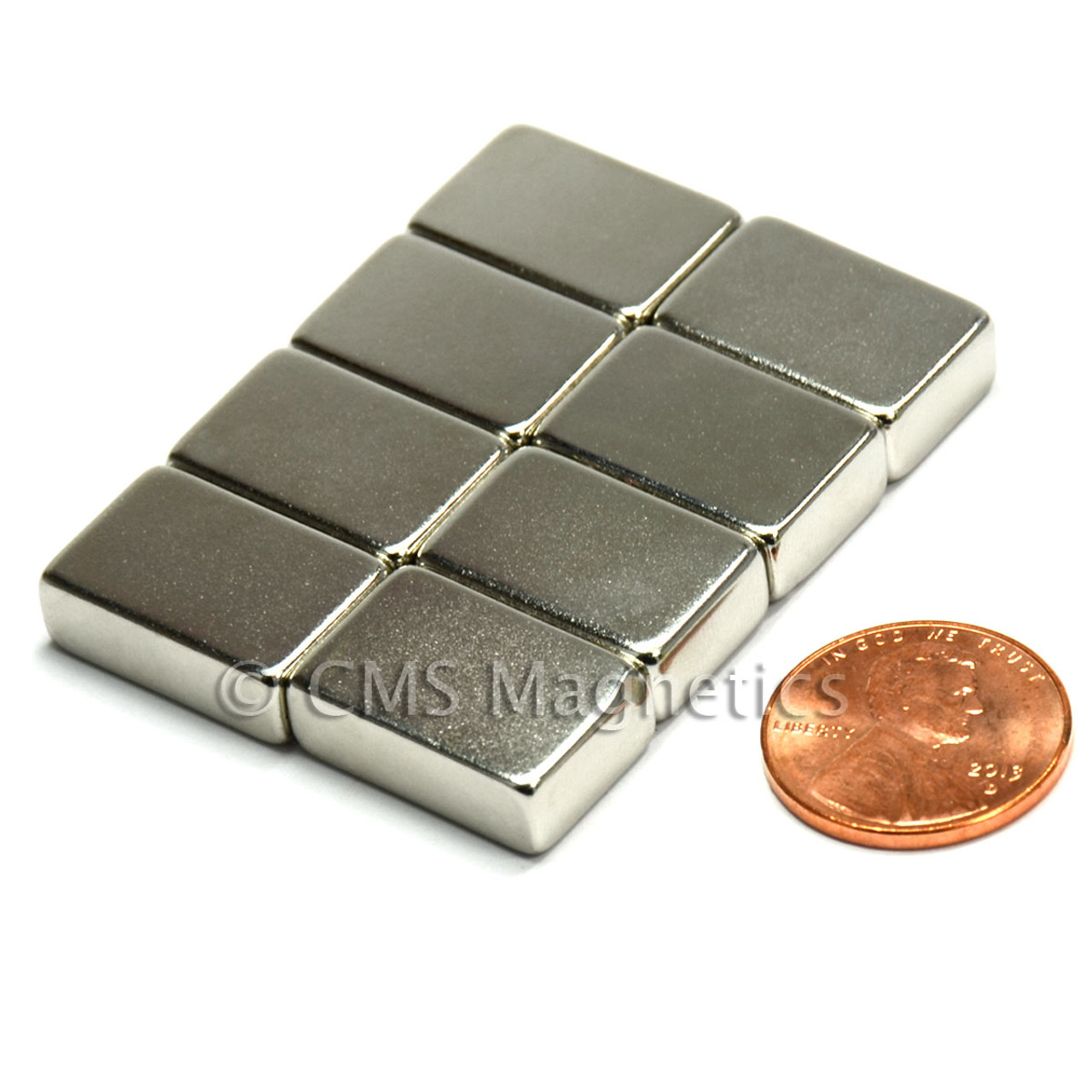

Block Magnet Grade N52 Neodymium Magnet 3/4"x1/4"x1/2" Rare Earth
This powerful neodymium block magnet measures 3/4" in length, 1/4" in width, and 1/2" in thickness and is made of a grade N52 neodymium, iron, and boron magnetic alloy blend. This magnetic blend is patent licensed and made under the ISO 9001 quality control systems and are plated in a nickel-copper-nickel triple layer coating for a shiny corrosion resistant finish. This magnet is great for industrial applications and personal projects.
Features:
- Material: Sintered neodymium magnet, NdFeB grade N52
- Remanence (Br): 14,400 Gauss or 1.44 Tesla
- Pulling Force: 18 Lbs

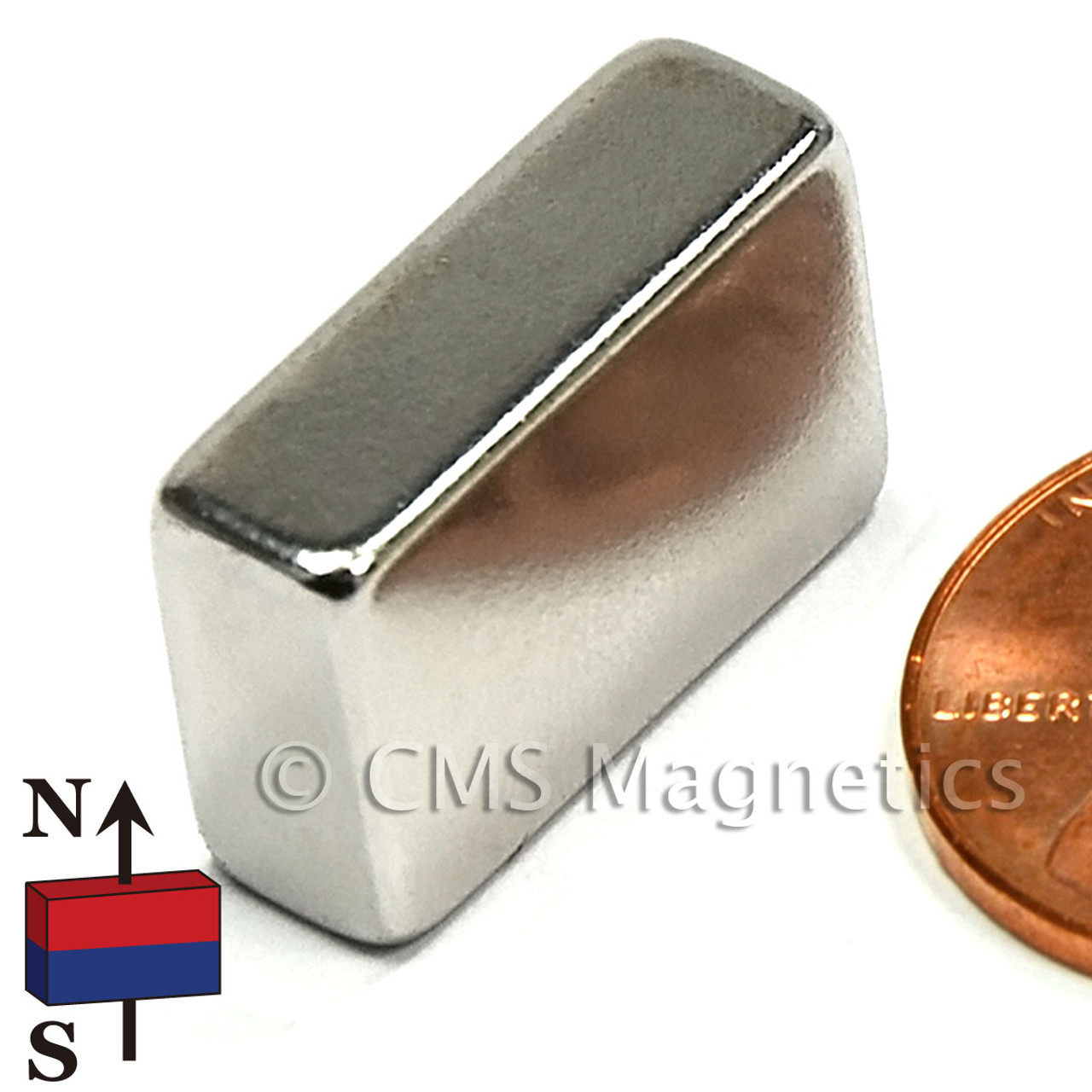

- Pole Orientation: Magnetized through 1/2", the poles are on 3/4" x 1/4" surfaces
- Coating: Ni+Cu+Ni 3 layer coating, the best available
- Tolerance: The tolerances of all the dimensions are +/-0.002" with coating
Please Note:
- All magnets may chip and shatter, but if used correctly this block magnet can last a lifetime
- Keep away from pacemakers
- Not for children, parental supervision required
- If damaged please dispose of completely. Shards are still magnetized and may have sharp edges
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Grade N52
Pulling Force 18Lbs.
Pole Orientation Thru Side
Coating NiCuNi
Product Reviews
2 Reviews
-
Block Magnet N52 Neodymium 3/4"x1/4"x1/2
Exactly what I needed.
-
Super Strong, for the size
Small and mighty. The "25 lbs" of power is at magnet contact, so they are great if you need to fit a magnet in somewhere tight, but still need a strong hold.
