Product Description
Large Neodymium Magnets Dia 1-1/2 X 3/8" w/ #8 Countersunk on N or S Poles, the Super Strong Disc Magnets for Science, Hobby and Crafts

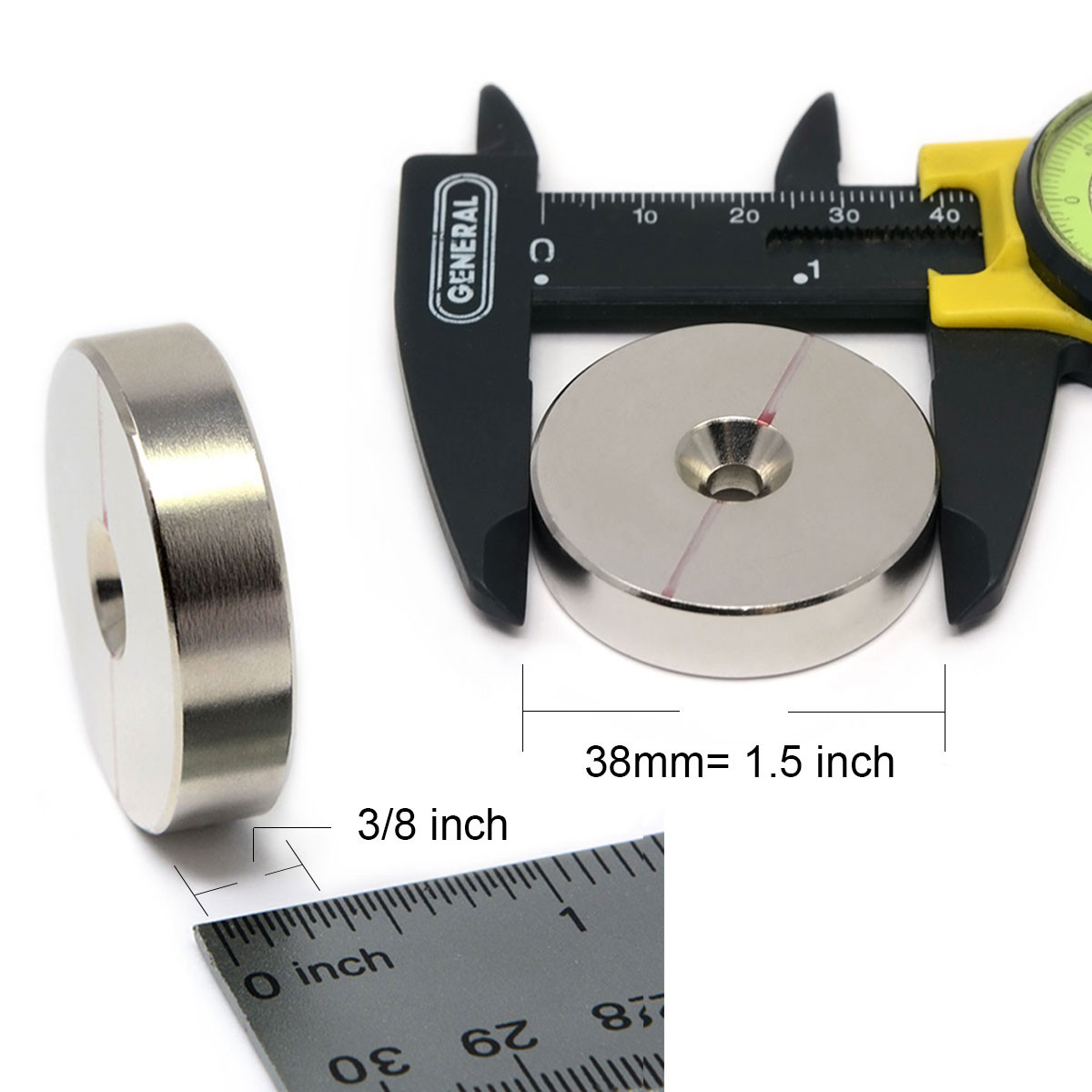

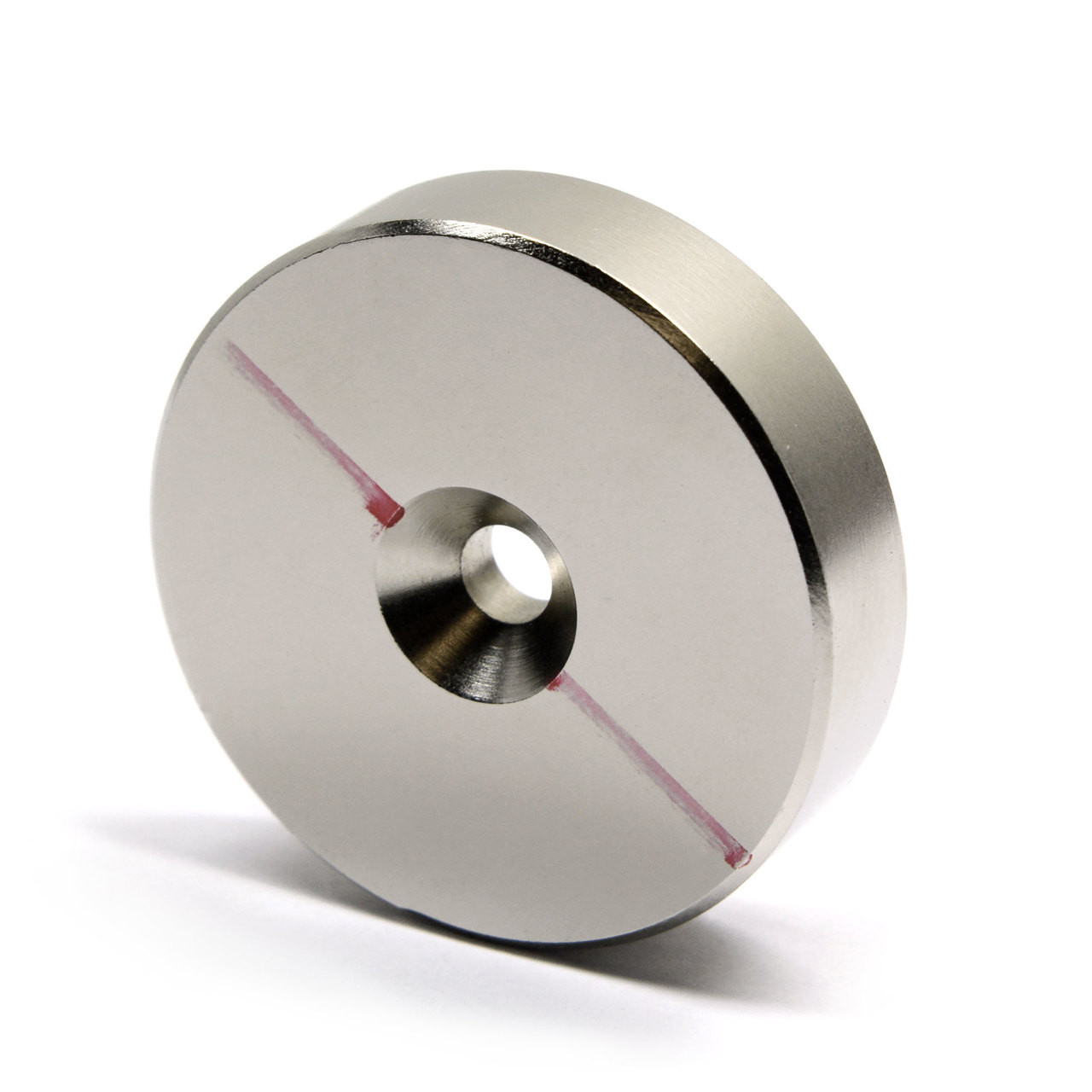

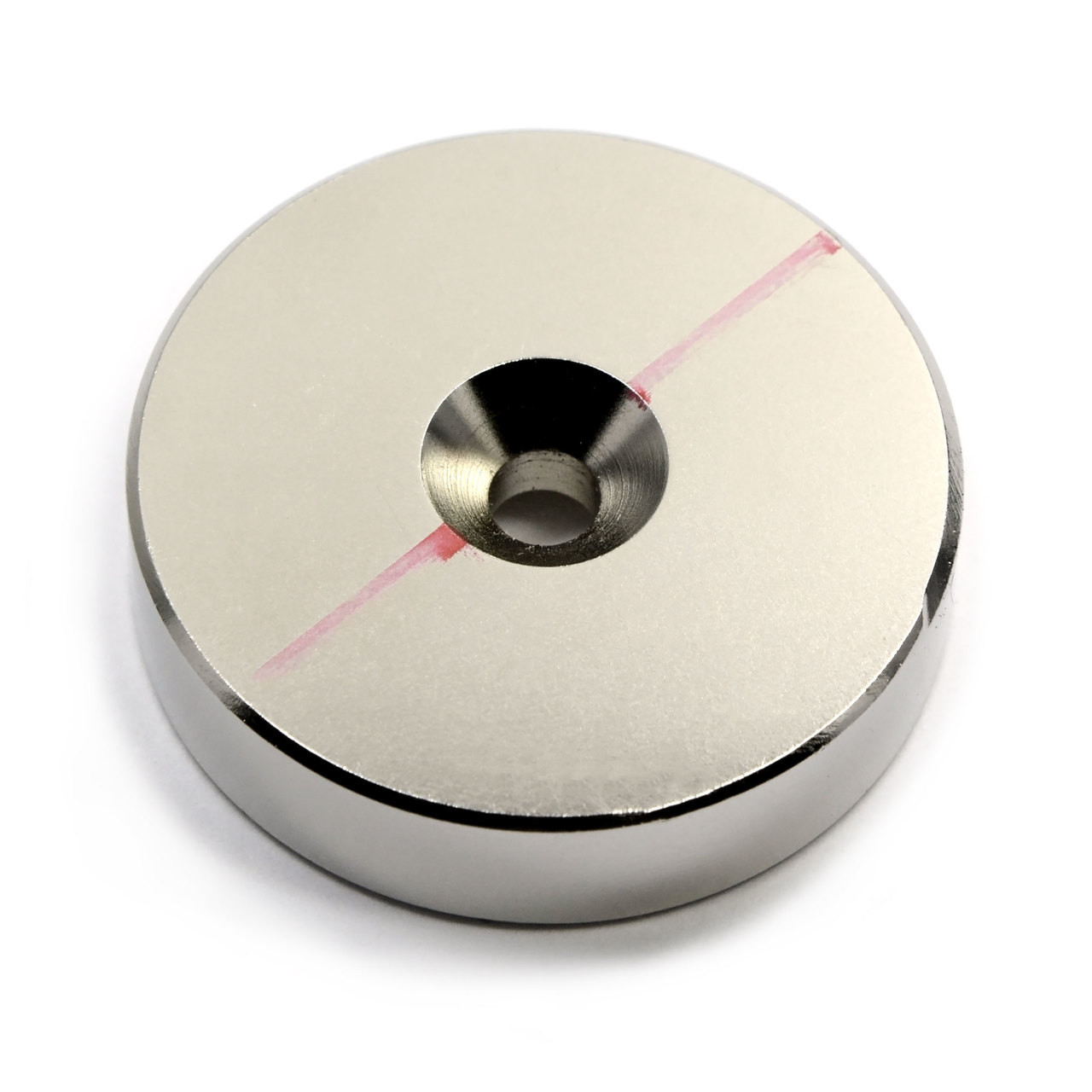

This disc magnet is 1.5 Dia x 3/8" thick and has a #8 countersunk hole through the thickness and countersunk on two sides. This disc neodymium magnet is amazingly powerful for its size and has innumerable uses.
Features:
- Material: Sintered neodymium magnets, Grade N50 NdFeB
- Remanence (Br): 14,200 Gauss or 1.42 Tesla
- Pulling Force: 58 Lbs.
- Pole Orientation: Axially magnetized, i.e. the N and S poles are on the two flat surfaces
- Coating: Ni+Cu+Ni 3 layer plated, the best coating available
- Tolerance: All +/-0.002" with coating
- Applications: This neodymium magnet is great for industrial and home applications. The typical applications of this magnet include magnetic kitchen knife strips, magnetic tool holders, beer bottle cap openers etc.
Warning:
- All magnets may chip and shatter, but if used correctly this disc magnet can last forever
- Keep it away from pacemakers and children
- If this disc magnet is damaged please dispose of completely

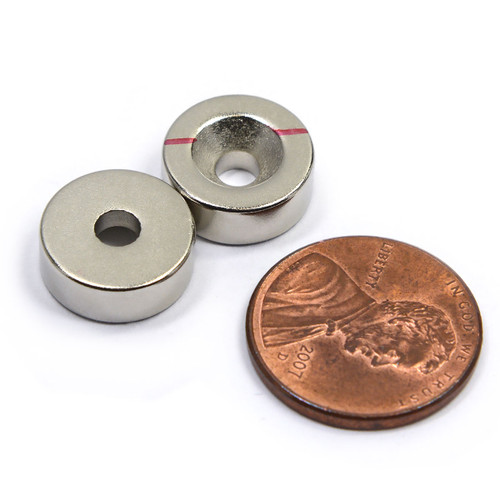

Other Similar Rare Earth Disc Magnets:
CMS Magnetics offers the highest quality Neodymium Disc Magnets with consistent performance and lowest price.
- TOP PRECISION: Exacting Size Measurement Make Them Perfect For Even The Most Critical Applications.
- It is Coated with Ni+Cu+Ni Triple Layer Coating, nickel, copper and nickel to give superior corrosion resistance and provide a smooth and clean finish like stainless steel.
- The magnets are a whopping 10x Stronger than the strongest ceramic magnet.
- So many uses for these disc magnets: DIY projects, improve your home, RVs, boats, Science Fairs, Labs,
- PERMANENT STRENGTH: Neodymium is a kind of rare earth metal, it's suitable for making permanent & powerful magnets. This magnet has permanent magnetism, it will be the same powerful even decades after. These Magnets will not Break in Normal Use since the Magnets are Protected inside the Steel Cups which Increase the Longevity of the Magnets.
Questions
- Do these magnets stick to magnetic paint? Yup! The thicker the better though
- Question: can I glue these at the back of pictures? Answer: this is a good idea！！！ Alexa · November 25, 2018
- Question: will they work to increase thickness of another magnet? Answer: I do not see why not? 2 of these guys together are pretty strong Branch Cunningham
- Has anyone used to keep a patio curtain in place? I do it at home under my pergola. Works well
- Question: do they rust on a shower liner? Neodymium Breaks down if in a constant wet state over time but if it doesn’t get too wet where you place it all of the time you should be ok Mike · May 12, 2028
About Disc Magnets in General
Disc magnets are one of our most popular products. These round flat miracles of science come in a large variety of strengths and sizes. Our N35, N45, N50, & N52 disc Magnets are at the top of the heap. Our disc magnets range in size from ⅛ - over 2 inches in diameter.
Come in several options in coatings which all physically protect your magnet from damage & rusting:
- Triple layer nickel-copper-nickel
- Epoxy coated that helps prevent scratching
- Hard plastic covering that also protects the magnet from damage in many vivid colors
These marvels of engineering seem to defy physics with their shocking strength. Neodymium, first put to use as magnets in the early 1980s neodymium has been tweaked & improved constantly to give you the newest & strongest version, N52. This is the strongest grade that is currently available commercially. There are a few batches here and there that go to N53 usually by accident. The technology today does not allow the neodymium of higher than N52 to be repeatedly and reliably produced but they are getting there.
In many applications a lesser strength neodymium magnet is the preferred way to go. Just order the lesser strengths N35 - N45 or even N50.
The grade (think strength level) is based on the technical measurement of that strength and expressed as an ”N” for neodymium and a number (35-52). N52 is the strongest magnet so far and N35 in the neodymium world is the least strong. However, the least strong neodymium magnets are far stronger than the very common ceramic magnets.
Call our non commission customer service & they can get you to the right magnets for your projects.
About Neodymium From Which These Disc Magnets Are Crafted
China is the main source of the processed neodymium alloy that we all enjoy as the finished marvels of science, neodymium disc magnets. Neodymium is the WORLD'S STRONGEST MAGNET, bar none! The Rare earth family of magnets comprise basically 2 types of magnets. Neodymium magnets are the strongest and most popular of the 2 types of rare earth magnets. Neodymium is a rare earth element. They are amazingly powerful for their size and have innumerable uses. These 1-1/2" X 3/8" Neodymium Disc magnets produce an astonishing pull strength of Pulling Force=4.8 lbs and every magnet has a triple coating of nickel, copper and nickel again to prevent against corrosion. This Large Super strong rare earth disc magnet was created through a sintering process. Sintering is compacting and forming a mass of material (this case an alloy) with heat or pressure but keeping it from getting to the liquefaction stage then pressing it into the final magnet shape.
Neodymium magnets are seemingly physics defying as they are 10x stronger than the strongest ceramic magnets! Unlike most other types of magnets, Neodymium is highly resistant to demagnetization and will not lose their magnetization around other magnets or if dropped.
Warnings:
- All magnets may chip and shatter, but if used correctly can last a lifetime.
- Keep away from pacemakers.
- Not for children, parental supervision required.
- If damaged please dispose of completely. Shards are still magnetized and if swallowed can inflict serious damage if magnets join inside the digestive tract.
