Product Description

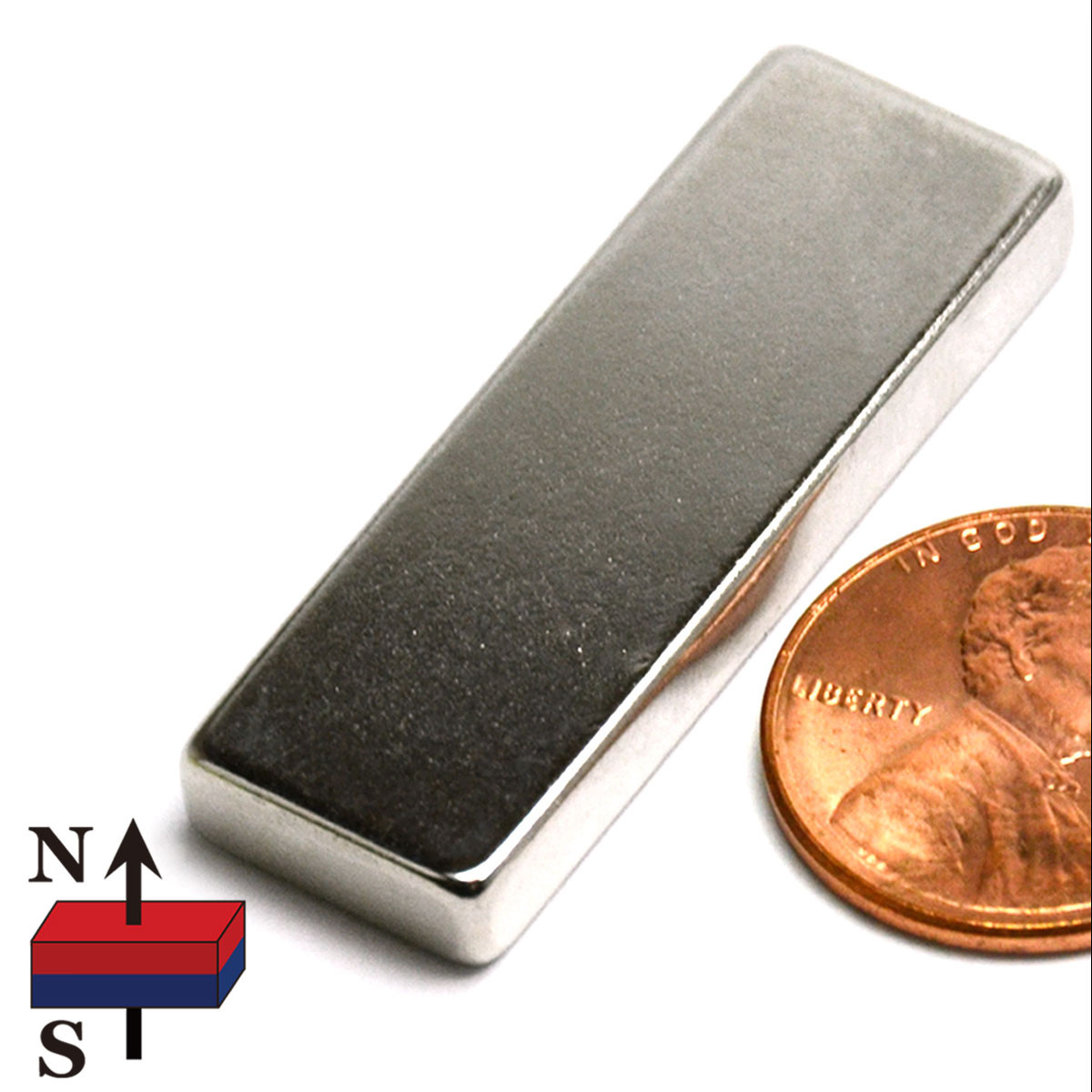

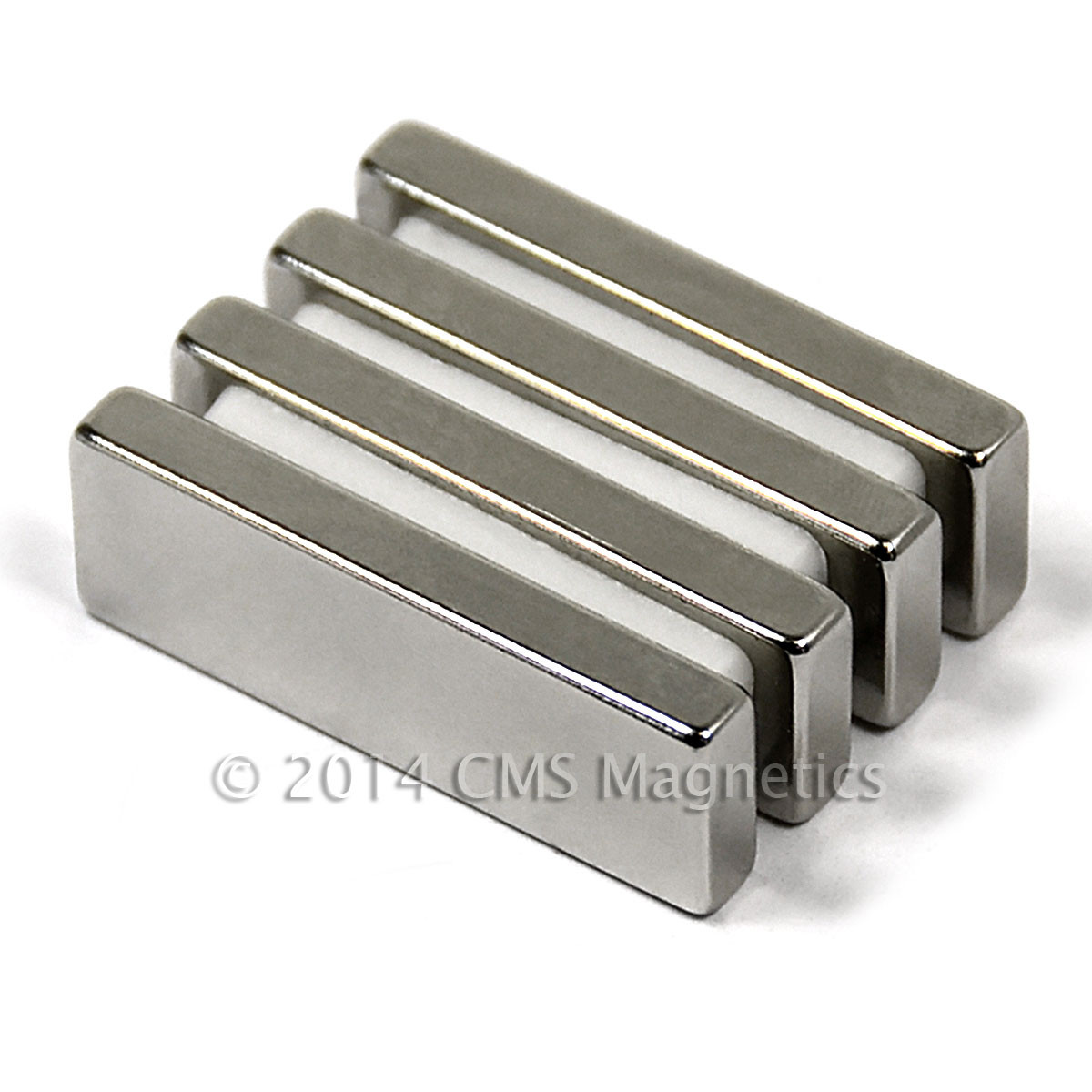

N45 Bar Neodymium Magnets 1-1/2x1/2x3/16" Rare Earth Block Magnets
This powerful bar neodymium magnet measures 1-1/2" in length, 1/2" width, and 3/16" in thickness and is made of a grade N45 neodymium, iron, and boron magnetic alloy blend under the ISO 9001 quality control systems and are plated in a nickel-copper-nickel triple layer coating for a shiny corrosion resistant finish.
Specifications:
- Material: Neodymium magnets, grade N45 rare earth magnets
- Remanence (Br): 13,500 Gauss or 1.35 Tesla
- Pulling Force: 16.9 Lbs
- Pole Orientation: Magnetized through the thickness, the poles are on the 1-1/2 x 1/2" surfaces
- Coating: Ni+Cu+Ni 3 layer coated, the best coating available
- Tolerance: All +/-0.002" with coating
- Applications: This magnet is great item for industrial applications and personal projects
Warnings:
- All magnets may chip and shatter, but if used correctly this bar neodymium magnet can last a lifetime
- Keep away from pacemakers and children
- If damaged please dispose of completely. Shards are still magnetized and may cut fingers
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Grade N45
Pulling Force 16.9Lbs.
Pole Orientation Thru Thickness
Coating NiCuNi
