Product Description

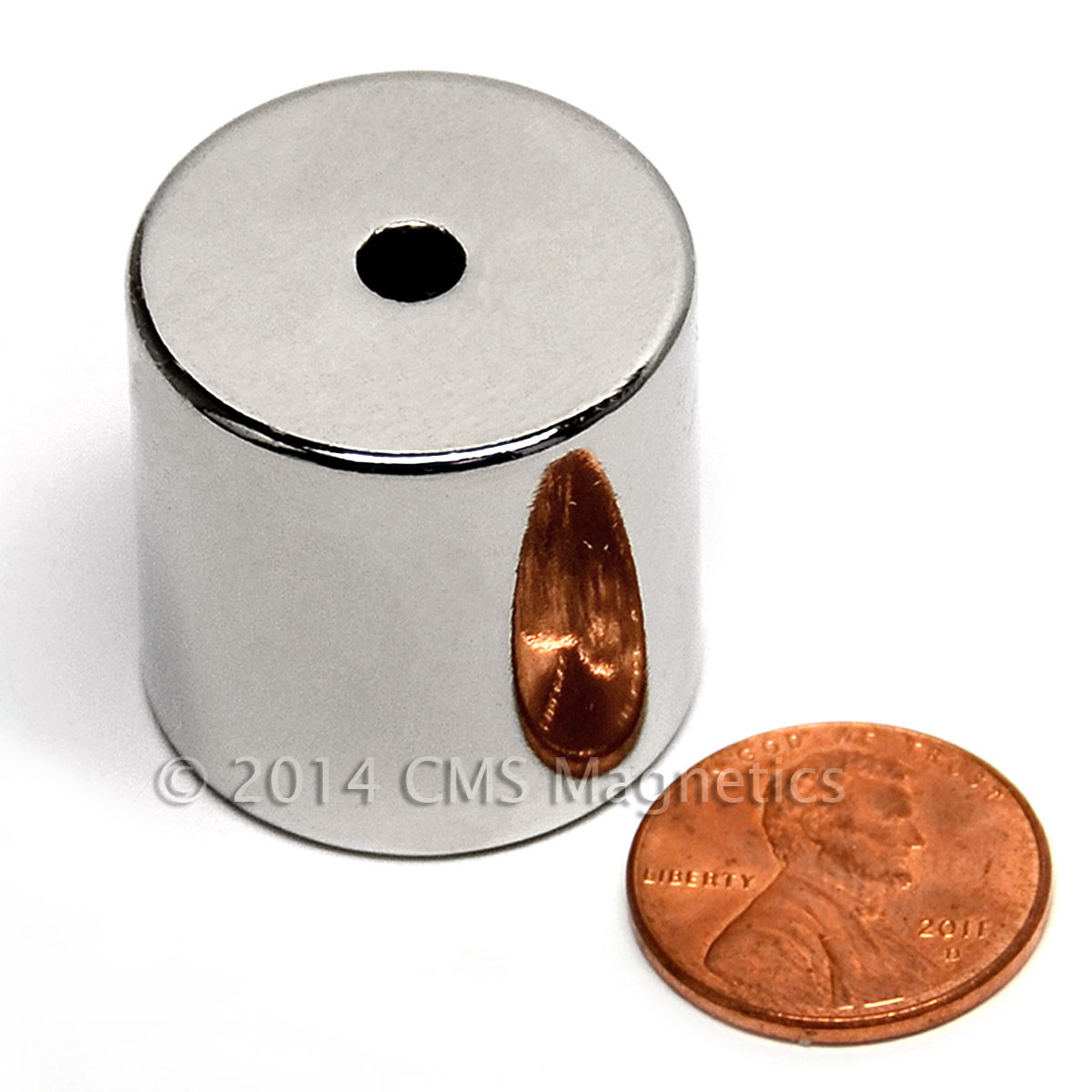

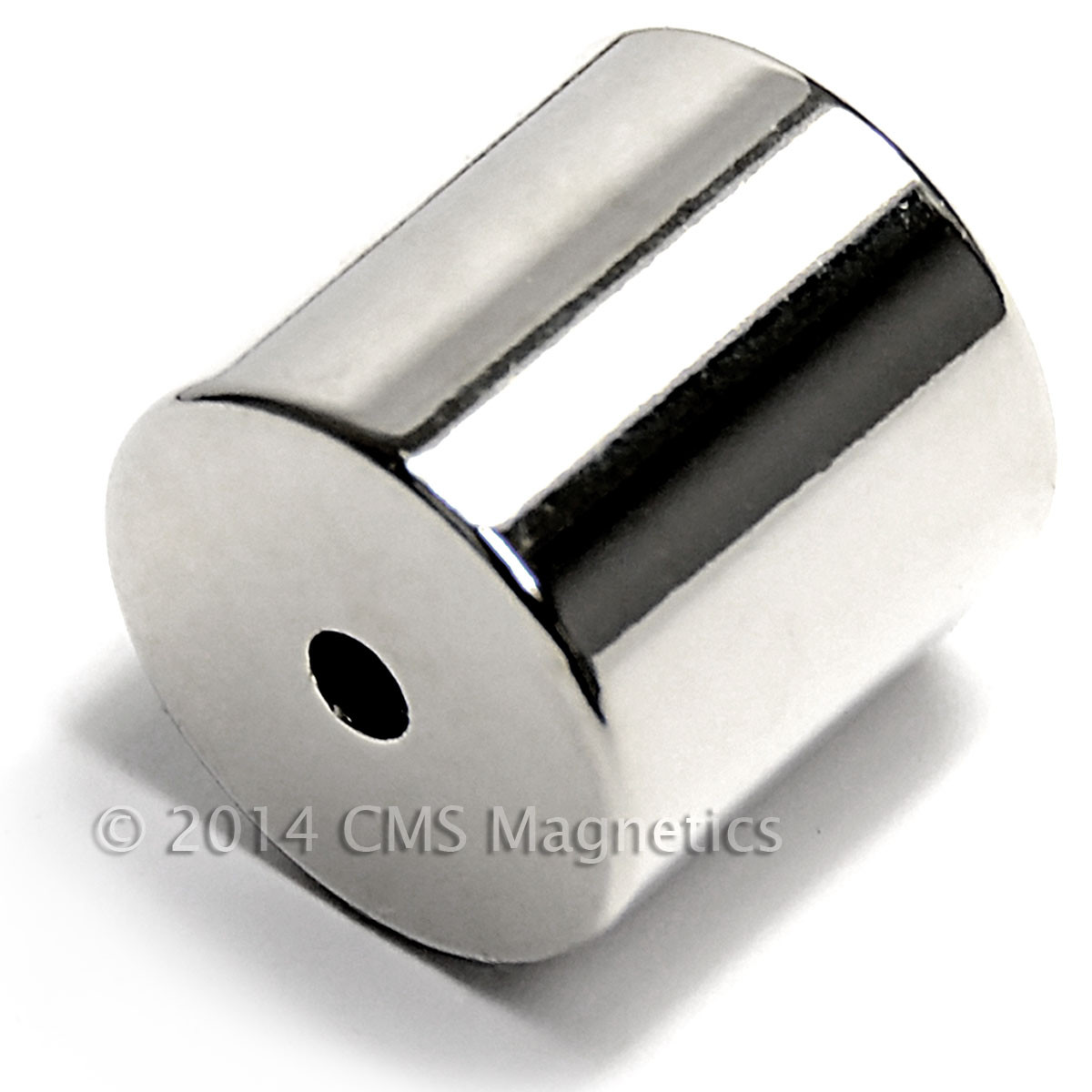

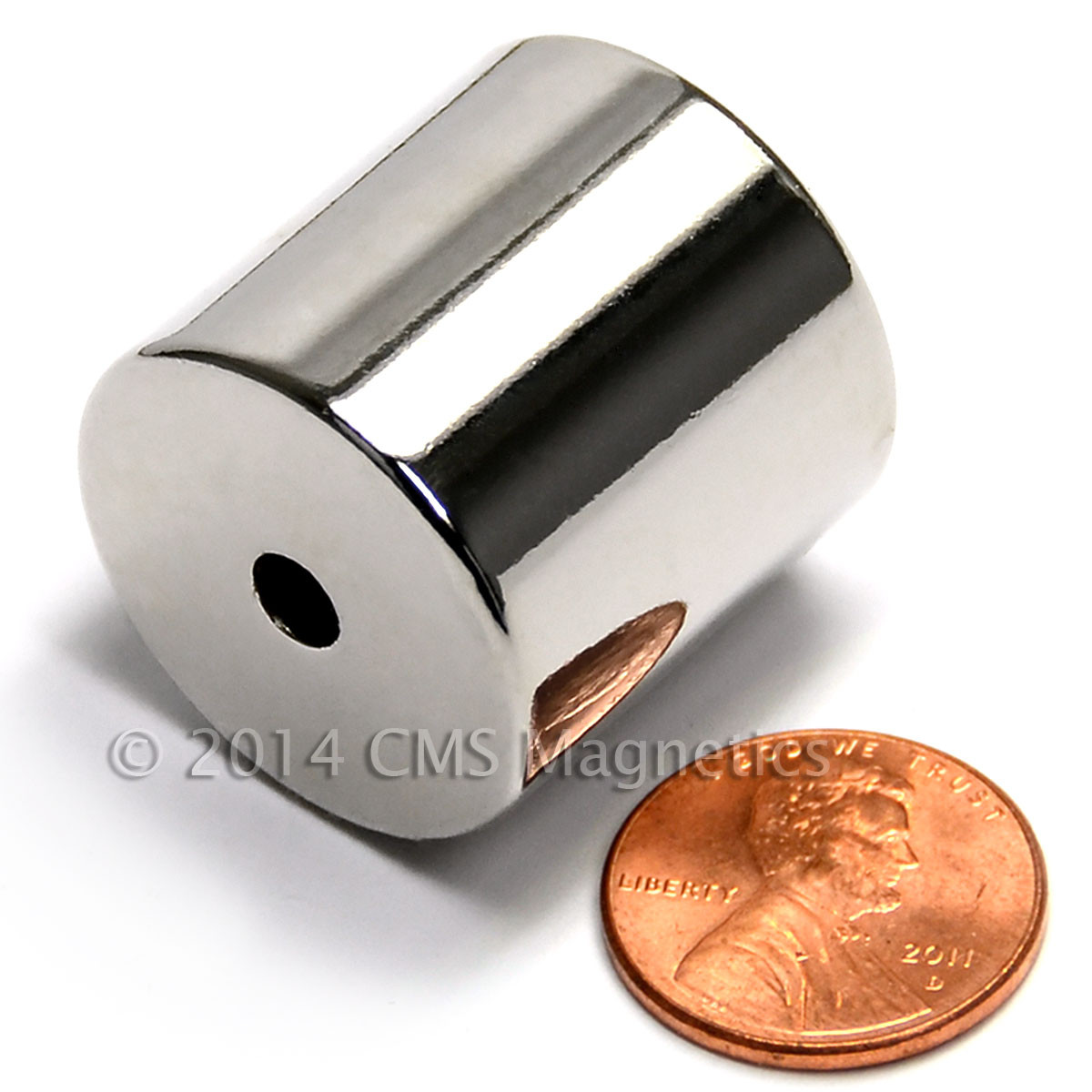

N42 Ring Magnet OD 1 x ID 3/16 x 1" Rare Earth Neodymium Magnet
This neodymium magnet is 1" in diameter and 1" in length with a center hole through the length. This ring magnet is made of N42 neodymium magnet alloy under ISO 9001 quality systems and coated with Ni+Cu+Ni triple layers for a shinny and corrosive resistance finish. the holding force of this magnet is about 87 LBs.
Features:
- Material: Sintered neodymium magnet, grade N42 NdFeB rare earth magnet
- Remanence (Br): 13,200 Gauss or 1.32 Tesla
- Pulling Force: 87 lbs.
- Pole Orientation: Axially magnetized
- Coating: Ni+Cu+Ni 3 layer coated, the best coating available
- Tolerance: All are +/-0.002" with coating
This neodymium ring magnet is amazingly powerful for its size and has innumerable uses. It can be easily used to build a pickup tools for the shooting range for shells and warehouses
Warnings:
- All magnets may chip and shatter, but if used correctly this ring magnet can last a lifetime
- Keep away from pacemakers and children
- If damaged please dispose of completely
CMS Magnetics offers the highest quality Neodymium ring magnets with consistent performance and lowest price.
Keeping you satisfied and providing you with the friendliest customer service is our number one goal. We offer a 100% MONEY BACK GUARANTEE for 30 days.
It is Coated with Ni+Cu+Ni Triple Layer Coating ,nickel, copper and nickel to give superior corrosion resistance and provide a smooth and clean finish like stainless steel.
These modern refrigerator magnets feature a smooth round magnet shape to avoid harming surfaces. Do not worry it might scratch the fridge or your new table.
Safety Warning: All magnets are fragile the same way a dish plate of the same thickness would be. These magnets especially the thinner ones should be treated the same way you would a thin dinner plate. Should one of these magnets break the edges are extremely sharp (like broken glass). Safety Warning: These neodymium magnets are not for children. They may break and cut severely. Children that may place things in their mouths should be kept away from these magnets. If taken into the mouth these neodymium magnets may pinch across internal organ membranes with deadly results.
About Neodymium Magnets
Neodymium rare earth Ring magnets are actually 10x stronger than the strongest ceramic magnets! Unlike most other types of magnets, Neodymium is highly resistant to demagnetization and will not lose their magnetization around other magnets or if dropped. They are magnetized through the thickness. They are composed of neodymium iron boron magnetic material. About Rare Earth Neodymium Magnets Rare earth magnets are the strongest type of permanent magnet currently made. All Neodymium magnets are rare earth magnets but there are other types of magnets in the rare earth family. Neodymium is however the most popular & cost effective. Rare earth magnets are the strongest type of permanent magnet currently made. The Rare earth family of magnets consist of basically 2 types of magnets. Neodymium magnets are notoriously resistant to demagnetization in and operating environment below 176 degrees F.. Neodymium is a rare earth element. Samarium cobalt magnets although not quite as strong, are a great substitute for neodymium when temperatures in the operating area reach more that 175 Degrees F. Neodymium, as sold on the market is actually an alloy consisting of the rare earth element neodymium, iron & Boron. The ratios of the mix are in part responsible for the strength differences of the magnets. You may see the element’s symbols Neodymium (Nd), Iron (Fe) & Boron (b). This rare earth Ring magnet was created through a sintering process. Sintering is the process of compacting and forming a mass of material (this case a alloy) with heat or pressure but keeping it from getting to the liquefaction stage then pressing it into the final magnet shape.
This particular rare earth Ring magnet was created through a sintering process. Sintering is the process of compacting and forming a mass of material (this case an alloy) with heat or pressure but keeping it from getting to the liquefaction stage then pressing it into the final magnet shape. The grade (think strength level) is based on the technical measurement of that strength and expressed as an ”N” for neodymium and a number (35-52). N52 is the strongest magnet so far and N35 in the neodymium world is the least strong. However, the least strong neodymium magnets are far stronger than the very common ceramic magnets. The constraint to achieving a higher grade reliably and consistently is that the technology is not there, YET.
The most popular grades of neodymium magnets are N35, N40, N45, n50 & N52. There are other grades between those grades mentioned just ask, we got em!
CMS Magnetics offers the highest quality Neodymium magnets with consistent performance and lowest price.
Question: We have a large dresser drawer that keeps sliding open. Will these magnets work if attached to cabinet and dresser to keep drawer closed? Answer: You might need a couple in a couple different spots but yes I would think so Bruce Clements· June 26, 2021
Would these Ring magnets hold curtains together in an outside pergola? A: Yes if little wind. If you live in a windy area probably step up to an N52 1.26 x 1/4 Dave Curtis · November 23, 2017
What about ring magnets for hanging tools? A: Hand tools are fine maybe 3/4 disc w/ countersunk hole at n52 just to be safe. Bobby · July 7, 2019
Hanging knives? I would use an N45 or better 3/4" Disc just to make sure. Blue Moon · June 12, 2019
Will these ring magnets hold a medium weight synthetic blanket down across the front of a car without damaging the finish of the car? I would think they would as they are pretty strong They have a very smooth finish so shouldn't cut through the blanket and mar the finish. By D. Jem
PLEASE NOTE:
- All magnets may chip and shatter, but if used correctly, can last a lifetime.
- Keep away from pacemakers.
- Not for children, parental supervision required.
- COMMERCIAL USE ONLY.
- If damaged please dispose of completely. Shards are still magnetized and if swallowed can inflict serious damage if magnets join inside the digestive tract.
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Product Reviews
1 Review
-
Big strong magnet
I put these on the drain plugs of transfer cases, manual transmissions, and differentials.
