Product Description

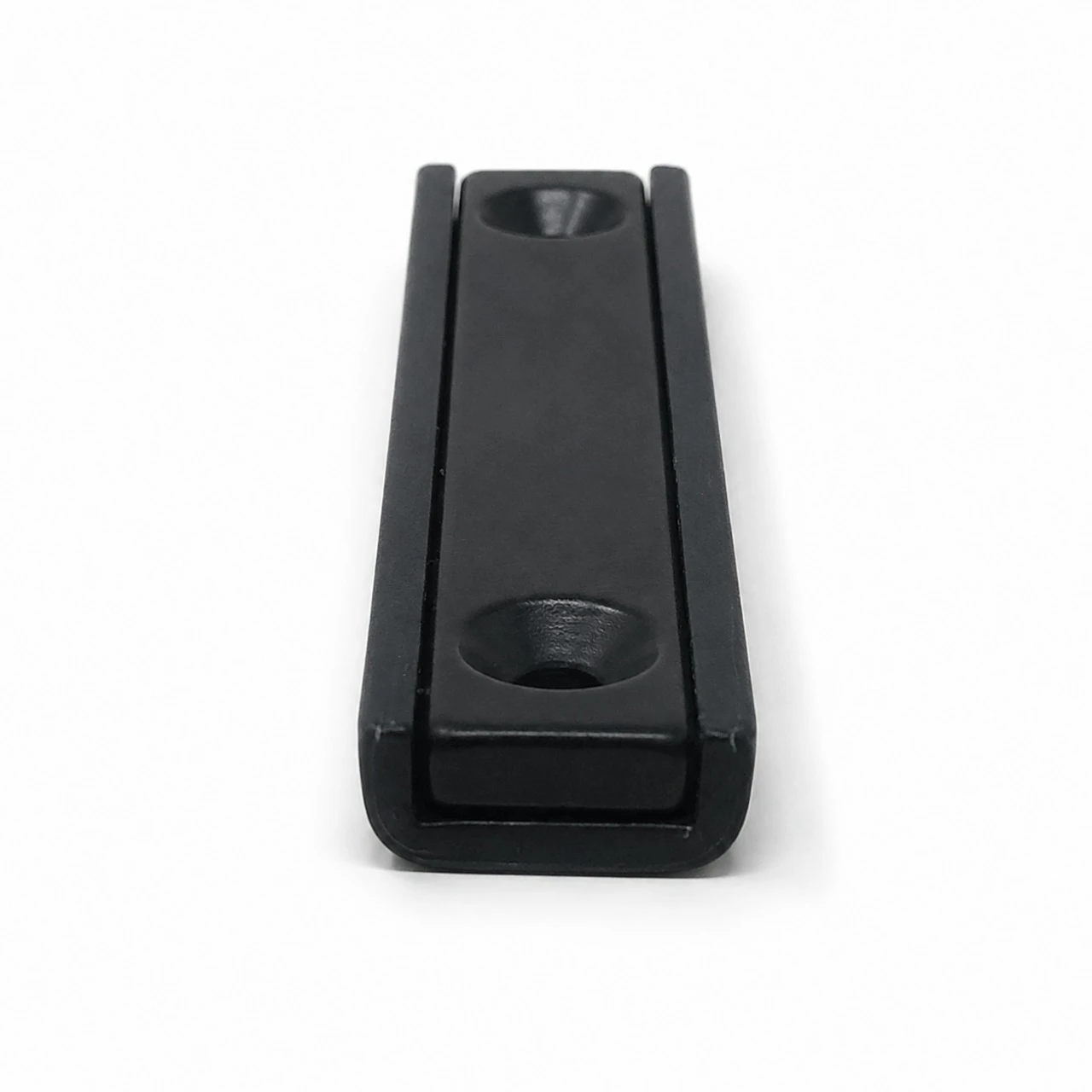

80 lb Pull Black Epoxy Coated Neodymium Channel Magnet (60x13.5x5 mm)
Upgrade your mounting projects with the CMS Magnetics 80 lb pull black epoxy coated neodymium channel magnet. Engineered with N42 grade rare earth neodymium block magnets encased in a protective steel channel, this heavy-duty rectangular pot magnet delivers exceptional holding force in a compact 60 x 13.5 x 5 mm profile.
Unlike standard nickel-plated magnets, this assembly features a premium triple-layer black epoxy coating (Ni-Cu-Ni + Black Epoxy), providing superior corrosion resistance, rust protection, and a sleek matte finish ideal for demanding industrial, commercial, and outdoor applications.
Key Features & Technical Specifications
- Massive Holding Power: Rated for up to 80 lbs of direct pull force on a clean, flat steel surface under ideal conditions.
- Corrosion & Weather Resistant: Multi-layer black epoxy finish prevents rusting, scratching, and chipping in humid or outdoor environments.
- Reinforced Channel Design: U-shaped steel casing redirects magnetic flux to the active surface, significantly increasing pull strength while protecting the inner rare earth magnet from impacts.
- Compact Dimensions: 60 mm (L) x 13.5 mm (W) x 5 mm (H) / ~2.36" x 0.53" x 0.20".
- Flush Mounting Countersunk Holes: Pre-drilled countersunk holes allow easy fastening with standard flat-head screws on wood, metal, masonry, or plastic.
Popular Applications
- Cabinet & Door Latches: Concealed heavy-duty magnetic closures for kitchen cabinets, shop doors, and furniture.
- Tool Rack & Fixture Mounting: Securely hold heavy hand tools, knives, equipment, and signage in garages, workshops, and work vans.
- Automotive & Marine Use: Mount LED light bars, accessories, and panel enclosures without damaging vehicle paint or surfaces.
- Industrial & DIY Projects: Ideal for positioning fixtures, jig holding, magnetic catches, and custom outdoor fabrications.
Technical Data Table
| Specification | Details |
| Material Grade | N42 Neodymium (NdFeB) Rare Earth |
| Assembly Style | Rectangular Pot / Channel Magnet |
| Pull Force | 80 lbs (36.3 kg) direct magnetic pull |
| Coating / Finish | Black Epoxy over Ni-Cu-Ni (Nickel-Copper-Nickel) |
| Dimensions (L x W x H) | 60 mm x 13.5 mm x 5 mm |
| Magnetization | Through Thickness (Axial Magnetization) |
| Brand / Manufacturer | CMS Magnetics |
Why Choose Black Epoxy Channel Magnets?
Standard raw neodymium magnets are brittle and prone to rusting when exposed to moisture. The combination of a protective steel channel frame and tough black epoxy seals out moisture, resists chipping under direct impact, and blends seamlessly into dark surfaces or industrial setups.
