Neodymium Magnet N45 Dia 5/8x1/16" Disc Magnet Rare Earth Magnets

CMS Magnetics

$0.86 $0.53

(You save $0.33)

(7 reviews) Write a Review

SKU:: ND04172-45N
Availability:: Usually ships in the next business day
Minimum Purchase:: 50 units
Bulk Pricing:: Buy in bulk and save
Pulling Force:: 3.8 lbs

Overview
Other Details
Reviews

Product Description

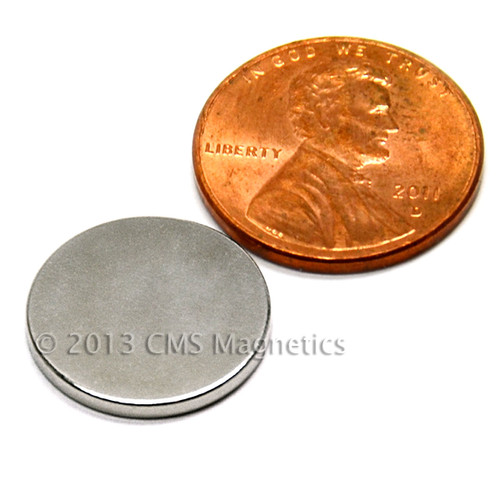

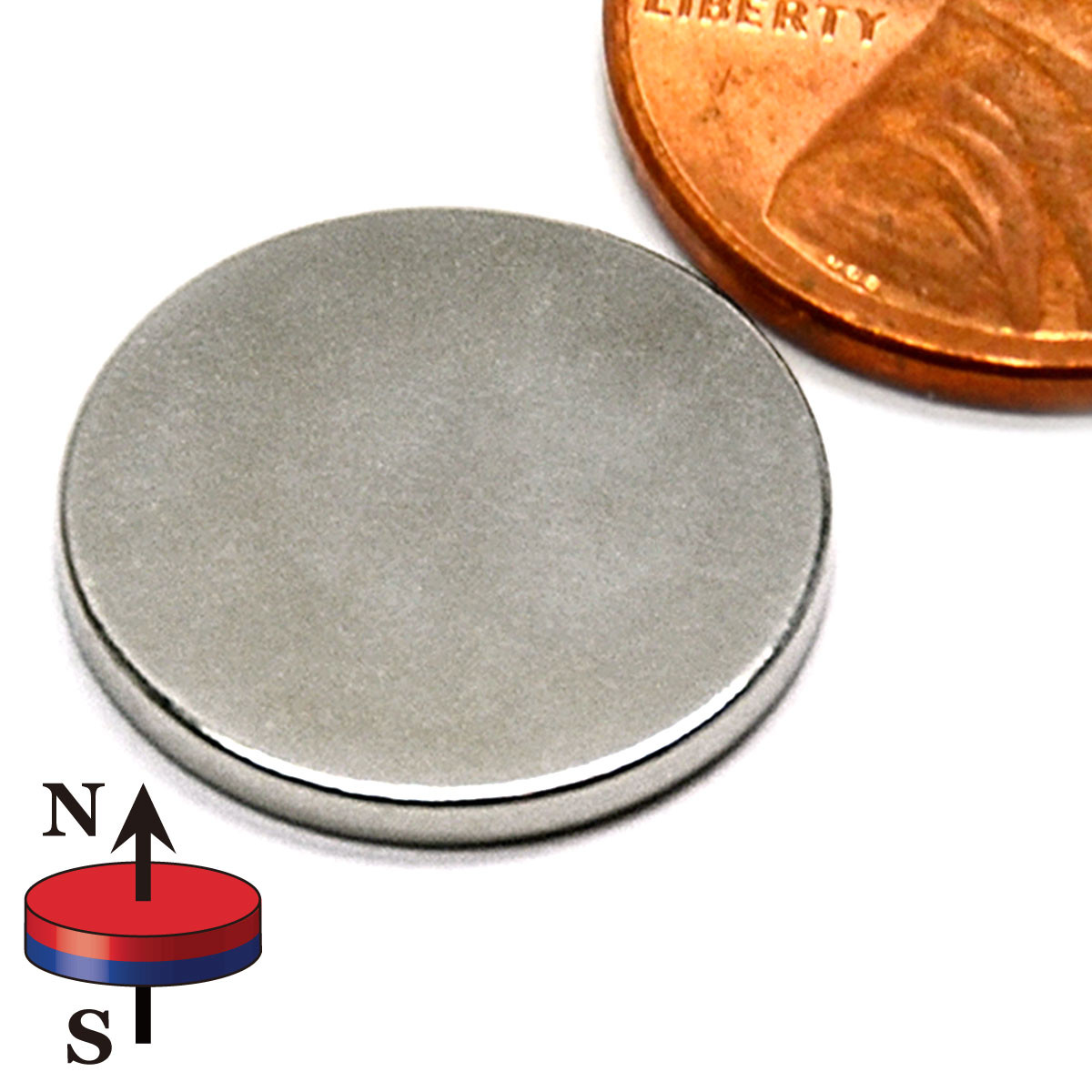

Neodymium Disc Magnet N45 5/8"x1/16" (ND04172-45NM)

This product measures 5/8" in diameter and 1/16" in thickness and is made of a grade N45 neodymium, iron, and boron magnetic alloy blend. This magnetic blend is patent licensed and made under the ISO 9001 quality systems. They are plated in a nickel-copper-nickel coating for a shiny corrosion-resistant finish. The North and South poles are on the flat sides. The pull force of this magnet is 3.8 lbs. This is a great item for use in personal projects as well as for crafts and closures and can also be used to help keep objects secured or fastened to any ferrous surface.

Material: Sintered NdFeB. Grade N45
Gauss Rating: 13,500 Gauss
Pulling Force: 3.8 lbs.
Pole Orientation: Axially magnetized, the poles are on the flat surfaces.
Coating: Ni+Cu+Ni 3 layer plated, the best coating available
Tolerance: The tolerances of all the dimensions are +/-0.002in with coating.

PLEASE NOTE:

All magnets may chip and shatter, but if used correctly can last a lifetime.
Keep away from pacemakers.
Not for children, parental supervision required.
COMMERCIAL USE ONLY.
If damaged please dispose of completely. Shards are still magnetized and if swallowed can inflict serious damage if magnets join inside the digestive tract.

Other Details

This product is covered by 10 year warranty on the magnetic strength under normal usage. Used in the environment which has high temperature and virbation will void this warranty. The product should not be used in the outdoor or high humid or salty environment except extra insulation measurement is taken.

Product Videos

Custom Field

Pulling Force 3.8 lbs

Product Reviews

(7 reviews) Write a Review

7 Reviews Hide Reviews Show Reviews

5
Magnets

Posted by Unknown on Oct 1st 2019

Very good strong and does what I need for them to do
5
DISC MAGNET NEODYMIUM N45 5/8"X1/16

Posted by Samuel Garza on Apr 8th 2019

Everything I'd expected! I think I've found my magnet home!
5
Great magnets

Posted by Jessica on Feb 25th 2019

They were shipped with little plastic 'separators', very helpful in keeping these apart as they are very slim! Thank you!
5
Disc Magnet Neodymium N45 5/8"x1/16"

Posted by Dan Schaefer on Oct 28th 2018

Great packaging and the magnets polarity marked with a red felt marker (an added convenience). This is a great supplier of magnets and at a very good price. Will definitely purchase magnets from this supplier in the future.
5
Great Magnets, Very Powerful

Posted by Unknown on Sep 7th 2018

Worked exactly the way I had hoped. Quick shipping, completely happy. These were shipped plastic spacer between each magnet which really was nice. If you are not careful, these will give you a nice pinch if you let them snap together.
5
N45 5/8"X1/16" NEODYMIUM RARE EARTH DISC MAGNET

Posted by Mark G on Mar 12th 2018

These magnets are really strong. They're good for stud finders, but if that's your main purpose, you might go one notch stronger. These 5/8 x 1/16 are great!
5
Excellent company to work with

Posted by ministicks.com on Jan 9th 2018

Thank you for the magnets. You are a pleasure to work with. I'm sure we will be back.
