N52 10.6 LB Pull Bar Magnet 1x1/2x1/8" Neodymium Bar Magnet w/ two #6 Countersunk Holes

MSRP: $1.95
Was: $1.95
Now: $1.32
(You save $0.63 )
(1 review) Write a Review
SKU:
NB0183-52N-2#6
Condition:
New
Availability:
Usually ships in the next business day
Minimum Purchase:
20 units
Bulk Pricing:
Buy in bulk and save Bulk price

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 100 - 499 and pay only $1.27 each
  • Buy 500 - 999 and pay only $1.23 each
  • Buy 1000 - 2999 and pay only $1.19 each
  • Buy 3000 - 4999 and pay only $1.15 each
  • Buy 5000 or above and pay only $1.10 each
Material:
Neodymium
Grade:
N52
Pulling Force:
10.6Lbs.
Pole Orientation:
Thru Thickness
Coating:
NiCuNi
Adding to cart… category.add_cart_announcement

Product Description

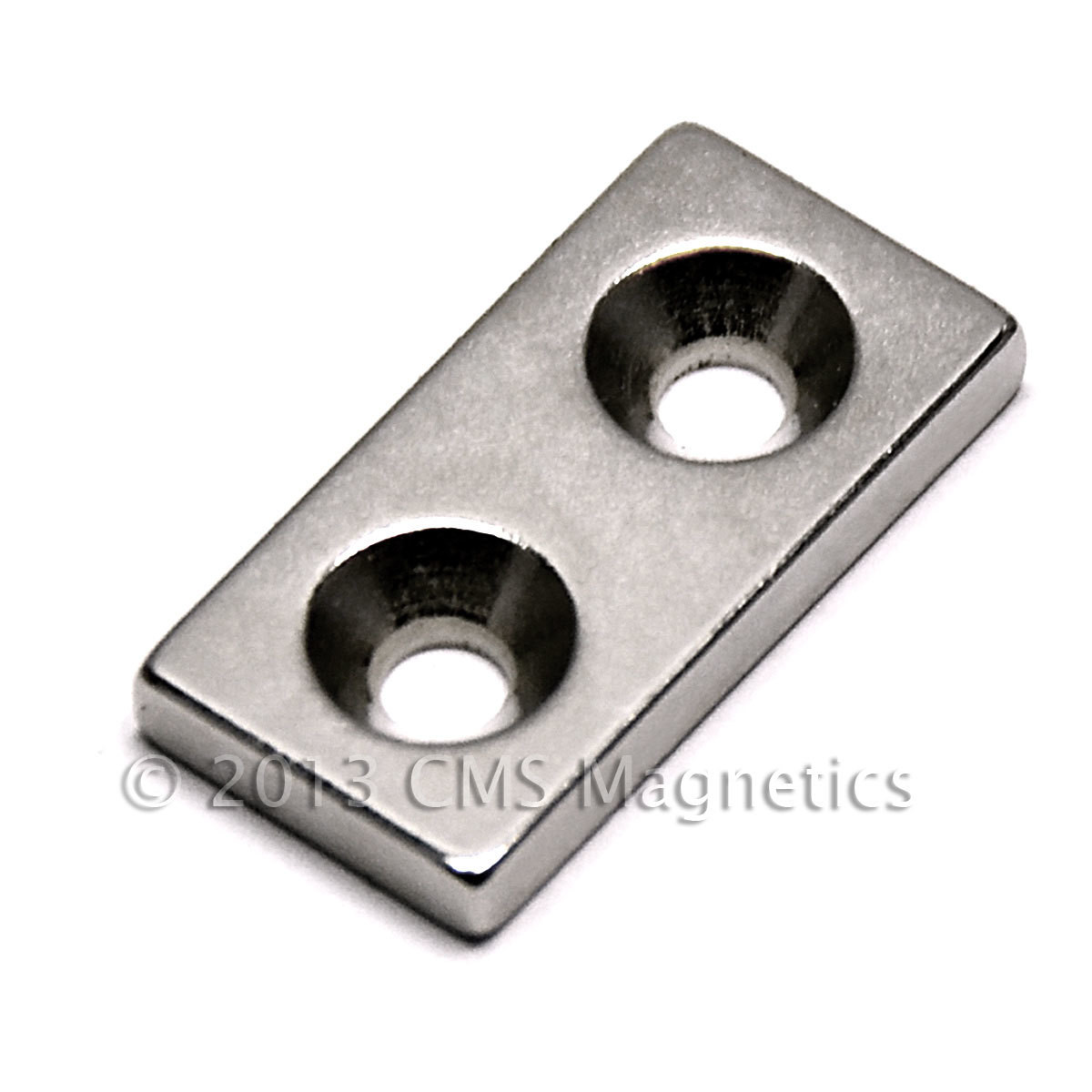

N52 Bar Magnet w/ Two #6 Countersunk Holes 1x1/2x1/8" Neodymium Magnets

This small bar magnet is made of grade N52 neodymium magnet alloy under ISO 9001 quality systems. The two countersunk holes are 0.5" apart and aligned in the center along the 1/2" direction. They are countersunk on either N or S poles which you can choose when you add them into your cart.

Grade N52 is the highest grade commercially available. So this is the strongest magnet you can get for this dimension and design.



Features:

  • Material: Sintered neodymium magnet, grade N52 rare earth magnet
  • Remanence (Br): 14,400 Gauss or 1.44 Tesla
  • Maximum Energy Product: 52 MGOe
  • Pulling Force: 10.6 Lbs.
  • Pole Orientation: Magnetized through the thickness, the poles are on the 1" x 1/2" surfaces
  • Coating: Ni+Cu+Ni 3 layer plated
  • Tolerance: All are +/-0.002" with coating
  • Applications: This magnet is versatile and great for holding purposes. The applications of this bar magnet range from industrial applications to personal projects

Warnings:

  • All magnets may chip and shatter, but if used correctly this bar magnet can last a lifetime
  • Keep away from pacemakers and children. If swallowed, seek medical assistance immediately
  • If damaged please dispose of completely



Warranty

This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.

Product Videos

Custom Field

Material Neodymium
Grade N52
Pulling Force 10.6Lbs.
Pole Orientation Thru Thickness
Coating NiCuNi

Product Reviews

Write a Review

1 Review

  • 5
    N52 rectangular with 2 holes

    Posted by Michael Thofson on Mar 23rd 2021

    Really easy to mount these magnets just drill holes and put 6/32 bolts through the holes and your ready to go. Fast shipping magnets came in perfect condition will buy more .
