N50 1"x1/8" Neodymium Rare Earth Disc Magnet Epoxy Coated

MSRP: $3.69
Was: $3.69
Now: $1.71
(You save $1.98 )
(1 review) Write a Review
SKU:
ND0505-50EM
Condition:
New
Availability:
Usually ships in the next business day
Minimum Purchase:
16 units
Bulk Pricing:
Buy in bulk and save Bulk price

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 50 - 99 and pay only $1.55 each
  • Buy 100 - 499 and pay only $1.50 each
  • Buy 500 - 999 and pay only $1.47 each
  • Buy 1000 - 2999 and pay only $1.44 each
  • Buy 3000 or above and pay only $1.41 each
Material:
Neodymium
Grade:
N50
Pulling Force:
12.9Lbs.
Pole Orientation:
Axially
Coating:
Epoxy
Adding to cart… category.add_cart_announcement

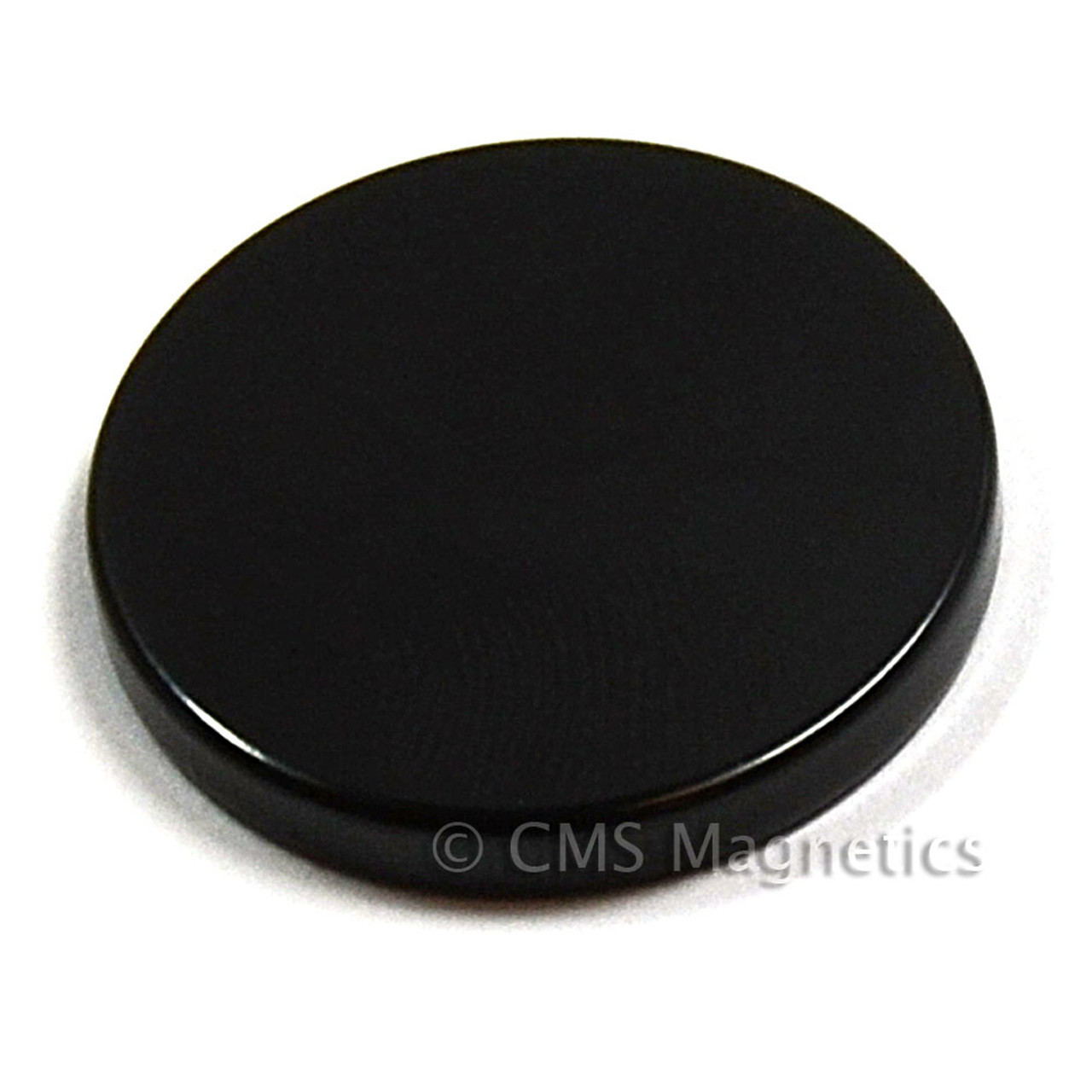

Product Description

This product measures 1" in diameter and 1/8" in thickness and is made of a grade N50 neodymium, iron, and boron magnetic alloy blend. This magnetic blend is patent licensed and made under the ISO 9001 quality systems. They are coated in a thick single layer epoxy coating that offers exceptional corrosion resistance when used in wet or humid environments. The North and South poles are on the flat sides. The pull force of this magnet is 12 lbs. This is a great item for use in personal projects as well as for crafts and closures and can also be used to help keep objects secured or fastened to any ferrous surface.

  • Material: Sintered NdFeB. Grade N50
  • Gauss Ratings: 14,200 Gauss
  • Pulling Force: 12 lbs.

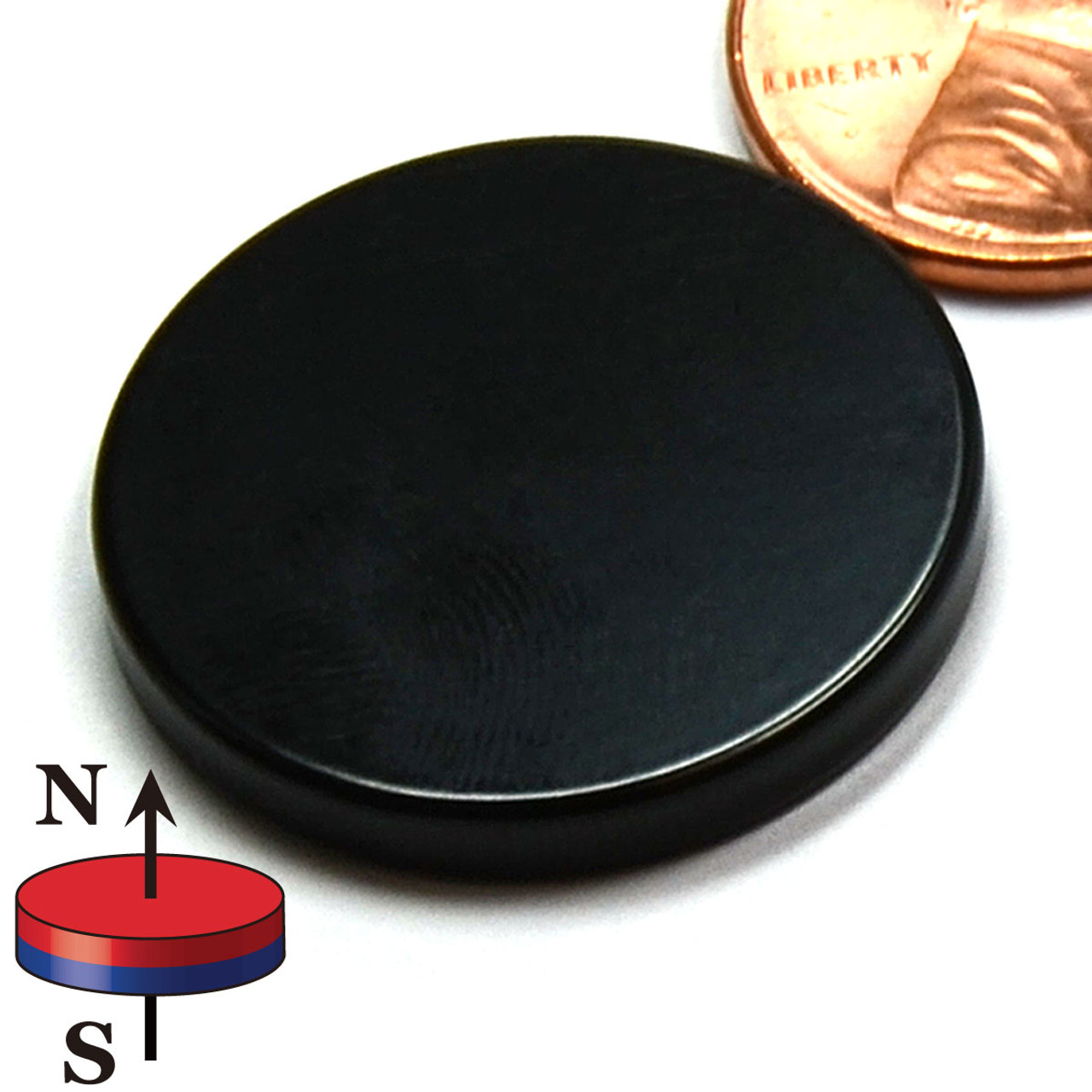

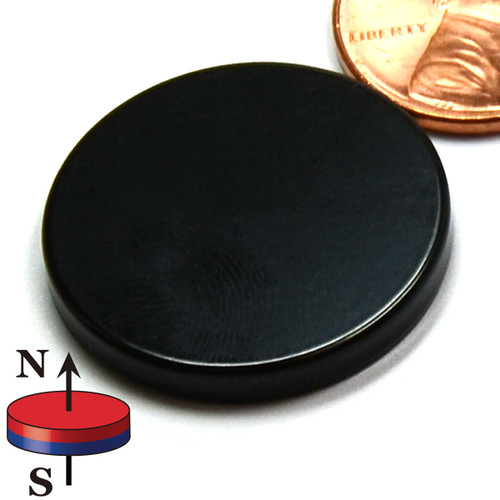

  • Pole Orientation: Axially magnetized, the poles are on the flat ends.
  • Coating: Black epoxy coating
  • Tolerance: The tolerances of all the dimensions are +/-0.002in with coating.

PLEASE NOTE:

  • All magnets may chip and shatter, but if used correctly can last a lifetime.
  • Keep away from pacemakers.
  • Not for children, parental supervision required.
  • COMMERCIAL USE ONLY.
  • If damaged please dispose of completely. Shards are still magnetized and if swallowed can inflict serious damage if magnets join inside the digestive tract.





Warranty

This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.

Product Videos

Custom Field

Material Neodymium
Grade N50
Pulling Force 12.9Lbs.
Pole Orientation Axially
Coating Epoxy
