Product Description

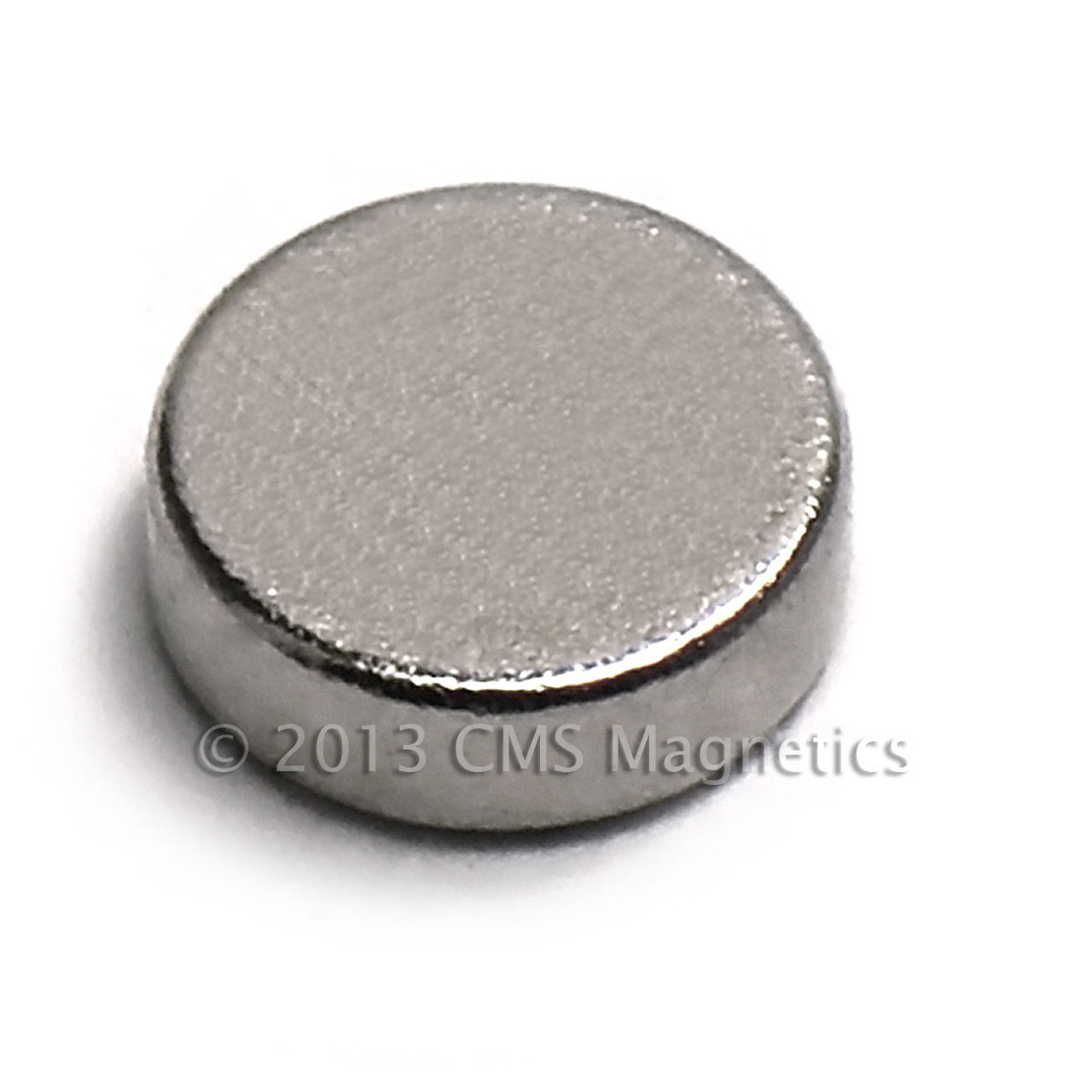

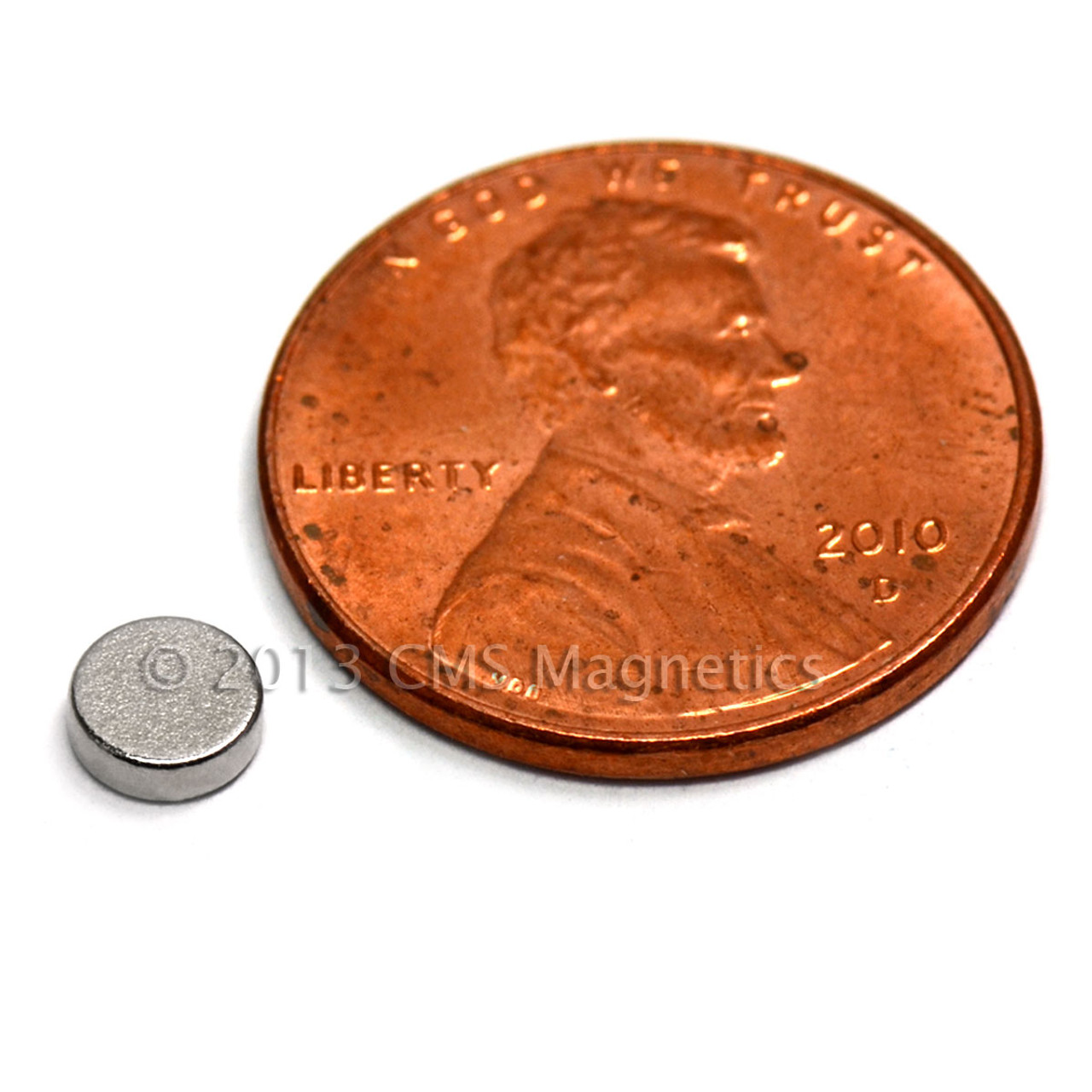

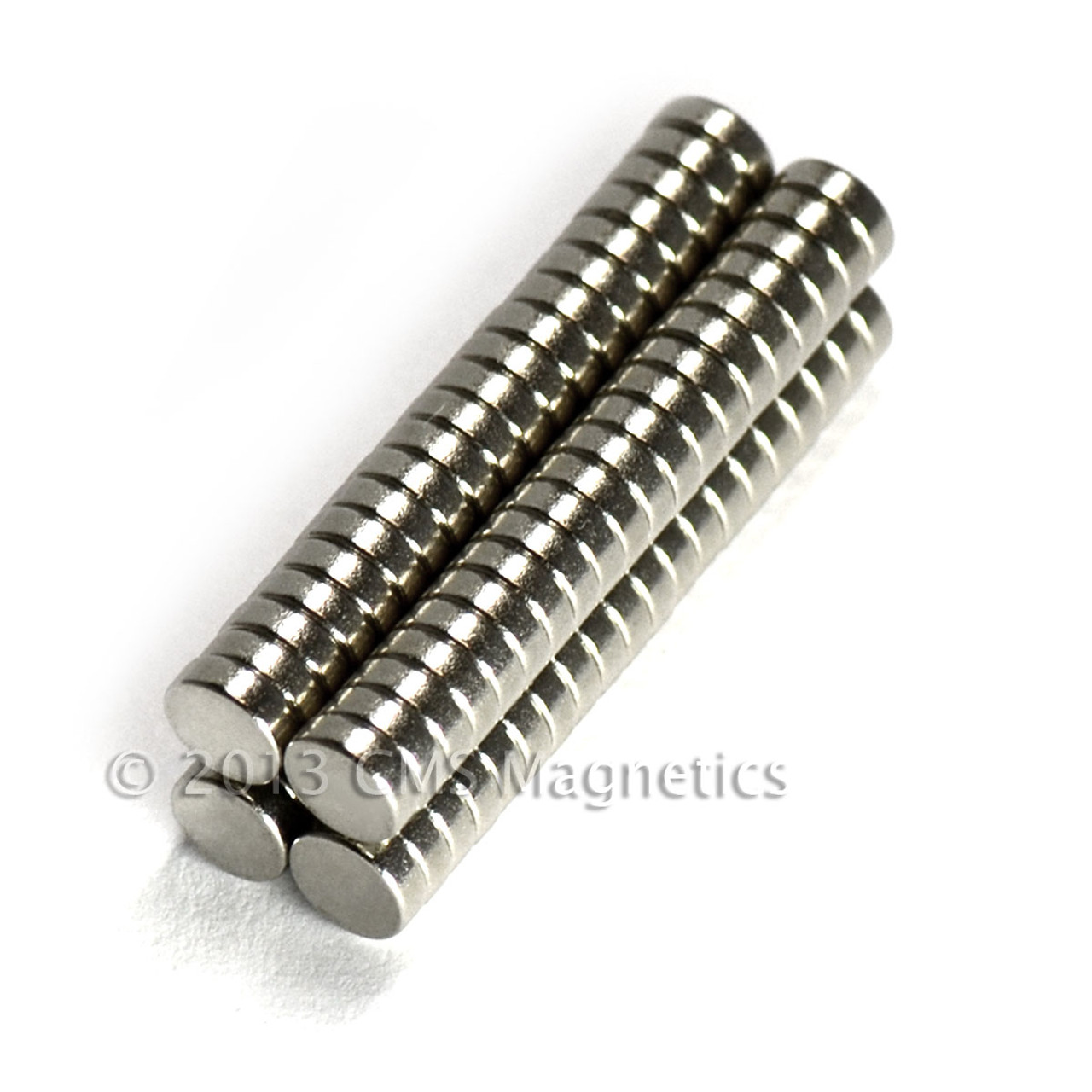

N45 Neodymium Small Disc Magnets 3/16"x1/16" | High-Performance Rare Earth Magnets
Introducing our N45 neodymium small disc magnets, designed for versatility and reliability in various applications. Measuring 3/16" in diameter and 1/16" in thickness, these compact rare earth magnets are crafted from premium N45 grade neodymium alloy, ensuring exceptional strength and performance. Each magnet is manufactured under strict ISO 9001 quality control standards and features a nickel-copper-nickel triple-layer coating for a glossy and corrosion-resistant finish.
Key Features:
- Material: Sintered N45 neodymium, a superior grade of rare earth magnet known for its strong magnetic properties.
- Remanent Flux Density (Br) : 13,500 Gauss (1.35 Tesla), providing a powerful magnetic field for secure attachments.
- Pulling Force: Capable of supporting 1.09 lbs, making these craft magnets suitable for a wide array of projects and applications.

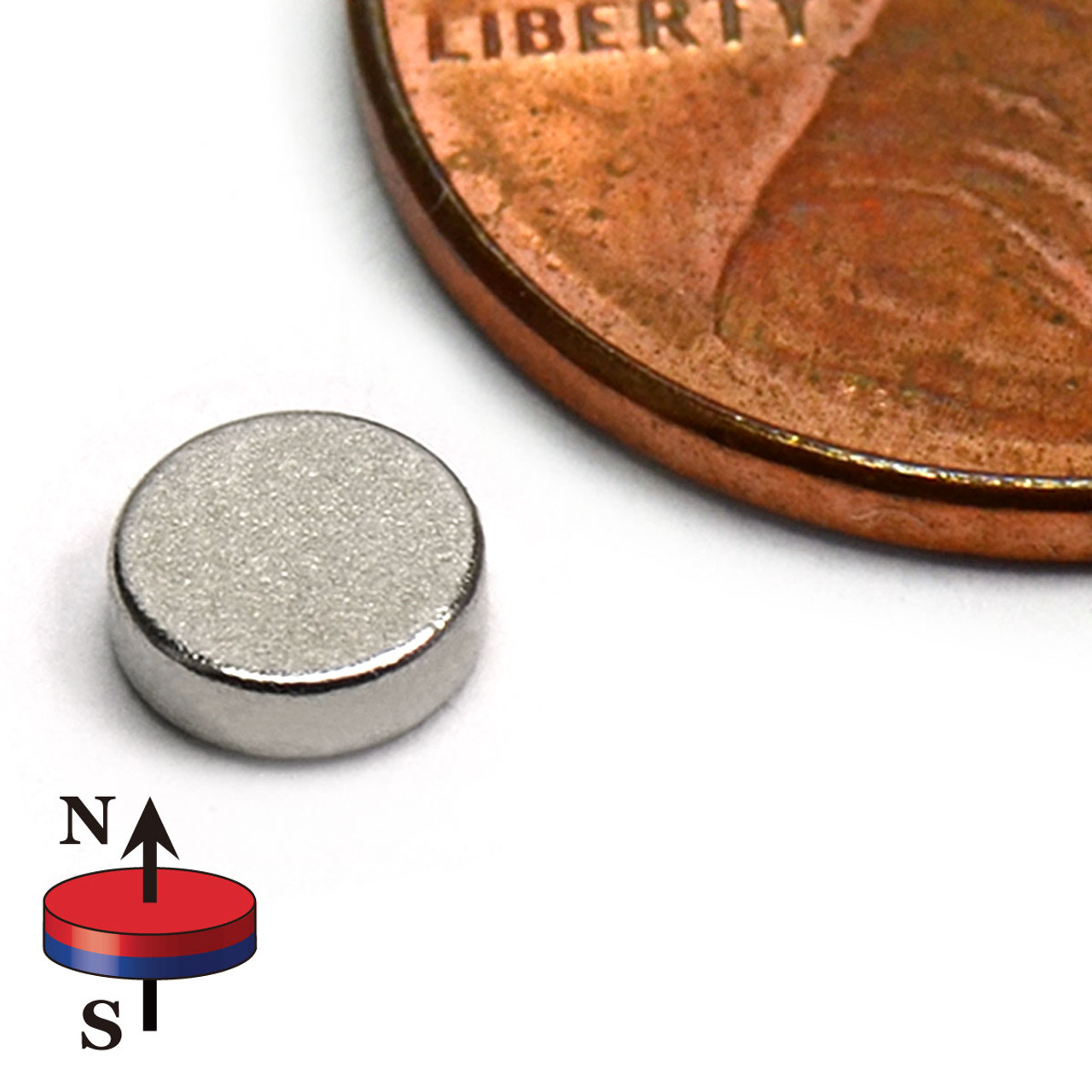

- Pole Orientation: Axially magnetized; north and south poles are located on the flat surfaces for optimal functionality.
- Coating: Premium Ni+Cu+Ni triple-layer coating offers the highest level of protection against corrosion.
- Tolerance: Crafted to a precision tolerance of +/-0.002" with coating to ensure consistent performance.
Applications:
Perfect for industrial uses, personal projects, craft magnets, and closures, these neodymium small disc magnets deliver reliability and versatility across a variety of tasks.
Warnings:
- Proper handling is essential, as these magnets may chip or shatter under stress. However, when used correctly, they are designed for long-lasting performance.
- Keep away from pacemakers and out of reach of children to ensure safety.
- If damaged, dispose of properly to prevent injury from sharp fragments.
Elevate your projects with our high-performance N45 neodymium disc magnets, ideal for anyone seeking powerful and durable magnetic solutions.
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
