N45 Neodymium Block Magnet with Precision Countersunk Holes | 28 lbs Pull Force | Nickel-Copper-Nickel Coating

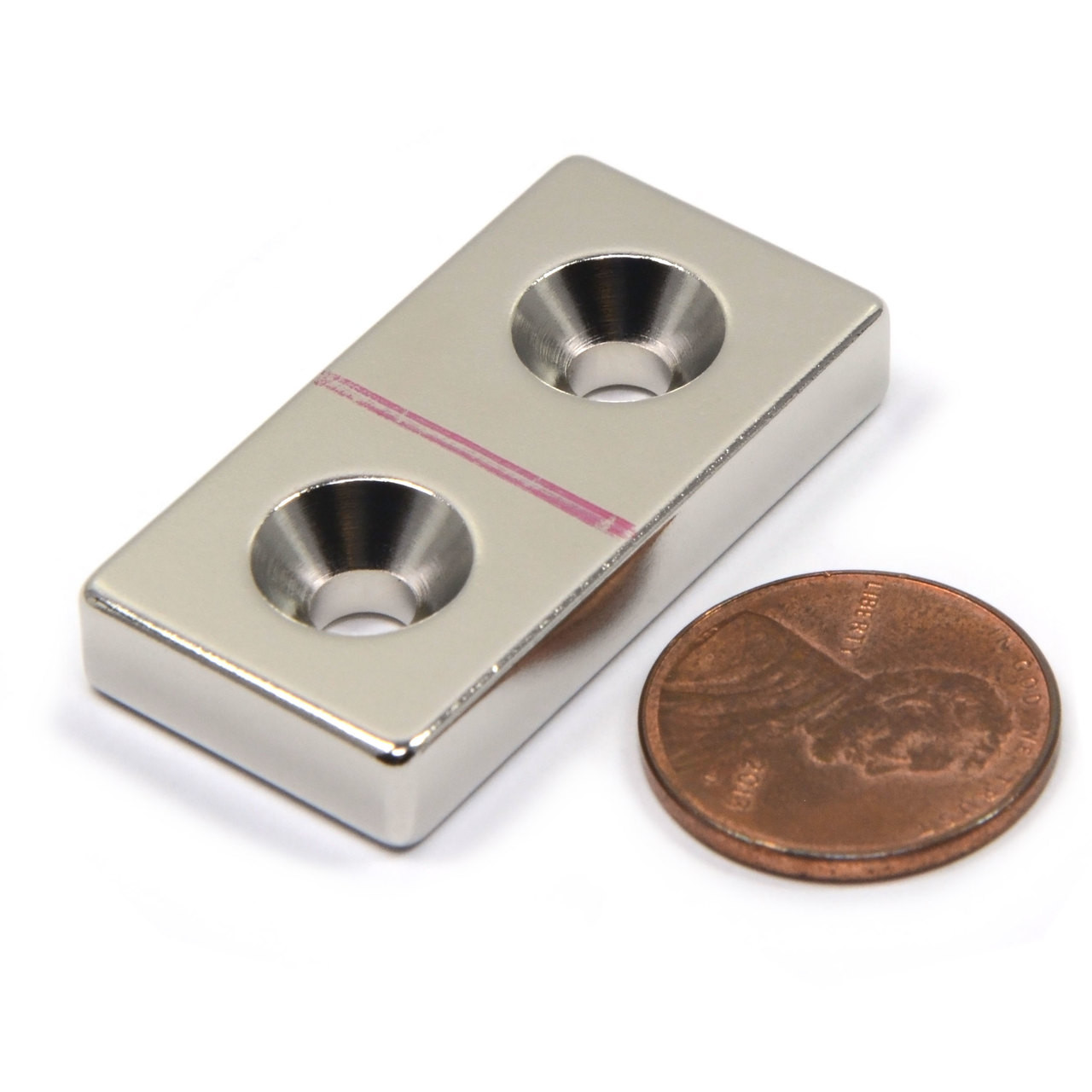

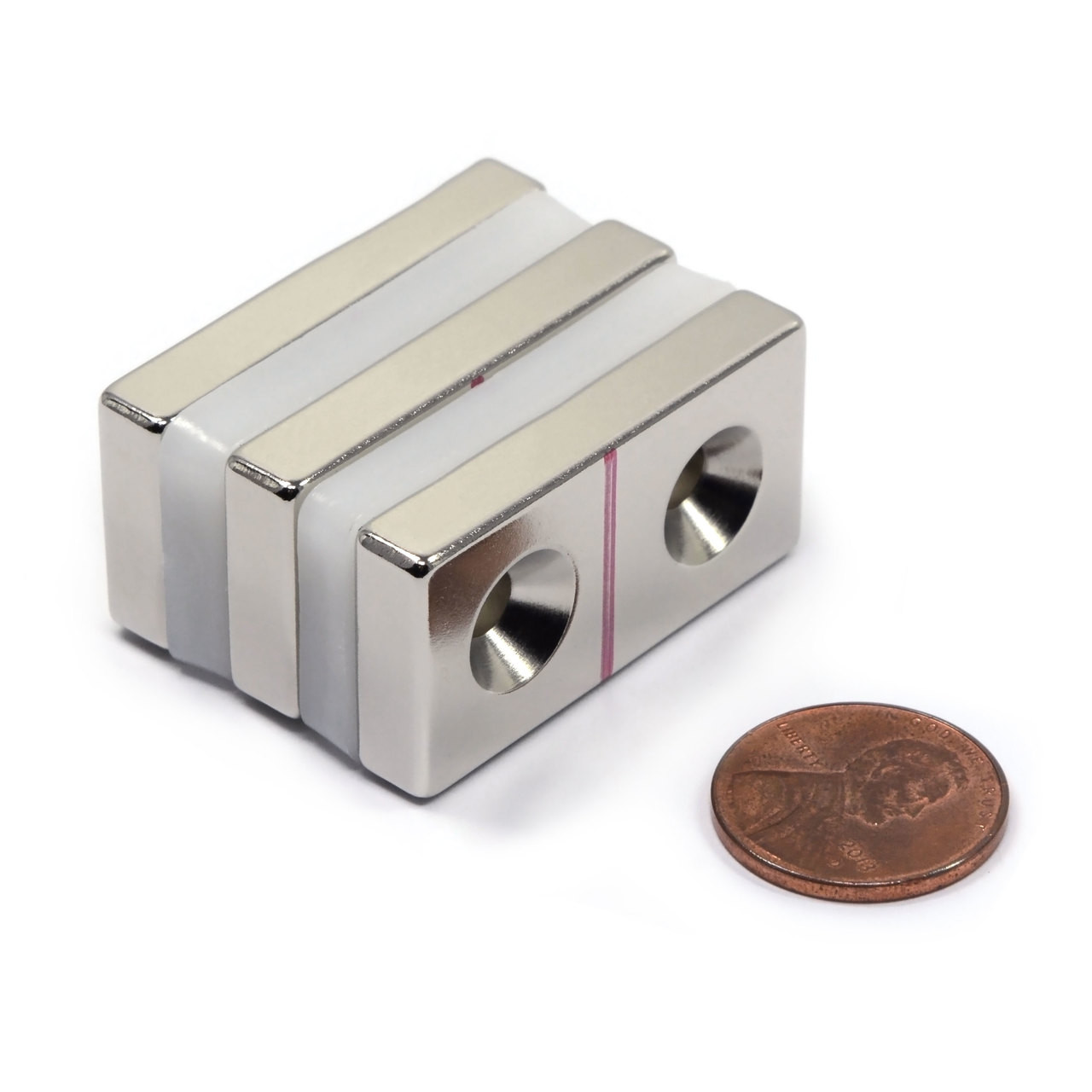

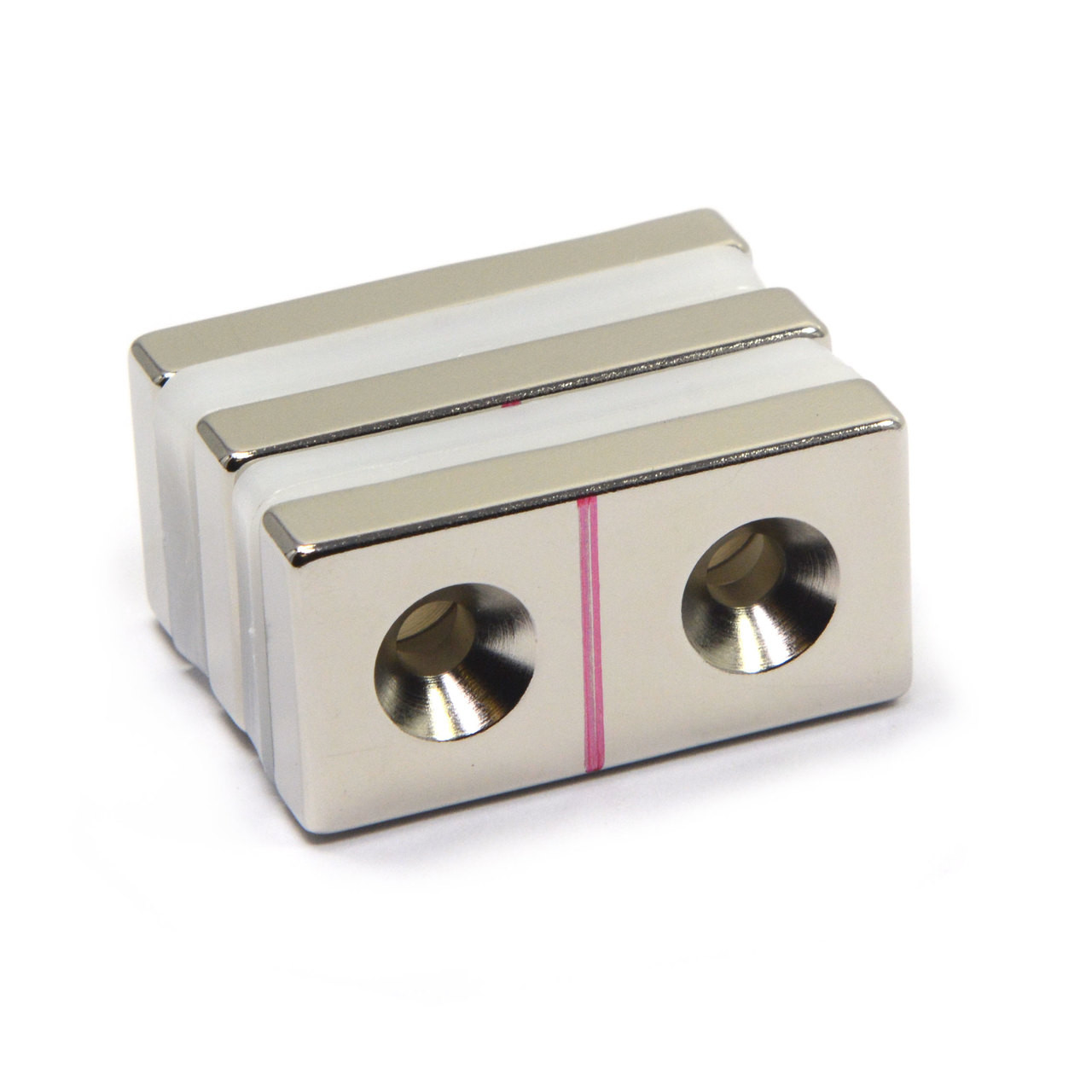

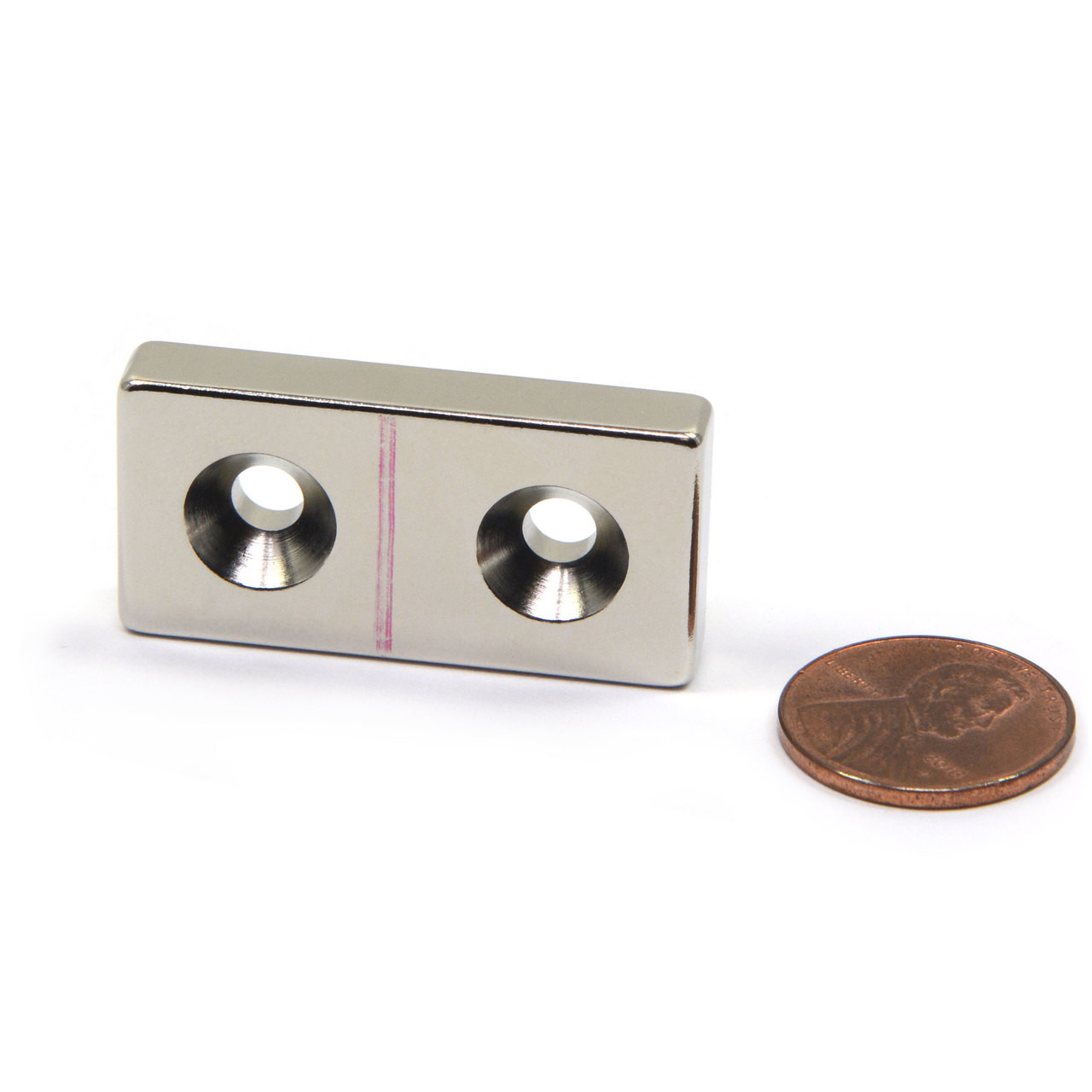

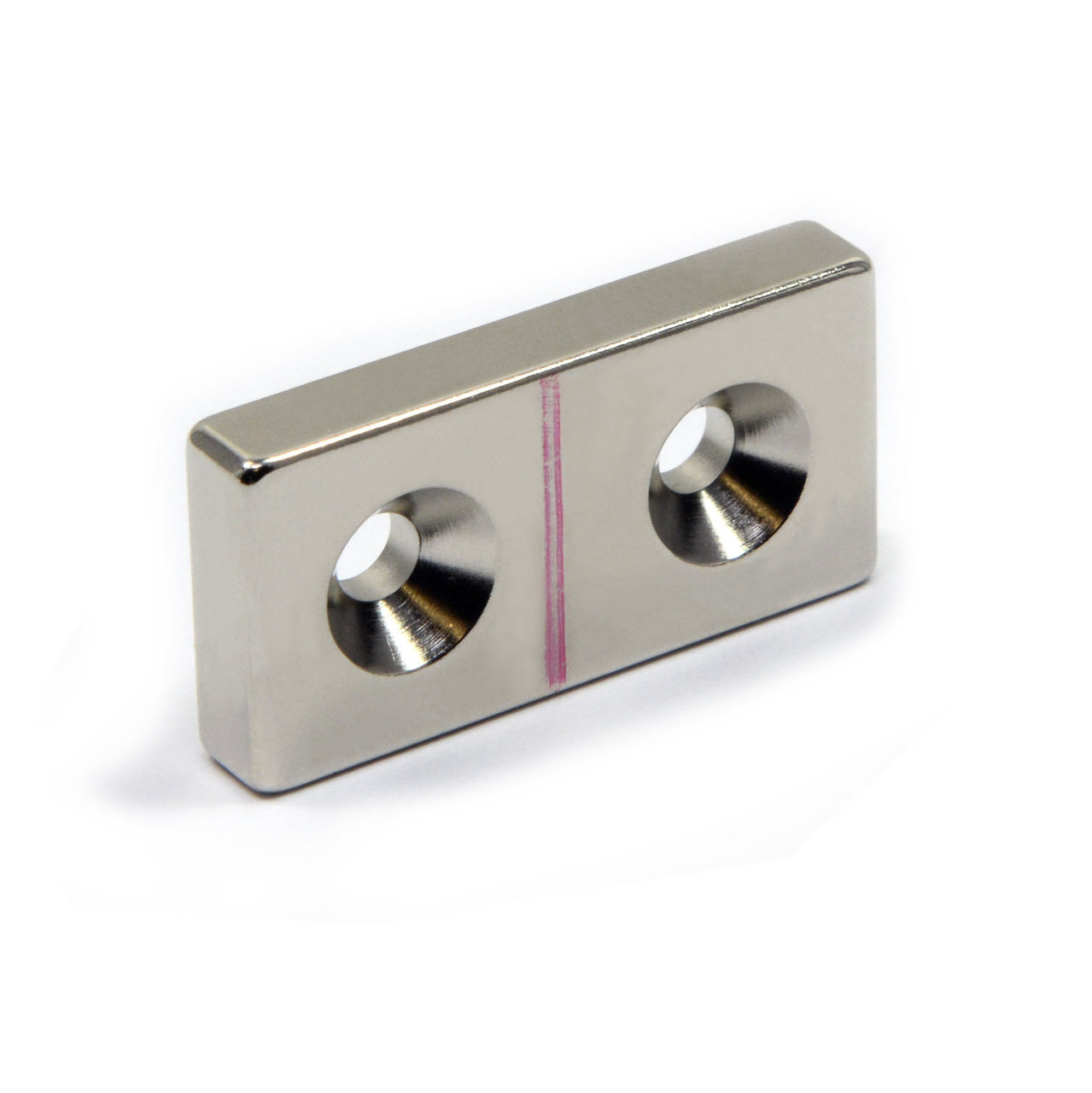

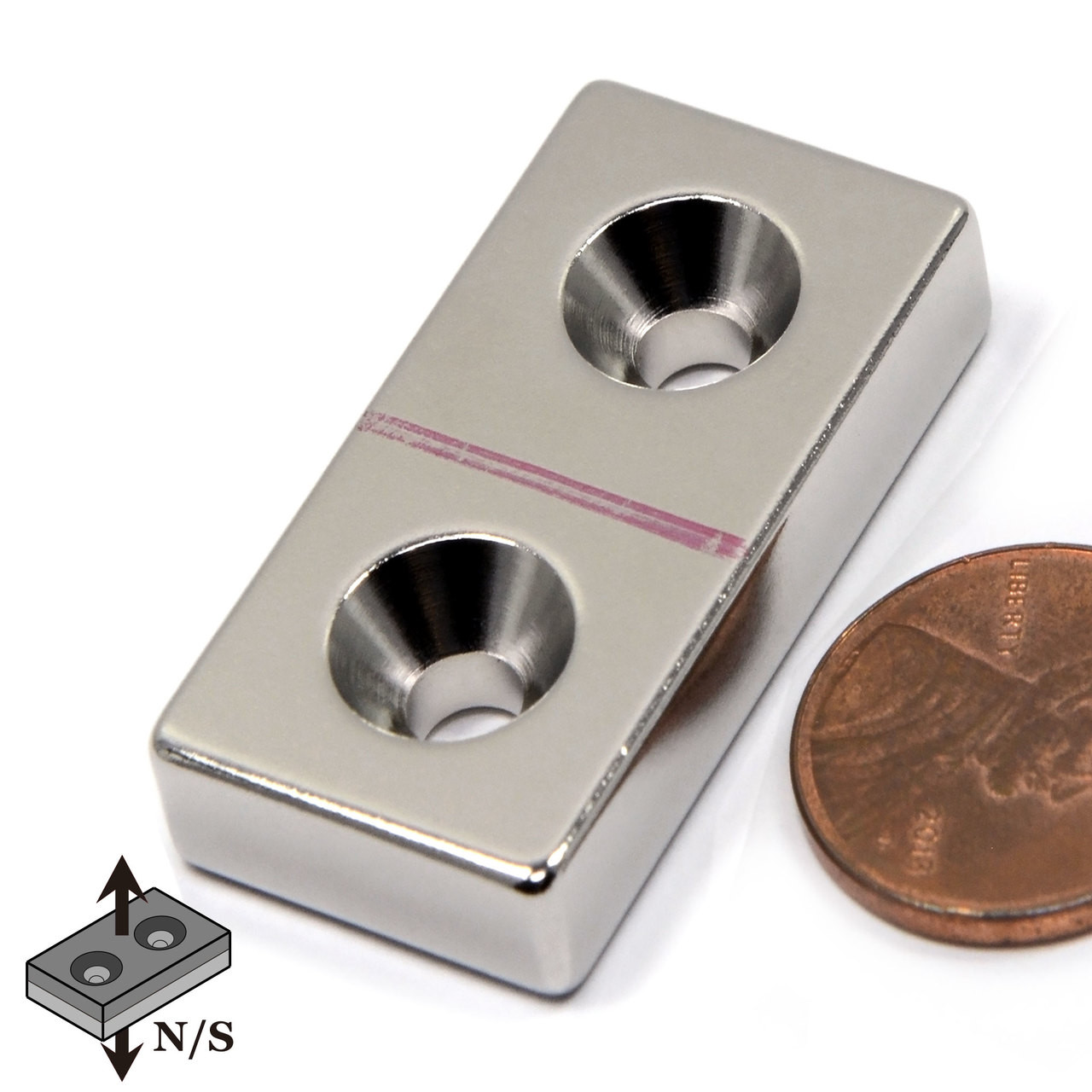

Our N45 Neodymium Block Magnet measures 1.5" in length, 0.75" in width, and 0.25" in thickness and is constructed from a neodymium, iron, and boron alloy of grade N45, ensuring exceptional magnetic strength. It features two countersunk holes designed for #8 flat head screws, facilitating secure mounting. Produced under the ISO 9001 quality control standards, the magnet is finished with a nickel-copper-nickel triple layer coating for enhanced corrosion resistance and durability.
Key Specifications:
- Material: Sintered NdFeB, grade N45, for superior magnetic force.
- Magnetic Properties: Flux density of 13,500 Gauss, indicating a high-intensity magnetic field.
- Pull Force: Delivers a pulling force of 28 lbs, suitable for a variety of holding applications.
- Coating: A premium Ni+Cu+Ni triple layer coating for optimal corrosion resistance.
- Tolerance: Manufactured to a precision tolerance of +/-0.002" including coating.
Safety Advisory:
- Due to their brittle nature, neodymium magnets require careful handling to avoid damage.
- Advised to keep away from pacemakers and children, with supervision required for use by minors.
- In the event of damage, ensure complete and safe disposal to prevent risks from magnetized fragments.
Related Links
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
