Product Description

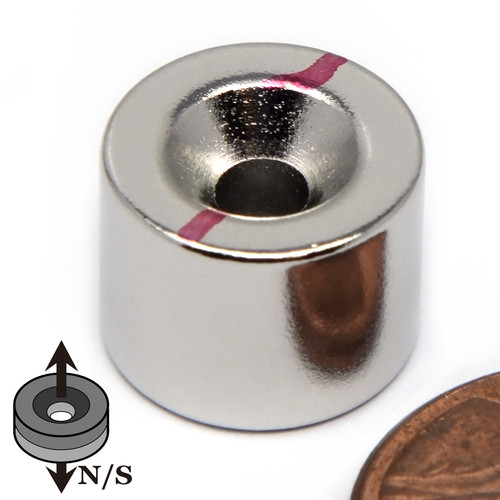

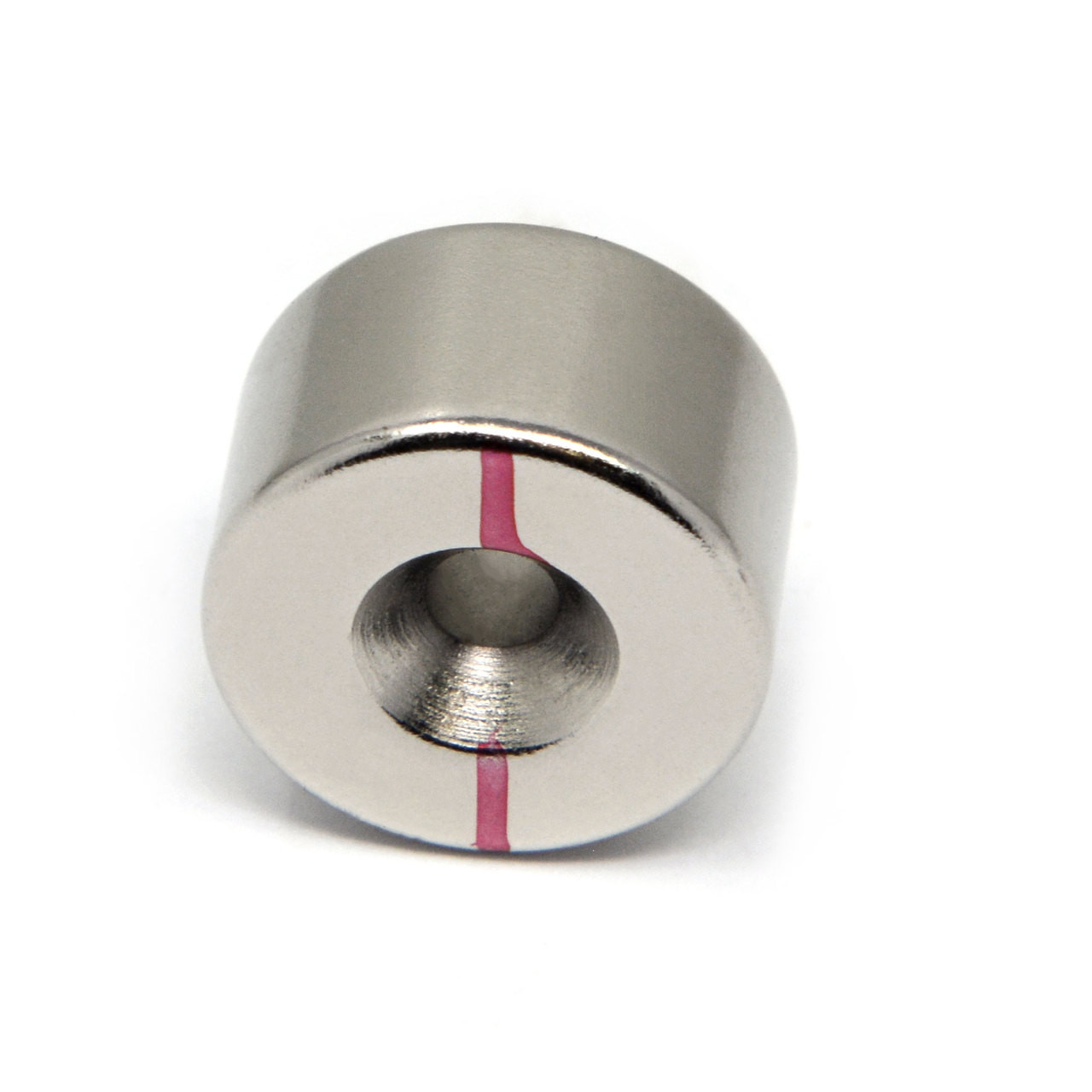

Neodymium Disc Magnet with #6 Countersunk Hole (ND0420-45N-D#6)
This product measures 5/8" in diameter and 3/8" in thickness and is made of a grade N45 neodymium, iron, and boron magnetic alloy blend. This magnetic blend is patent licensed and made under the ISO 9001 quality systems. They are plated in a nickel-copper-nickel coating for a shiny corrosion-resistant finish. The North and South poles are on the flat sides. The pull force of this magnet is 22.5 lbs. This magnet also features a #6 countersunk hole for a flathead screw. This is a great item for use in personal projects as well as for crafts and closures and can also be used to help keep objects secured or fastened to any ferrous surface.
- Material: Sintered NdFeB. Grade N45
- Gauss Rating: 13,500 gauss
- Pulling Force: 21.3 lbs.
- Pole Orientation: Axially magnetized, the poles on the flat ends.
- Coating: Ni+Cu+Ni 3 layer plated, the best coating available
- Tolerance: The tolerances of all the dimensions are +/-0.002in with coating.
PLEASE NOTE:
- All magnets may chip and shatter, but if used correctly can last a lifetime.
- Keep away from pacemakers.
- Not for children, parental supervision required.
- COMMERCIAL USE ONLY.
- If damaged please dispose of completely. Shards are still magnetized and if swallowed can inflict serious damage if magnets join inside the digestive tract.
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Grade N45
Pulling Force 22.3Lbs.
Pole Orientation Axially
Coating NiCuNi
