Product Description
Neodymium Disc Magnet w/ #10 Countersunk Hole, Countersunk on N or S Rare Earth Magnet, (ND051-42NM-#10)

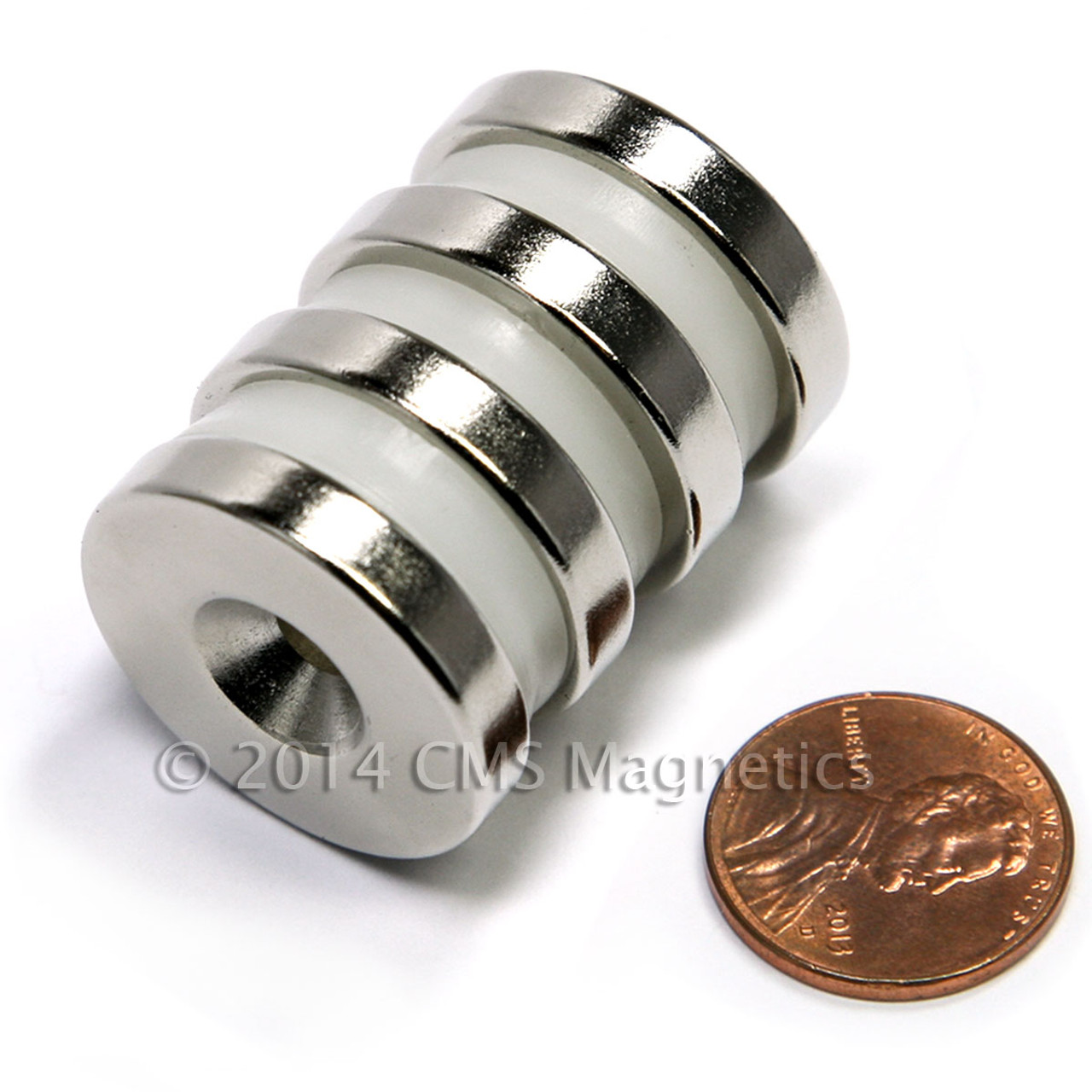

This product measures 1" in diameter and 3/16" in thickness and features a #10 countersunk hole through the thickness of the magnet. It is made of a grade N42 neodymium, iron, and boron magnetic alloy blend. This a magnetic blend is patent licensed and made under the ISO 9001 quality control systems. They are plated in a nickel-copper-nickel coating for a shiny corrosion resistant finish. Neodymium ring magnets are perfect for use as magnetic fasteners around the home or for use in commercial applications.
Please note that all neodymium rare earth magnets are fragile and require caution when installing to prevent shattering the magnet, and when handling due to their brittle nature and to avoid injury due to pinching.
- Material: Sintered neodymium disc magnet, NdFeB grade N42
- Remanence: 13,200 Gauss or 1.32 Tesla
- Pulling Force: 17 Lbs.
- Pole Orientation: Axially magnetized, i.e. the N and S poles are on the flat surfaces
- Coating: Ni+Cu+Ni 3 layer plated, the best coating available
- Tolerance: All +/-0.002" with coating
PLEASE NOTE:
- All magnets may chip and shatter, but if used correctly can last a lifetime.
- Keep away from pacemakers.
- Not for children, parental supervision required.
- If damaged please dispose of completely. Shards are still magnetized and if swallowed can inflict serious damage if magnets join inside the digestive tract.
Warranty
This product is covered by 10 year warranty on the magnetic strength under normal usage. Used in the environment which has high temperature and virbation will void this warranty. The product should not be used in the outdoor or high humid or salty environment except extra insulation measurement is taken.Product Videos
