N42 18 LB Pull Disc Magnet Dia 3/4x1/4" w/ #8 Countersunk Hole | Neodymium Magnet

MSRP: $2.86
Was: $2.86
Now: $1.92
(You save $0.94 )
(2 reviews) Write a Review
SKU:
ND046-42N-#8
Condition:
New
Availability:
Usually ships in the next business day
Minimum Purchase:
12 units
Bulk Pricing:
Buy in bulk and save Bulk price

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 50 - 99 and pay only $1.78 each
  • Buy 100 - 499 and pay only $1.74 each
  • Buy 500 - 1999 and pay only $1.71 each
  • Buy 2000 - 4999 and pay only $1.59 each
  • Buy 5000 or above and pay only $1.57 each
Material:
Neodymium
Grade:
N42
Pulling Force:
18Lbs.
Pole Orientation:
Axially
Coating:
NiCuNi
Adding to cart… category.add_cart_announcement

Product Description

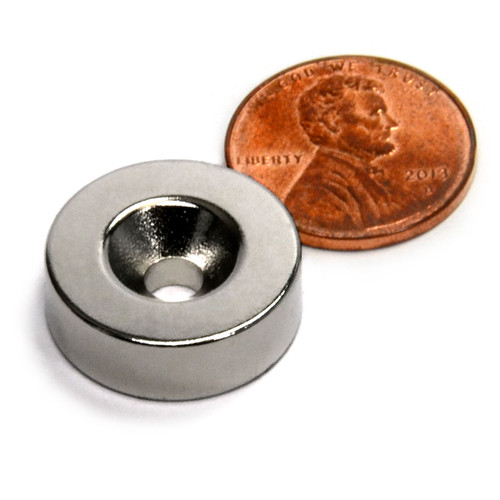

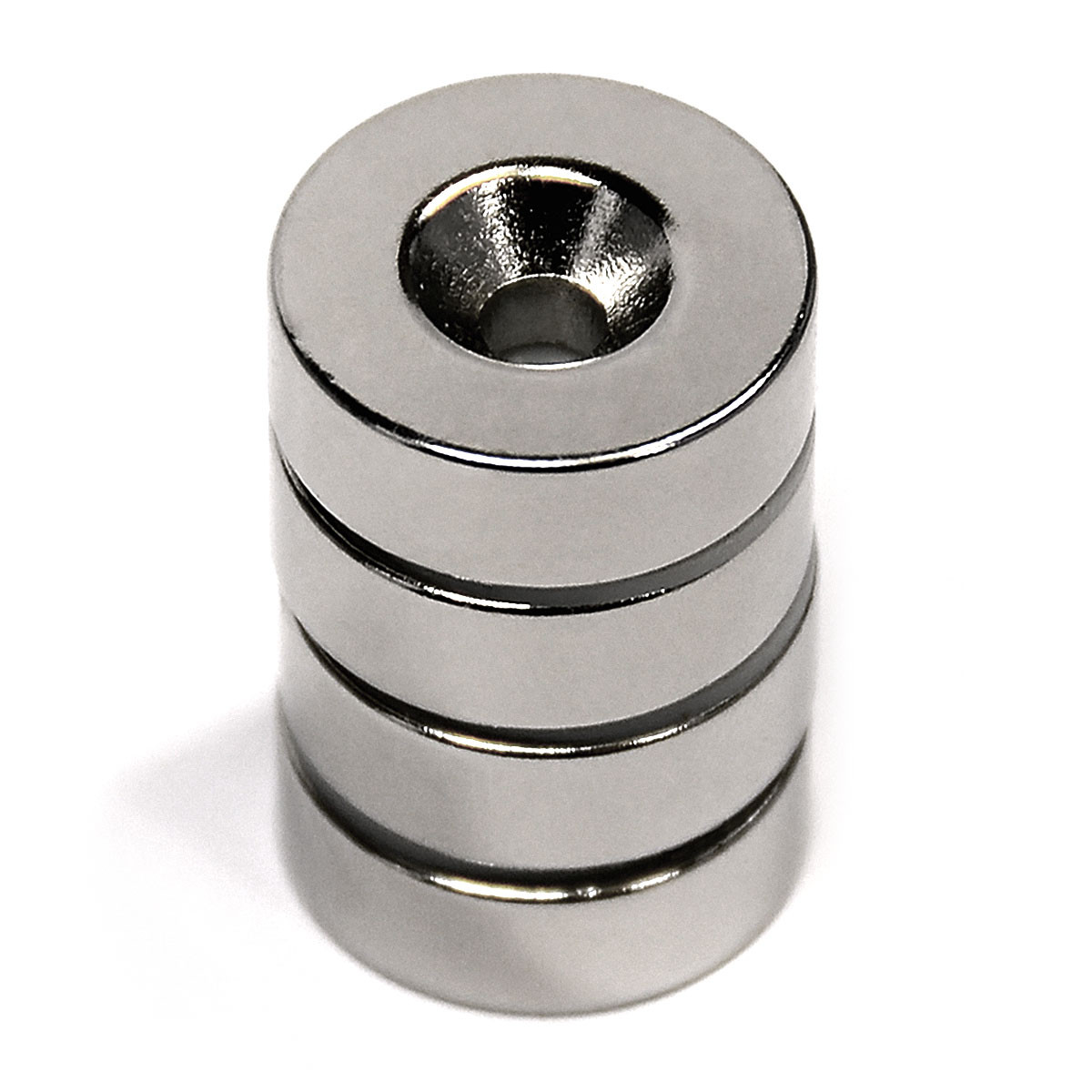

Grade N42 Disc Magnet Dia 3/4 x 1/4" w/ #8 Countersunk Hole Neodymium Magnet

This disc magnet measures 3/4" in diameter and 1/4" in thickness and features a #8 countersunk hole in the center of the magnet. This disc magnet is made of a grade N42 neodymium magnet alloy blend under under ISO 9001 quality systems. The magnet is coated in a nickel-copper-nickel coating for a shiny corrosion-resistant finish. This countersunk hole neodymium magnet is used widely as magnetic fasteners in the industries and at home for various holding purposes.

Features:

  • Material: Sintered neodymium magnet, NdFeB rare earth magnet, grade N42
  • Remanence (Br): 13,200 Gauss or 1.32 Tesla
  • Pulling Force: 18 LBS.
  • Pole Orientation: Axially magnetized, i.e. the N and S poles are on the flats surfaces
  • Coating: Ni+Cu+Ni 3 layer plated, the best coating available
  • Tolerance: All +/-0.002" with coating

Warnings:

  • All magnets may chip and shatter, but if used correctly, this disc magnet can last a lifetime
  • Keep away from pacemakers and children
  • If damaged please dispose of completely

Warranty

This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.

Product Videos

Custom Field

Material Neodymium
Grade N42
Pulling Force 18Lbs.
Pole Orientation Axially
Coating NiCuNi
