Product Description

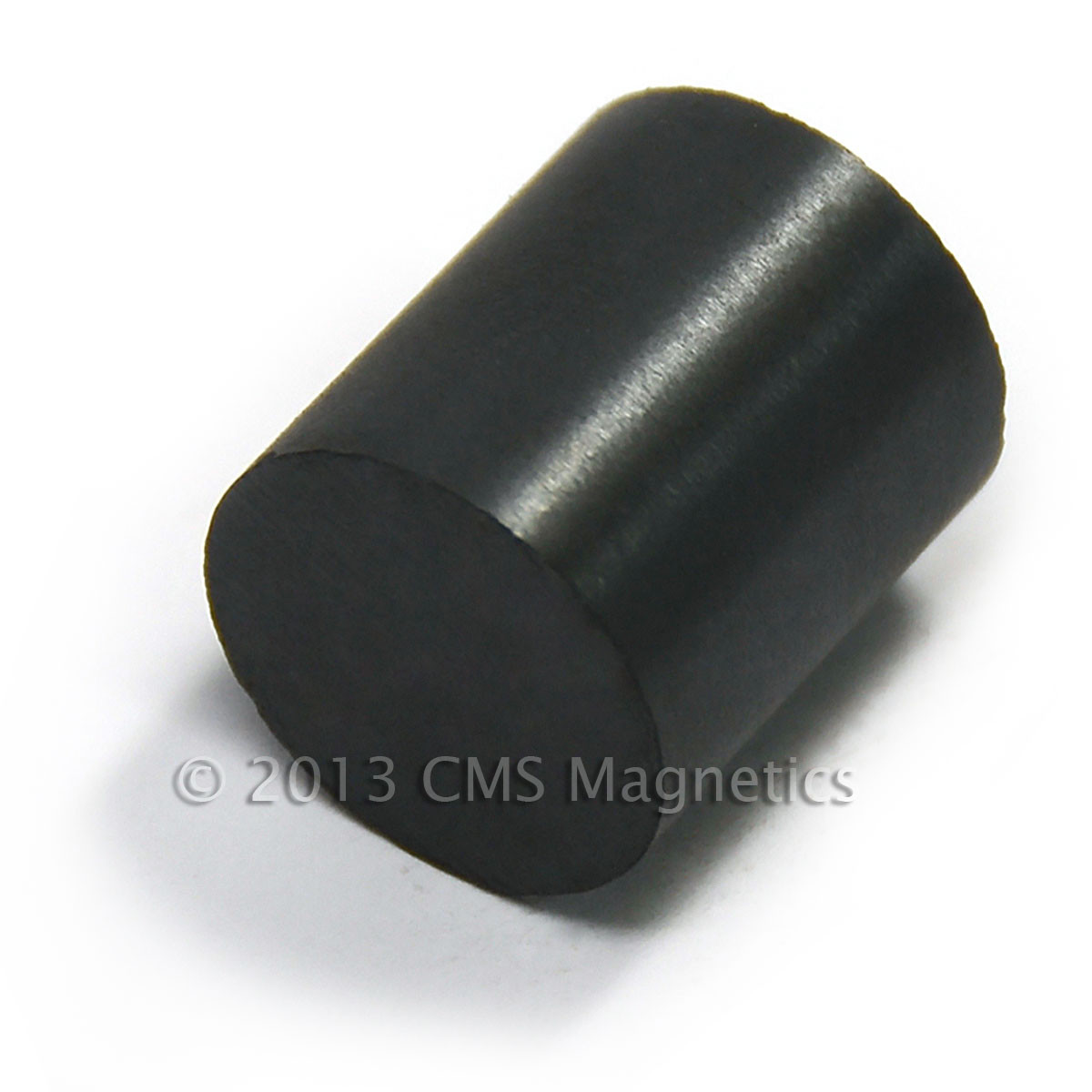

Cylindrical Ceramic Magnets C8 Dia 7/8"X1" SLUG Magnets (CD024)

This cylindrical ceramic magnet is made of C8 hard ferrite material and magnetized through the 1" length. So the N and S poles are on the flat surfaces. It's the most economical type of permanent magnets but is still applicable to most of the applications.

Ceramic magnets are the most economical yet still very strong permanent magnets. It has the longest history by mankind among all the types of permanent magnets. It also has a good resistance to the high heat comparing with other types of magnets. They are widely used in industrial and homes. You can virtually see them anywhere in your daily life. For example, magnetic separators, speaker magnets, motors, generators, refrigerator magnets, magnetic holders, magnetic pushpins, crafting magnets, science project magnets, etc.

Material: Hard ferrite grade 8 also is named as ceramic 8 or 8A magnet
Dimensions: Dia 0.875" x 1" cylindrical
Magnetization: Axially magnetized, i.e. the N and S poles are on the flat surfaces
Gauss Rating: 3,850 gauss
Holding Power: 6.6 lbs

Other Details

This product is covered by 10 year warranty on the magnetic strength under normal usage. Used in the environment which has high temperature and virbation will void this warranty. The product should not be used in the outdoor or high humid or salty environment except extra insulation measurement is taken.

Product Videos

Custom Field

Material Hard ferrite grade 8 or known as ceramic 8 or 8A

Gauss Rating 3,850 gauss

Pole Orientation Axially magnetized, the N and S poles are on the flat surfaces.

Pull Force: 6.6 lbs

Applications Crafts, Science experiments, Hobbies, Kitchen Projects
