Product Description

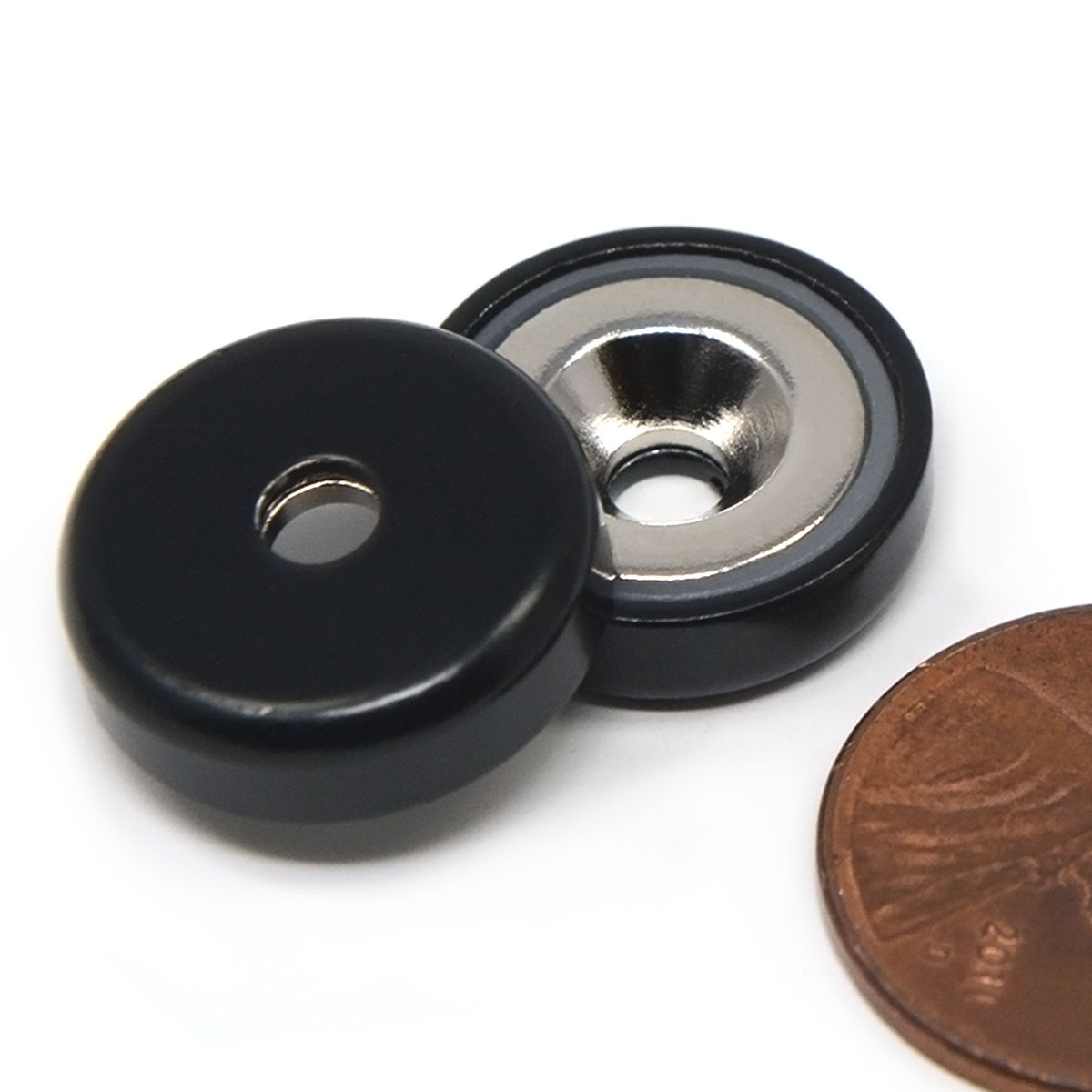

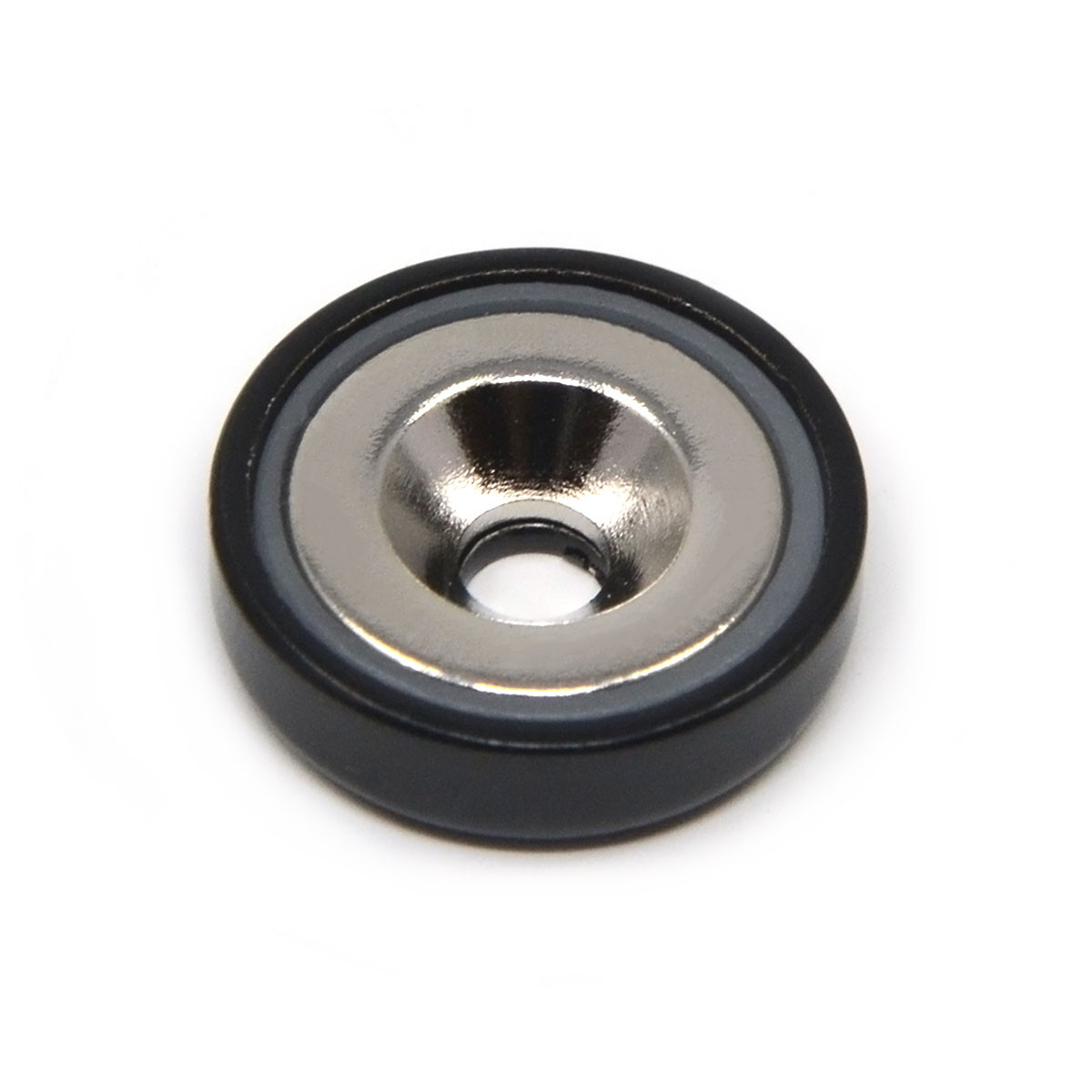

Cup Magnets Rare Earth Neodymium 16 LB 5/8" Epoxy Coated
Powerful Neodymium round base cup magnet is made of a super strong neodymium magnet encased inside of a chrome plated steel cup and countersunk for a #6 screw. This strong magnet is coated in a thick single layer epoxy coating that offers exceptional corrosion resistance when used in wet or humid environments. The neodymium magnet is bonded inside of the cup with adhesives. This design forms a magnetic circuit which triples the holding force to 16 Lbs.!
The applications of this round base magnet include but aren't limited to magnetic holding, lifting, antenna Mounting, positioning, retrieving and much more. There are 3 separate terms for this kind of magnet. They may be called cup magnets, pot magnets or round base magnets.

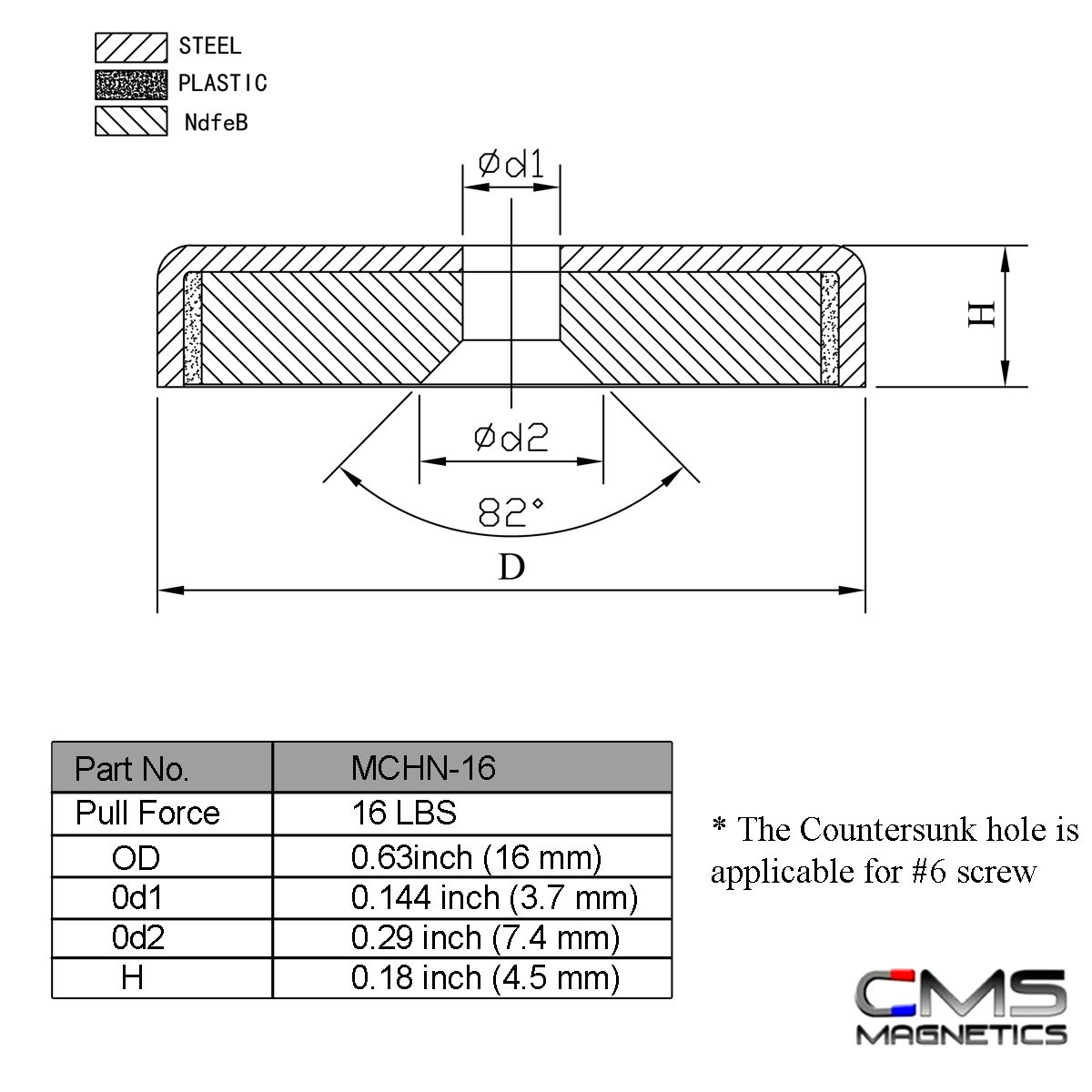

- Pull force: 16 Lbs.
- Outer Diameter: 0.63" (16 mm)
- 0d1: 0.144" (3.7 mm)
- 0d2: 0.29" (7.4 mm)
- Height: 0.18" (4.5 mm)
- Applications:
Warning:
- Keep away from pacemakers and children
- Please secure these magnets safely onto your products so they will not fall off
- Keep away from children under 5 years old. If two or more of these magnets are swallowed by kids or animals, contact your doctor immediately
- COMMERCIAL USE ONLY
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Pulling Force 16Lbs.
Pole Orientation Axially
Coating Epoxy
