Product Description

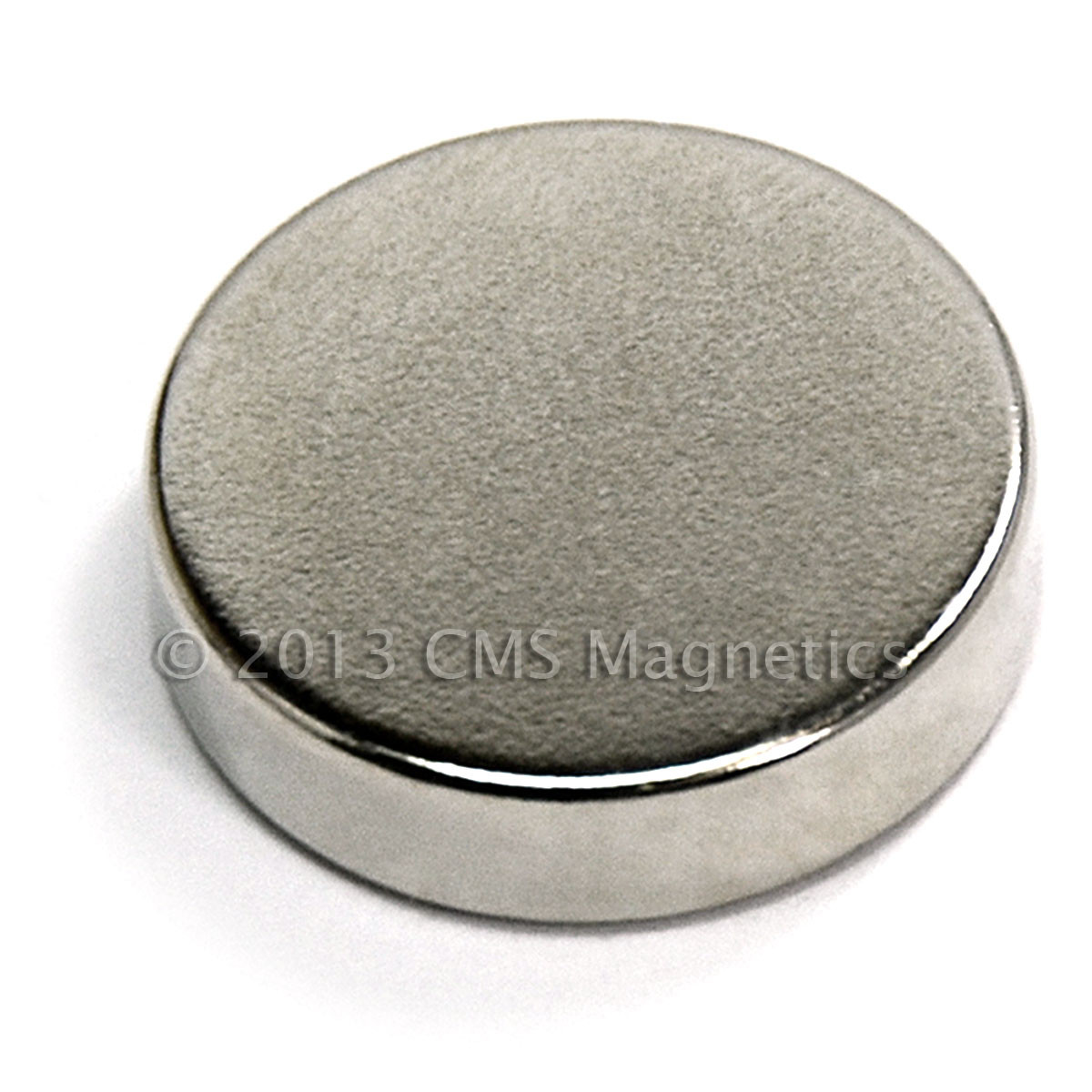

This high-performance N52 Neodymium Disc Magnet measures 3/4" in diameter by 3/16" in thickness (0.75" x 0.1875" / 19 mm x 4.75 mm) and delivers an impressive 15 lbs of holding force. Sintered under strict ISO 9001 quality manufacturing standards, this industrial-grade rare earth magnet offers maximum magnetic field strength in a compact profile.
Key Features & Specifications:
- Magnetic Grade: Grade N52 Sintered NdFeB (14,400 Gauss / 1.44 Tesla Residual Flux Density $B_r$)
- Dimensions: 3/4" Diameter x 3/16" Thickness (0.750" OD x 0.1875" Thk)
- Pull Force: 15 lbs (7.0 kg) direct surface holding power against flat steel

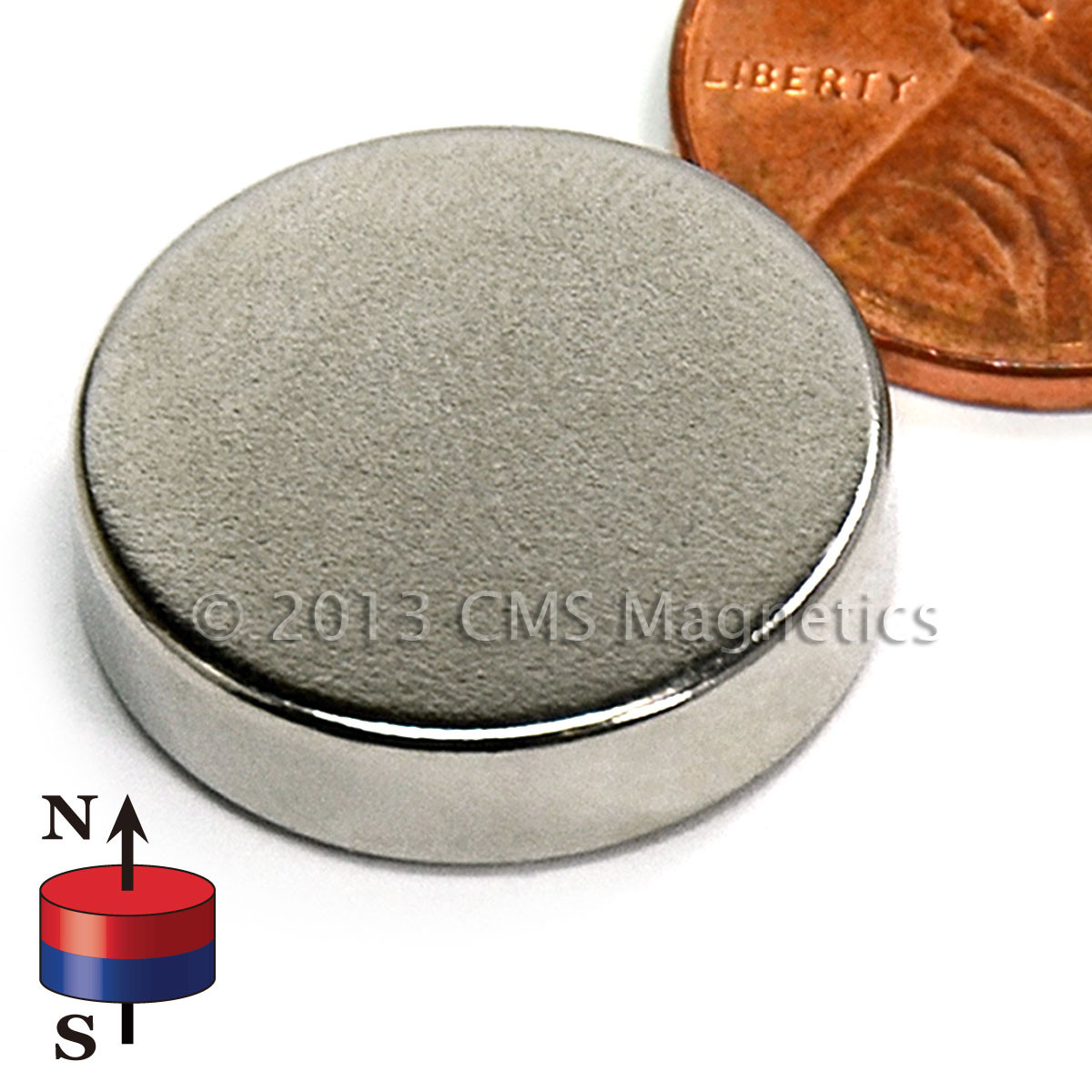

- Magnetization Direction: Axially magnetized (Poles are located on the flat circular top and bottom faces)
- Protective Coating: Premium Triple Layer Ni+Cu+Ni (Nickel-Copper-Nickel) for maximum corrosion resistance and durability
- Operating Temperature: Max working temperature of 176°F (80°C)
- Manufacturing Tolerances: Precision ground to +/- 0.002" (+/- 0.05mm)
Common Applications:
Engineered for high-strength holding applications where space is limited, this 3/4" x 3/16" N52 disc magnet is ideal for:
- Industrial jigs, fixtures, and magnetic assemblies
- Custom cabinetry, concealed latches, and magnetic closures
- Sensor triggers and precision machinery components
- DIY projects, woodworking holding tools, and workshop organizing
⚠️ CRITICAL SAFETY WARNINGS:
- NOT A TOY: This product is intended for industrial, commercial, and craft/craftsmanship applications only. It is NOT a toy and must be kept away from all children.
- CHOKING & SWALLOWING HAZARD: If swallowed, powerful neodymium magnets can stick together across intestine walls, causing severe internal infection, intestinal damage, or death. Seek immediate emergency medical attention if magnets are ingested or inhaled.
- PACEMAKER & MEDICAL DEVICE SAFETY: Strong magnetic fields can interfere with pacemakers, ICDs (Implantable Cardioverter Defibrillators), and other electronic medical devices. Keep this magnet at a safe distance (at least 12 inches / 30 cm) from anyone wearing a pacemaker or medical implant.
- PINCH HAZARD: Powerful magnetic forces can snap magnets together unexpectedly, causing severe pinching, blood blisters, or skin lacerations. Handle with extreme care.
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Grade N52
Pulling Force 15Lbs.
Pole Orientation Axially
Coating NiCuNi
