Product Description

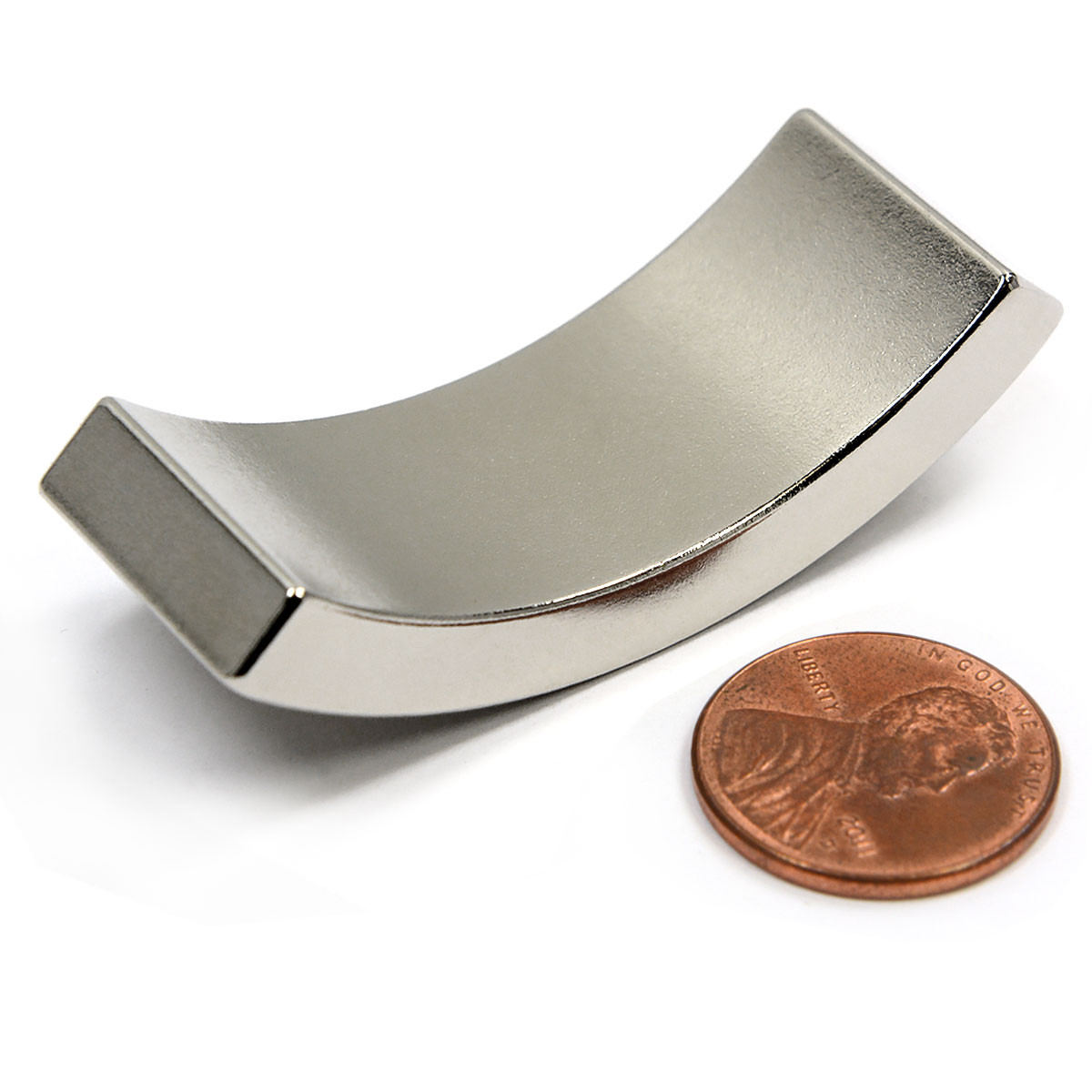

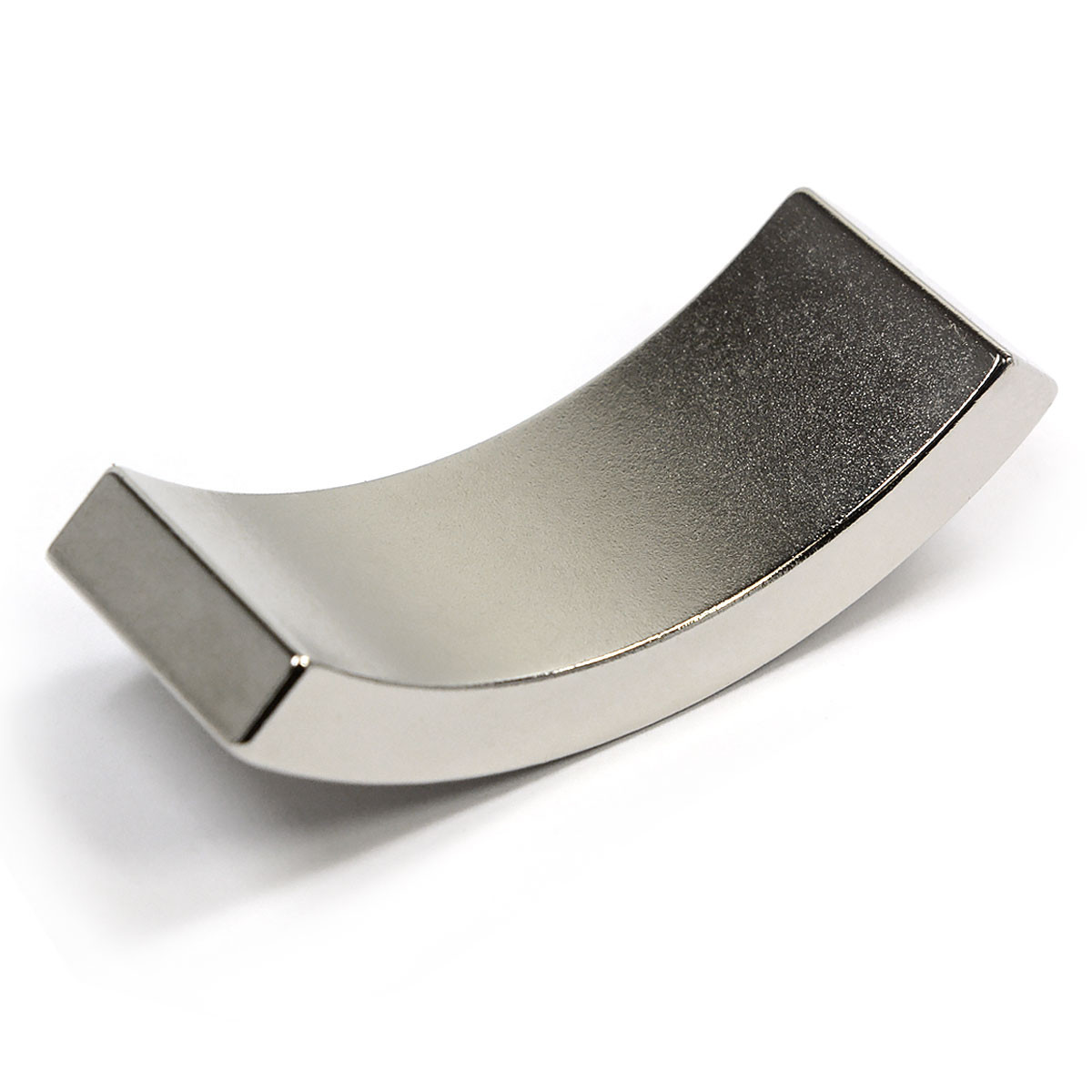

N42SH Neodymium Arc Magnet – High-Temperature Industrial Grade (ID-North Pole)
Designed for high-performance rotating machinery, this N42SH Neodymium Arc Magnet offers a perfect balance of magnetic strength and thermal stability. Measuring 3" OD x 2.5" ID x 0.75", these 90-degree segments are engineered from Grade N42SH rare earth material, which is specifically formulated to resist demagnetization in high-heat environments up to 150°C (302°F).
This specific model features an Inner Diameter North (ID-N) pole orientation, making it a critical component for building complex magnetic rotors, stators, and sensor arrays. When four of these segments are combined, they create a complete 360-degree high-energy magnetic ring.
Technical Specifications
-
Grade: N42SH Neodymium (NdFeB) – Superior heat resistance compared to standard N42.
-
Dimensions: 3" Outer Diameter (OD) x 2.5" Inner Diameter (ID) x 0.75" Height.
-
Curvature: 90-Degree Arc – Precise fit for industrial motor housings.
-
Magnetization: Through thickness, North Pole on the Inner Diameter (ID-N).
-
Maximum Temperature: 150°C (302°F) – Ideal for industrial-duty motors.
-
Coating: Triple-layer Ni-Cu-Ni (Nickel-Copper-Nickel) for maximum durability and corrosion resistance.
Ideal Applications
-
Electric Motors & Generators: High-efficiency components for EVs and industrial power systems.
-
Magnetic Bearings: Used in high-speed rotating equipment requiring non-contact support.
-
Renewable Energy: High-stability magnets for wind turbine alternators and control systems.
Safety Notes
- Handle with care as magnets can chip and shatter.
- Keep away from pacemakers and children.
