Product Description

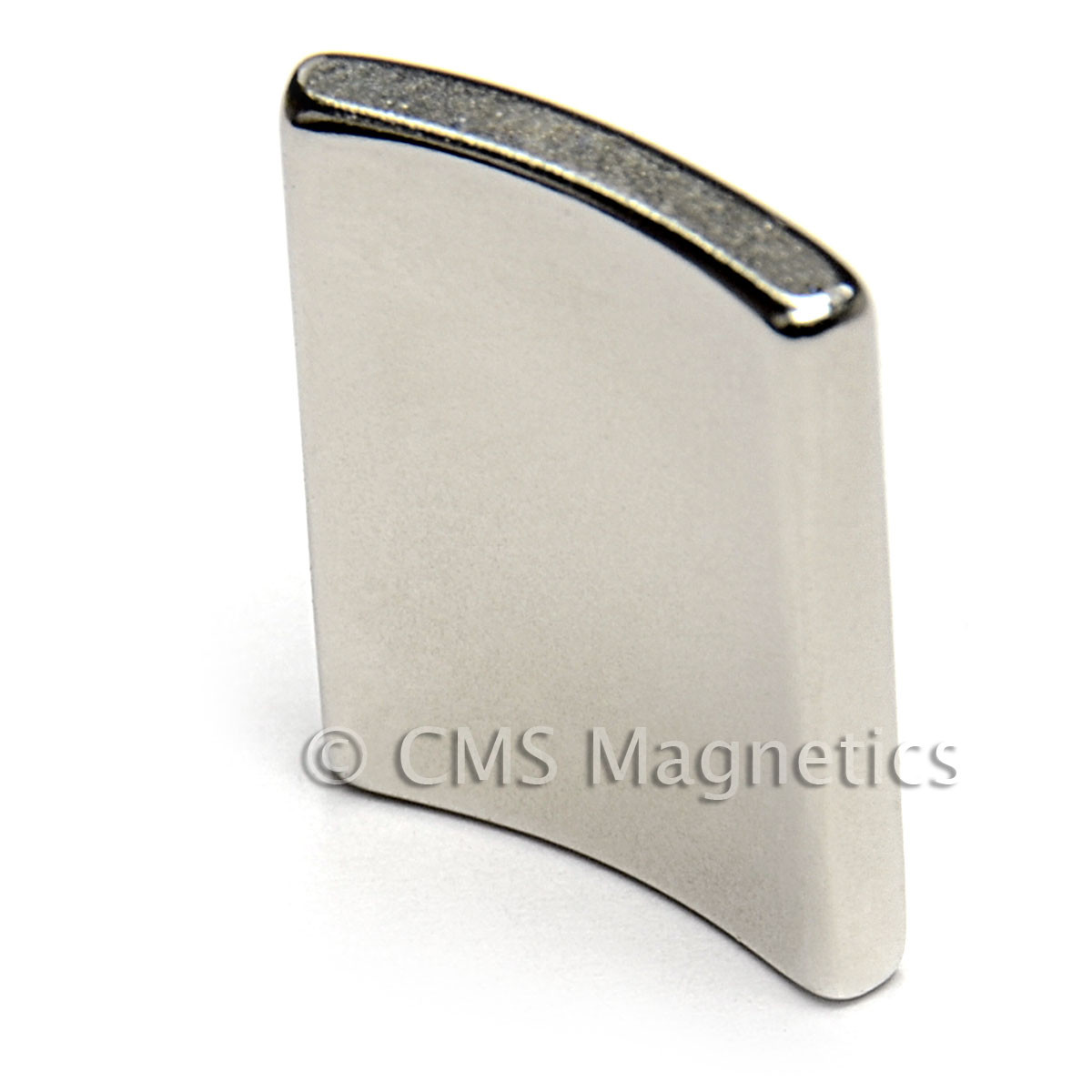

ARC Neodymium Magnet N42SH OD2.0xID1.75xL1.0"x45 Degree Inner S Pole
This arc neodymium magnet is made of top quality high temperature magnetic materials under ISO 9002 quality systems. The material is N42SH with working temperature of 302 degree Fahrenheit or 150 degree celsius . It is magnetized through the thickness with the south pole on the inner diameter. Eight pieces of this arc magnets can form a circle with with OD =2", ID = 1.75" and 1" high.
The magnet are made of super high temperature (SH) neodymium magnetic material with grade N42.
- Gauss Rating: 13,200 gauss
- Hcb: 13.24 KOe
- Hcj: 13.42 KOe
- (BH)max: 39.5MGOe
- Working Temperature: 150 degree Centigrade or 302 Fahrenheit
- Magnetization: through thickness. The south pole is on the inner arc.
- Coating: Ni+Cu+Ni plated. the best coating available.
- Application: motor, generator, and magnetic bearing
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Material Neodymium
Grade N42SH
Pole Orientation ID-South
Coating NiCuNi
