Product Description

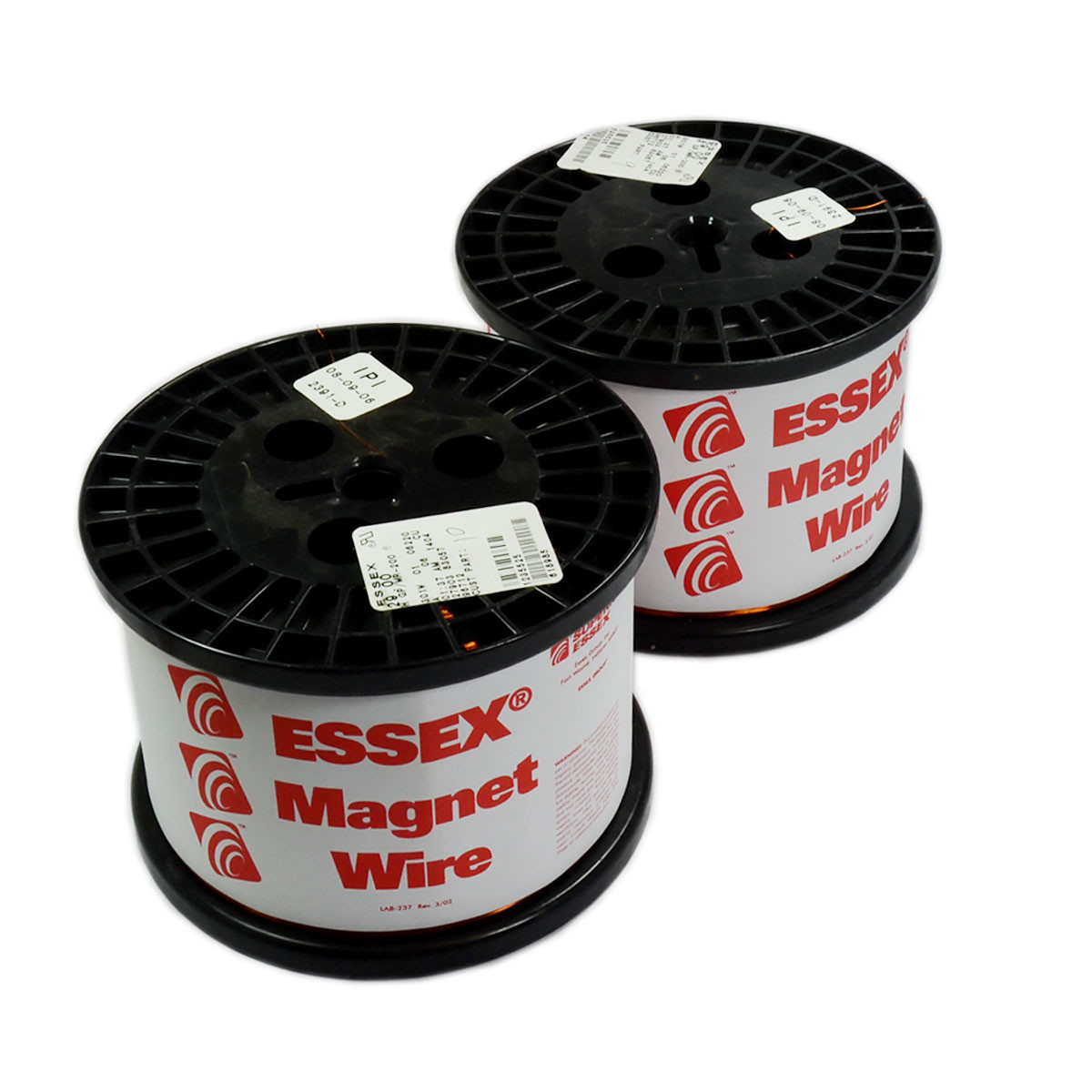

Magnet Wire Essex 25 AWG 200 Degree Celsius 9 LB Spool (MW-25AWG10)
Essex GP/MR-200, Magnet Wire/Winding Wire Heavy Build This is the original spool of the genuine Essex wire. Essex wires are the best quality magnet wires available in the world and are made by USA manufacturer.
Technical Specs:
- Gauge: 25 AWG
- Length: The spool length is 10945 feet
- Nominal Ohms./LB.: 20.29 at 20 degree celsius or 68 fehrenheit.
- Working temperature: 200 degree celsius or 392 degree fehrenheit.
- Insulation: Heavy /Single Build;
- Color: Amber.
Applications:
- Fractional and Integral HP Motors
- Hermetic Motors
- DC Motors
- Power Tools
- Automotive Alternators and Generators
- All Dry Type Transformers, Class 105 through 200
- Electronics, All Types of Coils, Class 105 Through 200
