Product Description

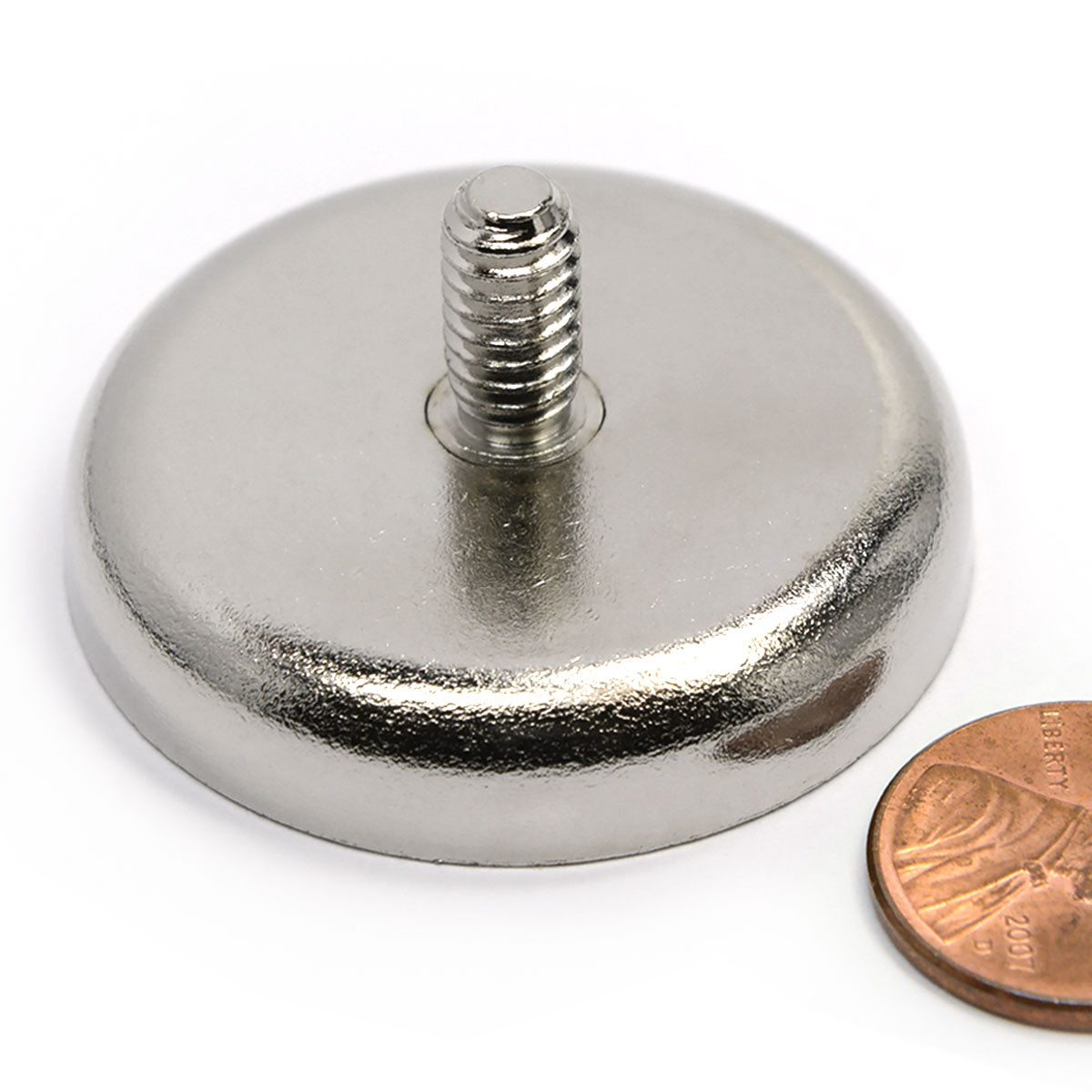

145 LB Neodymium Cup Magnet with #1/4-20 Male Thread
This 145 LB Neodymium Cup Magnet, with a diameter of 1.57 inches and a #1/4-20 male thread, is engineered for reliable mounting and holding in industrial, automotive, and commercial environments.
Constructed from high-quality neodymium and encased in a chrome-plated steel cup, this magnet offers a strong holding force of up to 145 lbs. The steel cup enhances the magnetic strength while providing significant protection to the magnet, thereby improving both its durability and lifespan under regular usage conditions.
Product Specifications:
- Pulling Force: Capable of 145 lbs on bare, low-carbon steel surfaces.
- Diameter: Outer diameter of 1.57 inches for broad utility.
- Thread Type: #1/4-20 male thread, accommodating diverse mounting setups.
- Design: Compact with a 0.32-inch pot thickness for strong construction.
Key Applications:
- Magnetic Holding: Effectively secures tools, signage, and equipment, optimizing organizational efficiency.
- Material Handling: Facilitates the transportation of ferrous materials within various operational settings.
- Vehicle Mounting: Provides stable mounting solutions for signage and equipment on vehicles.
- Positioning & Retrieving: Suitable for precise maneuvering and recovery of metal objects in restricted areas.
This magnet, known for its strong performance and reliability, is essential for any professional setting requiring strong and durable magnetic solutions.
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
Custom Field
Product Reviews
12 Reviews
-
145lb mag
These are the best little magnets. We use the on chemical tanks to hold air lines and conduits.
-
Magnets
The best little magnet for holding conduit to places you cannot drill or screw through.
-
view Subject
Great magnet super strong A++++
-
Perfect match for my needs
These things are great. Unlike the cup magnets they don't break when dropped. I added a nut and washer to them and we can remove them with an open end wrench. You cant remove them otherwise because they are so powerful. Awesome magnets.
-
Holding power
These are STRONG. Plus durable. Be sure you have a tool to remove them. You will need it.
-
112lb 1/4-20 stud magnet
Great product, well built and has a great magnet
-
magnets
Very strong magnets. We use them to install conduits on steel tanks. Once in place they do not move.
-
Magnets
Very strong and durable. Hard to pull off once attached
-
Awesome
I bought these magnets to hold a corn feeder to the bottom of a 55 gallon drum. Brother in law said it would never work. He was wrong again. You cannot pull the feeder off the barrel without prizing it sideways. Awesome product. I just hope it doesn't rust.
