Product Description

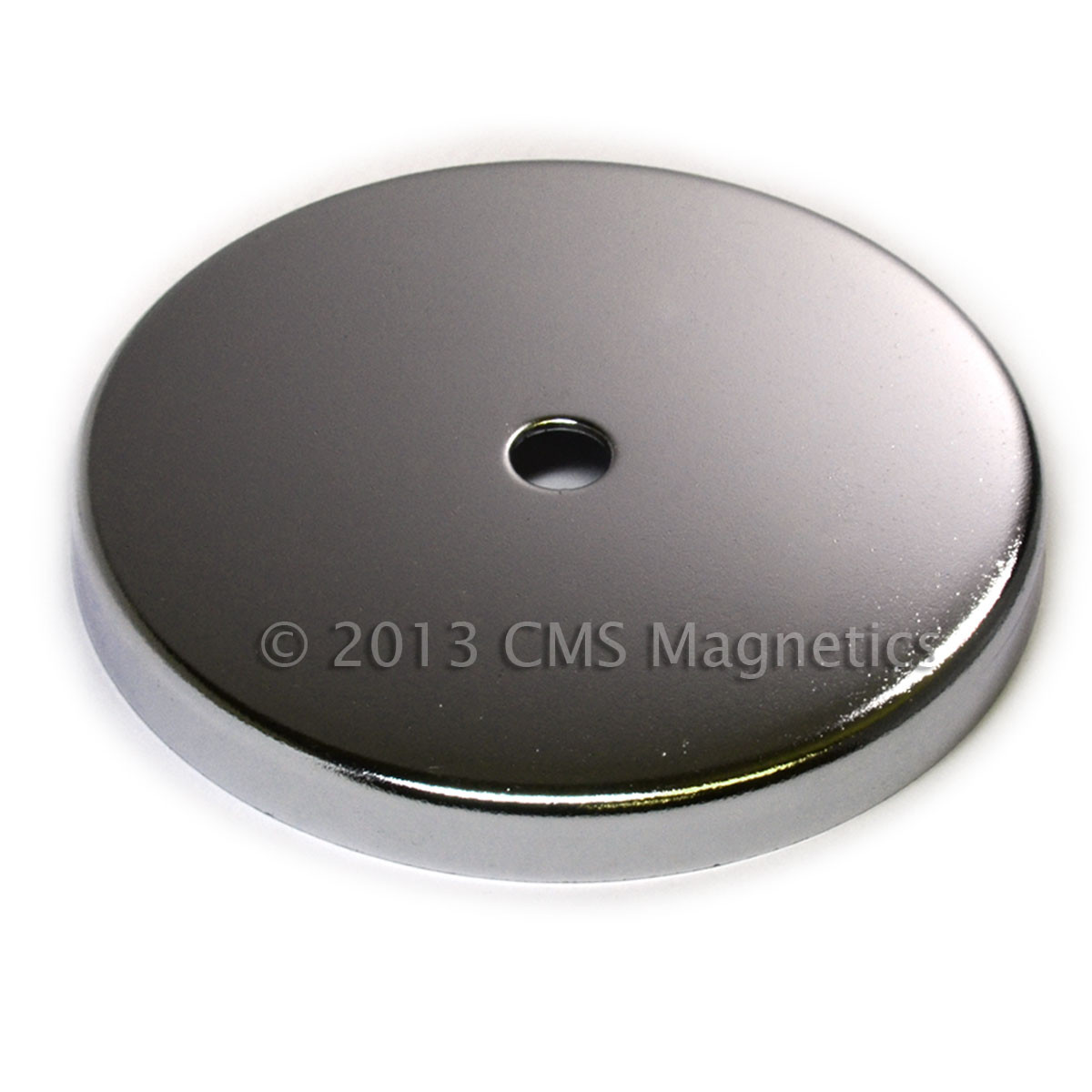

120 LB Ceramic Pot Magnet | 3.8" Diameter | RB85 Series | Pack of 20

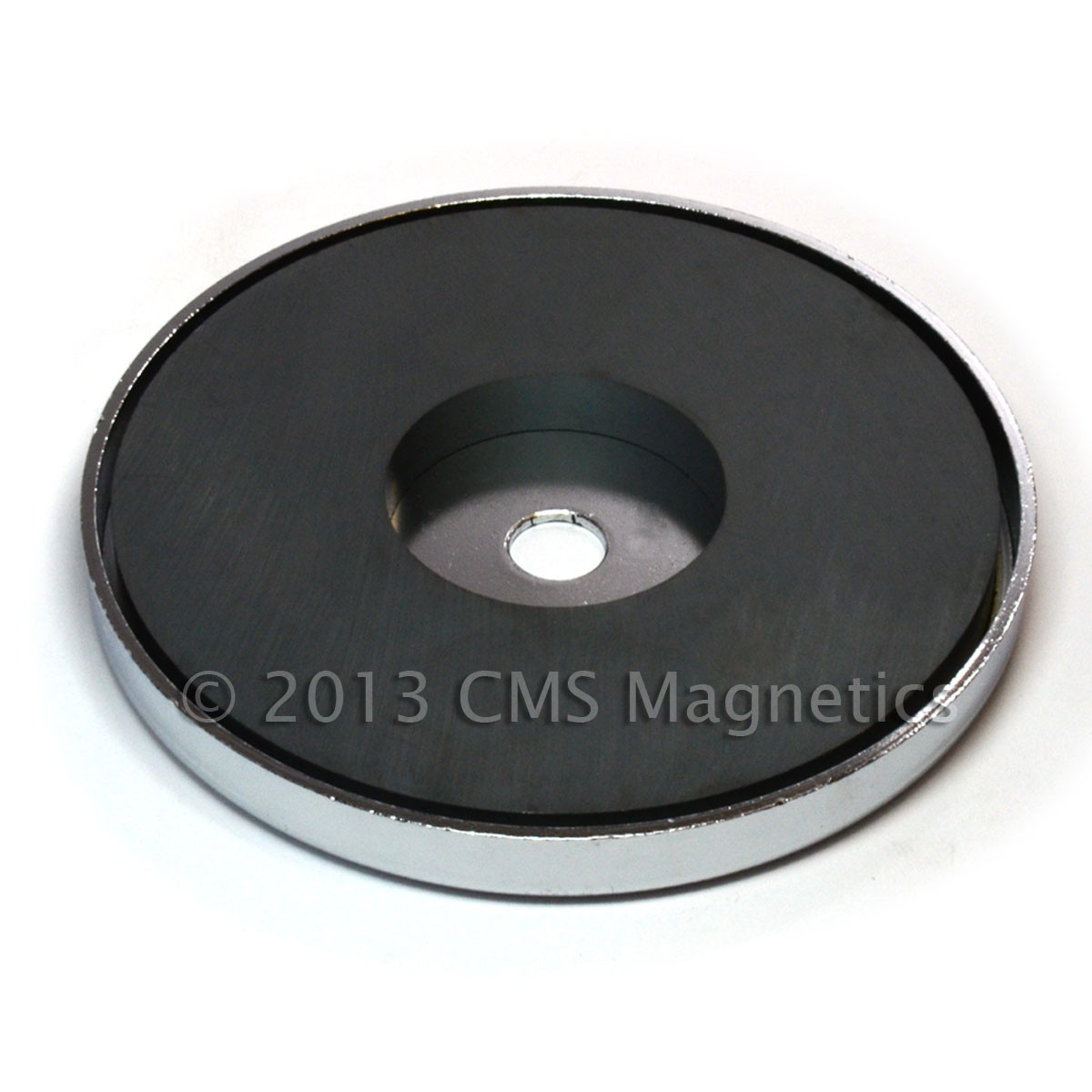

Featuring a set of 20 pot magnets, each delivering a holding force of 120 lbs, our RB85 series is engineered for superior performance. Constructed from high-grade ceramic magnet encased within a chrome-plated steel cup, these magnets are designed to offer both enhanced holding power and exceptional durability. Manufactured according to ISO 9001 quality standards, our selection of premium ceramic magnets ensures consistent, reliable performance across all applications.
Key Specifications:
- Holding Power: 120 lbs, verified through rigorous testing against a 20 mm thick low carbon steel plate.

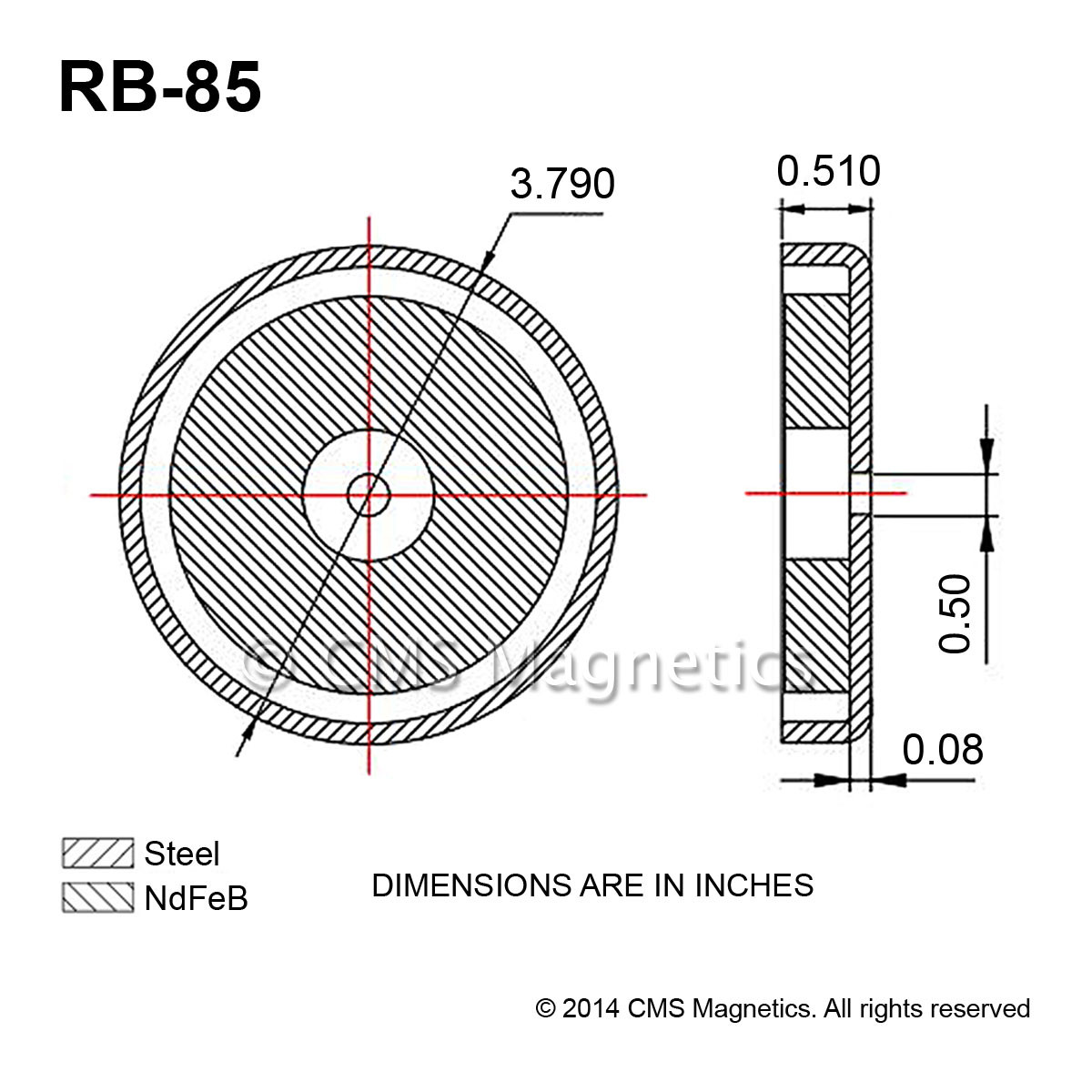

- Dimensions: Outer diameter of 3.8" (96mm) with a total assembly thickness of 0.5" (12.7mm).
- Mounting: Features a central hole of 0.5" (12.7mm) diameter, accommodating a 0.48" screw for secure mounting.
Applications:
- Designed for versatile use, including magnetic holding, lifting, antenna mounting, positioning, and retrieving.
Also known as cup magnets, magnetic round bases, or magnetic cup assemblies, our pot magnets are tailored for demanding applications where strength and precision are important.
In case you want to order less than 20 pieces, you can order through Amazon, Walmart or eBay with below links,
Amazon:
2 PC RB85 Round Base Magnet with 120 LB Pulling Force, Magnetic Cup Magnets
eBay:
4 PC RB85 Pot Magnets 120 LB Pulling Force Each
Warranty
This magnet includes a 10-year warranty for its magnetic strength, provided it is used under normal conditions. Usage in environments with elevated temperatures, significant vibration, or intense opposing magnetic fields will render this warranty null and void. It is also not suitable for use outdoors or in areas with high humidity or salt content, unless additional protective insulation measures are implemented.Product Videos
