12 LB Holding Power Ceramic Cup Magnet 1.26" Magnetic Round Base RB30

SKU:
RB30
Brand:
Weight:
0.60 Ounces
Availability:
Usually ships in the next business day
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
MSRP:
$3.10
Your Price:
$1.06 (You save $2.04)


Description

This ceramic cup magnet has a holding power of 12 lbs. It is made under ISO 9001 quality systems and of the top quality ceramic magnet.

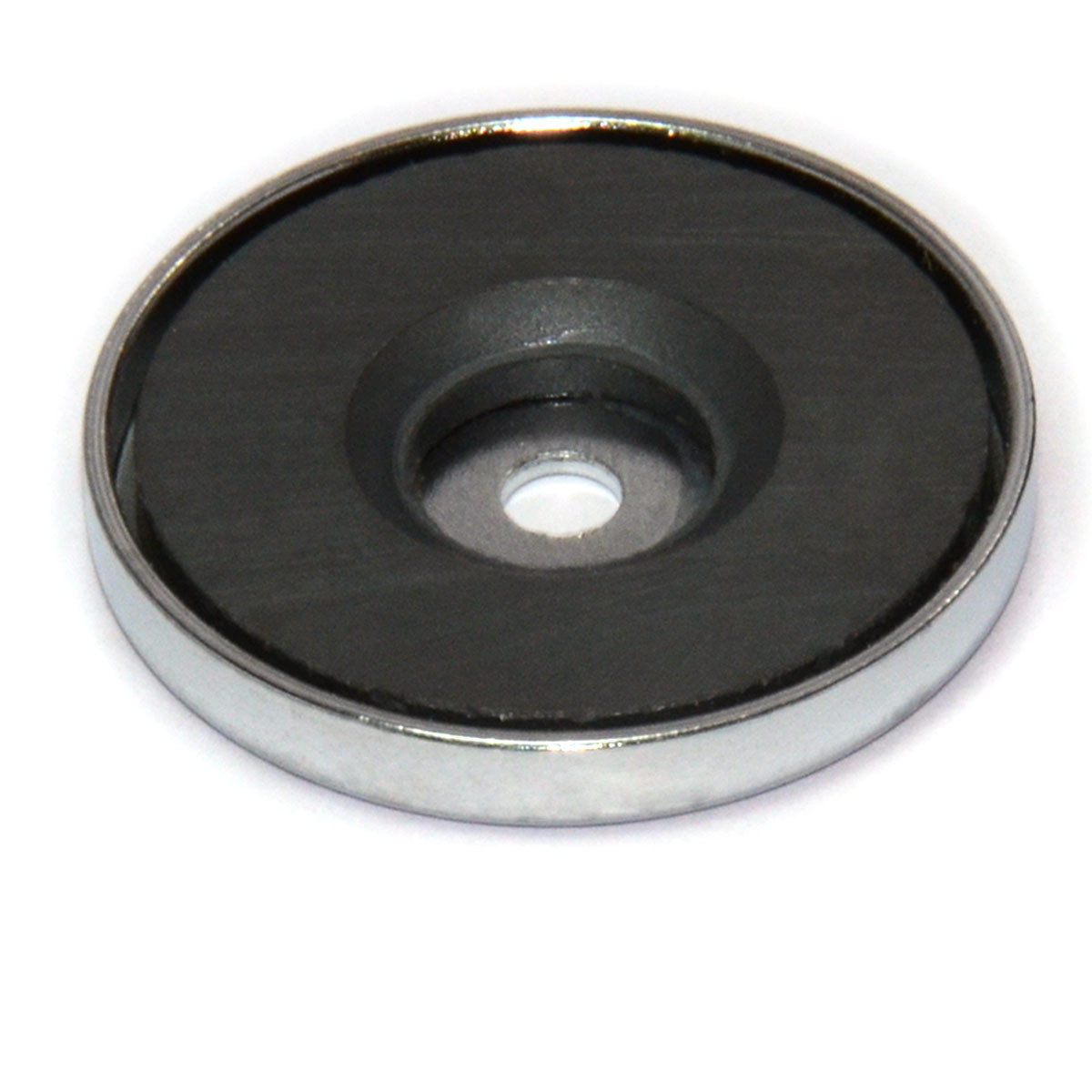

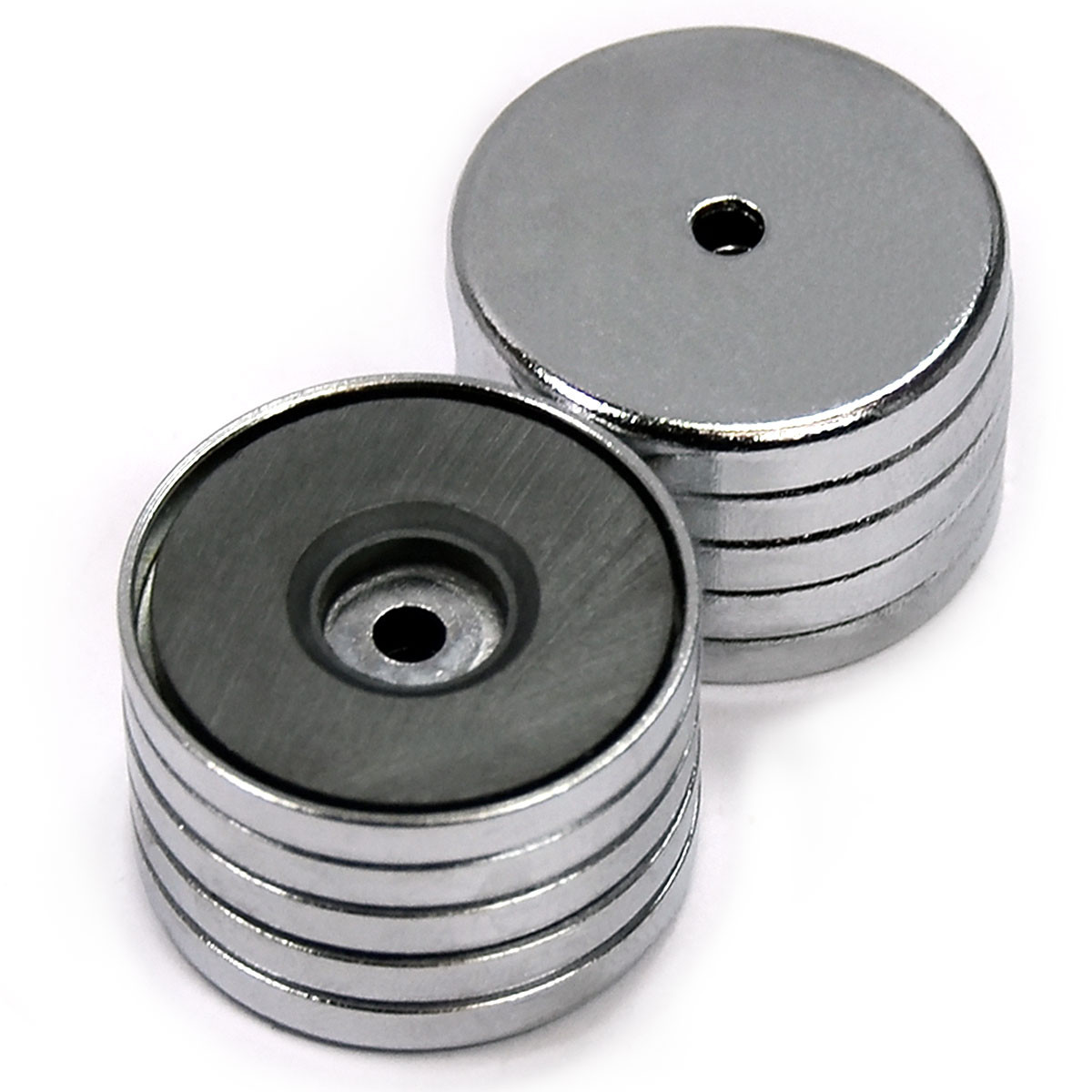

This listing includes one piece of ceramic cup magnet made of ceramic magnet ring and a chrome plated steel cup. The ceramic ring magnet is bonded inside of the cup with adhesive. This arrangement greatly increases the holding power of the magnet and at the same time provides the protection to the magnet so it becomes much more durable.

The holding power of this magnetic assembly is about 15 LBS with a direct contact with steel. The outer diameter of the magnet is 1.26" (32mm). The mounting hole in the center is 0.15" (3.81mm) which allows a #8 screw pass through. The total thickness of the assembly is 0.18" (4.57mm).

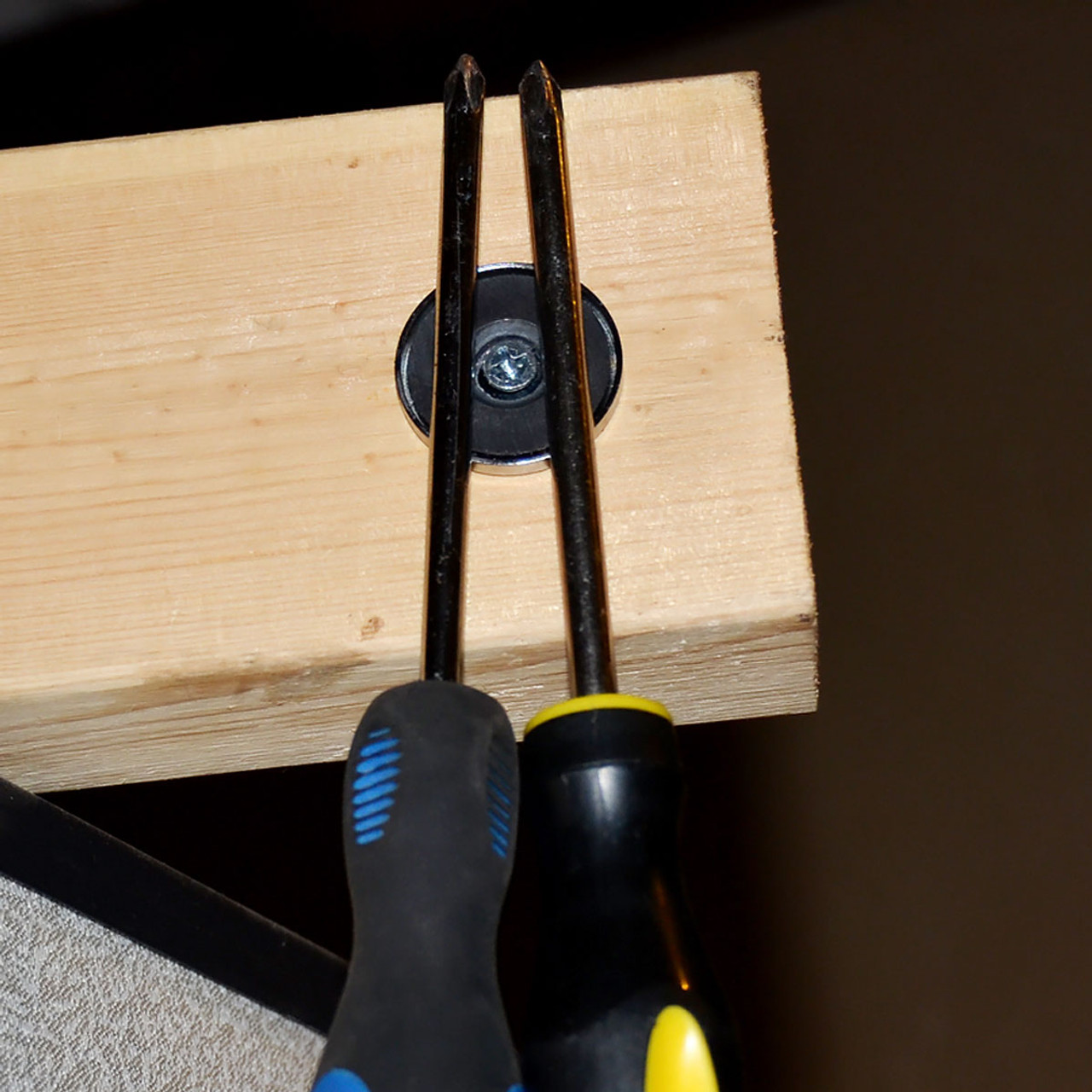

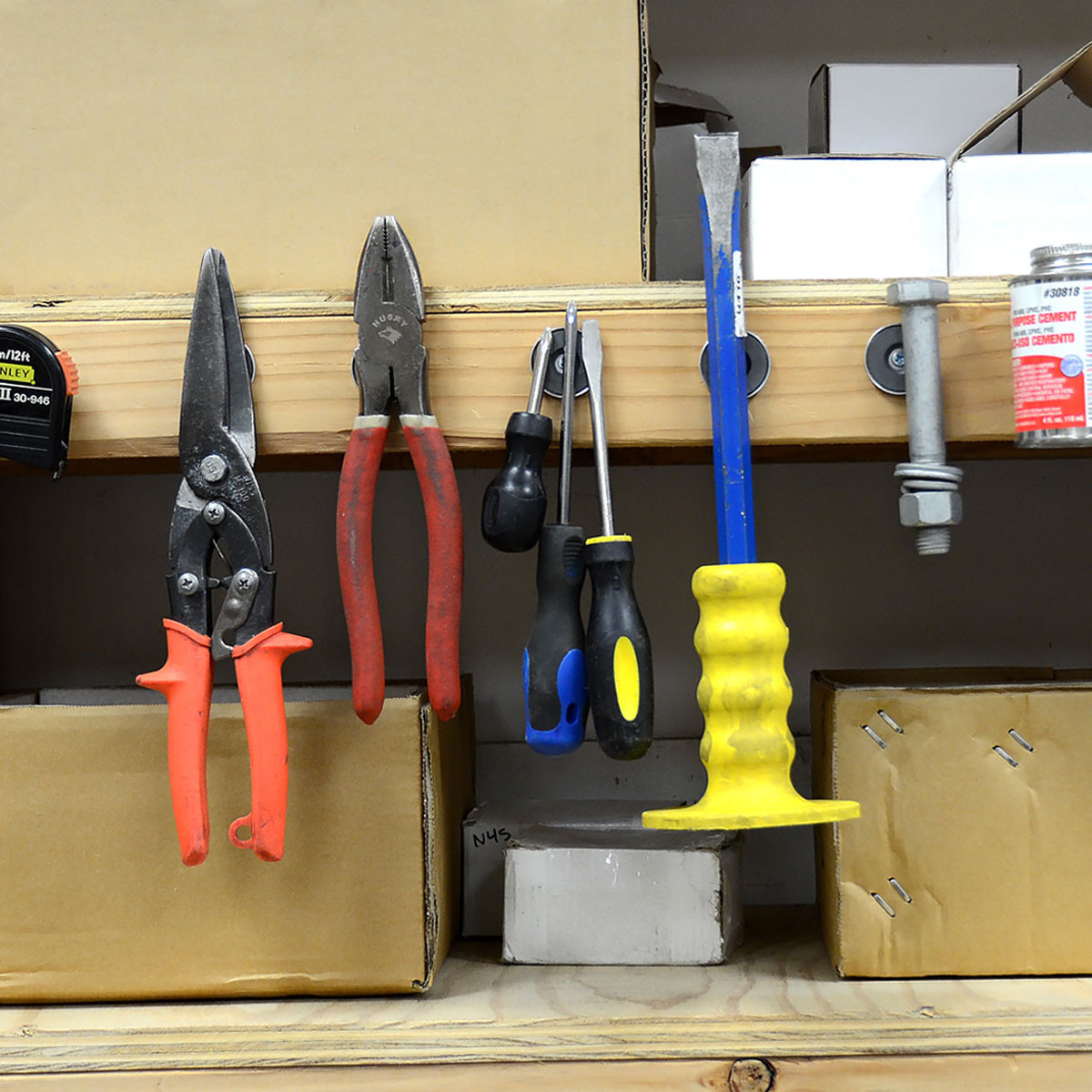

The applications of this cup magnet include magnetic holding, lifting, antenna Mounting, positioning, retrieving and much more.

The cup magnet is also known as magnetic cup holders, magnetic round base or cup assembly.
